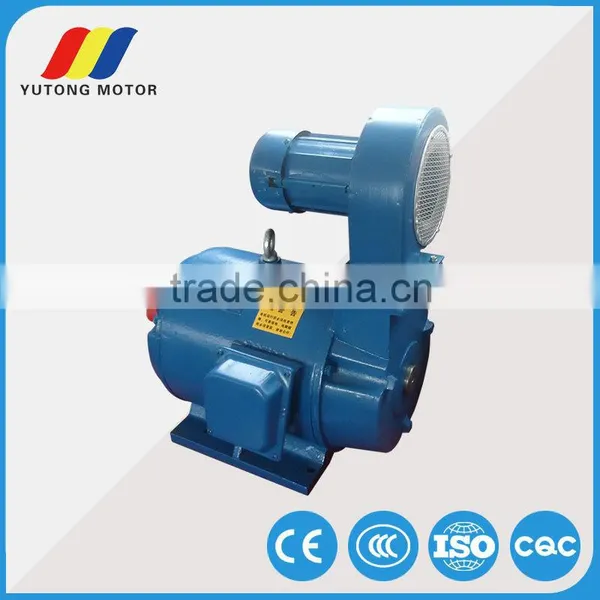

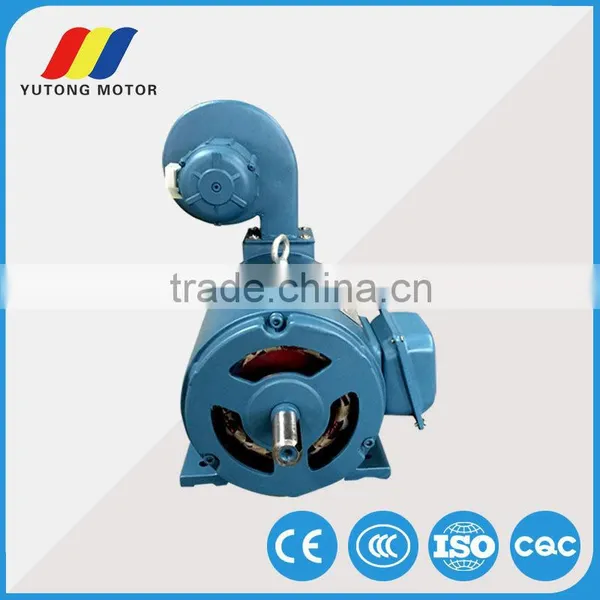

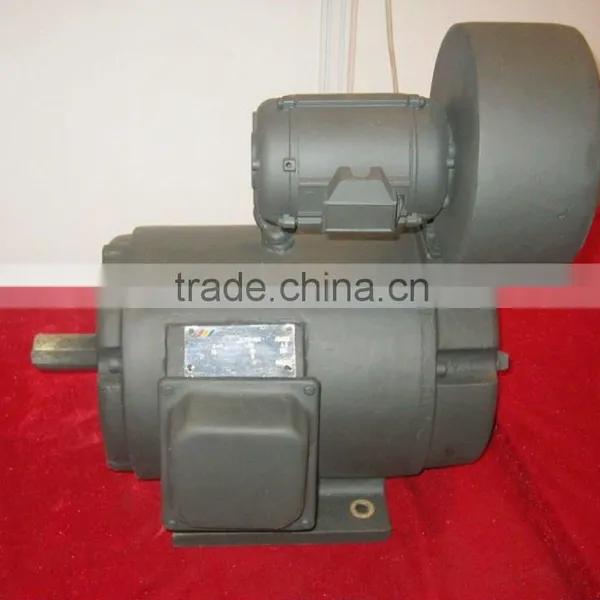

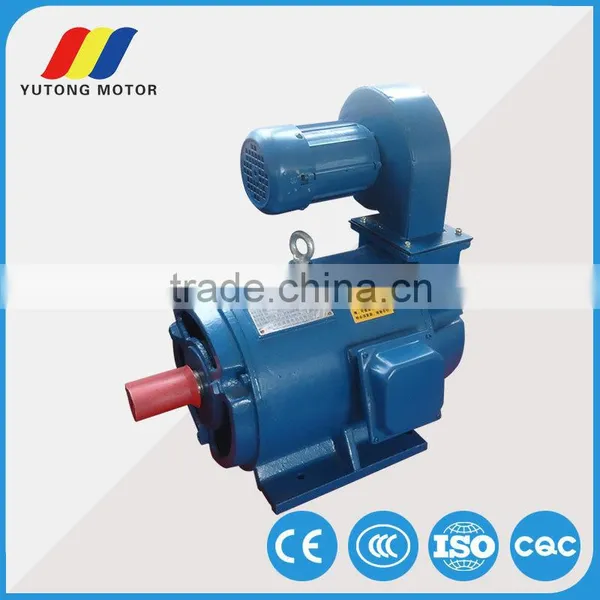

YLJ series three phase ac torque motor
Torque Motor description:
YLJ series torque three-phase induction motors have such special electrical performance as soft mechanical properties, excellent linearity, and wide range of velocity modulation. The velocity decreases and the motor torque grows as the load increases. Small changes in load can well result in correspondent changes in velocity. Tiny changes in the voltage of the power supply can lead to corresponding changes in velocity and motor torque. YLJ is an ideal step-less voltage variable speed regulating motor.
The motor possesses such advantages as optimal structure, reliable operation, easy installation and maintenance, simple controlling circuit and easy handling. It can be used as the power source of the equipment for reeling in threads, opening rolls, velocity modulation, etc., in paper-making, textile, electric wires and cables, rubber, plastics and the processing of metal wire materials
Torque motor technical parameter:
| Type | N.m | Poles | Type | N.m | Poles |
| YLJW90-2/2 | 2 | YLJ112-6/4 | 6 | 4 | |
| YLJW90-3/2 | 3 | 2 | YLJ112-10/4 | 10 | |
| YLJW100-4/2 | 4 | YLJ112-6/6 | 6 | 6 | |
| YLJW112-6/2 | 6 | YLJ112-10/6 | 10 | ||
| YLJW56-0.2/4 | 0.2 | YLJ132-16/4 | 16 | ||
| YLJW63-0.3/4 | 0.3 | 4 | YLJ132-25/4 | 25 | 4 |
| YLJW63-0.5/4 | 0.5 | YLJ132-40/4 | 40 | ||
| YLJW63-0.8/4 | 0.8 | YLJ132-16/6 | 16 | ||
| YLJW63-0.8/8 | 0.8 | 8 | YLJ132-25/6 | 25 | 6 |
| YLJW71-1/4 | 1 | 4 | YLJ132-40/6 | 40 | |
| YLJW71-1.2/6 | 1.2 | 6 | YLJ160-60/4 | 60 | |
| YLJW71-1.2/8 | 1.2 | 8 | YLJ160-80/4 | 80 | 4 |
| YLJW71-1.6/4 | 1.6 | 4 | YLJ160-100/4 | 100 | |
| YLJW71-1.5/8 | 1.5 | 8 | YLJ160-60/6 | 60 | |
| YLJW80-2/4 | 2 | 4 | YLJ160-80/6 | 80 | 6 |
| YLJW-2.5/4 | 2.5 | YLJ160-100/6 | 100 | ||
| YLJW80-2.5/6 | 2.5 | 6 | YLJ180-125/4 | 125 | |
| YLJW80-2.5/8 | 2.5 | 8 | YLJ180-160/4 | 160 | 4 |
| YLJW90-3/4 | 3 | 4 | YLJ180-200/4 | 200 | |
| YLJW90-3/6 | 3 | 6 | YLJ180-125/6 | 125 | |
| YLJW90-3/8 | 3 | 8 | YLJ180-160/6 | 160 | 6 |
| YLJW90-4/4 | 4 | 4 | YLJ180-200/6 | 200 | |
| YLJW90-4/6 | 4 | 6 | |||
| YLJW100-5/4 | 5 | 4 | Controller | ||
| YLJW100-4/6 | 4 | 6 | 10A | ||
| YLJW100-5/8 | 5 | 8 | 25A | ||
| YLJW112-6/4 | 6 | 4 | 35A | ||
| YLJW112-6/6 | 6 | 6 | 55A | ||
| YLJW112-6/8 | 6 | 8 | 100A | ||
| YLJW100-5/6 | 5 | 6 | 150A | ||
Packing: Small size:standard export packing(carton and plled) Big size:fumigated wood carton or non-wood packing material carton
Shipping: by sea ,by air,by rill way

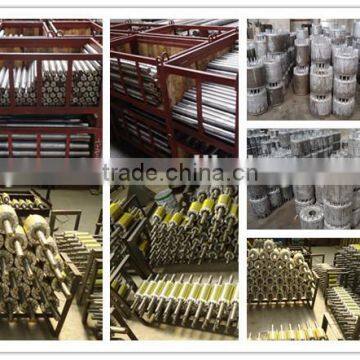

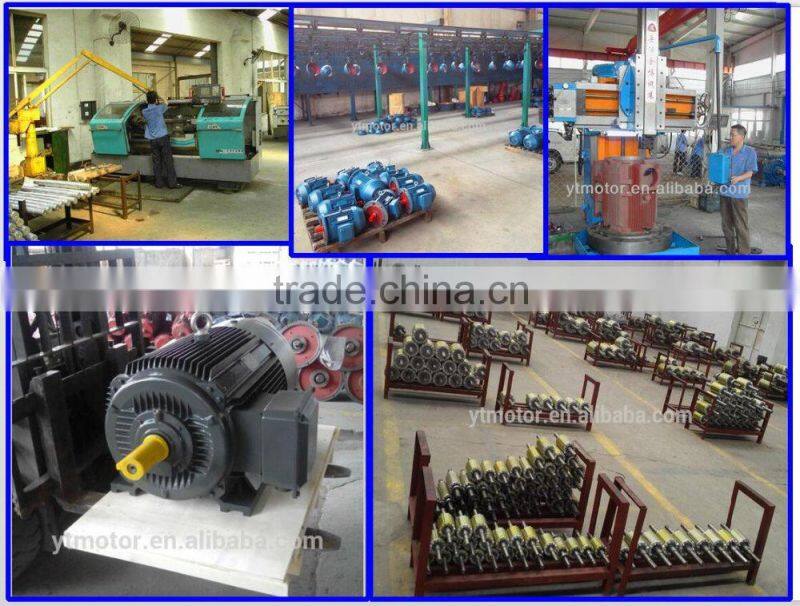

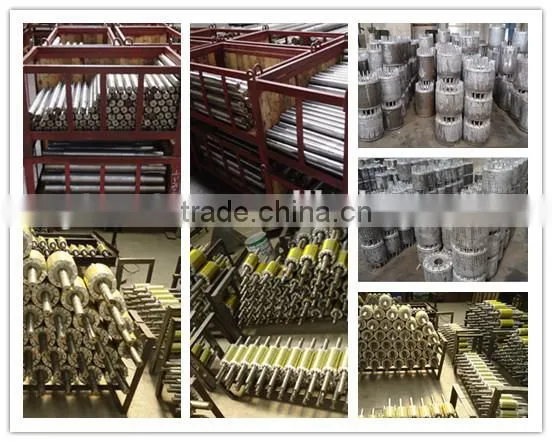

Torque motor manufacturing process:
• Stamping of lamination
• Rotor die-casting
• Winding and inserting – both manual and semi-automatically
• Vacuum varnishing
• Machining shaft, housing, end shields, etc…
• Rotor balancing
• Painting – both wet paint and powder coating
• Motor assembly
• Packing
• Inspecting spare parts every processing
• 100% test after each process and final test before packing

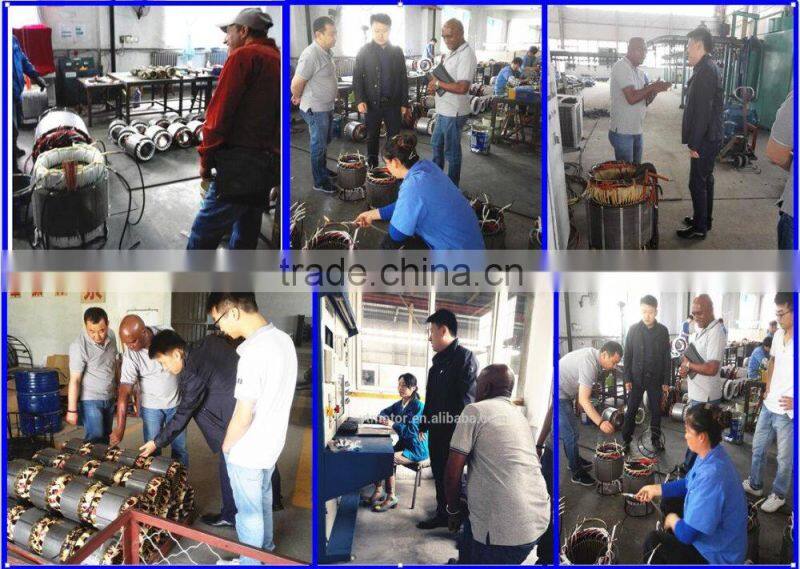

Exhibition:
Serivce:
•We respect your feedback after receive the goods.
•We provide 24 monthes warranty after goods arrive.
•We promise all spare parts available in lifetime use.
•We loge your complain within 48hours.
A:What is your MOQ of this item ?
B:10 pcs per item.
A:What is our lead time ?
B:25-30 days.
A:What is your payment?
B:T/T, L/C at sight, D/P at sight, Paypal,
A:Can we type our brand on it ?
B:Yes of course.
A:Where is your loading port ?
B:Qingdao port.
A:What is your company's available production capacity ?
B:About 1000 PCS per day.
