Specifications
1.three-phase asynchronous torque2.ISO9001 ,CCC, CE, China Energy Conservation Certification
3.A variety of models
YLJ series three phase asynchronous torque motor
Product Description
YLJ series torque three-phase induction motors have such special electrical performance as soft mechanical
properties, excellent linearity, and wide range of velocity modulation. The velocity decreases and the motor
torque grows as the load increases. Small changes in load can well result in correspondent changes in velocity.
Tiny changes in the voltage of the power supply can lead to corresponding changes in velocity and motor torque.
YLJ is an ideal step-less voltage variable speed regulating motor.
Application
The motor possesses such advantages as optimal structure, reliable operation, easy installation and maintenance,
simple controlling circuit and easy handling. It can be used as the power source of the equipment for reeling in threads,
opening rolls, velocity modulation, etc., in paper-making, textile, electric wires and cables, rubber, plastics
and the processing of metal wire materials.
Work Condition
ambient temperature : below 40°C
altitude : lower than 1000m
Voltage: three-phase AC 380V, 50Hz
The motor adopts s9 non-cycle duty with continuous speed variation.
The protection class of YLJW is IP44, YLJ is IP21.
Packaging and Delivery
Packaging detail: plywood boxes based on international standard
Delivery detail: 5~30 days after payment receipt
Data Sheet
| Type | No Of Poles (N.m) | Starting Current (A) | min |
| YLJW63-0.5/4 | 0.5 | 0.35 | 30 |
| YLJW63-0.5/6 | 0.5 | 0.35 | |
| YLJW63-1/6 | 1 | 0.7 | |
| YLJW63-1/8 | 1 | 0.7 | |
| YLJW71-1/4 | 1 | 0.7 | 20 |
| YLJW71-1.5/4 | 1.5 | 0.85 | |
| YLJW71-0.5/8 | 0.5 | 0.35 | |
| YLJW71-0.7/8 | 0.7 | 0.5 | |
| YLJW80-2/4 | 2 | 1.2 | 15 |
| YLJW80-2.5/4 | 2.5 | 1.45 | |
| YLJW80-1.5/6 | 1.5 | 0.85 | |
| YLJW80-2/6 | 2 | 1.2 | |
| YLJW80-1/8 | 1 | 0.7 | |
| YLJW80-1.5/8 | 1.5 | 0.85 | |
| YLJW90-2/2 | 2 | 1.2 | |
| YLJW90-3/2 | 3 | 3 | |
| YLJW90-3/4 | 3 | 1.5 | |
| YLJW90-3.5/4 | 3.5 | 1.9 | |
| YLJW90-2.5/6 | 2.5 | 1.35 | |
| YLJW90-3/6 | 3 | 1.5 | |
| YLJW90-2/8 | 2 | 1.2 | |
| YLJW90-2.5/8 | 2.5 | 1.4 | |
| YLJW100-4/2 | 4 | 2 | |
| YLJW100-4/4 | 4 | 2 | |
| YLJW100-5/4 | 5 | 2.8 | |
| YLJW100-3.5/6 | 3.5 | 1.8 | |
| YLJW100-4/6 | 4 | 2 | |
| YLJW100-3/8 | 3 | 1.5 | |
| YLJW100-3.5/8 | 3.5 | 1.8 | |
| YLJW100-5/6 | 5 | 2.8 | |
| YLJW100-5/8 | 5 | 2.5 |

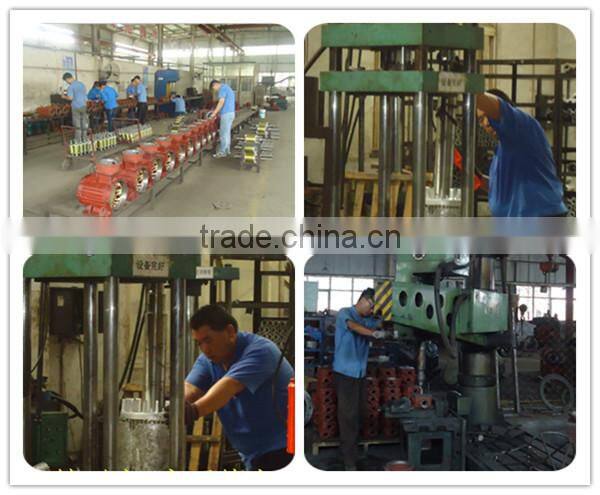

Pictures of product
Introduction of Yutong
Henan Yutong Electric Motor Shares Company is the largest processional manufacturer of universal electric motor and vibration motor in Henan Province , located in the North of China with CNY 21.68 million registered capital, more than 500 employees , over 50,000m² production area and 3,000 m² building proportion.
Our products are sold to all over the world include Henan, Shandong, Shanxi, Hebei , Sichuan etc. in China and to overseas countries like Indonesia, Chile, Thailand, Russia, South Africa, the United Arab Emirates and other countries.The survival and development of our company are based on quality and reputation. Thus , we get the recognition and praise of the majority of users.
Welcome to visit ! We should be grateful for your trial order !
