IP55 200kw three phase expolsion proof induction motor
- 10000 Set / Sets per Month
- Qingdao/Tianjin/Shanghai/Ninbo/As quested
- T/T Credit Card
- Replacement of Derrick electric vibrator motor
- MPL-A430H-MK24AA rotary servo motor MPL-A430H-MK24AA
- MPL-A420P-MK24AA Servo Motor MPL-A4530F-HK22AA MPL-A4530F-HK24AA MPL-A4530F-MJ22AA
- MPL-A420P-MK24AA Servo Motor MPL-A4540C-MK24AA MPL-A4540C-SJ22AA MPL-A4540C-SJ24AA
- Allen-Bradley MPL-A330P-HJ24AA Servo Motor
- Allen-Bradley MPL-A430H-SK24AA Servo Motor
Product Details
Brand Name: | YUTONG | Model Number: | YB3 | Type: | Asynchronous Motor |
Frequency: | 50HZ/60HZ | Output Power: | 0.55KW-200KW | Protect Feature: | Explosion-proof |
Phase: | Three-phase | Certification: | CCC, CE, Other, CCC, CE, IS9001 2008 | AC Voltage: | Other, 380V/660V 660V/1140V/as request |
Place of Origin: | Henan, China | Efficiency: | IE 3 |
Product Description

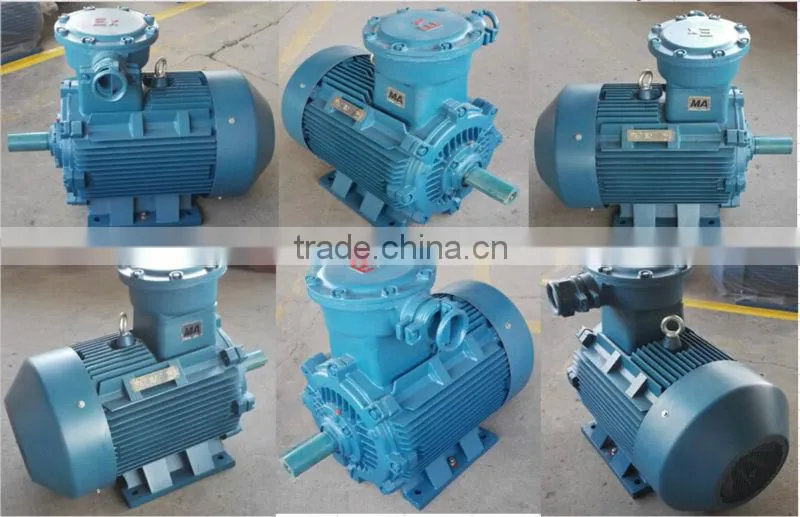

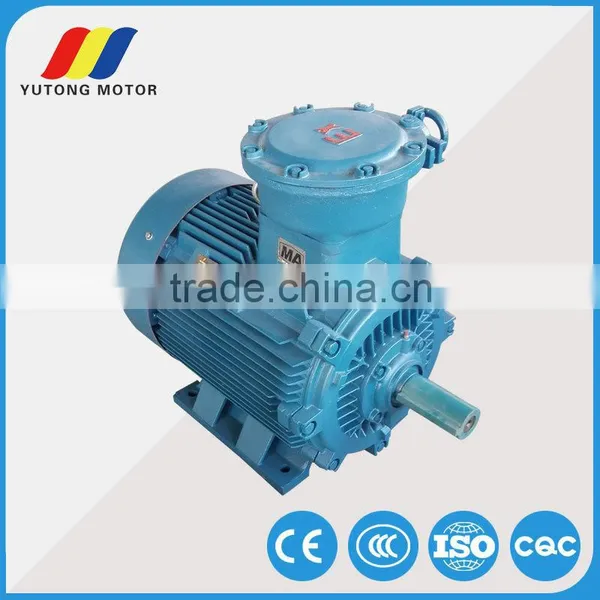

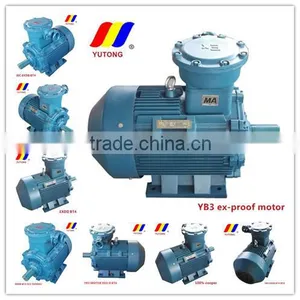

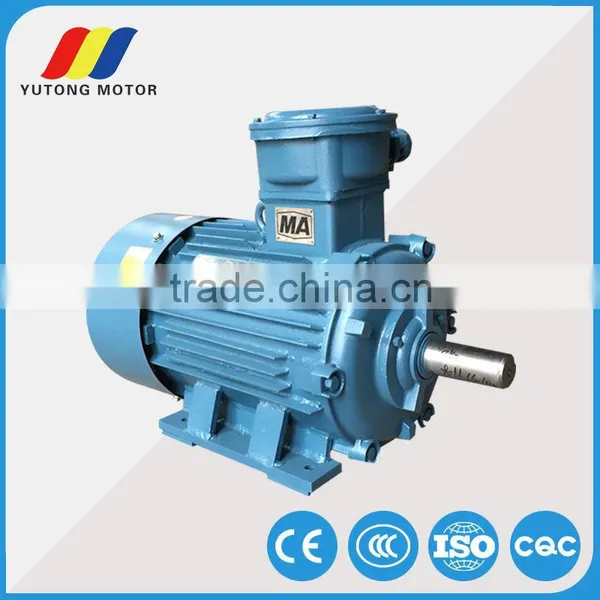

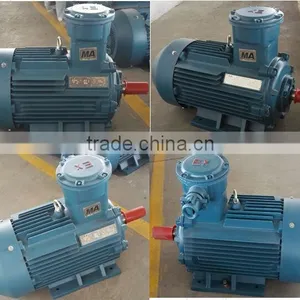

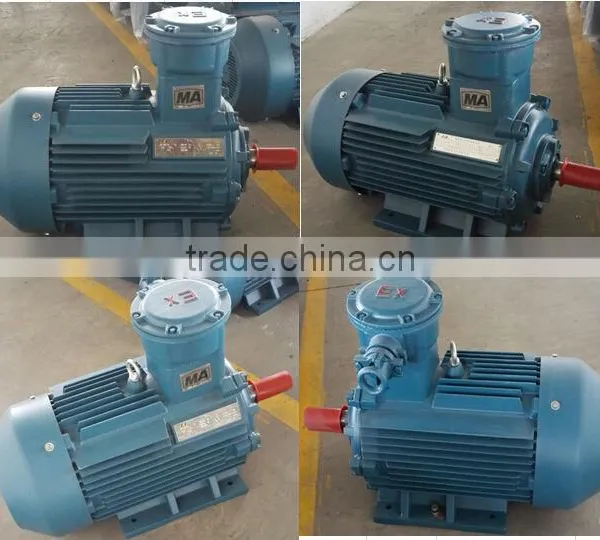

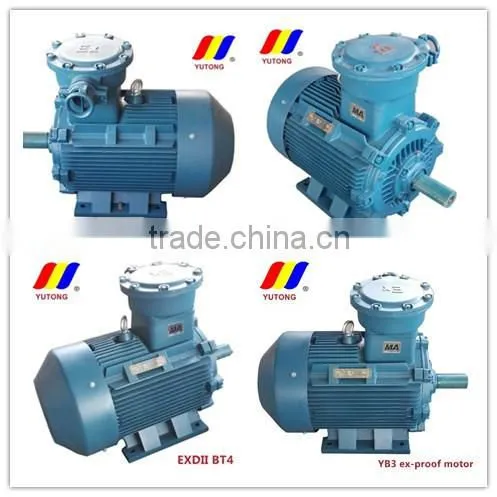

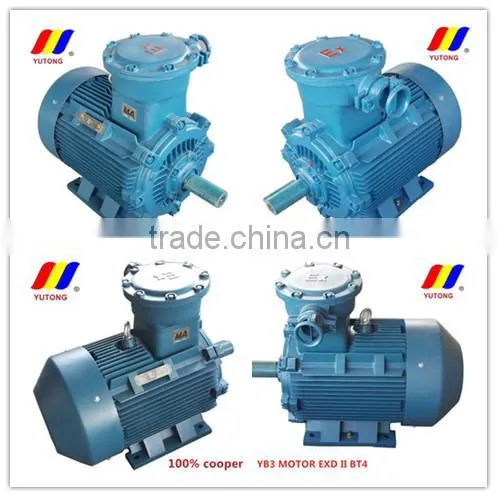

YB3 Explosion Proof motor
YB3 Explosion-Proof Motor description:
YB3 series explosion-proof three-phase asynchronous motors are latest products developed by our company combining with home and abroad electromagnetic structure, technique and material etc based on YB and YB2 series of motors. This series of motors have many merits,such as high-efficiency, energy conservation, big margin of temperature rise, long service life, excellent performance, low noise,advanced explosion-proof structure, high reliability and convenient operation and maintenance etc. The efficiency index of this series motors conforms to the energy efficiency grades 2 of specified in GB18613-2006 Minimum allowable values of energy efficiency and the energy efficiency grades for small and medium three-phase asynchronous motors. Power class and the installation dimensions accord with IEC standard , also completely are as same as YB and YB2 series three-phase induction motors.
YB3 explosion-proof induction motor feature:
1) fully sealed
2) Quiet operation
3) Corrosion resistant
4) high stall torque
5) Very low vibration
6) Very low power consumption
7) fan-cooled,
8) squirrel cage structure
YB3 induction-proof induction motor conditions:
1, Frame Size: 63-355 MM;
2, Rated Output: 0.12-315 KW or 0.10-420 HP;
3, Rated Voltage: 220/380V, 380/660 V or to be your request;
4, Rated Frequency: 50 Hz,60 Hz,50 Hz / 60 Hz;
5, Poles: 2 / 4 / 6 / 8 / 10 ;
6, Speed: 590 —2980 r/min
7, Ambient Temperature: -15°C—40°C
8, Model of CONEECTION: Y-Connection for 3 KW motor or less while Delta-Connection for 4 KW motor or more;
9, Mounting: B3; B35; B34; B14; B5; V1;
10, Current: 0.43—556.2 A (AC);
11, Duty: continuous (S1);
12, Insulation Class: B / F;
13, Protection Class: IP54 / IP55;
14, Cooling Method: ICO 141 Standards;
15, Altitude: No more than 1,000 meters above sea level;
16, Packing: 1pc in a Strong carton several cartons on a Pallet.

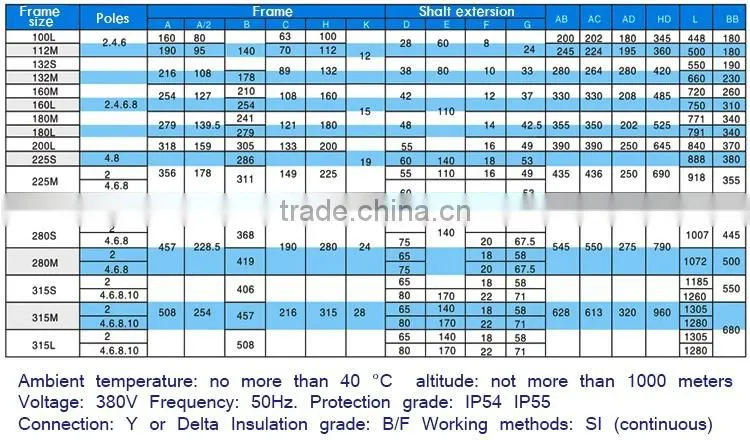

YB3 induction-proof induction motor main technical parameter:
Type | power | speed | rated current | weight | Type | power | speed | rated current | weight |
kw | r/min | A | kg | kw | r/min | A | kg | ||
YB3-80M1-2 | 0.75 | 2825 | 1.77 | 43 | YB3-100L-6 | 1.5 | 940 | 3.78 | 89 |
YB3-80M2-2 | 1.1 | 2826 | 2.43 | 46 | YB3-112M-6 | 2.2 | 940 | 5.42 | 106 |
YB3-90S-2 | 1.5 | 2840 | 3.23 | 52 | YB3-132S-6 | 3 | 960 | 7.25 | 112 |
YB3-90L-2 | 2.2 | 2840 | 4.59 | 55 | YB3-132M1-6 | 4 | 9.54 | 118 | |
YB3-100L-2 | 3 | 2880 | 6.04 | 71 | YB3-132M2-6 | 5.5 | 12.75 | 120 | |
YB3-112M-2 | 4 | 2890 | 8.03 | 89 | YB3-160M-6 | 7.5 | 970 | 16.41 | 178 |
YB3-132S1-2 | 5.5 | 2900 | 10.72 | 105 | YB3-160L-6 | 11 | 23.51 | 202 | |
YB3-132S2-2 | 7.5 | 2900 | 14.31 | 112 | YB3-180L-6 | 15 | 30.92 | 258 | |
YB3-160M1-2 | 11 | 2930 | 20.75 | 161 | YB3-200L1-6 | 18.5 | 37.92 | 335 | |
YB3-160M2-2 | 15 | 2930 | 28.05 | 174 | YB3-200L2-6 | 22 | 44.31 | 362 | |
YB3-160L-2 | 18.5 | 2930 | 34.4 | 193 | YB3-225M-6 | 30 | 980 | 60.83 | 470 |
YB3-180M-2 | 22 | 2940 | 40.74 | 253 | YB3-250M-6 | 37 | 71.96 | 605 | |
YB3-200L1-2 | 30 | 2950 | 55.13 | 333 | YB3-280S-6 | 45 | 85.02 | 730 | |
YB3-200L2-2 | 37 | 2950 | 67.7 | 351 | YB3-280M-6 | 55 | 103.59 | 840 | |
YB3-225M-2 | 45 | 2970 | 81.98 | 462 | YB3-315S-6 | 75 | 985 | 142.31 | 1242 |
YB3-250M-2 | 55 | 99.88 | 530 | YB3-315M-6 | 90 | 168.25 | 1313 | ||
YB3-280S-2 | 75 | 135.34 | 720 | YB3-315L1-6 | 110 | 206.96 | 1508 | ||
YB3-280M-2 | 90 | 161.72 | 837 | YB3-315L2-6 | 132 | 245.47 | 1610 | ||
YB3-315S-2 | 110 | 2980 | 195.47 | 1265 | YB3-90L-8 | 0.55 | 710 | 2.07 | 56 |
YB3-315M-2 | 132 | 2980 | 233.58 | 1335 | YB3-100L-8 | 0.75 | 2.36 | 72 | |
YB3-315L-2 | 160 | 2980 | 280.01 | 1556 | YB3-100L2-8 | 1.1 | 3.32 | 90 | |
YB3-315L1-2 | 185 | 2980 | 323.76 | 1730 | YB3-112M-8 | 1.5 | 4.4 | 106 | |
YB3-315L2-2 | 200 | 2980 | 350.01 | 1840 | YB3-132S-8 | 2.2 | 5.8 | 114 | |
YB3-80M1-4 | 0.55 | 1390 | 1.38 | 43 | YB3-132M-8 | 3 | 7.71 | 118 | |
YB3-80M2-4 | 0.75 | 1390 | .85 | 46 | YB3-160M1-8 | 4 | 720 | 10.28 | 152 |
YB3 explosion-proof motor Packaging:
Packing:fumigation wooden case or customer request
Shipping: by sea ,by air,by rill way
Company information:
Services:
Guarrantee and after sale service :
One year guarantee for the whole machine
24hours technical support by email
24 hours online service
Instruction in English language
User manual in PDF and Printed copy
Installation videos
Six free services including regular follow up services:
1.FREE technical enquiries
2.FREE repairs during warranty
3.FREE special services for key projects
4.FREE inspection upon delivery
5.FREE operation and repair training
6.FREE period follow-up and maintenance service
FAQ
FAQ:
How to choose our induction motor? 1.please indicate the motor type,vibratingforce,rated output,rated voltage,rated frequency,asynchronous speed,Explosion proof Mark,mounting type,rotation direction(view from the shaft extension side)Use of the environment(indoor or outside).
2.when user have special requirments,For example:Dispose the stator,bearing explosion proof and bearing temperature sensors,space heater,Plateau use,specical frequency,mounting size change,special output,the user must ,order can be confirm after signing the technical agreement with engneering department .
