Home > Industrial Equipment & Components > Refrigeration Equipment > Refrigeration Machinery > 360L Upright Refrigerated Showcase,Display Cooler With Fan Cooling Technical Features
360L Upright Refrigerated Showcase,Display Cooler With Fan Cooling Technical Features
US$ 250 - 300
MOQ: 1 Forty-Foot Container
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Smad OR OEM
Model Number:
LC-366W
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
40-95L Four Side Glass Door Cooling Freestanding Showcase, Cake CoolerNegotiableMOQ: 262 Units -
Commercial Deep Freezer Vertical Mini Freezer Display Freezer Quality ChoiceUS$ 100 - 200MOQ: 81 Pieces
-
Refrigerated Beverage Cooler, Refrigerated Display Cabinet ShowcaseUS$ 130 - 450MOQ: 1
-
1000L Comercial Three Door Display Upright Beverage CoolerUS$ 130 - 450MOQ: 1 Twenty-Foot Container
-
Vertical Single Glass Door Display Freezer Showcase for SupermarketUS$ 180 - 400MOQ: 100 Units
Place of Origin
Shandong, China
Brand Name
Smad OR OEM
Model Number
LC-366W
Type
Display Cooler
Style
Single-temperature
Certification
CE
Capacity
360L
Temperature
0~10
Climate Type
N/SN/T/ST
Refrigerant
R134a/R600a
Product Description
Product Show

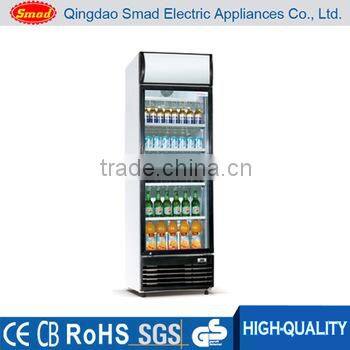

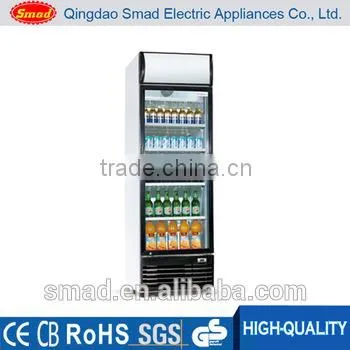

1.Pictures of Fan Cooling showcase
2.The specifications
| MODEL | LC286W | LC366W | LC396W | |
| System | Net (Liters) | 280 | 360 | 390 |
| Net (CB FEET) | 9.9 | 12.7 | 13.8 | |
| Cooling system | Fan cooling | Fan cooling | Fan cooling | |
| Auto-Defrost | Yes | Yes | Yes | |
| Control system | Electronic | Electronic | Electronic | |
| Dimensions | External Dimension WxDxH (mm) | 540*580*1896 | 660*610*1940 | 660*610*2140 |
| Internal Dimension WxDxH (mm) | 45*470*1305 | 565*500*1320 | 565*500*1420 | |
| Packing Dimensions WxDxH(mm) | 640*645*1961 | 715*677*2005 | 715*677*2205 | |
| Weight net /Weight gross (kg) | 68/75 | 90/97 | 99/107 | |
| 40' HQ Container | 72 | 68 | 51 | |
| Doors | Glass Door type | Hinge door | Hinge door | Hinge door |
| Door frame, door handle material | PVC | PVC | PVC | |
| Glass type, (tempered)* | Normal | Normal | Normal | |
| Door Auto Closing | For option | For option | For option | |
| LOCK | YES | YES | YES | |
| Insulation (CFC-free) | Type | Iso/Cyclopentane | Iso/Cyclopentane | Iso/Cyclopentane |
| Dimensions (mm) | 55(average) | 55(average) | 55(average) | |
| Equipment | Adjustable shelves (pcs) | 4 | 4 | 4 |
| Rear Wheels (pcs) | 2 | 2 | 2 | |
| Front feet/Wheels | 2 Feet | 2wheels | 2wheels | |
| Internal light vert./hor.* | Vertical*1 | Vertical*1 | Vertical*1 | |
| Specification | Voltage/frequency | 220~240V/50HZ | 220~240V/50HZ | 220~240V/50HZ |
| Power consumption (w) | 183 | 240 | 240 | |
| Amp. Consumption (A) | 1.9 | 2.1 | 2.2 | |
| Energy consumption (kWh/24h) | 1.8 | 1.8 | 2.0 | |
| Cabinet Tem. 0C | 0~10'C | 0~10'C | 0~10'C | |
| Climate Class | N/ST | N/ST | N/ST | |
| Temperature digital screen | For option | For option | For option | |
| Max. Ambient Temp. 0C | 38'C | 38'C | 38'C | |
| Components | Refrigerant (CFC-free) gr | R134a | R134a | R134a |
| Outer Cabinet | Pre-painted steel | Pre-painted steel | Pre-painted steel | |
| Inside Cabinet | PS | PS | PS | |
| Condenser | Forced Fan Cool | Forced Fan Cool | Forced Fan Cool | |
| Evaporator | Copper fins | Copper fins | Copper fins | |
| Certification | CE | CE | CE |
3, More similar models for your choose
4. More Products for You to Choose
Company Show:
1. About us
Qingdao Smad Electric Appliances Co., Ltd. (SMAD) was set up in 1999 and rebuilt in 2003. After many years of hard work, we have become a normalized and professional enterprise. Now SMAD has a staff of 600 persons and an annual output of 350 million Yuan. The development of SMAD is among the fastest in the field. The production capacity has grown over 100% for 3 years since we were founded. The sales of SMAD have increased doubly year by year.
SMAD is always ready to supply customers with excellent products and satisfying services, and warmly welcome you to cooperate with us for a brighter future.
2. Why Choose Smad?
- Huge Selection. We offer a wide range of household appliances.You can find all kinds of electric appliance you need.
- Availability in stock. We used to work not only qualitatively but also fast, so most positions catalog are constantly available. And you do not have to wait long for your order.
- Individual approach and flexible system of discounts. Every client is very important for us, so we are ready to discuss with you any comments and suggestions, as well as provide you with the most favorable purchase terms and conditions.
- Product quality. All products of our company are certified and continuous quality control.
- Environmental friendliness. Our power supplies are made from environmentally friendly materials and absolutely safe for your health.
3. Certifications:
4. Our Markets
√ North America √ South America
√ Western Europe √ Eastern Europe
√ Eastern Asia √ Southeast Asia
√ Middle East √ Africa
√ Oceania
5.FAQ:
| Questions | Answers | |
| 1 | what is the MOQ? | 1*40HQ usually |
| 2 | what is the delivery time | within 45days for first order, 35 days for repeat orders. |
| 3 | what is the payment terms? | 1.T/T: 30% as deposit, balance before shipment |
| 2.L/C:100% L/C irrevercable at sight | ||
| 3.Negotiable | ||
| 4 | What is the gurantee of your products? | We offer 2 years for the whole unit and 3 years for main parts. We can send the parts free on condition that there is any breakdown with convincing evidence |
| 5 | what is the packing of the products? | Strong export carton |
| 6 | Can you do our brand? | Yes, we can. |
| 7 | what is the material of the logo | As customer's requirement |
| 8 | Which kind of voltage and frequeency is available | 220V/50HZ& 110V/60Hz 220V/60HZare available, OR others as customer's requirement. |
| 9 | Can you do our country's plug? | Yes,we can |
| 10 | Can you make the printing artworks(such as user manual/packing/rating label) in our language? | Yes we can. |
| 11 | Can you offer CKD/SKD for your products? | Yes, we can do CKD/SKD. |
| 12 | Can we order samples? | Yes, Sample is available |
| 13 | how about your after-sales service? | In general,we will provide 1% spare parts for free together with your bulk products and according to our experience ,they are enough for you. |
