3D Sublimation Heat Press Machine for Phone Cases Mugs Cups Heat Transfer+Gifts

3D Sublimation Heat Press Machine for Phone Cases Mugs Cups Heat Transfer+Gifts photo-1
3D Sublimation Heat Press Machine for Phone Cases Mugs Cups Heat Transfer+Gifts photo-2
3D Sublimation Heat Press Machine for Phone Cases Mugs Cups Heat Transfer+Gifts photo-3
3D Sublimation Heat Press Machine for Phone Cases Mugs Cups Heat Transfer+Gifts photo-4
3D Sublimation Heat Press Machine for Phone Cases Mugs Cups Heat Transfer+Gifts photo-5
3D Sublimation Heat Press Machine for Phone Cases Mugs Cups Heat Transfer+Gifts photo-6
US$ 340 - 380 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Other, heat transfer
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Plate Type Other, heat transfer
Place of Origin Guangdong, China
Brand Name dglmjx
Model Number LM-V001
Usage Card Printer, Cloths Printer, Other, Card Printer, Cloths Printer, heat press
Automatic Grade Semi-Automatic
Voltage 110V/220V
Gross Power 2800W
Dimensions(L*W*H) 72*64*42cm
Weight 25KG
Certification CE Certificate

3D Sublimation Heat Press Machine for Phone Cases Mugs Cups Heat Transfer+Gifts



Note:The color (Blacl or Red) of machines will be shipped at random.Please tell us the color you want if required.





Specification Form





Model HTM-AHP-3D
Voltage 220V/110V
Power 2800W
Transferring Area 300X420X110mm (11.8"X16.5"X4.3")
Inspiratory Time 18S
Vacuum Pressure negative 0.1KPA
Temperature Range 0-250 degree Celsius
Time Range 0-999S

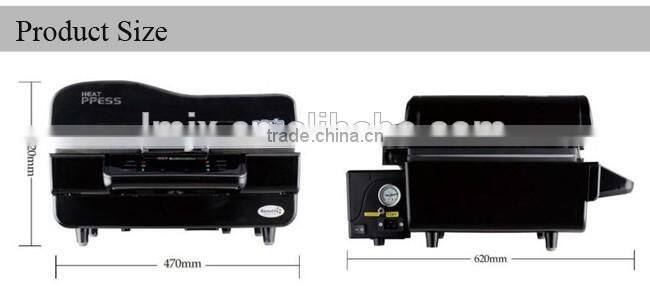

Dimesion 470X590X290mm (18.5"X23.2"X11.4")
Packing Size 720X640X420mm (28.3"X25.2"X16.5")
Gross Weight 25kg









Parameter settings for Different Sublimation Blanks





Items Quantity Temperature Time
MUGS 1pc 200 degree Celsius 360S
12pcs 200 degree Celsius 480S
Phone Case 4pcs 190 degree Celsius 360S
Round Plates 1pc 200 degree Celsius 300S
2pcs 200 degree Celsius 360S
Photo Slate 1pc 200 degree Celsius 360S
2pcs 200 degree Celsius 420S







Feature

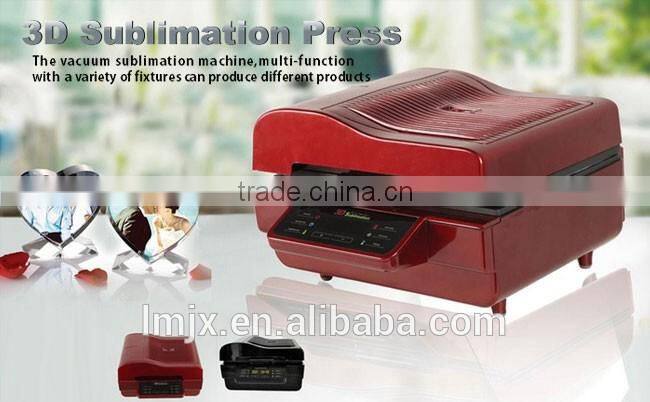

• 3d vacuum press is based on the newest sublimation technology.

• It’s made of special aluminum and iron material that is high flame-retardant and thermal-insulated.
• It uses hot rollers with vacuum sucking moulding to transfer items of three-dimensional surface one time with perfect imprint effect.
• It is designed with asperities dots on the surface of working table to enlarge the heating area, and the more dots, the more wonderful transferring image it transfers.



Used For

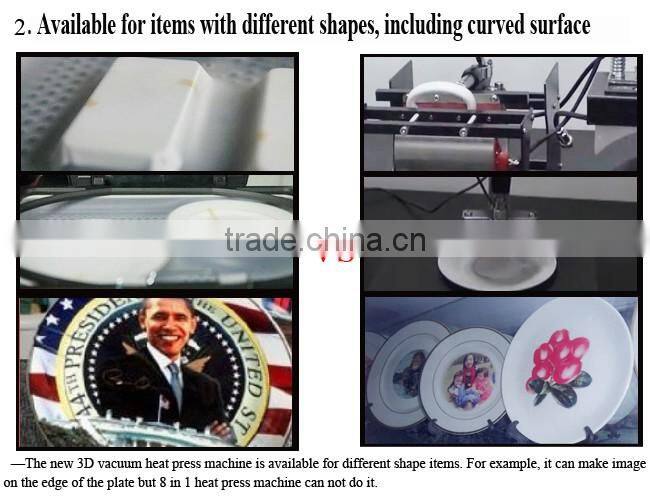

Multifunction, flat items and curved items are both ok, such as T-shirts, pillowcases, mugs, plates, metal sheets, ceramic tiles, cell phone protection cover, etc.





Benefit

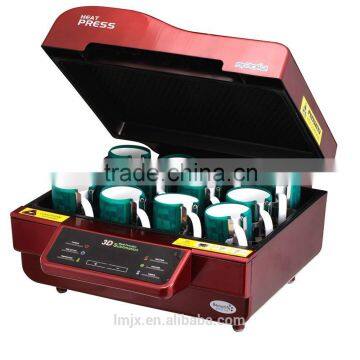

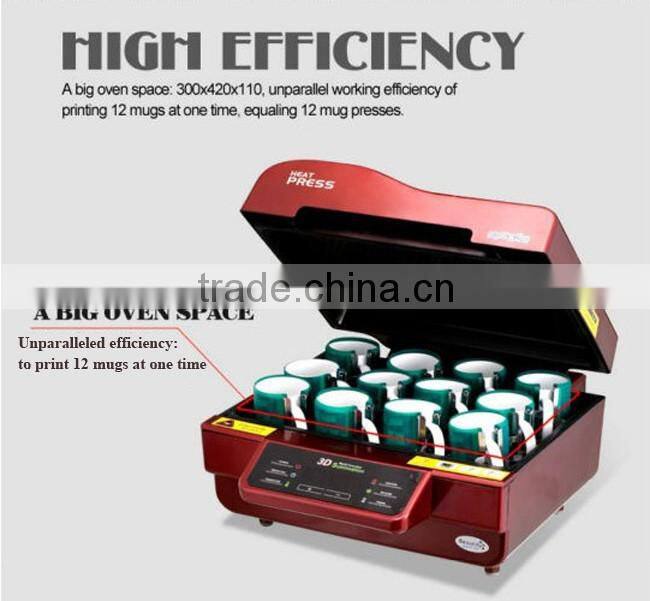

•High efficient, it can imprint 12 mugs at one time.

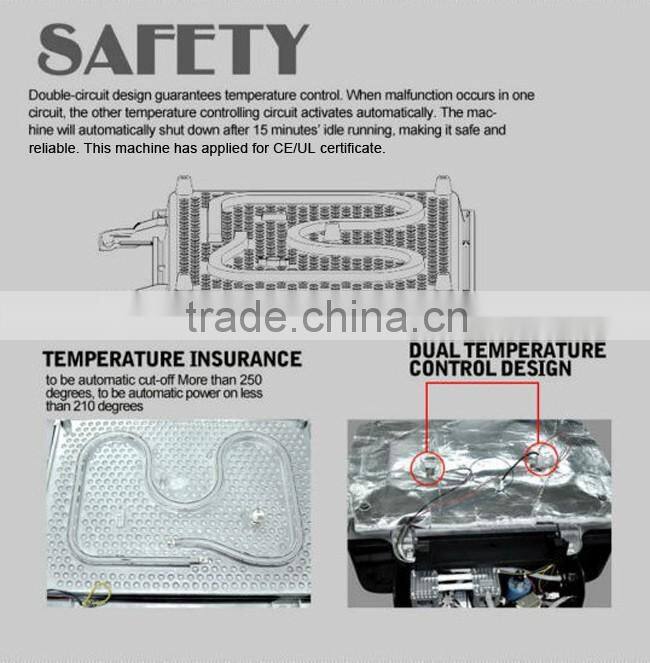

•Safety, dual temperature control on software and hardware separately and it'll power off within 15 minutes without any operation.

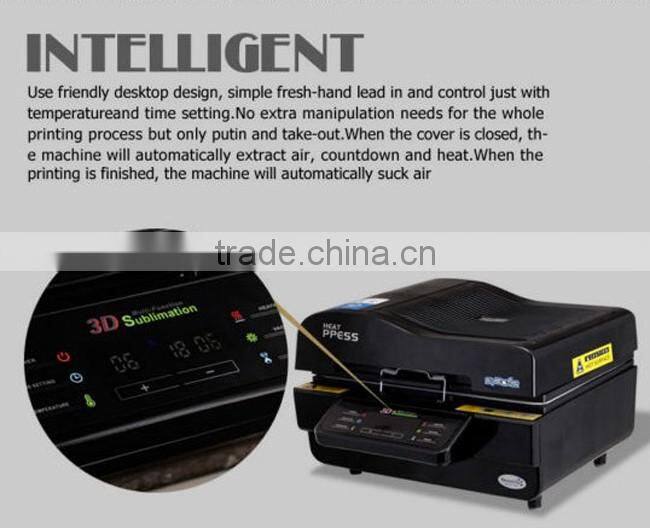

•High intelligent, you can only close the cover and no need to press any button when working.



3D Sublimation Heat Press Machine for Phone Cases Mugs Cups Heat Transfer+Gifts



Working Produces

3D Sublimation Heat Press Machine for Phone Cases Mugs Cups Heat Transfer+Gifts

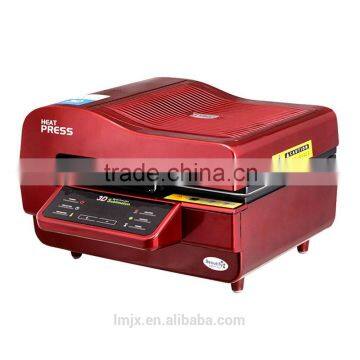

Product Pictures

3D Sublimation Heat Press Machine for Phone Cases Mugs Cups Heat Transfer+Gifts3D Sublimation Heat Press Machine for Phone Cases Mugs Cups Heat Transfer+Gifts3D Sublimation Heat Press Machine for Phone Cases Mugs Cups Heat Transfer+Gifts3D Sublimation Heat Press Machine for Phone Cases Mugs Cups Heat Transfer+Gifts3D Sublimation Heat Press Machine for Phone Cases Mugs Cups Heat Transfer+Gifts3D Sublimation Heat Press Machine for Phone Cases Mugs Cups Heat Transfer+Gifts3D Sublimation Heat Press Machine for Phone Cases Mugs Cups Heat Transfer+Gifts3D Sublimation Heat Press Machine for Phone Cases Mugs Cups Heat Transfer+Gifts



Application

3D Sublimation Heat Press Machine for Phone Cases Mugs Cups Heat Transfer+Gifts

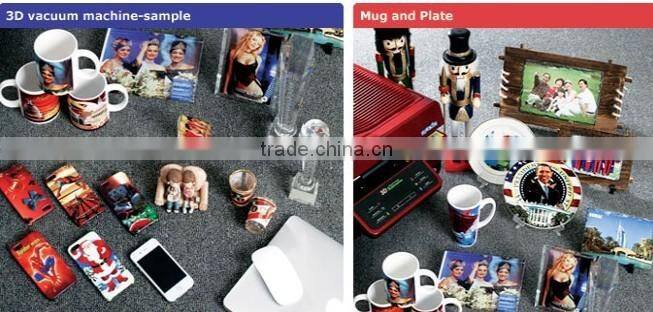

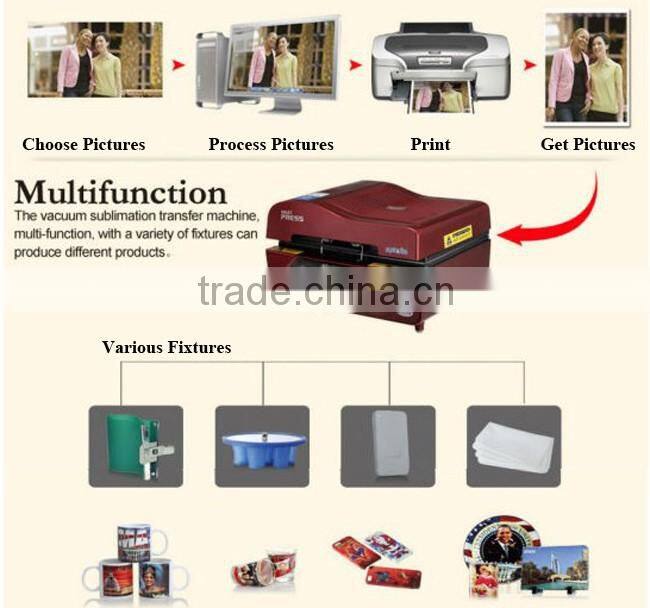

The 3D vacuum heat transfer machine is multifunctional for both flat items and curved items, such as T-shirt, pillowcase, tile, mouse pad, glass, crystal, plate, mug, iPhone cover, iPad cover, etc.

3D Sublimation Heat Press Machine for Phone Cases Mugs Cups Heat Transfer+Gifts3D Sublimation Heat Press Machine for Phone Cases Mugs Cups Heat Transfer+Gifts



Package
3D Sublimation Heat Press Machine for Phone Cases Mugs Cups Heat Transfer+Gifts

CTN Size: 720X640X420mm(28.3"X25.2"X16.5")
Gross Weight: 25kg

Tips:

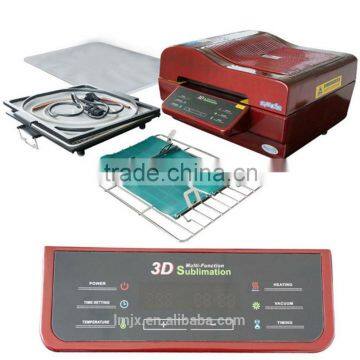

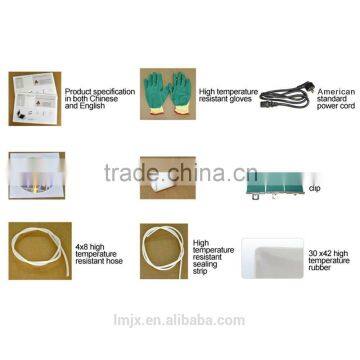

There are several molds and clampers in our package. Also, we supply various molds for your option. Please check the area of related products above for your reference.



Warranty:
We provide support service for all customers to help them achieve successful business of heat transfer products.
• Comprehensive guarantee for one year except the wearing parts
• 24-hour technical support by email or calling
• User-friendly English manual for machine using and maintaining

About Spare Parts
If the parts were broken during the guarantee period, we will provide a new part for free. We will send clients new parts once after they return the broken one. And customer can buy a new one from our company if the guarantee period is expired.
