Home > Products > Thermally double component silicone(poly urethane) > No Corrosion Bonding Encapsulant
No Corrosion Bonding Encapsulant
- shenzhen
- Money Gram Credit Card
You May Like
-
Excellent High And Low Temperature Resistance Pcb Double-Component Silicone Casting Glue
-
Excellent High And Low Temperature Resistance Thermally Conductive Casting Glue Sealant
-
Good Adhesion Casting Glue COB Thermal Liquid
-
Good Flexibility Factory Acid General Purpose Silicone Sealant
-
Heat Sissipation Fiber Products
-
Good Adhesion Neutral Cure Silicone Sealant
Product Details
| Other Names | Thermal Conductive Double Component Silicone | Place of Origin | Guangdong, China | |
| Classification | Double Components Adhesives | Main Raw Material | Polyurethane | |
| Usage | Other, LED lighting,Heat Pipe assemblies,Notebook and Desktop PCS, etc. | Brand Name | Sheen | |
| Model Number | US-5201(P) |
Product Description
No Corrosion Bonding Encapsulant
| Product Information |
| Product Name | No Corrosion Bonding Encapsulant | ||
| Technical indices | US-5201(P) | ||
| Before curing | Exterior | white(A)/ gray(B) liquid | |
| Viscosity(cps,25 °C) of component A | 5500~7000 | ||
| Viscosity(cps,25 °C) of component B | 2000~3000 | ||
| Operating performance | Mix ratio( weight ratio) | A:B=1:1 | |
| Viscosity after mixing | 4000~5000 | ||
| Operation time(min,25°C) | 30 | ||
| Tack free time (min,25°C) | 60 | ||
| Curing time (min,25°C) | 120 | ||
| After curing | Hardness(shore A 24hr) | 65 ± 5 | |
| Thermal conductivity(W/mk) | ≥0.75 | ||
| Dielectric strength (kv/mm) | ≥27 | ||
| Dielectric constant(1.2 Mhz) | 3.0~3.3 | ||
| Volume resistivity(Ω, cm) | ≥1.0 X 1016 | ||
| Coefficient of linear expansion[m/m.k)] | ≤2.2 X 10-4 | ||
| Flame resistance | 94-V0 | ||
| Waterproofing grade | ≥IP67 | ||
| Introduction | The Thermal Double Component Silicone (Polyurethane)have the properties of thermal shock resistance,excellent electric properties,and low water absorption.They have deep hardening performance,and high bond strength to coherer,alloy,ceramic,glass or plastic surfaces. | ||
| Features and Benefits | - ≥0.75 W/mK thermal conductivity | ||
| Typical Applications Include | -LED lighting and LED screen -Heat Pipe assemblies | ||

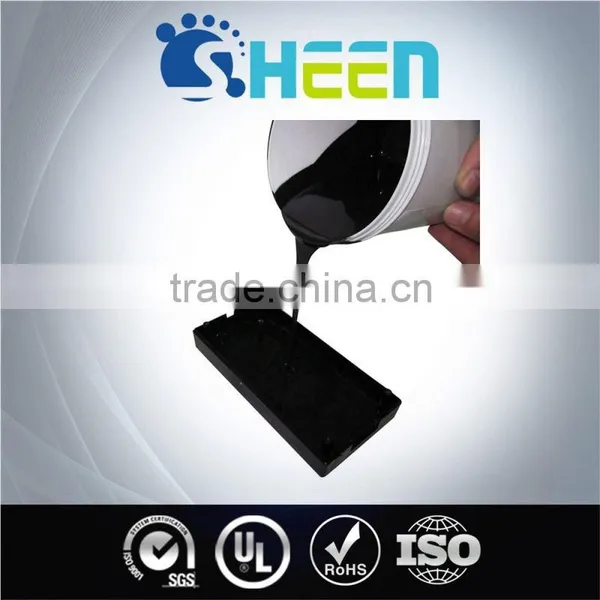

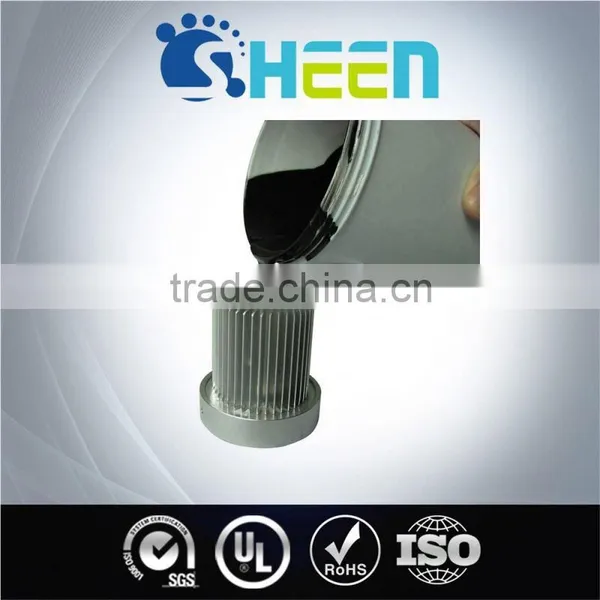

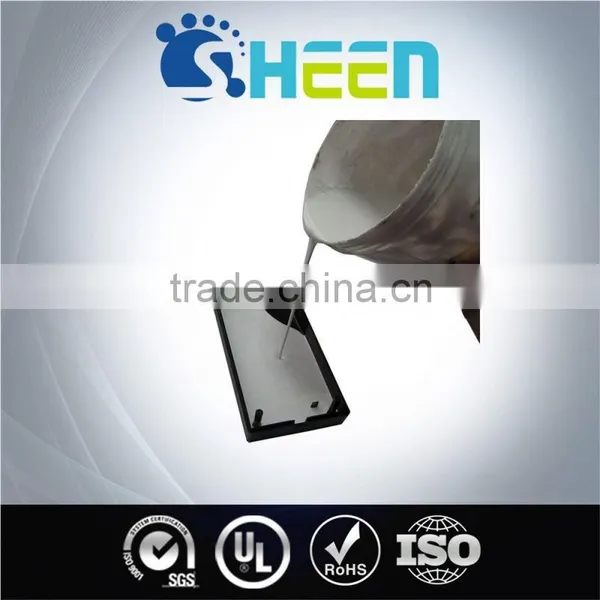

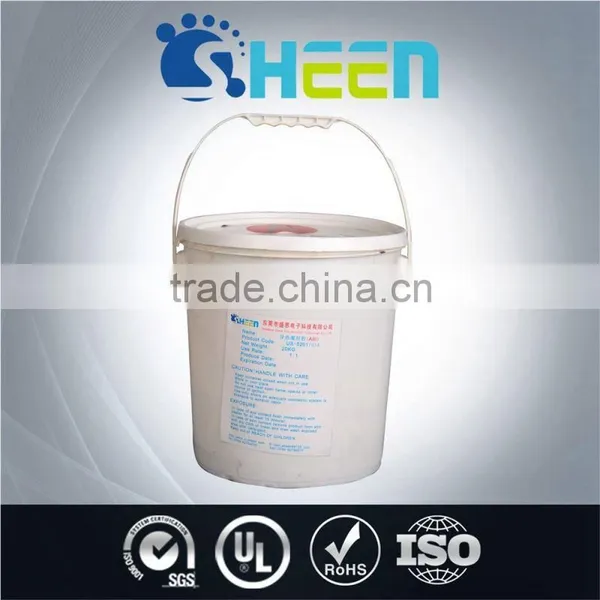

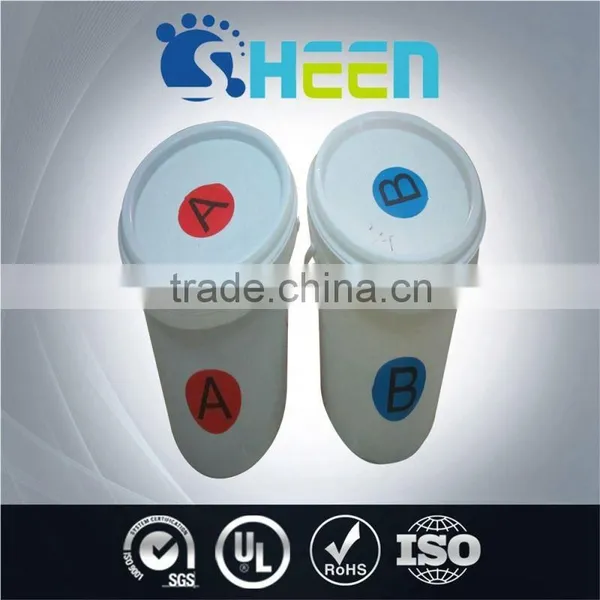

| Product Display |
| Hot Sale |
| " href="http://sheen.en.china.cn/productgrouplist-801575840/thermally_conductive_pad.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801575840/thermally_conductive_pad.html" target="_blank">pad > | " href="http://sheen.en.china.cn/productgrouplist-801559511/Thermally_ConductiveTape.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801559511/Thermally_ConductiveTape.html" target="_blank"> tape > | " href="http://sheen.en.china.cn/productgrouplist-801533008/Thermal_silicone_RTV.html" target="_blank">Thermal silicone RTV > | " href="http://sheen.en.china.cn/productgrouplist-801584663/Thermal_Grease.html" target="_blank">Thermal grease > |
| " href="http://sheen.en.china.cn/productgrouplist-801584663/Thermal_Grease.html" target="_blank">Phase change thermal " href="http://sheen.en.china.cn/productgrouplist-801584663/Thermal_Grease.html" target="_blank"> interface materials > | " href="http://sheen.en.china.cn/productgrouplist-801559512/Thermally_Conductive_silicone_Pug.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801559512/Thermally_Conductive_silicone_Pug.html" target="_blank"> silicone pug > | " href="http://sheen.en.china.cn/productgrouplist-801646856/Thermally_conductive_insulators.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801646856/Thermally_conductive_insulators.html" target="_blank"> insulators > | " href="http://sheen.en.china.cn/productgrouplist-801586206/Thermally_conductive_graphite_sheets.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801586206/Thermally_conductive_graphite_sheets.html" target="_blank"> graphite sheets > |
| " href="http://sheen.en.china.cn/productgrouplist-801559513/Thermally_double_component_silicone_poly_urethane_.html" target="_blank">Thermally double " href="http://sheen.en.china.cn/productgrouplist-801559513/Thermally_double_component_silicone_poly_urethane_.html" target="_blank"> component silicone > | " href="http://sheen.en.china.cn/productgrouplist-801647661/Thermally_Conductive_plastics.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801647661/Thermally_Conductive_plastics.html" target="_blank"> plastics > | " href="http://sheen.en.china.cn/productgrouplist-801533811/Epoxy_Adhesive.html" target="_blank">Epoxy adhesive > | " href="http://sheen.en.china.cn/productlist.html" target="_blank">More products > |
| Product Advantage |

|
|
|
|
Compared with traditional materials, the phase change thermal interface materials can cover and fill the gap and hollow between the contact interfaces when being liquid. |
| Company Overview |
| Certificate |
| Contact |
| We can make many specifications according to your request! For more information. Please contact us. | ||||||||||
|
| FAQ |
1. What are your main products? We supply thermally conductive pad, thermally silicone RTV, thermally conductive silicone pug, thermally double component silicone, thermally conductive materials, phase change thermal interface materials, thermally conductive insulators and thermal grease. Samples of thermal silicne rubber are available, but the freights need to be paid by the buyers. 2. What about the product quality and which certificate do you have? We have UL certificate and RoHS certificate. 3. How long does it take to deliver after order? For small quantity, we arrange delivery within one week normally while for big quantity, we will arrange delivery as soon as possible according to actual situation and customer's requirements. 4. What about your after-sale service? We fully guarantee our product quality and will provide free technical guidance on operations. |
