Heatsink Thermal Grease For Notebook And Desktop PCs

Heatsink Thermal Grease For Notebook And Desktop PCs thumbnail-1
Heatsink Thermal Grease For Notebook And Desktop PCs thumbnail-2
Heatsink Thermal Grease For Notebook And Desktop PCs thumbnail-3
Heatsink Thermal Grease For Notebook And Desktop PCs thumbnail-4
Heatsink Thermal Grease For Notebook And Desktop PCs thumbnail-5
Heatsink Thermal Grease For Notebook And Desktop PCs thumbnail-6
Heatsink Thermal Grease For Notebook And Desktop PCs photo-1
Heatsink Thermal Grease For Notebook And Desktop PCs photo-2
Heatsink Thermal Grease For Notebook And Desktop PCs photo-3
Heatsink Thermal Grease For Notebook And Desktop PCs photo-4
Heatsink Thermal Grease For Notebook And Desktop PCs photo-5
Heatsink Thermal Grease For Notebook And Desktop PCs photo-6
US$ 12 - 700 MOQ: 10 Kilograms
Key Specifications
Get Latest Price
Other Names:
Thermal Silicone Grease
Place of Origin:
Guangdong, China
Classification:
Other Adhesives
Contact Supplier Request Quote Chat Now
Dongguan Sheen Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Other Names Thermal Silicone Grease
Place of Origin Guangdong, China
Classification Other Adhesives
Main Raw Material Silicone
Usage Other, LED light,High frequency microprocessors,Notebook and desktop PC
Brand Name Sheen
Model Number SG560-12

Heatsink Thermal Grease For Notebook And Desktop PCs

Heatsink Thermal Grease For Notebook And Desktop PCs

Product Description
Product Information



Product Name
 Heatsink Thermal Grease For Notebook And Desktop PCs
Item No. SG560-12 Test Method
Color White Visual

Construction & Compost

 Silicone-based grease
Filler Ceramic powder

Viscosity.25°C
 1000K cps Brookfield RVF,#7
Specific Gravity g/cm3 2.4
Temperature Range °F/ °C
 (-49 to 392°F), (-45 to 200°C)
Thermal Conductivity (W/mk)
 1.2 ASTM D5470

Thermal lmpedance

(°C-in2/W)@50psi

0.10

 ASTM D5470
Evaporation, % 0.20
 200°C@24hrs
Thermal Cycle, %

Thermal lmpedance No

              Degradation  		25°C/30~80°C / 30min 100 cycles
Add Fiberglass Can add fiberglass to be more strength for any thickness,FG as suffix
Introduction The SG560-12 thermally conductive silicone based compound is a one component paste like interface material, never dry; it is designed for general applications, to conduct heat from heat generating devices to heat sink or chassis. The compound is heavily filled with blended thermally conductive metal oxide but remain non-electrically conductive property.
Features and Benefits

-1.2 W/m-K Thermal Conductivity

-Never dries

-ROHS compliant

-No preheating required

-Suitable for auto-dispensing and screen printing applications

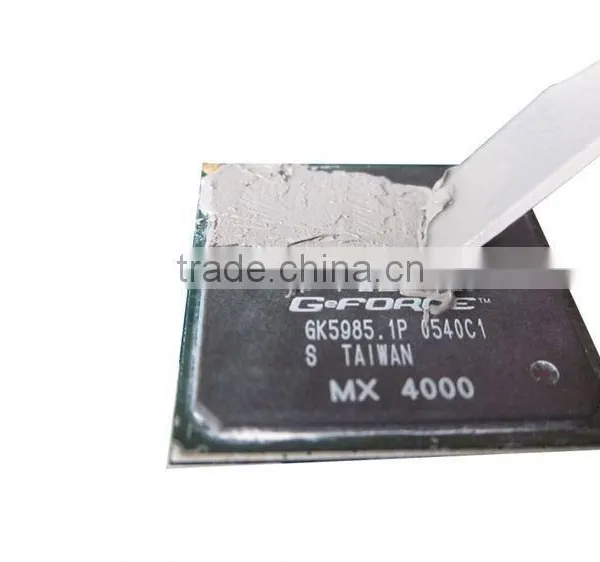

Typical Applications Include -High frequency microprocessors
-Notebook and desktop PCs
-Computer services
- Power supply
- Audio and video component

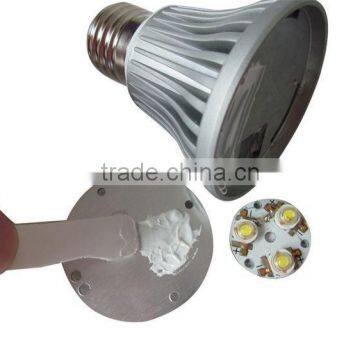

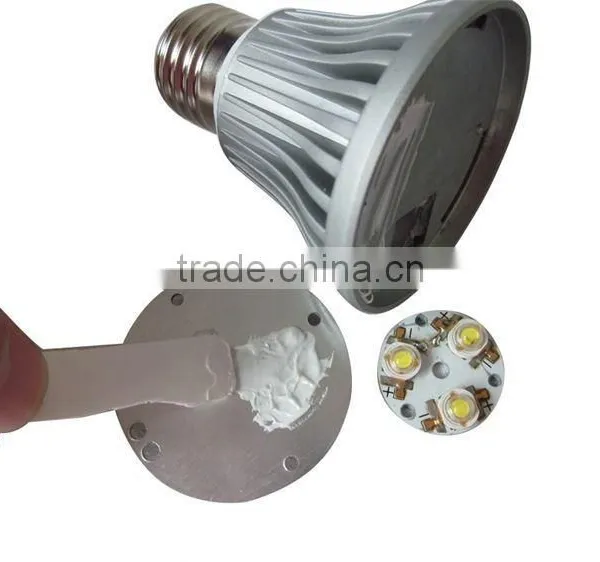

- LED lighting



Product Display



Heatsink Thermal Grease For Notebook And Desktop PCs



Hot Sale

" href="http://sheen.en.china.cn/productgrouplist-801575840/thermally_conductive_pad.html" target="_blank">Thermally conductive
" href="http://sheen.en.china.cn/productgrouplist-801575840/thermally_conductive_pad.html" target="_blank">pad > 		" href="http://sheen.en.china.cn/productgrouplist-801559511/Thermally_ConductiveTape.html" target="_blank">Thermally conductive
" href="http://sheen.en.china.cn/productgrouplist-801559511/Thermally_ConductiveTape.html" target="_blank"> tape > 		" href="http://sheen.en.china.cn/productgrouplist-801533008/Thermal_silicone_RTV.html" target="_blank">Thermal silicone RTV > " href="http://sheen.en.china.cn/productgrouplist-801584663/Thermal_Grease.html" target="_blank">Thermal grease >
" href="http://sheen.en.china.cn/productgrouplist-801646855/Phase_Change_Thermal_interface_Materials.html" target="_blank">Phase change thermal
" href="http://sheen.en.china.cn/productgrouplist-801646855/Phase_Change_Thermal_interface_Materials.html" target="_blank"> interface materials > 		" href="http://sheen.en.china.cn/productgrouplist-801559512/Thermally_Conductive_silicone_Pug.html" target="_blank">Thermally conductive
" href="http://sheen.en.china.cn/productgrouplist-801559512/Thermally_Conductive_silicone_Pug.html" target="_blank"> silicone pug > 		" href="http://sheen.en.china.cn/productgrouplist-801646856/Thermally_conductive_insulators.html" target="_blank">Thermally conductive
" href="http://sheen.en.china.cn/productgrouplist-801646856/Thermally_conductive_insulators.html" target="_blank"> insulators > 		" href="http://sheen.en.china.cn/productgrouplist-801586206/Thermally_conductive_graphite_sheets.html" target="_blank">Thermally conductive
" href="http://sheen.en.china.cn/productgrouplist-801586206/Thermally_conductive_graphite_sheets.html" target="_blank"> graphite sheets >
" href="http://sheen.en.china.cn/productgrouplist-801559513/Thermally_double_component_silicone_poly_urethane_.html" target="_blank">Thermally double
" href="http://sheen.en.china.cn/productgrouplist-801559513/Thermally_double_component_silicone_poly_urethane_.html" target="_blank"> component silicone > 		" href="http://sheen.en.china.cn/productgrouplist-801647661/Thermally_Conductive_plastics.html" target="_blank">Thermally conductive
" href="http://sheen.en.china.cn/productgrouplist-801647661/Thermally_Conductive_plastics.html" target="_blank"> plastics > 		" href="http://sheen.en.china.cn/productgrouplist-801533811/Epoxy_Adhesive.html" target="_blank">Epoxy adhesive > " href="http://sheen.en.china.cn/productlist.html" target="_blank">More products >

Product Advantage

  • Fill the air gap between heating devices and heat sink or metal base

  • Improve the efficiency and service life of heating components

  • Ultra-strong adhesion to various surface

  • High thermally conductive acrylic adhesive

  • Double-sided pressure-sensitive adhesive tape

  • Effectively replace lubricating grease and mechanical fastening

Heatsink Thermal Grease For Notebook And Desktop PCs

  • With good adhesion to most metal, glass, alloy and plastic materials, etc.

  • Solidified under room temperature

  • With good electrical insulation and weather resistance

  • No preheating process is required for the product

  • Excellent adhesion and sealing strength with good conductivity

  • Suitable for auto-dispensing and screen printing



Compared with traditional materials, the phase change thermal interface materials can cover and fill the gap and hollow between the contact interfaces when being liquid.


Company Information
Company Overview

Certificate

Contact
We can make many specifications according to your request!
For more information. Please contact us.
Tel +86-769-82784016 Address 6th Floor, Building M, Jinxiongda Science and
Technology Park, Datanglang Villiage, Dalingshan
Town, Dongguan City, Guangdong Province, China
Fax +86-769-82784017
Web /
/
  E-Mail
sheen.trading @foxmail.com



FAQ
FAQ



1. What are your main products?

We supply thermally conductive pad, thermally silicone RTV, thermally conductive silicone pug, thermally double component silicone, thermally conductive materials, phase change thermal interface materials, thermally conductive insulators and thermal grease. Samples of heatsink thermal grease are available, but the freights need to be paid by the buyers.

2. What about the product quality and which certificate do you have?

We have UL certificate and RoHS certificate.

3. How long does it take to deliver after order?

For small quantity, we arrange delivery within one week normally while for big quantity, we will arrange delivery as soon as possible according to actual situation and customer's requirements.

4. What about your after-sale service?

We fully guarantee our product quality and will provide free technical guidance on operations.
