| Product Information |
| Product Name |
Low Thermal Resistance Under Low Pressure Phase Change Interface Materials For DC/DC Convertors | |
| Item No. | SP560-30 | Test Method |
| Color | Gray | Visual |
Main ingredients |
Polymer matrix | |
| Viscosity(Pa.S) | 100~300 |
Brookfield RVF, #7 |
| Additive | Metal oxide |
|
| Density( g/cm3) |
1.8~2.0 |
|
| Phase Change Softening Temperature | 55 °C |
|
| Thermal Conductivity(W/mK) |
3.0 |
ASTM D5470 |
|
Thermal Impedance @50psi /@10psi(°C-in2/W) |
0.0015 |
ASTM D5470 |
Storage method |
Indoor temperature |
|
Validity |
one year |
|
| Introduction |

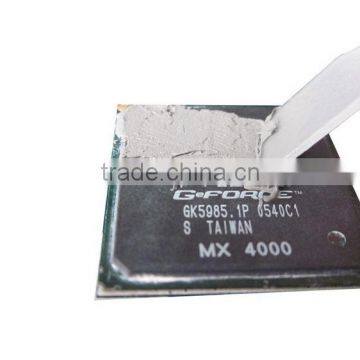

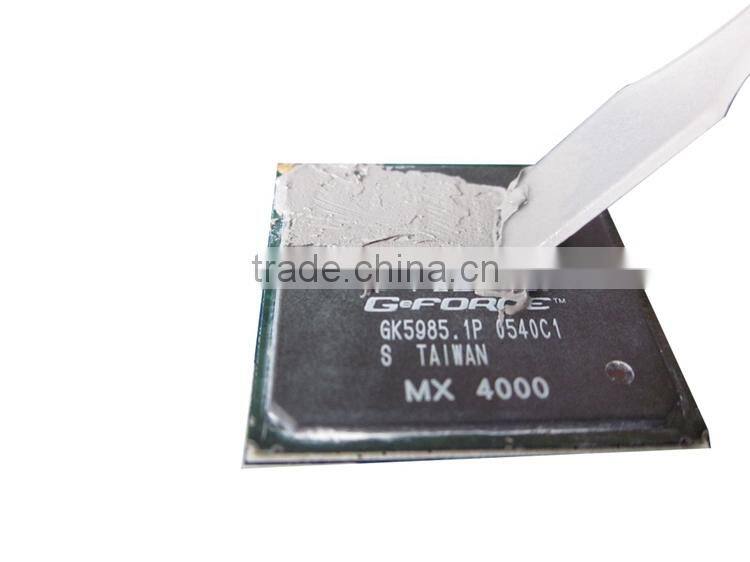

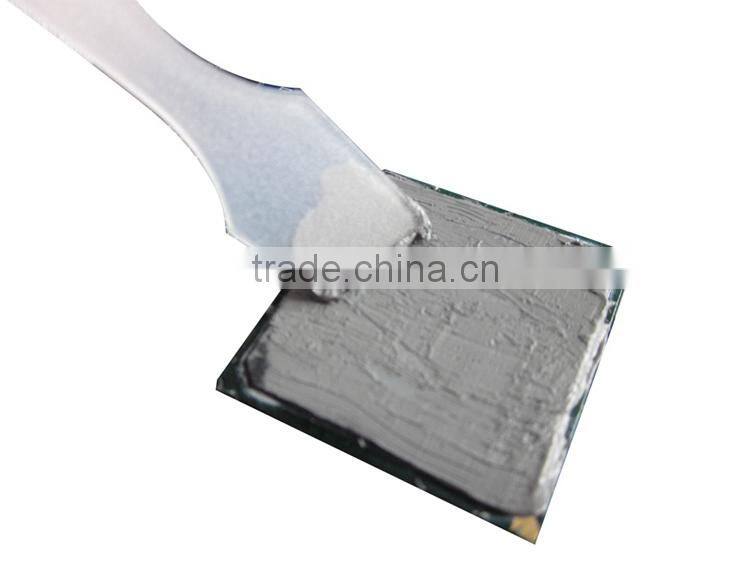

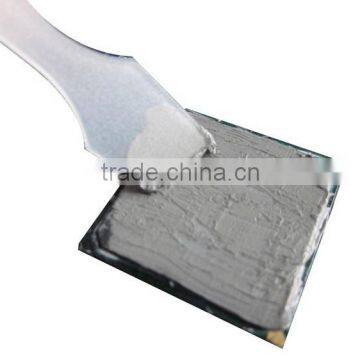

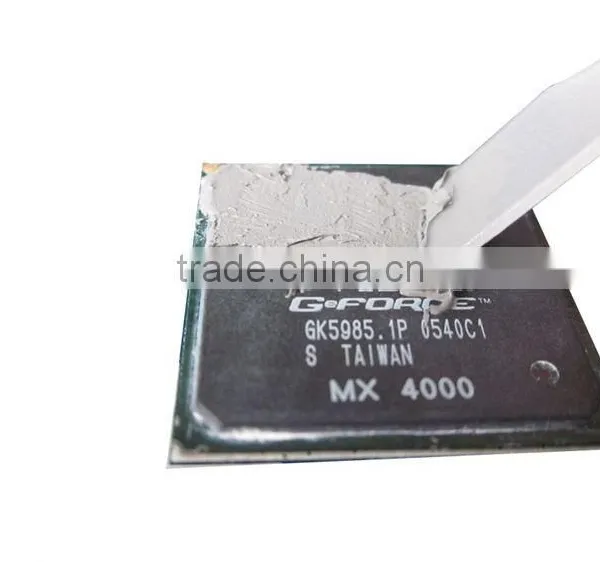

The Phase change thermal conductive grease is a kind of high thermal conductivity of phase change materials, room temperature for mud state, when the temperature exceeds a specific range, the thermal conductivity will soften phase change materials into paste, to provide excellent wetting property, to fill the chip cracks and bubbles for the radiator and irregular surface, have excellent interface wettability. SP560-30 phase change thermal conductive grease can also minimize the inerface thermal resistance,to strengthen the cooling, keeping better performancein in the reliability test, and its highly competitive advantage cost makes this kind of phase change thermal conductive grease be used widely. |
|
| Features and Benefits |
-Low thermal resistance -Interface wetting ability, reliable heat conduction performance for long time -Can greatly fill gaps between the contact interface when above the phase transition temperature -Can be extremely reduce the coating thickness between the contact interface when above the phase transition temperature -Eliminate the air between the contact interface effectively.
|
|
| Typical Applications Include |
-Provide heat conduction between heater and heat element -High frequency microprocessors -Notebook and desktop PCs -Computer serves -The power adapter -Audio and video equipment -LED lighting |
|

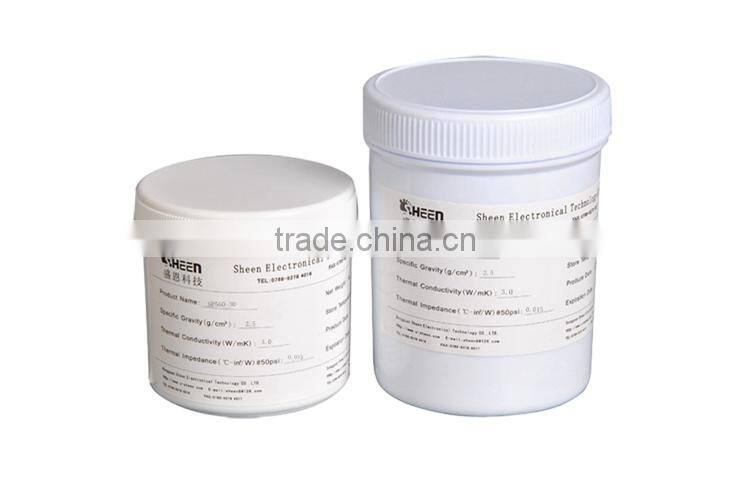

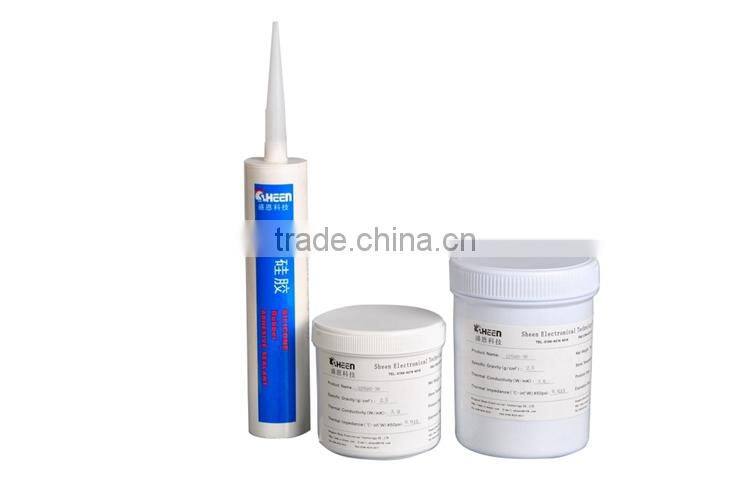

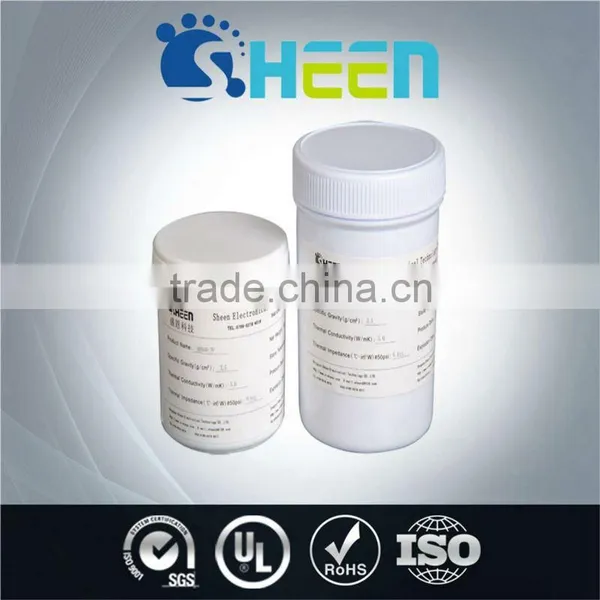

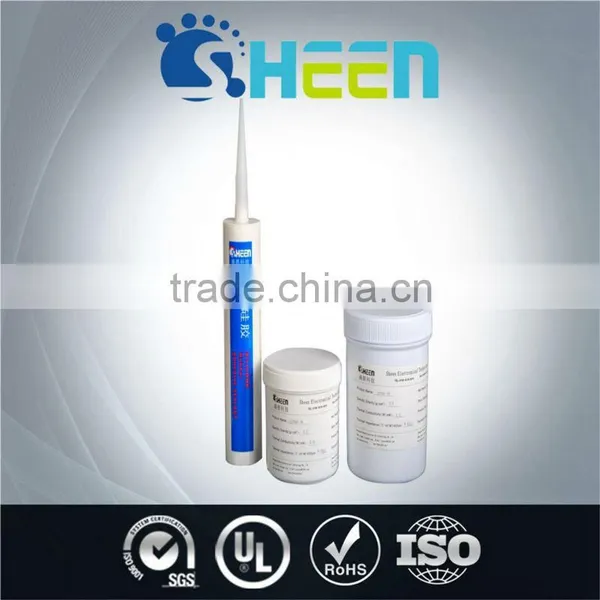

| Product Display |
| Hot Sale |
| " href="http://sheen.en.china.cn/productgrouplist-801575840/thermally_conductive_pad.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801575840/thermally_conductive_pad.html" target="_blank">pad > |
" href="http://sheen.en.china.cn/productgrouplist-801559511/Thermally_ConductiveTape.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801559511/Thermally_ConductiveTape.html" target="_blank"> tape > |
" href="http://sheen.en.china.cn/productgrouplist-801533008/Thermal_silicone_RTV.html" target="_blank">Thermal silicone RTV > | " href="http://sheen.en.china.cn/productgrouplist-801584663/Thermal_Grease.html" target="_blank">Thermal grease > |
| " href="http://sheen.en.china.cn/productgrouplist-801646855/Phase_Change_Thermal_interface_Materials.html" target="_blank">Phase change thermal " href="http://sheen.en.china.cn/productgrouplist-801646855/Phase_Change_Thermal_interface_Materials.html" target="_blank"> interface materials > |
" href="http://sheen.en.china.cn/productgrouplist-801559512/Thermally_Conductive_silicone_Pug.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801559512/Thermally_Conductive_silicone_Pug.html" target="_blank"> silicone pug > |
" href="http://sheen.en.china.cn/productgrouplist-801646856/Thermally_conductive_insulators.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801646856/Thermally_conductive_insulators.html" target="_blank"> insulators > |
" href="http://sheen.en.china.cn/productgrouplist-801586206/Thermally_conductive_graphite_sheets.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801586206/Thermally_conductive_graphite_sheets.html" target="_blank"> graphite sheets > |
| " href="http://sheen.en.china.cn/productgrouplist-801559513/Thermally_double_component_silicone_poly_urethane_.html" target="_blank">Thermally double " href="http://sheen.en.china.cn/productgrouplist-801559513/Thermally_double_component_silicone_poly_urethane_.html" target="_blank"> component silicone > |
" href="http://sheen.en.china.cn/productgrouplist-801647661/Thermally_Conductive_plastics.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801647661/Thermally_Conductive_plastics.html" target="_blank"> plastics > |
" href="http://sheen.en.china.cn/productgrouplist-801533811/Epoxy_Adhesive.html" target="_blank">Epoxy adhesive > | " href="http://sheen.en.china.cn/productlist.html" target="_blank">More products > |
| Product Advantage |
|
|
|
|
Compared with traditional materials, the phase change thermal interface materials can cover and fill the gap and hollow between the contact interfaces when being liquid. |
| Company Overview |
| Certificate |
| Contact |
|
We can make many specifications according to your request! For more information. Please contact us. | ||||||||||
|
| FAQ |
|
1. What are your main products? We supply thermally conductive pad, thermally silicone RTV, thermally conductive silicone pug, thermally double component silicone, thermally conductive materials, phase change thermal interface materials, thermally conductive insulators and thermal grease. Samples of phase change interface materials are available, but the freights need to be paid by the buyers. 2. What about the product quality and which certificate do you have? We have UL certificate and RoHS certificate. 3. How long does it take to deliver after order? For small quantity, we arrange delivery within one week normally while for big quantity, we will arrange delivery as soon as possible according to actual situation and customer's requirements. 4. What about your after-sale service? We fully guarantee our product quality and will provide free technical guidance on operations. |
