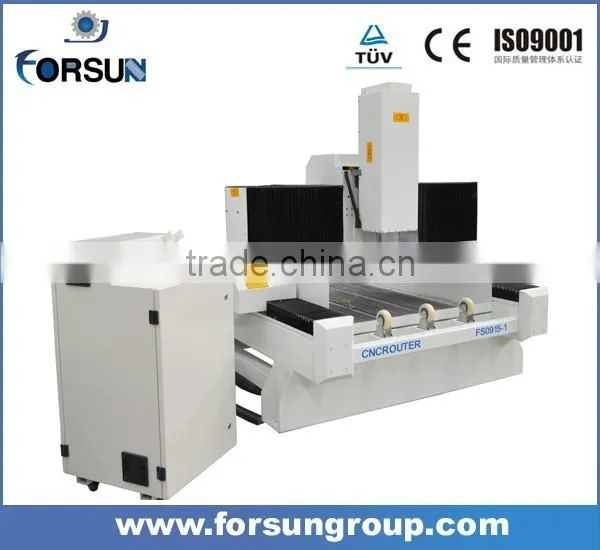

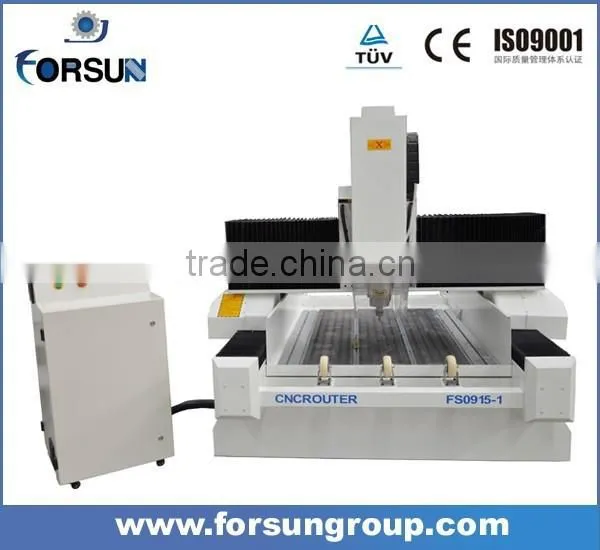

CE Supply China Mechanical Engraving Machine for Marble/marble Engraving Cnc Machine 6090

CE Supply China Mechanical Engraving Machine for Marble/marble Engraving Cnc Machine 6090 thumbnail-1
CE Supply China Mechanical Engraving Machine for Marble/marble Engraving Cnc Machine 6090 thumbnail-2
CE Supply China Mechanical Engraving Machine for Marble/marble Engraving Cnc Machine 6090 photo-1
CE Supply China Mechanical Engraving Machine for Marble/marble Engraving Cnc Machine 6090 photo-2
US$ 1,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Stone Engraving Machine
Use:
Marble
Contact Supplier Request Quote Chat Now
Jinan Forsun CNC Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Stone Engraving Machine
Use Marble
Production Capacity 200SET/MONTH
Place of Origin Shandong, China
Brand Name FORSUN
Dimension(L*W*H) 2250*1550*1750mm
Weight 1800KGS
Certification CE
Warranty 1.5 years
After-sales Service Provided Engineers available to service machinery overseas

supply china mechanical engraving machine for marble/marble engraving cnc machine 6090



Applications:

Marble, bluestone, jade crystal, agate, glass, plastic cement, ceramic, stainless steel, titanium, copper, iron, aluminum, bamboo and other hardwood surface of virtue and sculpture

Thechnical Specifications:





Parameters

Model

1

Performance parameter

FSM9015

2

X,Y Working area

900mmx1500mm

3

Z Working area

200mm

4

Dimension

1710×2540×1650mm

5

Processing precision

±0.02mm

6

Reposition precision

±0.01mm

7

DPI

0.005mm

8

Table structure

aluminium

9

X,Y,Z structure

X,Y,Z ball screw

10

Command

G code*.u00*.mmg.plt

11

Max power Consumption (Without spindle)

4.0KW

12

Spindle power

5.5KW water cooling spindle

13

Max processing speed

7000mm/min

14

Max travelling speed

12000mm/min

15

Working voltage

AC380V/50Hz

16

Spindle speed

0-24000rpm/min

17

Drive motor

Stepper

18

Operation system

PCI CARD control

19

Gross weight

1500KG

All parameters above subject to change without prior notice

 Configurations:

1) Working Area 900*1500*200mm

2) Heavy duty Structure, strong stability because of low center of gravity

3) 4.5KW water cooling spindle with NSK Bearing,low noise and high quality

4) Delta inverter from Taiwan

5) YAKO Stepping driver and motors, having steady working capability and high positioning precision 6) HIWIN Linear Guide for X,Y,Z three axis.large load bearying and stable running

7) Schneider electronic components.

8) ArtCam software

9) Wooden box package

 Option:

 1.AC Servo motors

 2.Italian HSD Spindle

 3.Working area can be 1500*3000*200mm , 2000*3000*200mm

Other parts:















 Working Sample:





certified:

Our factory:



Delivery:

Within 20 days after the deposit

Packing:

Wooden case or as your requirment

Payment:

T/T,30% deposit and the balance 70% should be paid before shipment
