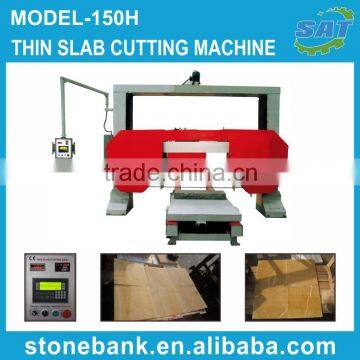

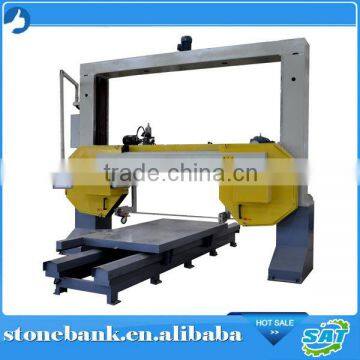

Help CenterModel-150H THIN SLAB CUTTING SAW
Related Products
-
New Thin Slab Cutting MachineNegotiableMOQ: 1 Set -
New 150 Thin Slab Cutting MachineUS$ 14,500 - 17,500MOQ: 1 Set
-
Model-150 Thin Slab Cutting Machine NewUS$ 16,800 - 18,000MOQ: 1 Set
-
Model:1200 Calibrating MachineUS$ 8,000 - 15,000MOQ: 1 Set
-
Model:170 Thin Slab Cutting MachineUS$ 15,000 - 18,000MOQ: 1 Set
This machine is chiefly processed for thin marble, complex slabs. It is not only cut slab 2cm thick into pieces, but also cut block.
It employs a conveeyor blet system for transmission and adopts continues cutting. Cutting speed is regulated by a multiple-frequency speed-adjusting device, and depending on the thickness of stone material. It is a high-efficiency and steady performing machine.It has been improved over three times. It redeems the saw with suspending crane in oil pressure. It ensures the flat level and improves the productive efficiency and reduce cost.
TECHNICAL PARAMETER
Machine dimension |
4100×4400×3650mm |
Water put |
25L/min |
Working table outlook dia |
2400×1260mm |
Weight |
4400kg |
Machine setting area |
50m² |
Cutting gap |
2.5-3mm |
Power full |
380V 50HZ |
Max production dia |
2400×1500mm |
Total power |
12kw |
Cutting thickness |
5-700mm |
Main motor power |
7.5kw |
Working speed |
0-150mm/min |
Table motor power |
1.5kw |
working pressure |
5-7Mpa |
Pressure system power |
1.5kw |
Machine lubricating oil |
10W-40 |
Rise/down power |
1.5kw |
Hydraulic pressure system vallum |
25L |
Hydraulic pressure oil |
46# |
|

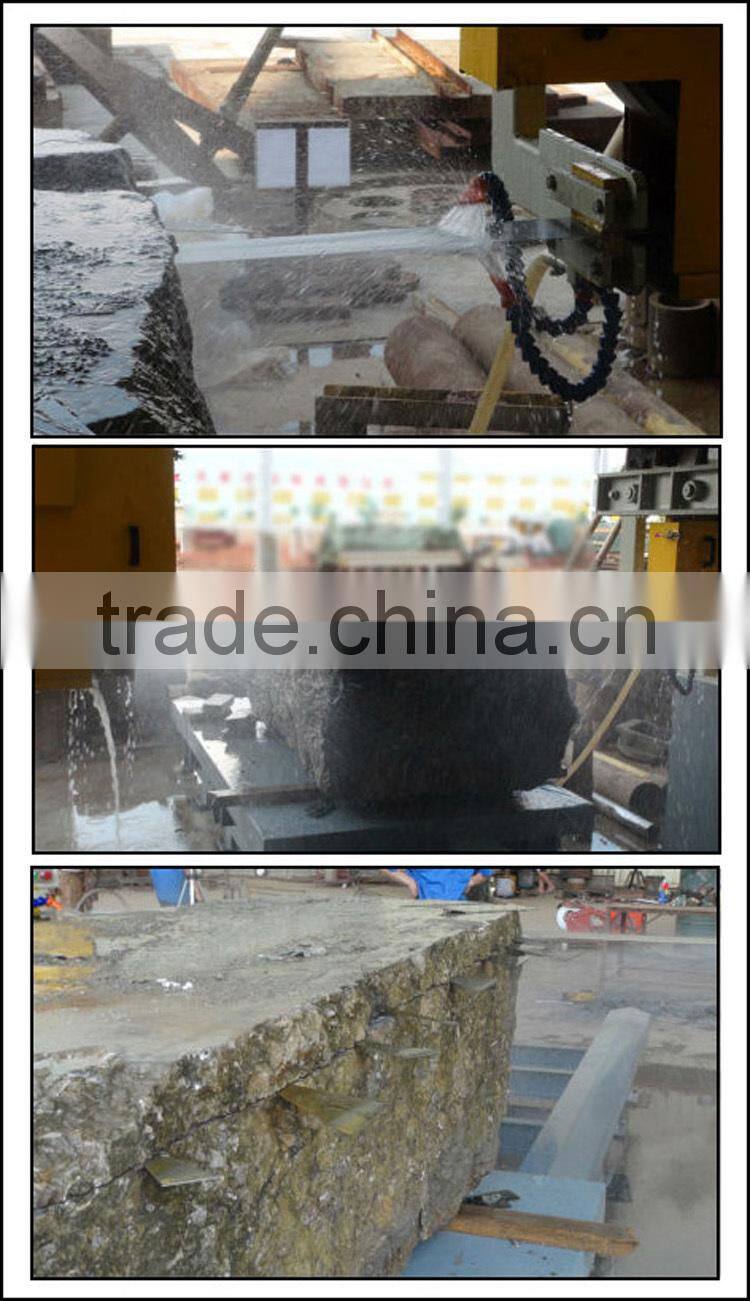

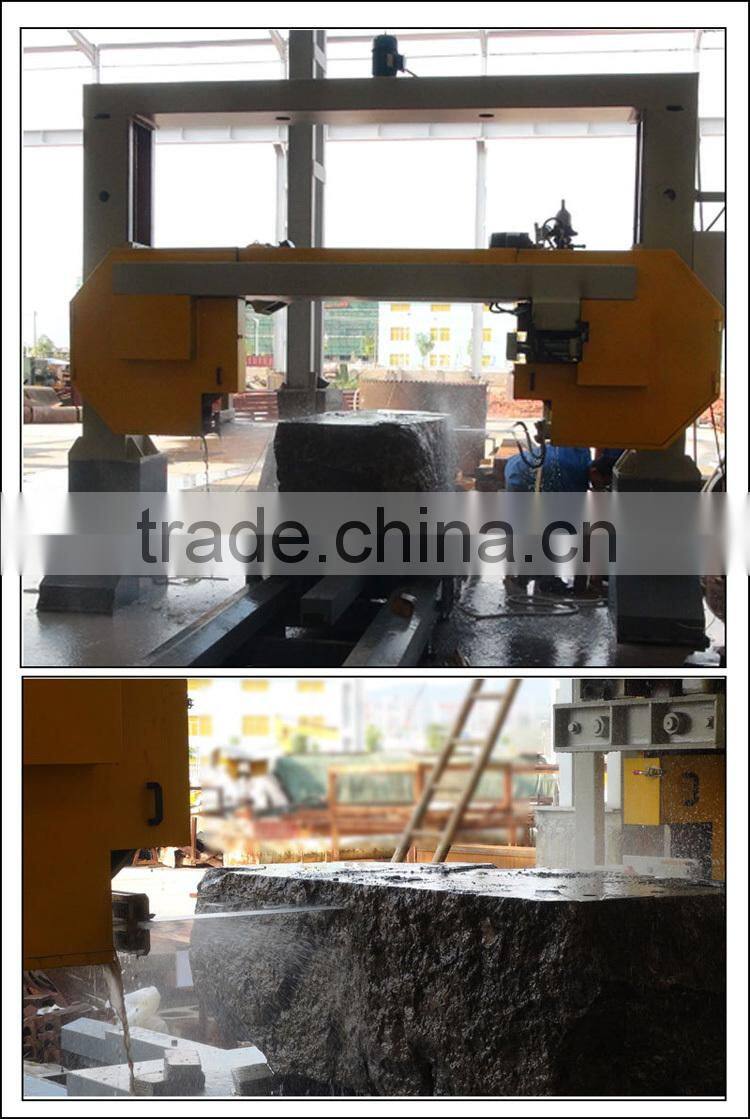

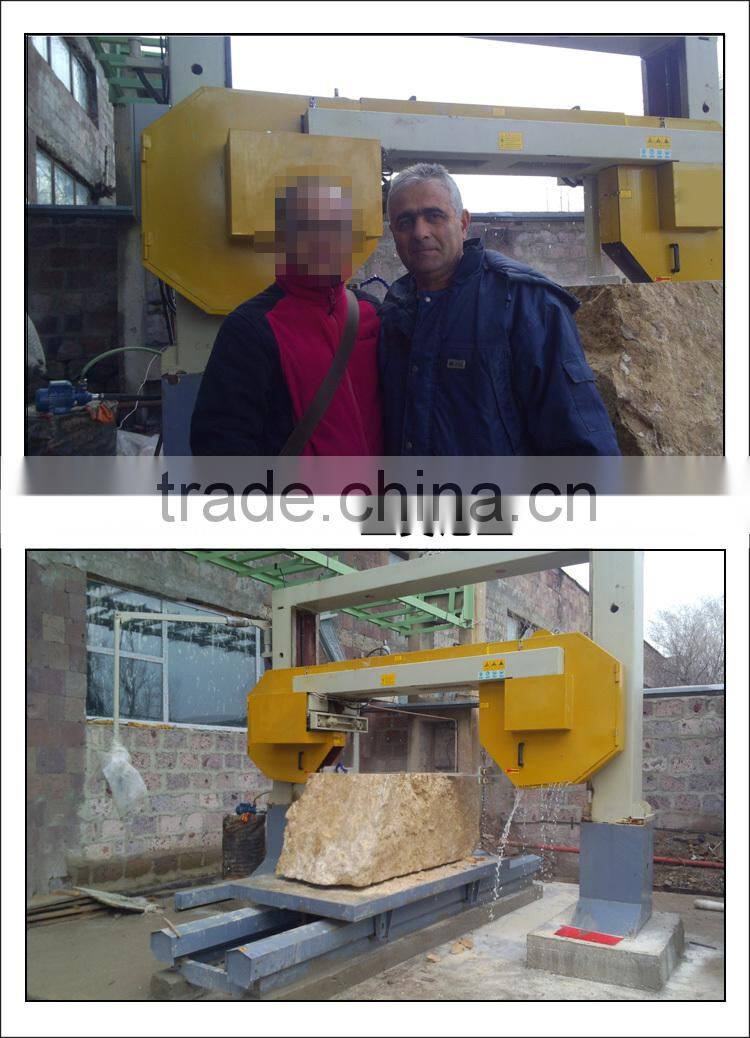

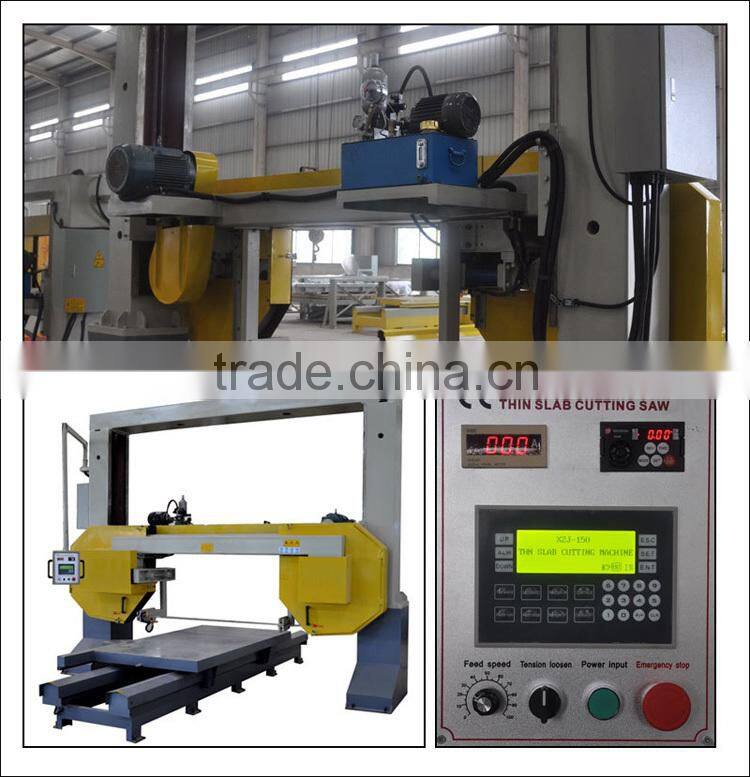

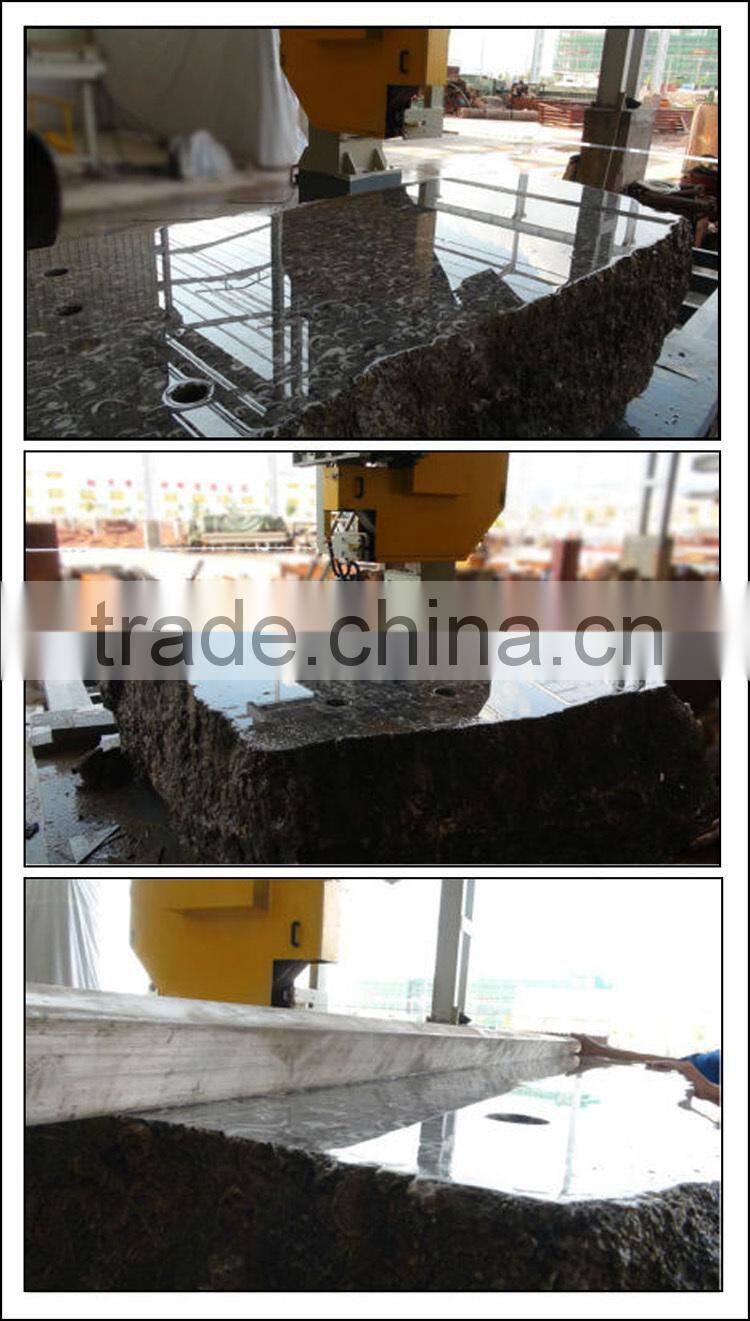

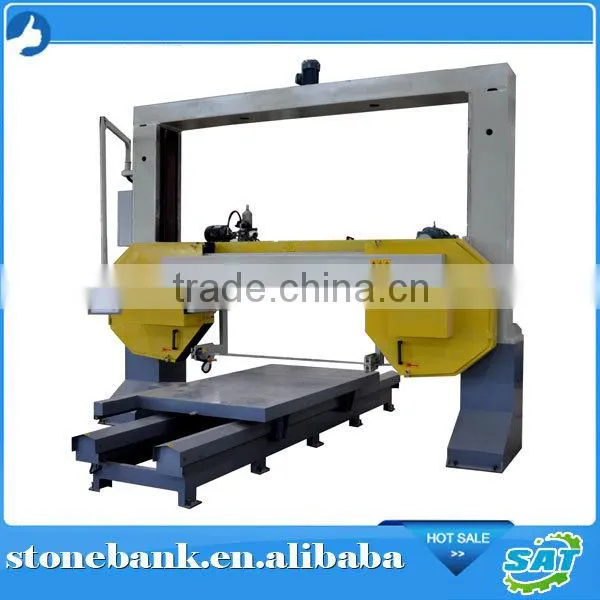

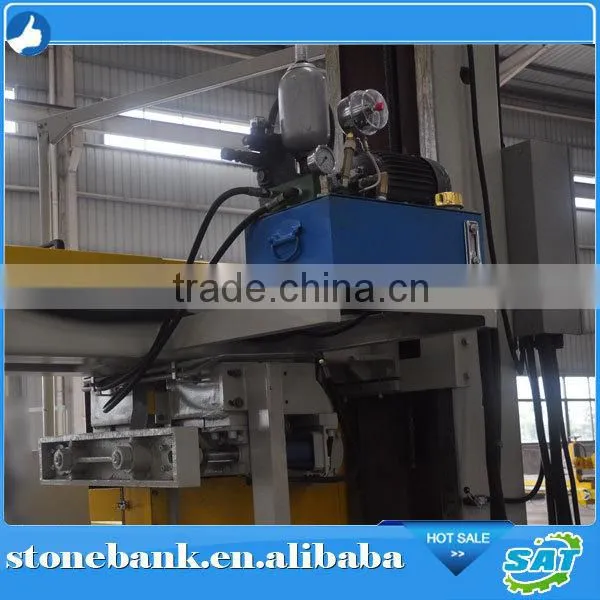

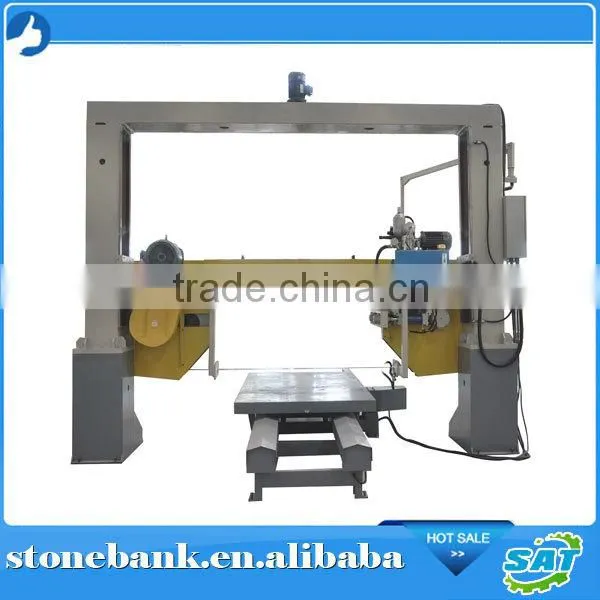

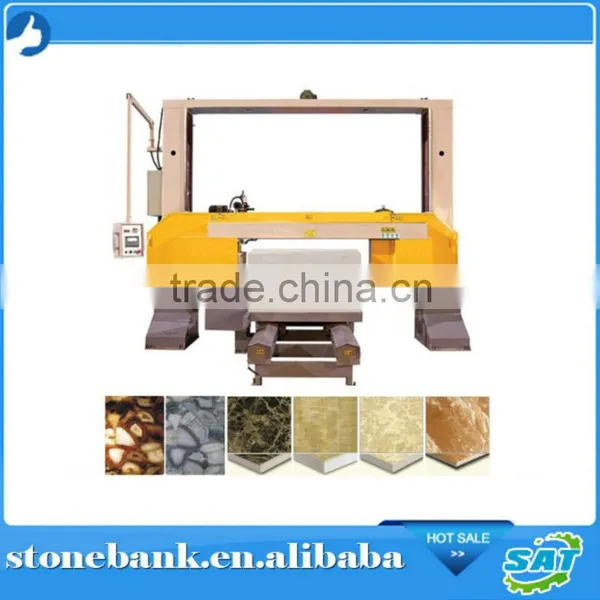

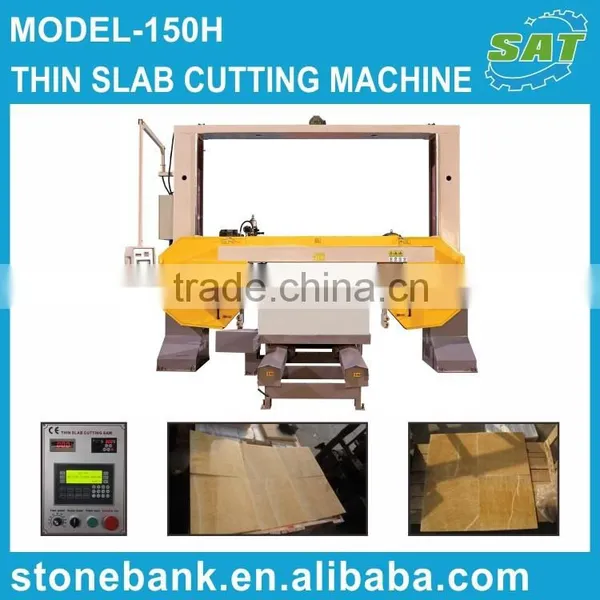

Machine show
