Small size FS6090A wood cnc engraving and cutting machinery, aluminum milling machine for sale
Aluminum milling machine Applicable Industry and materials:
1) Furniture: cabinets, plate, office and wood furniture, tables, chair, doors and
windows.
2) The wood products: voice box, game cabinets, computer tables, sewing machines table,
instruments
3) Plate processing: plastic chemical components, PCB, inner body of car, bowling
tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
4) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
Aluminum milling machine Technical parameter:
| NO. | Items | Parameters | Option | |
| 1 | Working Area | X Y Z | 600*900*100mm | <=2000mm |
| 3 | Table Type | T-Slot Extrusion PVC | ||
| 4 | Accuracy | Working Accuracy | ±0.01/300mm | |
| Repositioning accuracy | ±0.01/300mm | |||
| 5 | Frame Structure | Cast steel | ||
| 6 | Drive of X,Y,Z | X.Y.Z with ball screw | ||
| 7 | Speed | MAX Traveling Speed | 6000mm/min | |
| MAX Working Speed | 4000mm/min | |||
| 8 | Spindle | Spindle Power | 1.5KW 0-24000r/min | Italian HSD Spindle |
| 10 | Drive | Stepper | ||
| 14 | Working Voltage | AC220V/50Hz | ||
| 15 | Commend Code | G Code | ||
| 16 | Operating System | DSP | NC Studio | |
| 17 | Net Weight /Gross Weight | 130Kg/200Kg | ||
| 18 | Packing size | 1300*1000*850 | ||
| High quality and competitive price | ||||
Aluminum milling machine machine configuration:
1. water cooling spindle - from China with low noise and long life

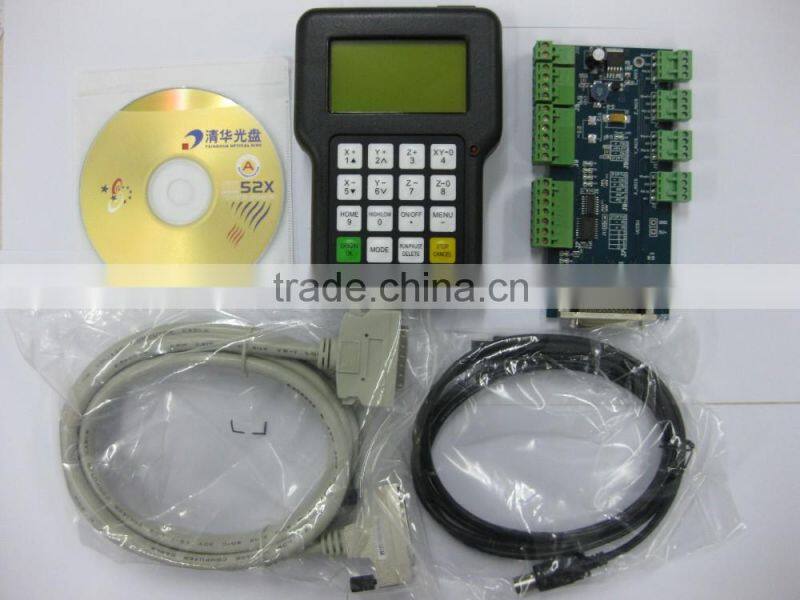

2. DSP control system - easy convenient operation and easy maintance .
3. stepper drives and motor - with competitive price, has been widely used

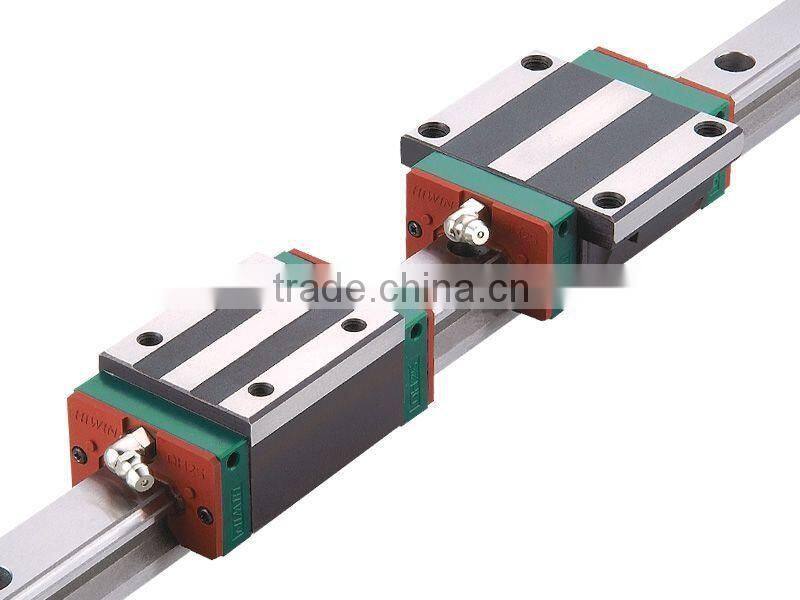

4.HIVIN linear guide - made from Taiwan,used for linear reciprocating stadium
ing area:600*900*100mm

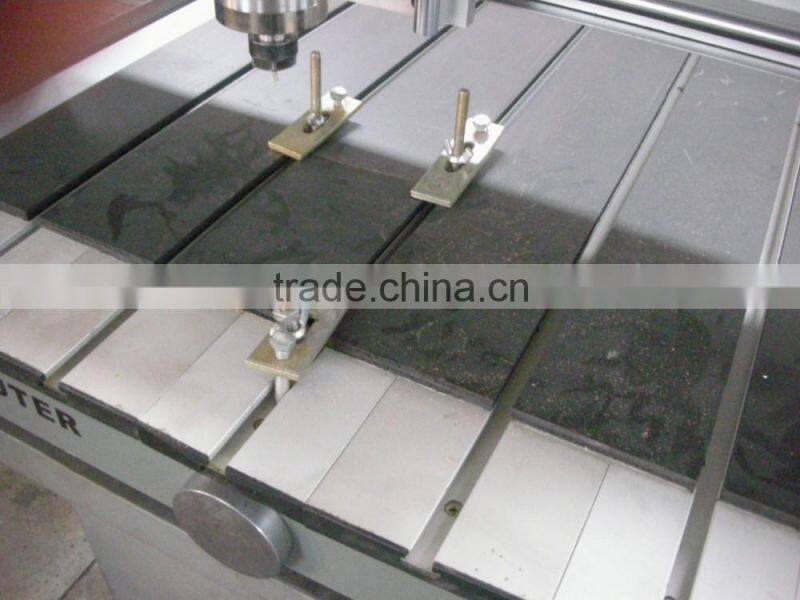

6. T-Slot table with Aluminum sheel - Use clamp fixed materials
7. Automatic tool calibration - To guide rail and slide block , make it run better
8. 3PH 380V 50-60 HZ / 220v
9. Plywood case package
Small size cnc engraving machine Optional item:
1.vacuum table and water cooling vacuum pump
2.HSD spindle from Italian
3.AC servo motor - famous brand: DELTA,YASKAWA and PANASONIC
4.Rotary axis - 160mm,200mm,300mm,400mm etc
5.Dust collector system - two bags with competitive price
Aluminum milling machine working sample:
Customer visit:
CE certificate:
Note
Payment: T/T, 30% prepaid and the balance paid before delivery.
Package: wooden case
Port of Loading: Tianjin,China
Delivery Time:within 10 days after received payment.
Remarks
1. Wooden Package
2. Terms: FOB ,C&F,CIF
3. From Qingdao China To_______,
4. Delivery Time: within 10 working days after received payment
5. Payment: T/T,30% prepaid,,the balance paid before the delivery
