Specification
MASBFS2-1100 AUTO SHAPE STONE BOARDER MACHINE
The machine is a kind of multi-function stone processing equipment with stone processing,slabs cutting,line polishing etc·It also has the function in processing stone,arc line and railing column when fitted with replacement·
Technical
| Maximum Diameter of Sawpit | Φ350∼Φ400 |
| Maximum Lifting Travel | 700mm |
| Maximum Extending Travel | 1100mm |
| Maximum Spreading Travel of Working Platform | 2800mm |
| Dimensions of Working Platform (L×B) | 2500×1100mm |
| Maximum Diameter of Bearing | Φ50mm/Φ200mm |
| Power of Main Motor | 7.5kw |
| Turnover Angle of Cutting Spinning | ±90° |
| Machine Dimensions (L×B×H) | 5500×2500×2400mm |
| Gross Weight | 3000kg |

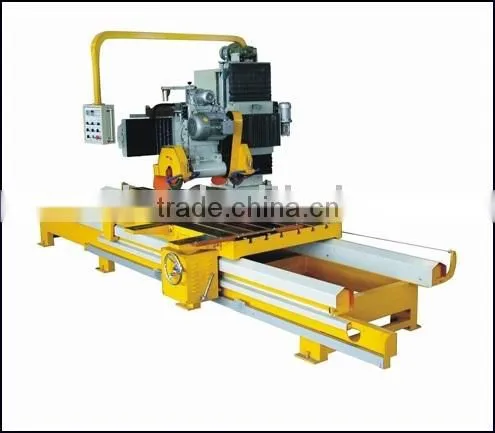

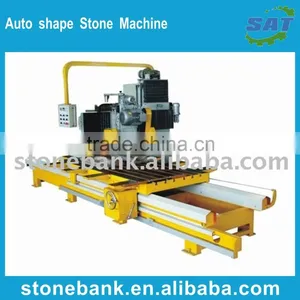

Machine show
1.Payment Terms
(1)50% of contract value will be paid by T/T in advance as down payment;
(2)50% of contract value will be paid by T/T before the machine delivery..
2. Delivery Terms
Within 30 days after receipt of down payment.
3. Packing
To be packed in standard packing, wooden form.
4. Start-Up
This includes all actions necessary to put the above-mentioned equipment in operation until the completion of the production acceptance standards.
5. Training
Includes on-site basic operation and maintenance training.
Warranty
The Seller guarantees that the equipment is completely brand-new and will conform to the technical specifications. The mechanical guarantee on machinery and equipment shall be 12 months after the acceptance date. During the guarantee period, if the accessories or equipment are damaged, due to the Buyer’s insufficient maintenance or improper operation of the equipment, the Seller will replace or repair it at Buyer’s charge. If the said damages are due to faults in design or workmanship, the Seller will replace or repair it at his own cost. (Vulnerable parts excluded)
