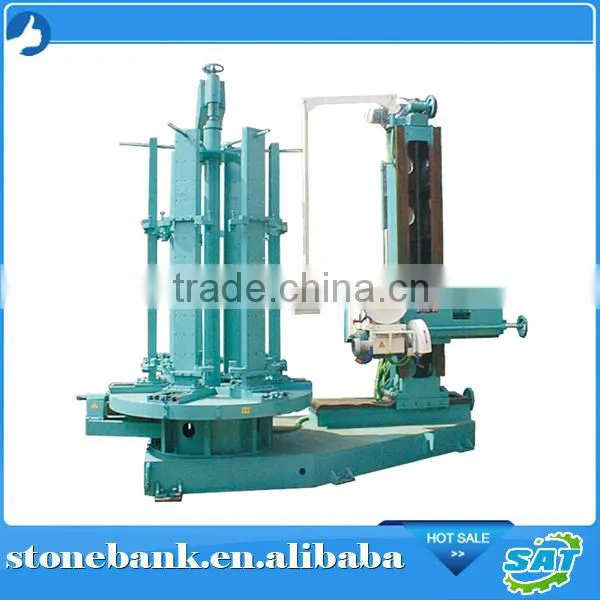

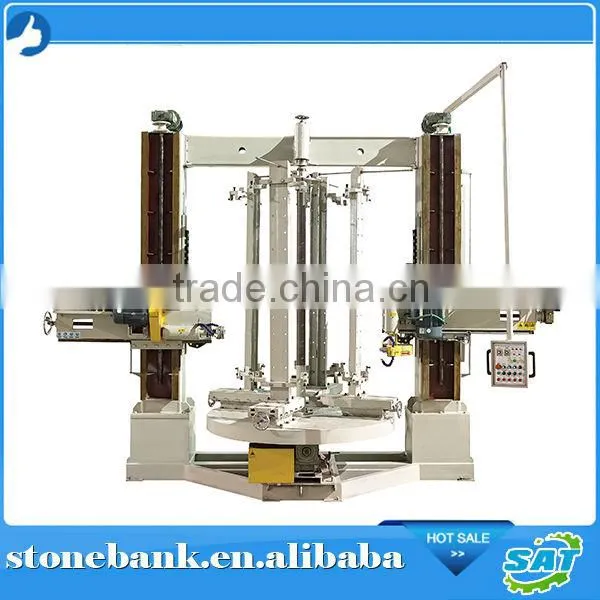

Help CenterMAL-2000L Double Beam Open Side Column Grinding Machine
Related Products
DESCRIPTION :

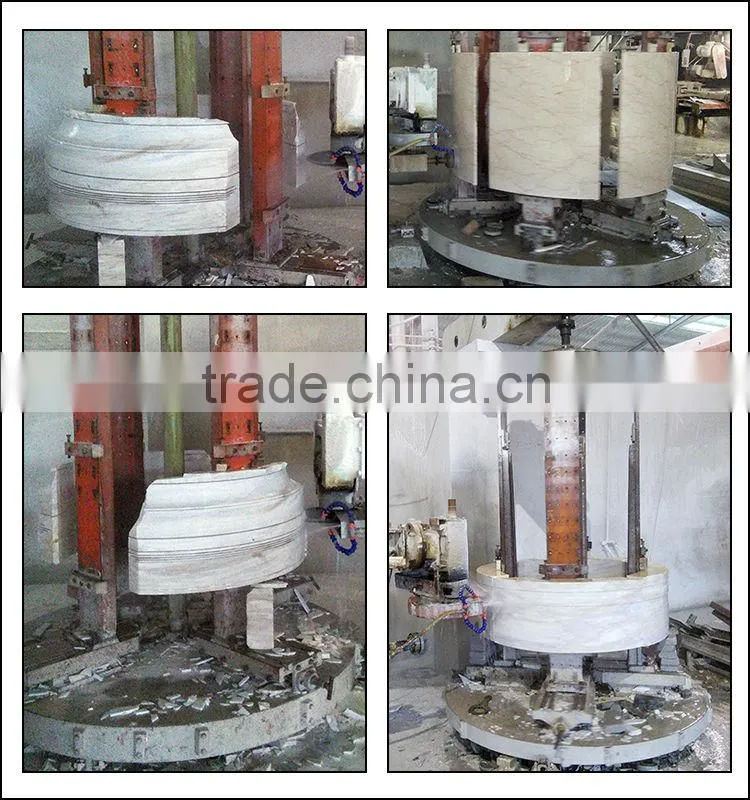

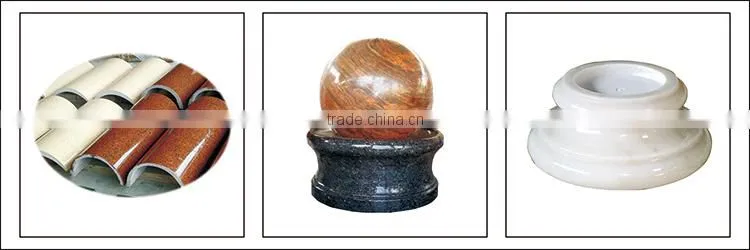

This machine is designed by the vertical lathe theory, is specializing in processing column,
column base, column cap and sphere. Its working platform is centrolize location with high
concentric rate. Processing head can rotate in 360, it can finish the working procedure of
cutting, polishing and burnishing and revise the arc slabs.
TECHNICAL PARAMETER
Machine dimension |
5600x2500x3700mm |
Water put |
50L/min |
Working table outlook dia |
Ø1800mm |
Weight |
6000kg |
Machine setting area |
40m² |
Blade size |
Ø350-Ø400 |
Power full |
380V 50HZ |
Max production dia |
Ø1800mm |
Total power |
16.75kw |
Cutting height |
1500mm |
Main motor (1) power |
7.5kw |
Working speed |
0-30rad/min |
Main motor (2) power |
4kw |
Rise/down power |
1.1kw |
Table motor power |
2.2kw |
Machine lubricating oil |
CD40 |
left/right power |
0.75kw |
|
