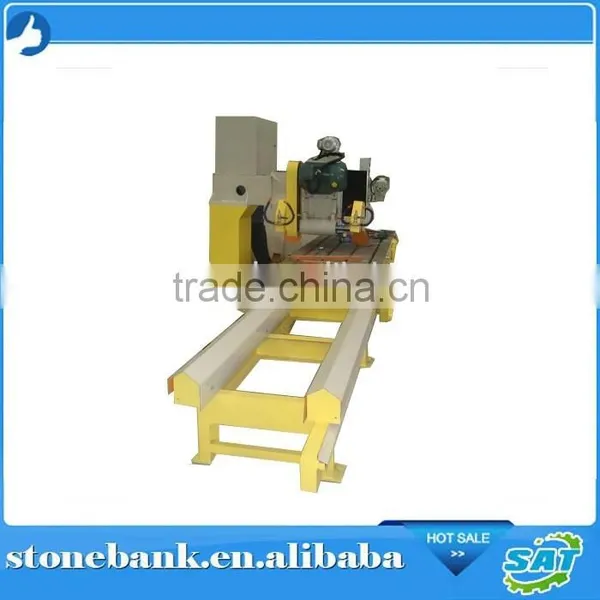

All-Purpose Shape-Profiling Stone Cutting Machine

All-Purpose Shape-Profiling Stone Cutting Machine thumbnail-1
All-Purpose Shape-Profiling Stone Cutting Machine thumbnail-2
All-Purpose Shape-Profiling Stone Cutting Machine photo-1
All-Purpose Shape-Profiling Stone Cutting Machine photo-2
US$ 12,000 - 13,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Stone Cutting Machine
Use:
Granite
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Stone Bank Trading Department Yuncheng District
Payment & Shipping
Payment Methods:
Port of Shipment:
guang zhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Stone Cutting Machine
Use Granite
Place of Origin Guangdong, China
Brand Name SAT
Model Number XZC-280W

The machine has the function of auto shape cutting,cutting sides,grinding sides,moving back-

ward,imitating straight stone-line,arc stone stone line.Co;umn,pillar,column head,column cap,whorl pillar,vase.On the base of auto shape cutting,

the machine has been adding the length of vertical grinder and cross beam,enlarged the length

of rip rotate across in 360 as vertica180.It can shape and process are stone-line with the serices shaking working platform.It can process the column,column head,column

 cap,whorl pillar,vase and other special art craft with wild,it runs nicely and stable with high

quality and performance.It is the first chioce for the stone art carving and material factories

bacause on structure hardness and nicety.



TECHNICAL PARAMETER

Power supply

3P AC380V 50Hz

Input power

15KVA

Main power

7.5W

Speading travel of working platform

3000mm

Diameter of bearing

600mm

Maximum crossing travel

1200mm

Maximumdiameter of saw blade

350-600mm

Cut-to-size slabs

3000x2000x100mm

Cut-to -size border

3000x1000x300mm

Cut-to-size arc

R3000x1200x600mm

Gross weight

≈4800kg

Principal dimensions

5000x2300x3000mm

Maximum diameter of column,vase,caoital,pedestal

600mm

Maximum length of roman-styled column,spiral column

2500mm
