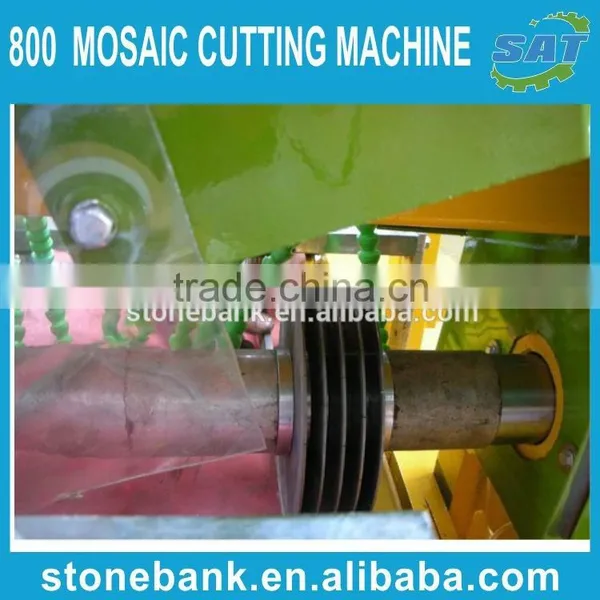

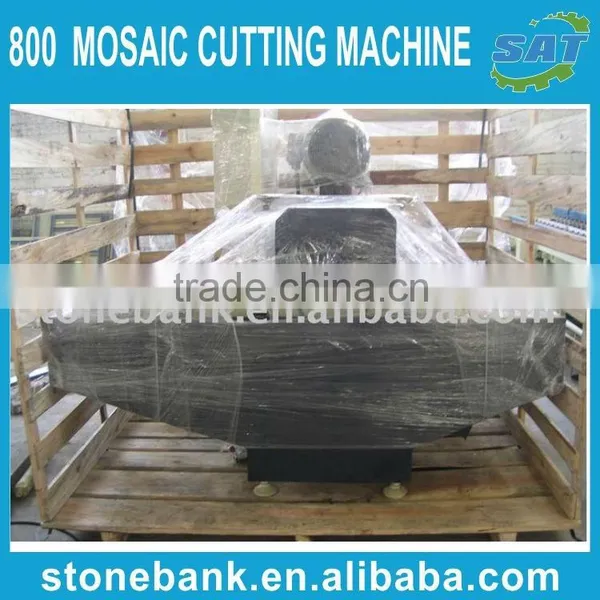

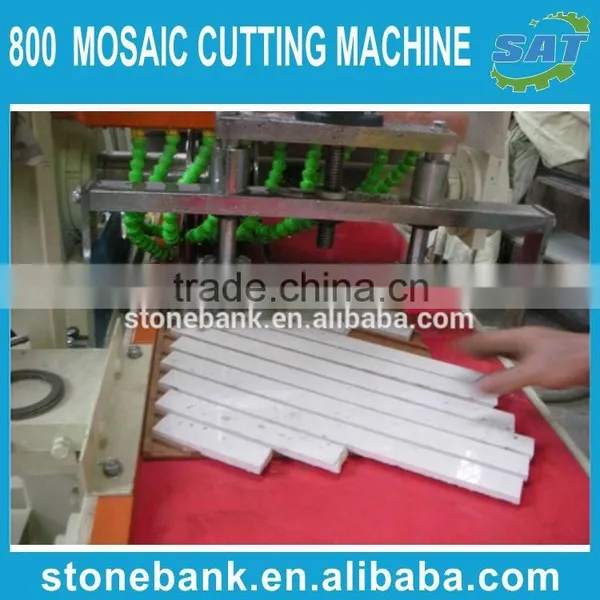

800 Mosaic cutting machine

Annex 1

Main parameter of YMB-800

Number

Names

Parameter

1 Width & Speed of Conveyer Belt

600mm, 1.5 -7.5m/min

2 Numbers of Cutting Assembly (head) of principal shafts

1

3 Diameter of Cutting Blade

Φ180-Φ300mm

4 Principal shaft’s motor power

11kw

5 Cutting Width

20-600mm

6 Width of conveyor belt 621mm

7 Size without package 2050*1550*1700mm

8 weight 1500 KG

9 Water-proof cover uses stainless steel

10 Principal shaft’s bearings are japan NSK bearings

11 Power standard 380V/50HZ/3PHASE,we can for our clients request designs

Annex 2

YMB-800Included Spare Parts (free of charge)

Name Quantity

Φ180×Φ60×5

Clamp Disc (Flange) 12 pcs

Φ76×Φ60×80

Clamp Sheath (Spacer) 3pcs

Φ76×Φ60×50

Clamp Sheath (Spacer) 4 pcs

Φ76×Φ60×30

Clamp Sheath (Spacer) 6 pcs

Φ76×Φ60×20

Clamp Sheath (Spacer) 6 pcs

Φ76×Φ60×10

Clamp Sheath (Spacer) 10 pcs

Φ76×Φ60×5

Clamp Sheath (Spacer) 10 pcs

Φ76×Φ60×3

Clamp Sheath (Spacer) 10 pcs

700x50x20

Pinch Roller Group 3 pcs

Complimentary Accessories (Pinch Rollers) 8 pcs

0.1/0.2/0.3/0.5

Gasket (spacing piece) 20pcs each
