wholesale alibaba iq cnc router weeke cnc router for wood door making
- 50 Set / Sets per Month
- Qingdao
- T/T Credit Card
- engraving cnc router,1325 woodworking cnc router 1300*2500*200
- engraving and milling machine,1325 woodworking cnc router 1300*2500*200
- engraver router,1325 woodworking cnc router 1300*2500*200
- dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
Brand Name: | FORSUN | Model Number: | FS1325C-A | Voltage: | 380v/220v |
Power(W): | 9.0KW HSD | Dimension(L*W*H): | 1300*2500*200mm | Weight: | 1500 KG |
Certification: | CE, CE approved,ISO 9001 | Warranty: | 18 months, 1.5 years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

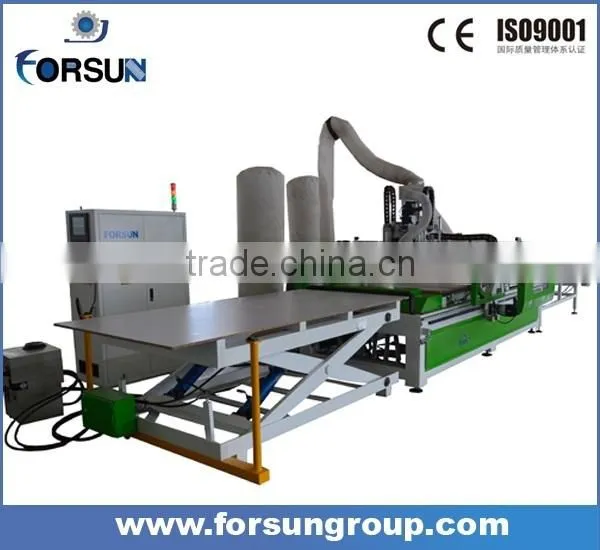

wholesale alibaba iq cnc router weeke cnc router for wood door making
Weeke cnc router applicable Industry and materials:
1) Mould: wood,wax, wood, gypsum,foams,wax
2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and
windows.
3) The wood products: voice box, game cabinets, computer tables, table,instruments.
4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling
tracks, ABS
5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum
Weeke cnc router machine configurations |
1) Working area: 1300mm*2500mm*200mm
2) Syntec 11MB controller system from Taiwan
3) YASKAWA AC Servo System from Japan
4) 9.0KW HSD Spindle
5) 11KW DELTA Inverter from Taiwan
6) Disc ATC with 8 positions
7) Helical Rack and Pinion for X and Y axis
8) TBI Ball screw from Taiwan for Z axis
9) HIWIN Linear Guide from Taiwan
10) Auto Lubrication System
11) layer vacuum table

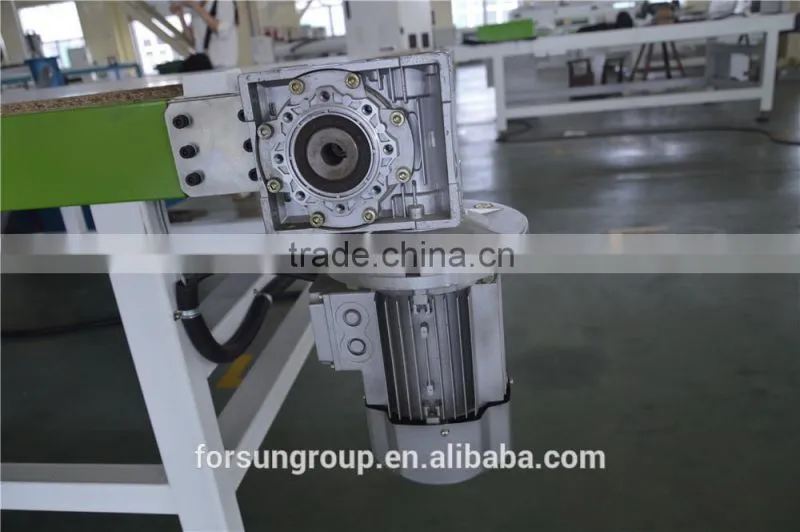

12) sets Apex Reducer from Taiwan
13) Auto feed system
14) Automatic hydraulic lifts
15) 7.5KW Dust collector with professional dust cover
16) ArtCam software,
17) 3PH 380V 50Z
18) Plywood case package
Weeke cnc router option item
1. Water cooling or Oil-free air-cooled vacuum pump
2. Dust collector system
3. Oil mist cooling system (We suggest if processing on hard material)
4. Laser light curtain safety sysytem
Weeke cnc router technical parameter
NO | Description | Parameter |
1 | X,Y,Z Working Area | 1300x2500x200mm |
2 | Table Size | 1350×2550mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
4 | X,Y,Z Repositioning Accuracy: | ±0.03mm/300mm |
5 | Table Surface | Vacuum and T-slot Combined |
6 | Frame | Heavy Steel Tube Structure |
7 | X, Y Structure | Rack and Pinion Drive,Hiwin Rail Linear Bearings |
8 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
9 | Max. Power Consumption | (Without Spindle) 4.5Kw |
10 | Max. Rapid Travel Rate | 80000mm/min |
11 | Max. Working Speed | 50000mm/min |
12 | Spindle Power | 9.0KW HSD |
13 | Spindle Speed | 0-24000RPM |
14 | Drive Motors | SIEMENS servo motor |
15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
16 | Command Language | G Code |
17 | Operating System | SYNTEC Control System |
18 | Computer Interface | USB / Ethernet |
19 | Flash Memory | 512M |
20 | Collet | ER32 |
21 | X,Y Resolution | <0.03mm |
22 | Software Compatibility | Type3/UcancameV9 software (Option: Artcam software) |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |
25 | Packing Size | 3750*2280*1950mm |
26 | N.W. | 1500KG |
27 | G.W. | 1700KG |
28 | Optional Parts | SYNTEC Control system |
Dust Collector System | ||
Vacuum Pump | ||
Rotary System | ||
Mist-cooling System |
Weeke cnc router machine spare parts picture

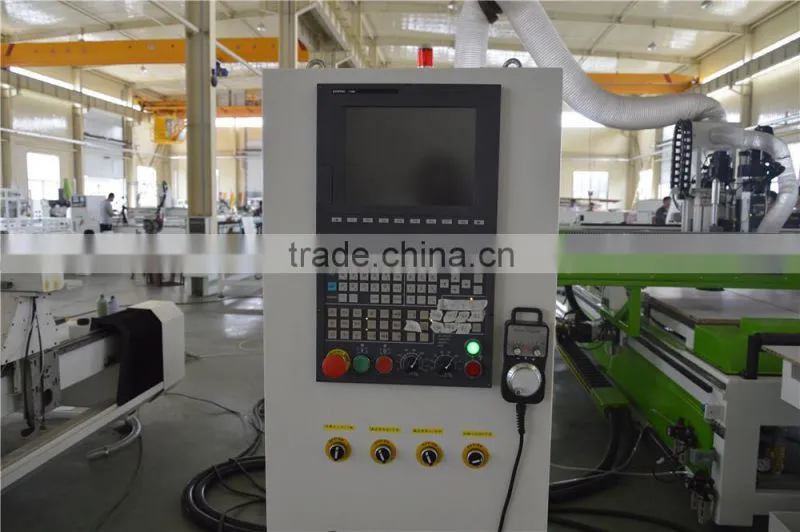

1.SYNTEC 11 MB control system

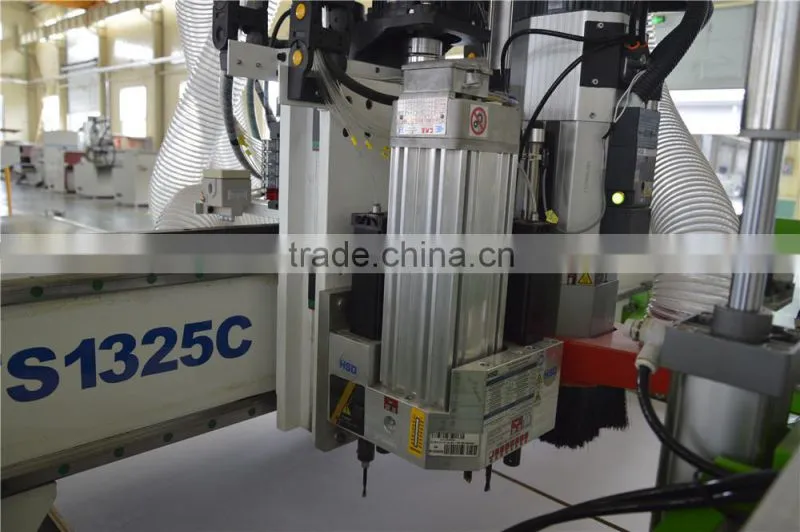

2. 9.0kw HSD spindle and the boring head, with good quality and high precision

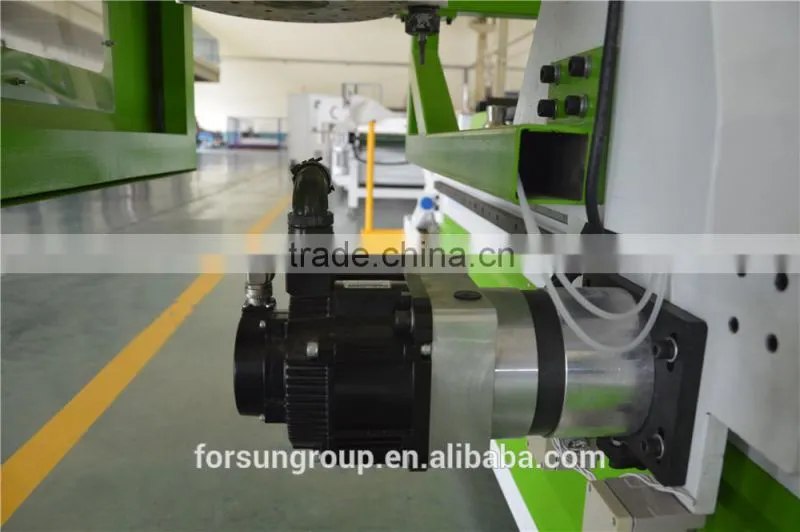

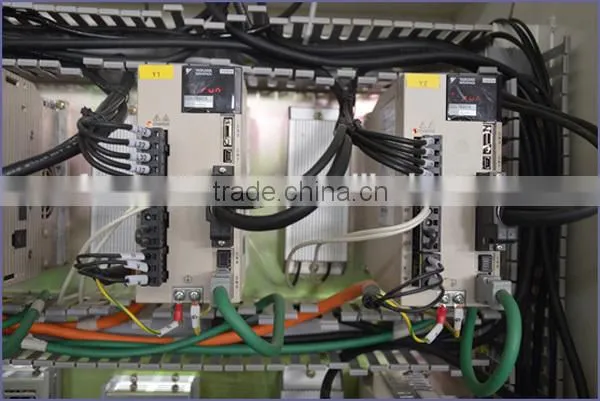

3.YASKAWA servo motor and drives from Japan

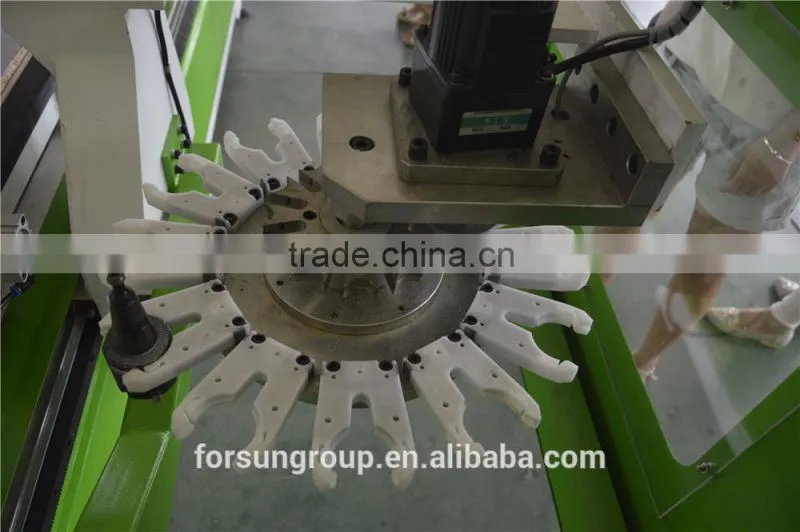

4. Carousel auto tool changer with 12 positions
5. Hobbyist cnc router powerful Helical Rack and Pinion

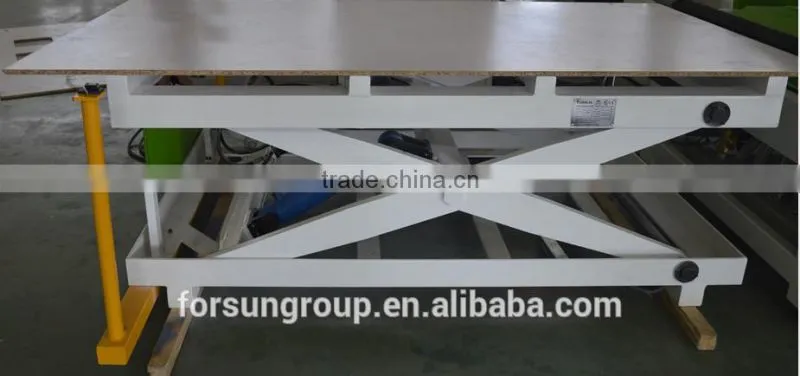

6.Auto loading table

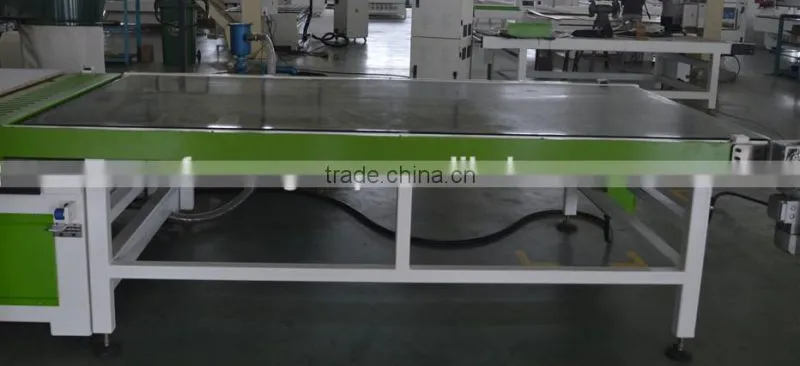

7. Auto unloading table

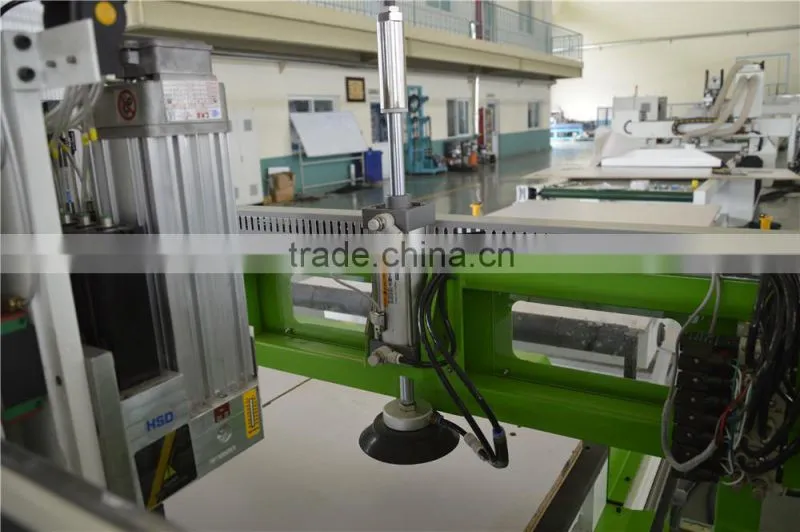

8.Sunction pump to hold the material
Customer Visting
Hobbyist cnc router package and payment
Delivery:
Within 20 days after the deposit
Packing:
Wooden case or as your requirment
Payment:
T/T,30% deposit and the balance 70% should be paid before shipment
The service:
1.18 months guarantee for our machines except HSD spindle with 6 months.
2. 24 hours technical support by email,fax or calling.
3. free training in our factory.Also we can dispatch our technician to customers place if customer agree to air ticket,food and hotel.
Forsun is a leading global manufacturer of CNC routers, plasma arc cutting machines, and laser cutting machines. All the machines have been certified by CE.In manufacturing, the quality processes used are directly reflected in the excellent product that is delivered to your door. We have partnered with specific component manufacturers to deliver the best components for our machine systems. Our focus is on integrating advanced technology and value into systems that are highly productive, easy to use and built to last. Some of our strategic vendors include HSD Spindles , THK Bearing Systems, Siemens control system, YASKAWA servo, HIVIN linear guide and Eisler Reducer.

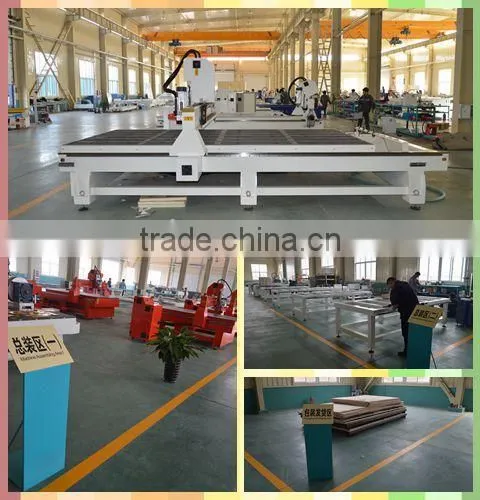

Hobbyist cnc router factory
The customers who like our wood carving machine often ask?
Q1.how to get the most suitable wood carving machine and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2: Do you have the manual of wood carving machine.
Yes,we have
Q3.If we donot know how to use the wood carving machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal
Q4.How about your wood carving machine after-sales service?
we offer you 24 hours service phone,skype or MSN
Q5.How about your wood carving machine guarantee period?
one and half year, and during the time,if you have any questions ,we will solve it for free.
Contact with me:
If you have any question,pls contact with me freely,Welcome you inquiry.
