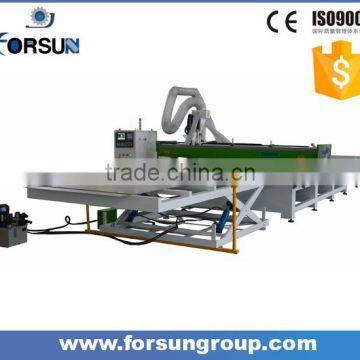

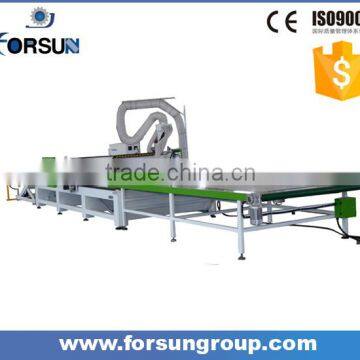

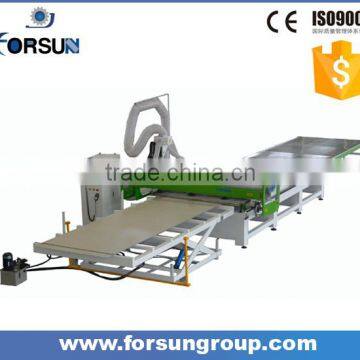

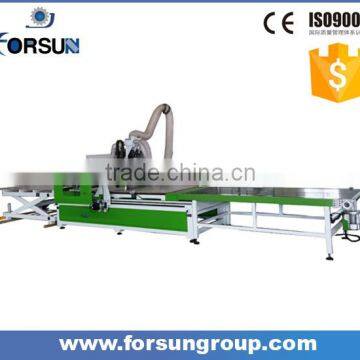

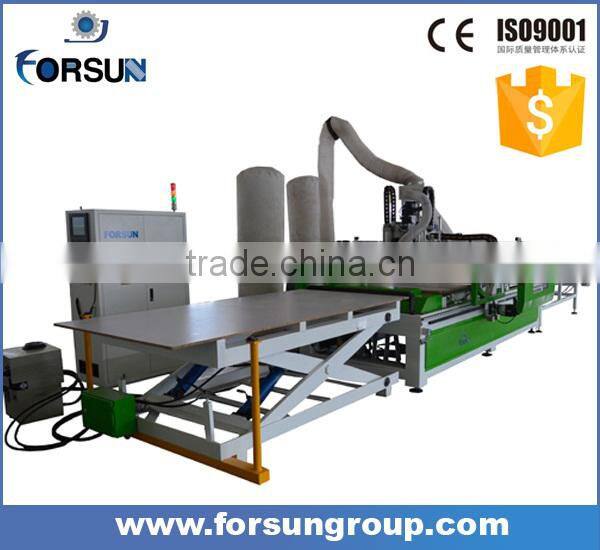

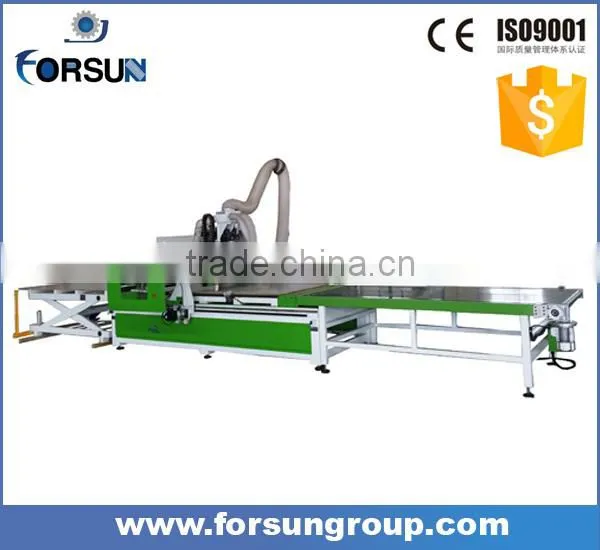

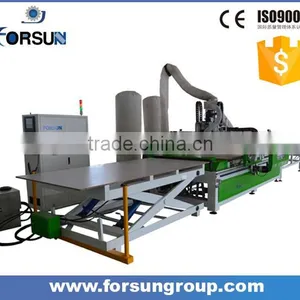

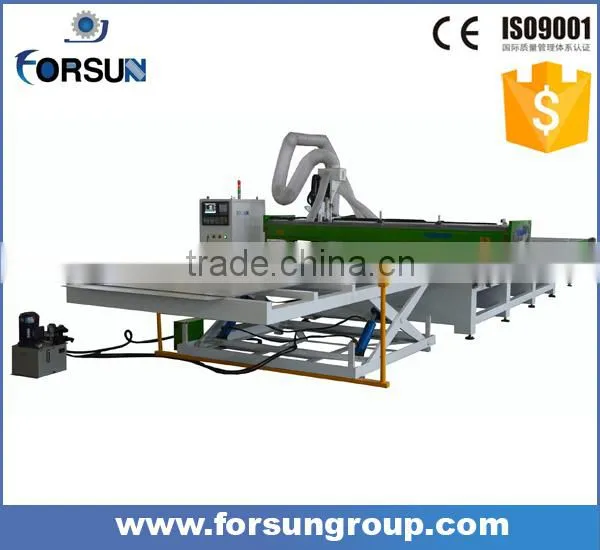

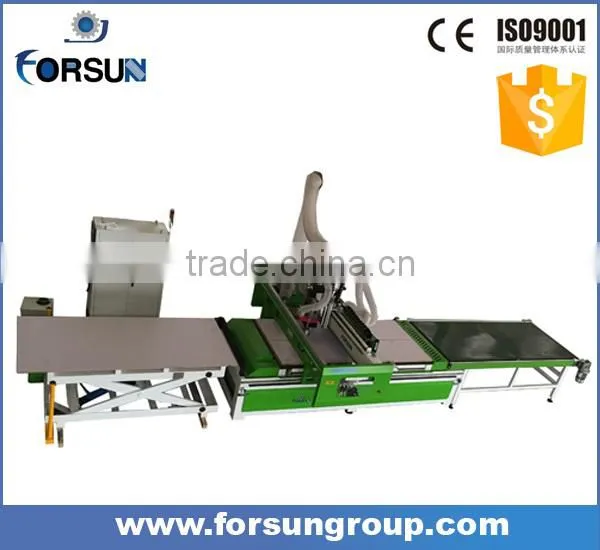

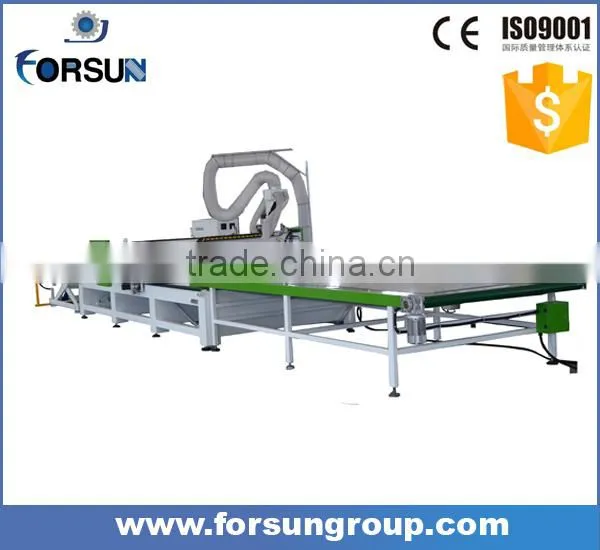

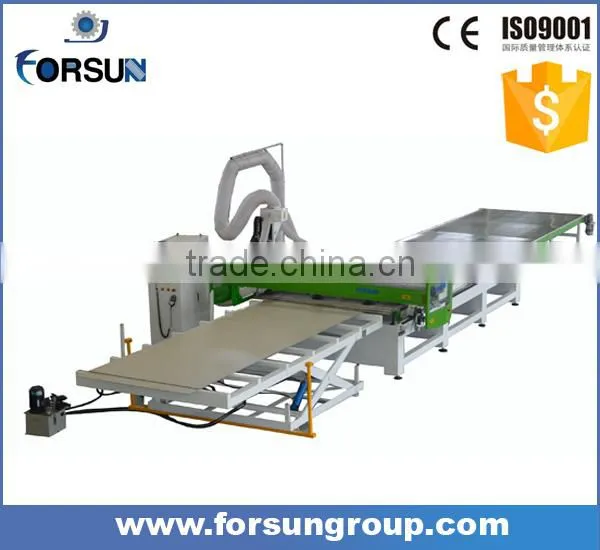

Made in China Multifunctional nesting carving cnc router machine for Wood MDF Acrylic Board door making
1. Introduction of our nesting cnc router:
With Auto loading un-loading ( NESTING ) system, this machine can save much more time & energy to put on wood plates. It is very suitable for the Manufacturers such as batch processing doors, cabinet, furniture...
For this machine, we use top quality components:
1) Syntec control system from Taiwan, with high performance and competitive price. Professional famous brand in 4 axis machine line.
2) HSD ATC Air cooling spindle from Italy, with strong cutting ability, low noise, it can ensure the machine
working for long time.
3) Original YASKAWA Servo motors & drivers from Japan, ensure the machine’s stronger strength and high accuracy.
4) Disc type ATC system, change tools within 8 seconds, very easy and convenient.
2. Technical data of our cnc router wood carving machine
Technical Data | ||
NO |
Description |
Parameter |
1 |
Working area |
1300*2500*200mm |
2 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
3 |
X,Y,Z Re-positioning Accuracy: |
±0.03mm/300mm |
4 |
Max. Rapid Travel Rate |
45000mm/min |
5 |
Max. Working Speed |
30000mm/min |
6 |
Spindle Speed |
0-24000RPM |
7 |
Command Language |
G Code |
8 |
Flash Memory |
512M |
9 |
Collet |
ER32 |
10 |
X,Y Resolution |
<0.03mm |
11 |
Running Environment Temperature |
0 - 45 Centigrade |
12 |
Relative Humidity |
30% - 75% |
13 |
Packing Size |
3200*2140*1850mm |
14 |
N.W. |
1700KG |
15 |
G.W. |
1800KG |
3. Applicable of our multifunction woodworking machine
1) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and
windows.
2) The wood products: voice box, game cabinets, computer tables, sewing machines table,
instruments.
3) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling
tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
4) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

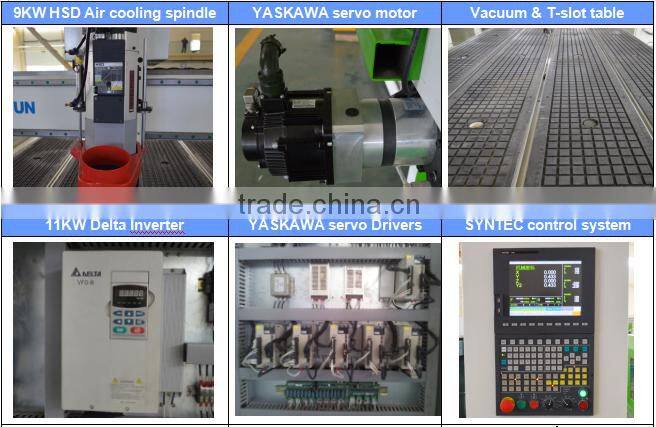

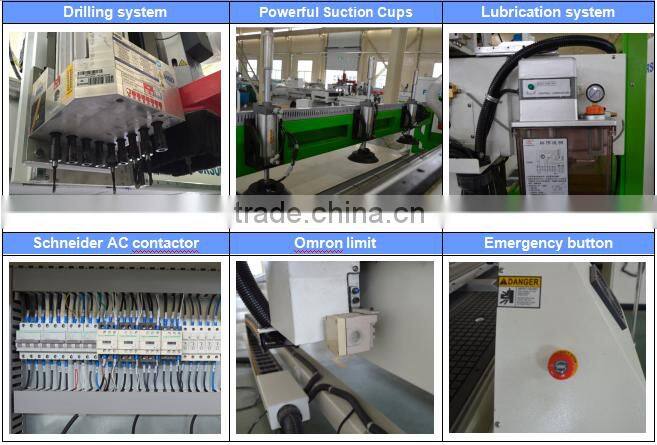

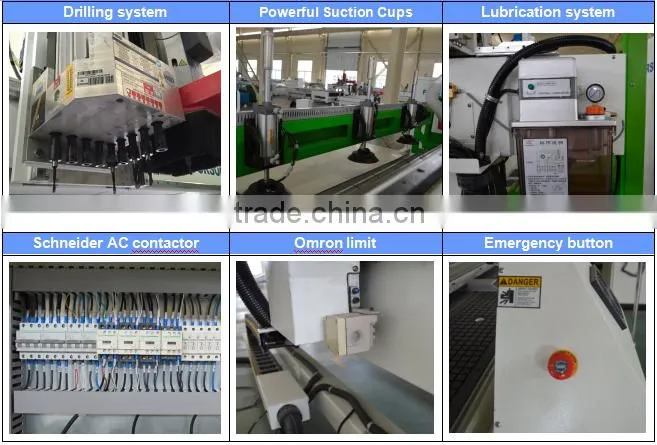

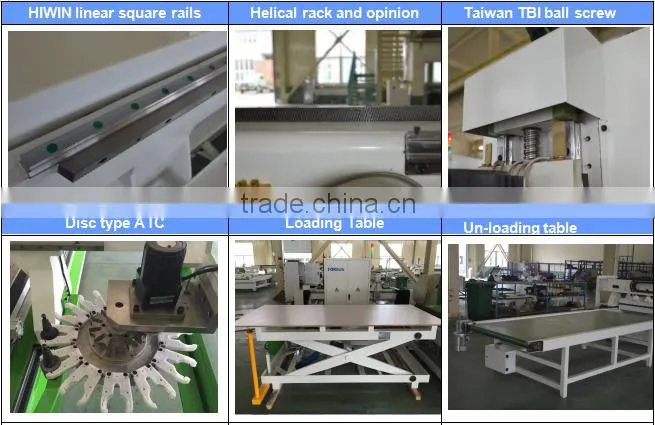

4. Machine parts of our auto tool change nesting cnc router
5. Machine samples of our nesting cnc router machine
6. More types of our cnc machine
|
|
|
| SIEMENS ATC MACHINE | SYNTEC ATC MACHINE | Economical cnc machine |
|
|
|
| AUTO LOADING UN-LOADING | 4 SPINDLES CNC MACHINE | DOUBLES HEADS CNC |
7. Customer visit of our woodwroking nesting cnc router
Pls add My skype :forsun.sales5 or whatsapp:0086-18766148259, Email: sales5(), and let's talk more details. Website:
Youtube website: /channel/UCaCI11JOcXVn1r0QHto4y4A/videos
Facebook website: /forsuncnc
♥ Send an inquiry now,you will have more discount & more detail about price,packing,shipping,ect.
