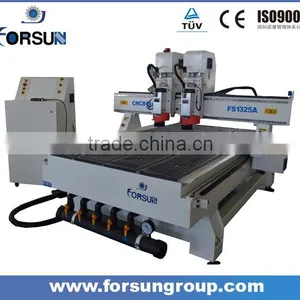

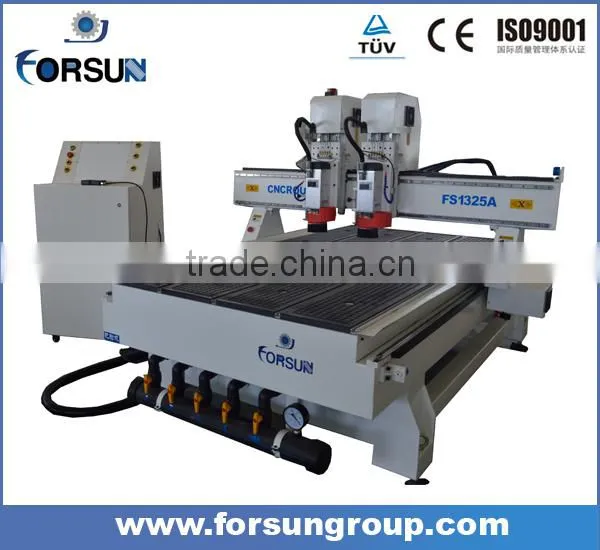

FS1325-2HB cnc router wooden furniture making cnc machine/advertising engraving cnc router with two heads
Standard features:
1.Head 1 Working area: 1300*2500*200mm(X Y Z Axis)
Head 2 Working area: 1300*2500*200mm(X Y Z Axis)

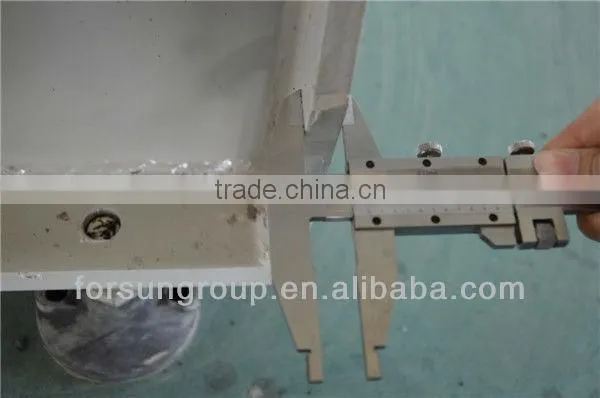

2) Solid steel frame construction thicken to 8mm
3) 3.5 kw air cooling spindle

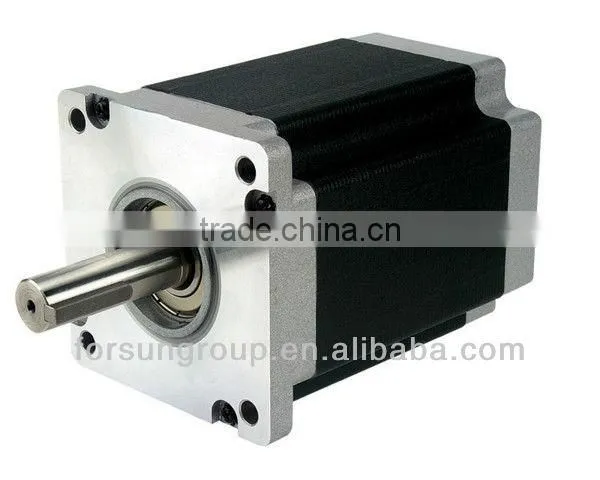

4) Stepping drives

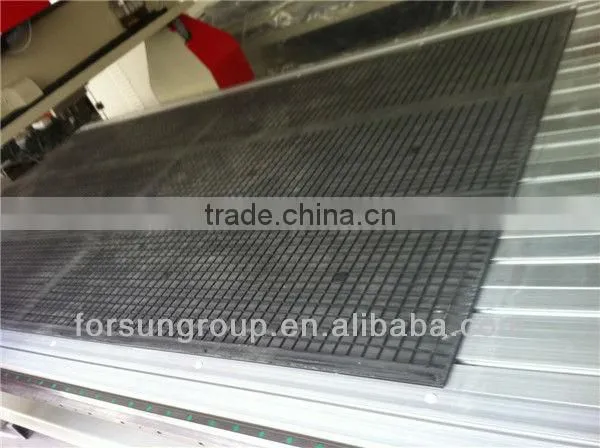

5) T-Slot PVC table with Aluminum sheet
6) HIVIN Linear Guide for maximum stiffness
7) DSP controller
8) Drive System X and Y axis: Rack and
Pinion, Z axis: Lead Screw
9) Automatic Tool Calibration
10) Art Cam software,
11) Delta Inverter
12) 3PH 380V 50HZ
13) Plywood case package
Option:
1.Vacuum System
2.Dust Collector system
3.AC Servo motors
4.HSD Spindle
5.Rotary Axis
Technical Parameters:
NO. |
Items |
Parameters |
Option |
|||
1 |
Head 1 Working area |
X Y Z Axis |
1300*2500*200mm |
|||
Head 2 Working area |
1300*2500*200mm |
|||||
3 |
Table Type |
T-Slot Extrusion PVC |
Vacuum table |
|||
4 |
Accuracy |
Working Accuracy |
±0.03/300mm |
|||
Repositioning Accuracy |
±0.02/300mm |
|||||
6 |
Drive system |
X,Y with Rack and Pinion Z with lead screw |
||||
7 |
Speed |
MAX Travel ling Speed |
32000mm/min |
|||
MAX Working Speed |
15000mm/min |
|||||
8 |
Spindle |
Spindle Power |
3.5 KW Air cooling spindle |
Italian HSD Spindle |
||
Spindle Speed |
0-18000r/min Stepper |
Servo |
||||
10 |
Drive and Motor |
|||||
12 |
Working Voltage |
AC380V/50Hz |
AC380V/60Hz |
|||
14 |
Operating System |
DSP |
NCSTUDIO |
|||
15 |
Net Weight/Gross Weight |
1060 KG/1180 KG |
||||
16 |
Packing size |
3170*1920*1850mm |
||||
All parameters above subject to change without prior notice |
||||||
FS1325-2HB Pictures:
FAQ:
1) This is the first time I use this kind of machine, is it easy operate?
There are guide video that show how to use machine and english instruction book send to you with machine.
If there is still have any question, we will provide free professinal guide for you until you could use machine well.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
Shipment:
1) Usually we will quote FOB price,if you need the shipping cost,please tell me your nearest port(destination port),if you need we send the machine to your door,please let me know your address with post code.
2) The shipping cost does not cover any local taxes,import duties or customs clearance costs levied by your government. The buyer is responsible for these import-related costs.Please check with local customs office for more information.
3) We will inform you when the order finished,before shipment,after shipment,when the machine
arrive at your port,so please keep in touch with us in order to get the machine smoothly.
How to order:
Our other machines:
Our advantages:
1. Excellent quality control
2. Competitive price
3. Best service
4. High-quality parts
5. Warranty:1.5 years
To provide you detailed quotation, we need to confirm the following detailes :
1.what is raw material
2.the size of material
3.Your other requirement
Detailed information will be sent to you the moment we get your confirmation
Should you have any question ,contact me!
