Fromwork Shuttering Beam factory .
Flange |
Made of carefully selected spruce, Radiata pine. |
Finger-jointed, high grade, solid wood | |
Finger-jointed and glueing according to DIN 68140-1 | |
Web |
3-plywood or plywood |
Wood types |
Spruce, Pine, a mixture of wood species permitted |
Glueing |
(PRF) Finger-joints between flange and webs pursuant to approval notice Z-9.1-146 |
Wood Moisture |
less than 12% at the time of delivery |
Surface Protection |
The complete beam is waterproofed using a water-repellent color glaze |
Weight |
about 5kg/m |
Standard lengths |
2.45 / 2.90 / 3.30 / 3.90 / 4.90 / 5.90 m (Max.length:6.00m) |
Machanical Specification |
Modulus of elasticity : E 11,000 N/mm2 |
Shear modulus : G 600 N/mm2 | |
Packing |
The packages are delivered suitable for the construction site and protected by |
integrated supporting timber |
Available in lengths from 1,45 m up to 16 metres
Easy site handling due to low product weight of 4.8 kg /m
High-strength 9-ply, cross-laminated LVL web material
Manufactured using modern state of the art production machinery
Internal and external production monitoring ensures consistently high quality production
Certified to DIN EN 13377
High quality materials ensure a long service life

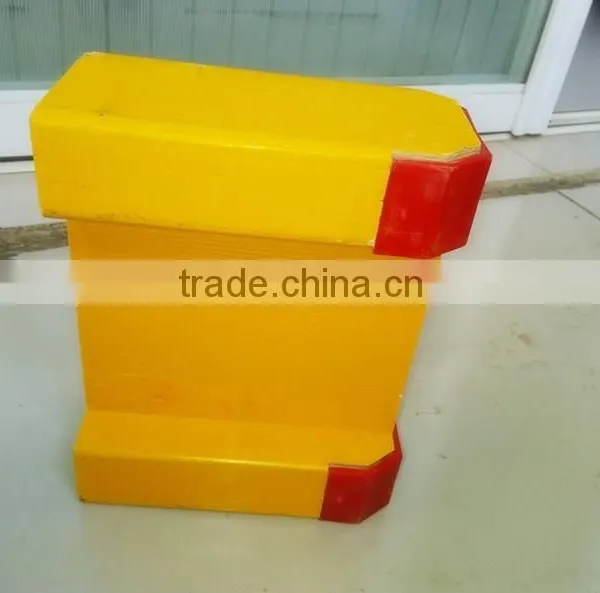

Available with plastic end caps for optimum end protection
