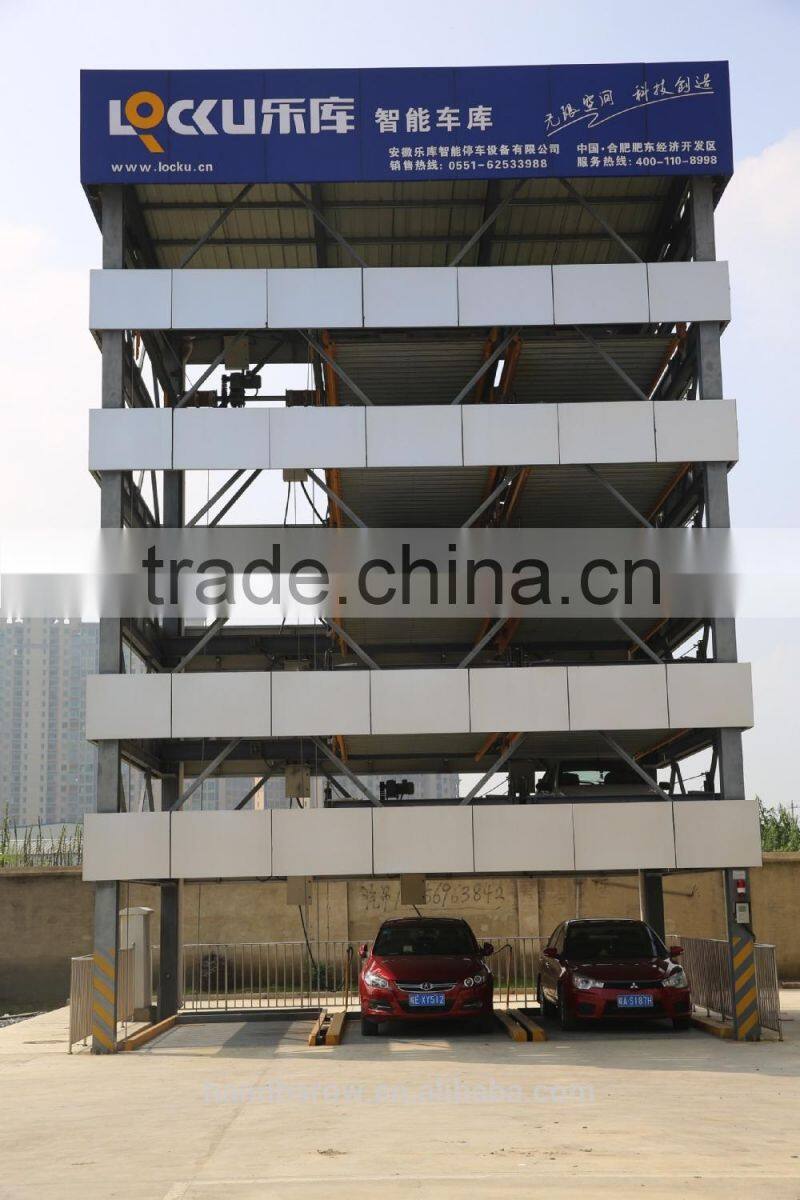

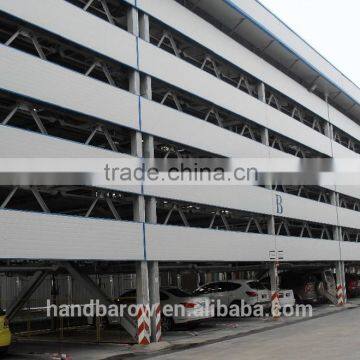

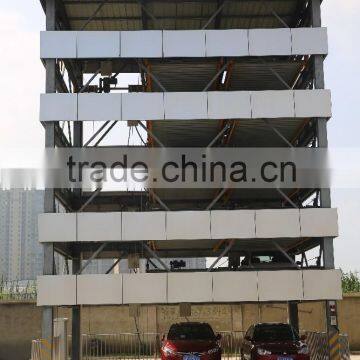

Help Center6-level PSH Vertical-horizontal Parking System
Related Products
Working Principle:

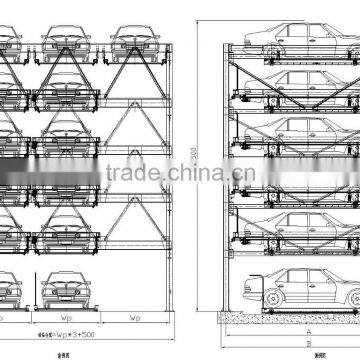

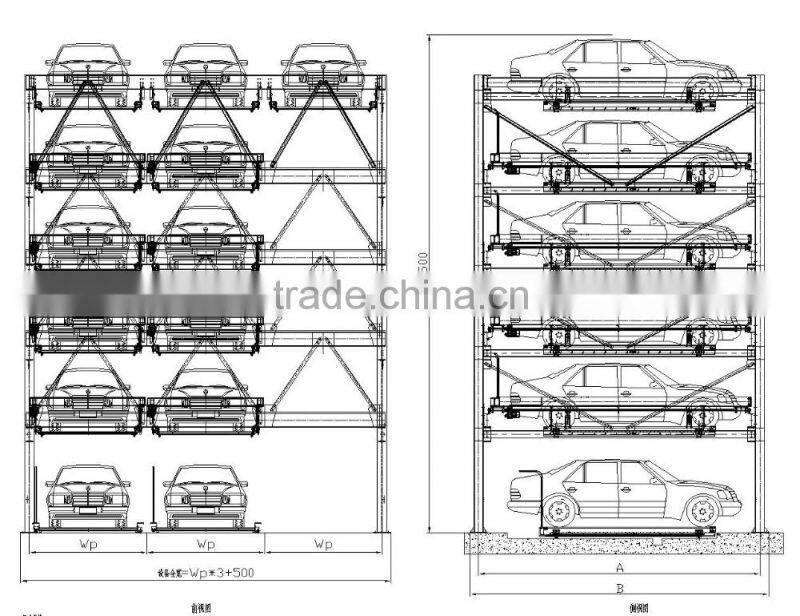

The system is designed with six-level and multi-row and each level with a space for exchanging. All spaces can be lifted automatically except the spaces on the ground and all the spaces can slide automatically except the spaces on the top level. When a car needs to park or release, all spaces under this car will slide to the empty space and forms a lifting channel, thus the space will go up and down freely, it will go out and in easily when the car reaches the ground.
Features:
Simple and reliable, easy to operate;
High utilization rate of space, wide vision, energy saving and environmental protection;
The system with long service life, easy to maintain, convenient and fast to park and release;
Various types and specifications for option, strong adaptability to site;
Multiple protection devices for anti-full, anti-crashing and anti-overloading;
The installation requires a 12 cm-deep foundation pit, pallet should be flush with the ground, vehicles for the no steep slope.
Specifications:
Driving mode: motor+steel rope;
Suitable cars: L5000*W1850*H1550mm/L5000*W1850*H1800mm, weight: ≤2000kg;
Lifting motor power: 2.2kw;
Lifting speed: 4.0-6.0M/min;
Sliding motor power: 0.2kw;
Sliding speed: 6.0-8.0M/min;
Control: PLC;
Power source: 380VAC 50Hz, 3-phase 5-wire;
Place of Origin: Anhui, China;
Brand Name: LOCKU;
Warranty: 1 Year;
Certificates: CE, ISO, etc;
Protection device: anti-falling, anti-collision, anti-overload, anti-roof falling, etc;
Fault indication: Fault diagnosed by computer, LCD display;
Operation Mode: IC Card/Manual Button;
Parking Mode: Reverse parking, forward retrieving.
