Specifications
CNC drilling machine Metal engraving machine1. Whole cast steel struction
2. BT40 servo drilling spindle
3. SYNTEC control
Metal engraving machine FS1012M CNC drilling machine
Machine configuration
1) Working size:1000*1200*300mm
2) Whole Cast Steel heavy duty Structure
3) SYNTEC controller
4) BT40 servo drilling spindle
5) 5.5KW Delta inverter
6) Gantry moved machine
7) HWIN Linear Guide 30mm
8) YASKAWA servo from Japan
9) Auto lubrication
10) Oil mist coolings system
11) TBI Ball screw 2510
12) NSK bearing from JAPAN
Option:
1. NC studio controller, Mach3 controller or DSP
2. AC Servo motors
Technical data of CNC drilling machine Metal engraving machine
NO. |
Items |
|
Parameters |
1 |
Working area |
X Y Z Axis |
1000*1200*300mm |
2 |
Table Type |
|
Cast steel table |
3 |
Accuracy |
Working Accuracy |
±0.03/300mm |
Repositioning Accuracy |
±0.03/300mm |
||
4 |
Drive system |
X,Y with Rack and pinion Z with Ball screw 2510 |
|
5 |
Speed |
MAX Traveling Speed |
32000mm/min |
MAX Working Speed |
15000mm/min |
||
6 |
Spindle |
Spindle Power |
BT40 Servo drilling spindle |
Spindle Speed |
0-24000r/min |
||
7 |
Drive and Motor |
|
YASKSWA Servo |
8 |
Working Voltage |
|
AC 380V/50Hz |
9 |
Operating System |
|
SYNTEC |
10 |
Net/Gross Weight |
|
2500KG/2700KG |
11 |
Packing size |
|
2070*2070*2100mm |

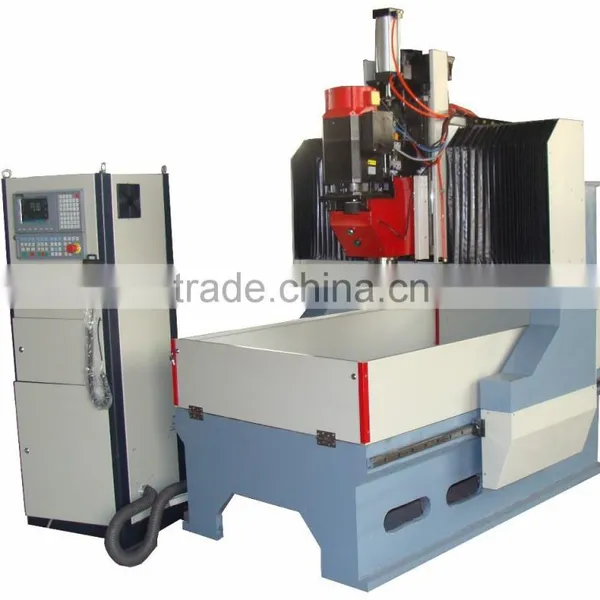

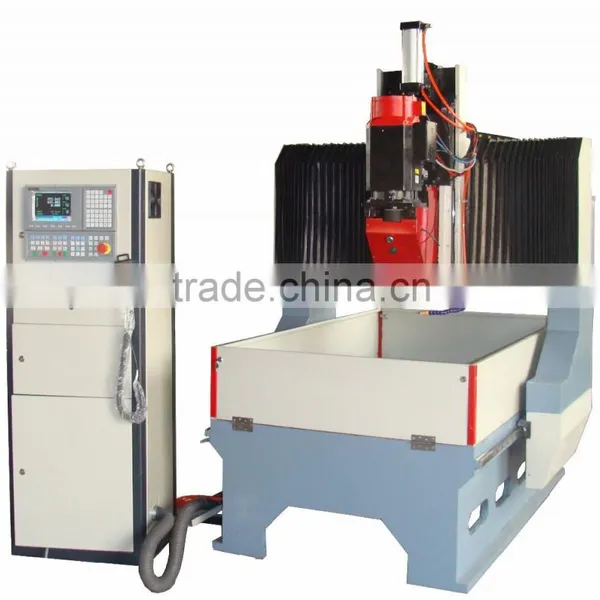

Machine picture

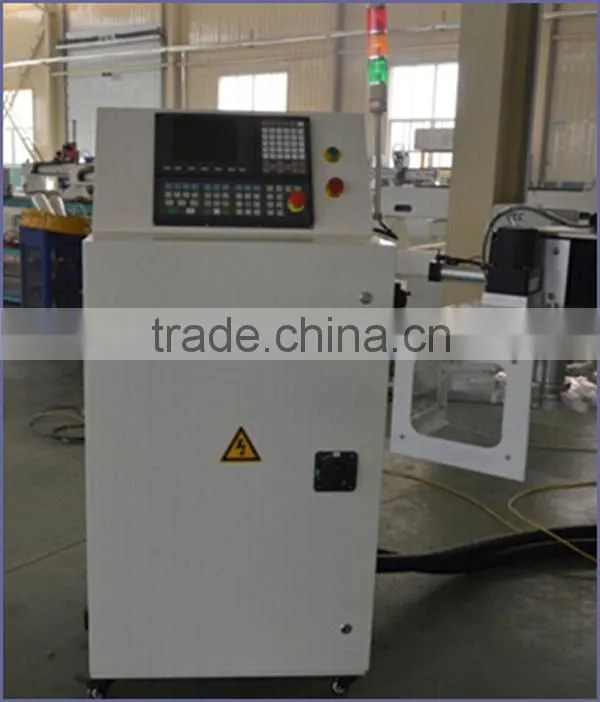

Control system of FS1012M CNC drilling machine Metal engraving machine (Option: NC studio control, )

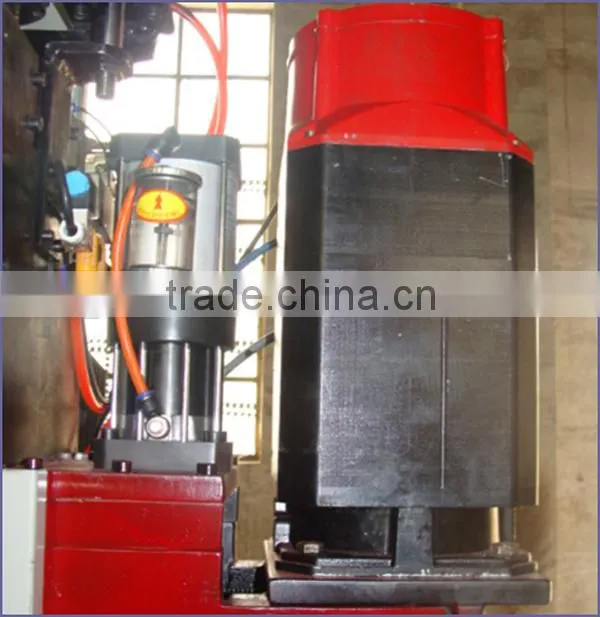

BT40 servo drilling spindle of CNC drilling machine Metal engraving machine
Whole cast steel heavy duty structure of CNC drilling machine Metal engraving machine

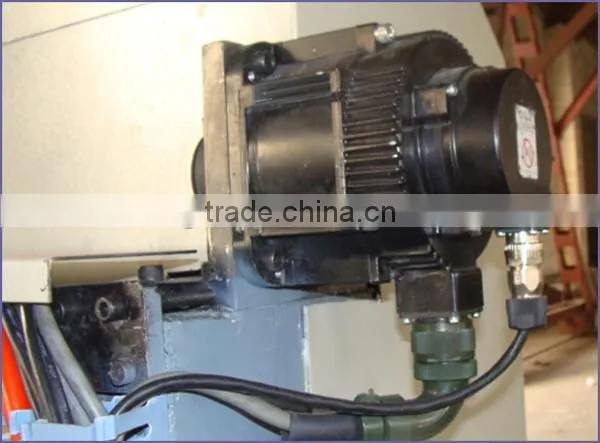

Japan YASKAWA servo motor of CNC drilling machine Metal engraving machine

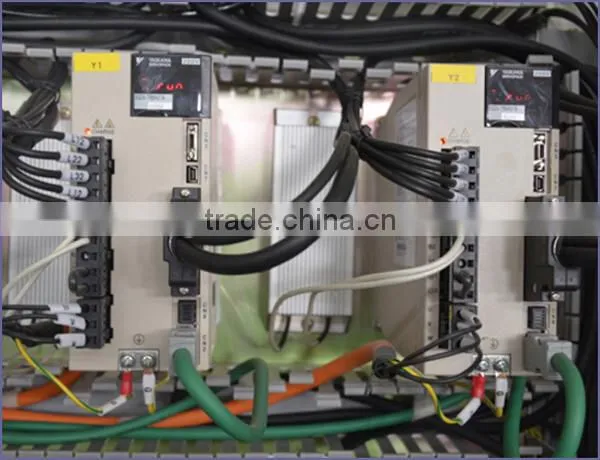

Japan servo drives of CNC drilling machine Metal engraving machine

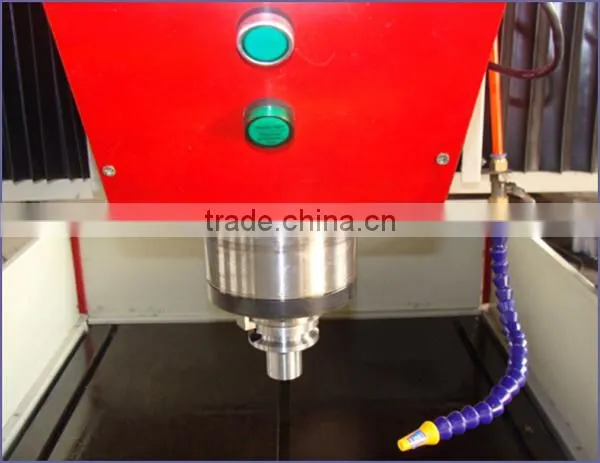

Oil mist cooling system for CNC drilling machine Metal engraving machine

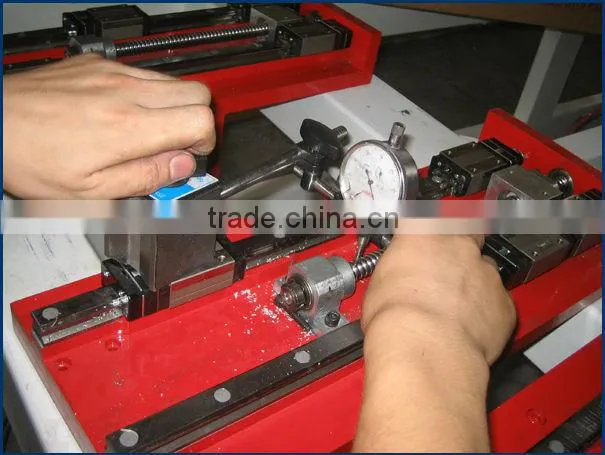

Ball screw install high precision of CNC drilling machine Metal engraving machine
The Sample of CNC drilling machine Metal engraving machine
Workshop
Other CNC router
Note
Payment: T/T, 30% prepaid and the balance paid before delivery.
Package: plywood case
Port of Loading: Qingdao,China
Delivery Time:within 10 days after received payment.
Remarks
1. Wooden Package
2. Terms: FOB ,C&F,CIF
3. From Qingdao China To_______,
4. Delivery Time: within 15 working days after received payment
5. Payment: T/T,30% prepaid,,the balance paid before the delivery
