Home > Electrical & Electronics > Power Transmission & Transformer > Transformer > 100% Original Mitsubishi PLC FX3G-40MT/ES-A FX3G Series PLC,New Arrival

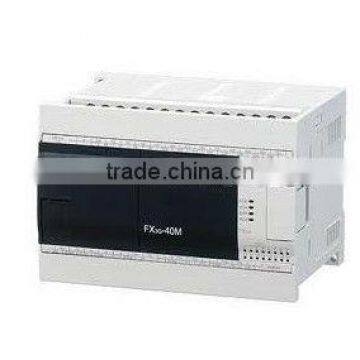

100% Original Mitsubishi PLC FX3G-40MT/ES-A FX3G Series PLC,New Arrival

Consis Tech Equipment (Guangzhou) Co., Ltd.
100% Original Mitsubishi PLC FX3G-40MT/ES-A FX3G Series PLC,New Arrival thumbnail-1
100% Original Mitsubishi PLC FX3G-40MT/ES-A FX3G Series PLC,New Arrival photo-1
US$ 99 - 599 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Japan
Brand Name:
Mitsubishi
Model Number:
FX3G-40MT/ES-A
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai/guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Japan
Brand Name Mitsubishi
Model Number FX3G-40MT/ES-A

 100% original Mitsubishi PLC FX3G-40MT/ES-A FX3G Series PLC,New Arrival



 1.Usage:

  with the versatility to handle applications from a wide range of industries.

  • Applies the proven FX3U design to smaller but performance critical applications
  • Add a variety of capabilities to suit specific application needs
  • Builds on existing FX series hardware and programming for quick adoption and investment protection
  • Direct control of inverter and motion control systems with no extra hardware



 2.Specification



Item No. FX3G-40MR/ES-A   or    FX3G-40MT/ES-A
I/O points 256 total (combined local and CC-Link remote I/O)
Address range Max. 128 direct addressing and max. 128 remote I/O
Power supply 100–240 V AC (+10 % / -15 %), 50/60 Hz
Program memory 32,000 steps EEPROM (internal), exchangeable EEPROM memory cassette with loader function
Instruction Time 0.21 μs or 0.42 μs / contact instruction
Integrated  inputs Number of inputs 24
Input signal voltage 24 V DC (+/-10 %)
Input form sink/source
Response time Approx. 10 ms
Isolation Photocoupler isolation
Integrated
outputs 		Number of outputs 16
Switching voltage <240 V AC, <30 V DC (relay output), 5 – 30 V DC (transistor output)
Output type/form Relay or transistor
Max. load ( resistive )2A/point, max. 8 A total (relay), 0.5 A/point; max. 0.8 A for 4 output points/common terminal (transistor)
Max. load ( inductive )80 VA (relay), 12 W/point (at 24 V DC); max. 19.2 W for 4 output points/common terminal (transistor)
Response time 10 ms (relay), < 5 μs (for Y000 and Y001) / 0.2 ms (for all other outputs) (transistor) (The 40 and 60 I/O point transistor output base units have a 5μs response time for Y002)
Isolation Photocoupler isolation
High-speed counters 21 total, with 16 1-phase (C235 - C250) and 5 2-phase (C251 - C255)
24V DC service power supply 400 mA
Environment 0 – 55 °C ambient temperature; 5 – 95 % relative humidity





3.Our Business lines:



Mitsubishi

1. PLC :Q-PLC, FX1N, FX2N, FX1S, FX3G and FX3U series ;

2.Servo Driver and Motor MR-J2S, MRJ3, MR-J4,MR-JE;

3.Inverter FR-A740, FR-F740, FR-E740, FRD740 series;

4.HMI GT10, GT12, GT15, GT16 series.



Delta:

1.DVP-EH3, DVP-EH2,DVP-ES2/EX2,DVP-ES,DVP-SS2/SX2,DVP-EC2,DVP-EC3 series PLC;

2.AB,A2B2 series servo driver & servo motor

3.C2000,CP2000,CH2000,C200 series inverter

4. DOP B series HMI etc .



4. Company service:



Quality: 100% Original new with very low special price

Warranty :1year warranty service and 15exchange if product itself problem!

Promise: False one lost ten!!

Delivery: large in stock and can be very fast delivery



Any more help, please feel free to contact our skype:zqzj08
