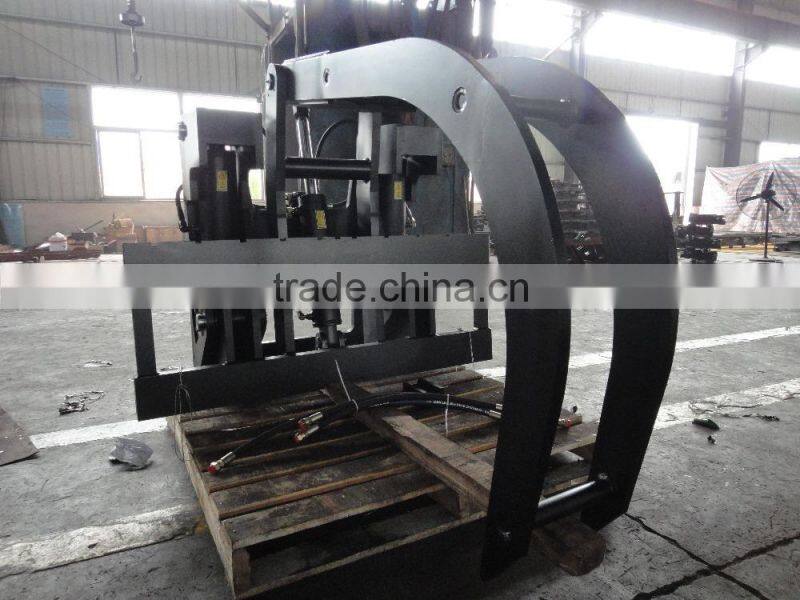

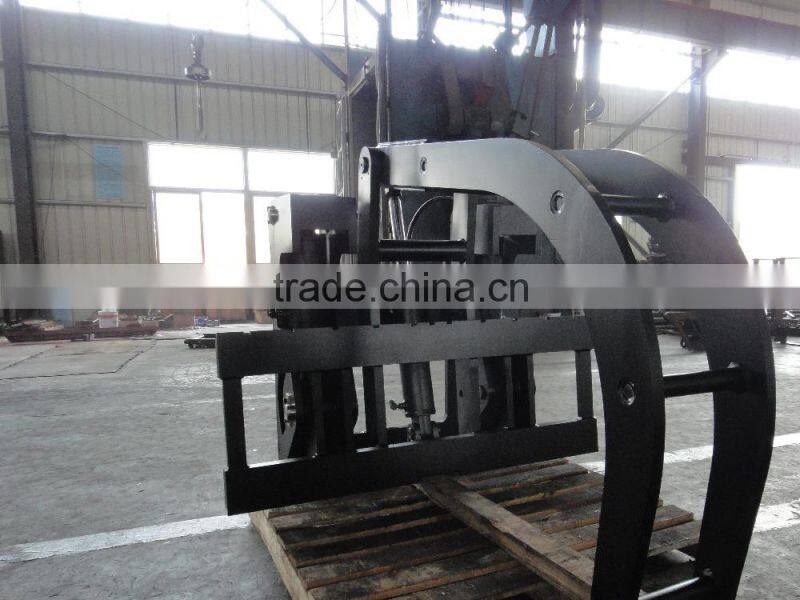

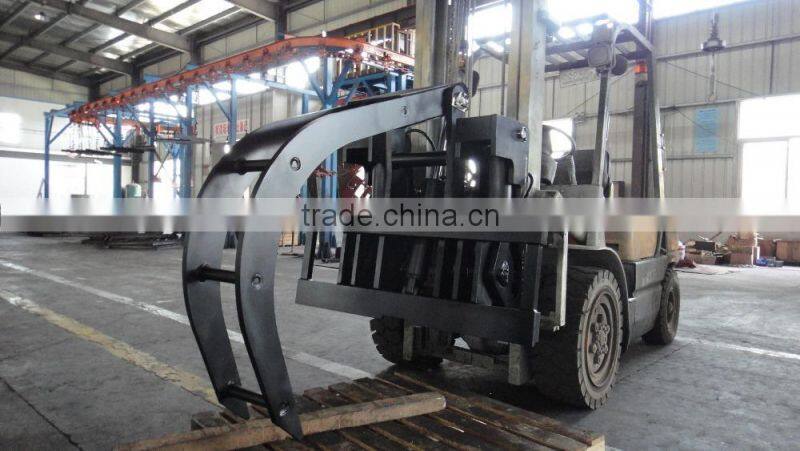

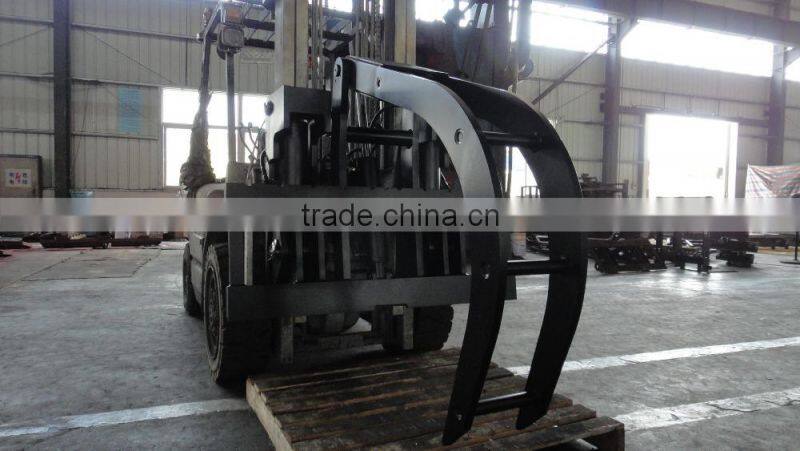

Handbarow Forklift Attachment Steel Pipe Clamp

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Shanghai Ningbo or others
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Anhui, China		Brand Name	Handbarow
Model Number	GGJ35T

Product Description

Functions and application

Steel pipe clamp is mainly used for handling cylindrical and barrel-shaped hard articles without pallet. It is widely applied to industries of construction and logistics, etc. It integrates clamping and dumping so as to improve the flexibility and handling efficiency of forklift.

Features

Reasonable designed hydraulic parts to ensure the integral stability of product;
Excellent vision ensures safe and reliable operation;
Easy to install, each jointing part adopts self-lubricating bearing, prolongs the service life.

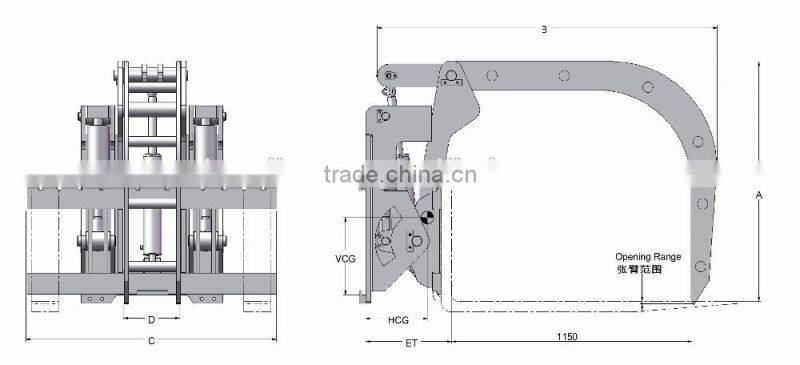

Technical Date:

Capacity@

Load Center

(kg@mm)

Catalog Order

No.

Mounting

Class

Hinged Fork

Mounting Class

Raker

Height

A (mm)

Raker

Length

B (mm)

Carriage Width

C (mm)

Raker

Width

D (mm)

VCG

(mm)

Tilt Forward

Tilt Backward

Weight

(kg)

(mm)

HCG

(mm)

1500@600

GGJ30T

III

1150

1650

1200

270

510

45°/8°

620

360

1800@600

GGJ35T

III

1400

1650

1200

270

522

45°/8°

700

340

Remarks:

1. Please get the actual comprehensive loading capacity of forklift and attachment from the factory;

2. Matching this attachment requires two more oil circuits for the forklift;

Above listed models are common products of Handbarow, other models can also be provided for customer according to special working conditions. Please contact Handbarow sales representative.

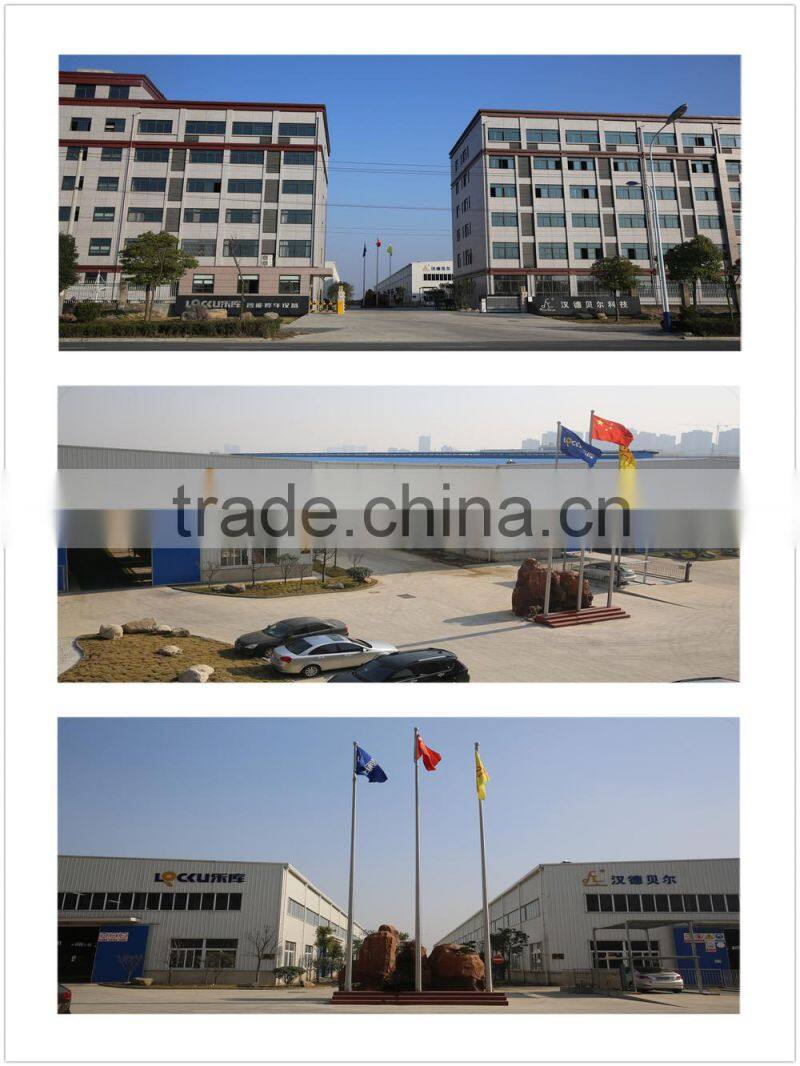

Our Plant

Our Office

Certifications

Workshop

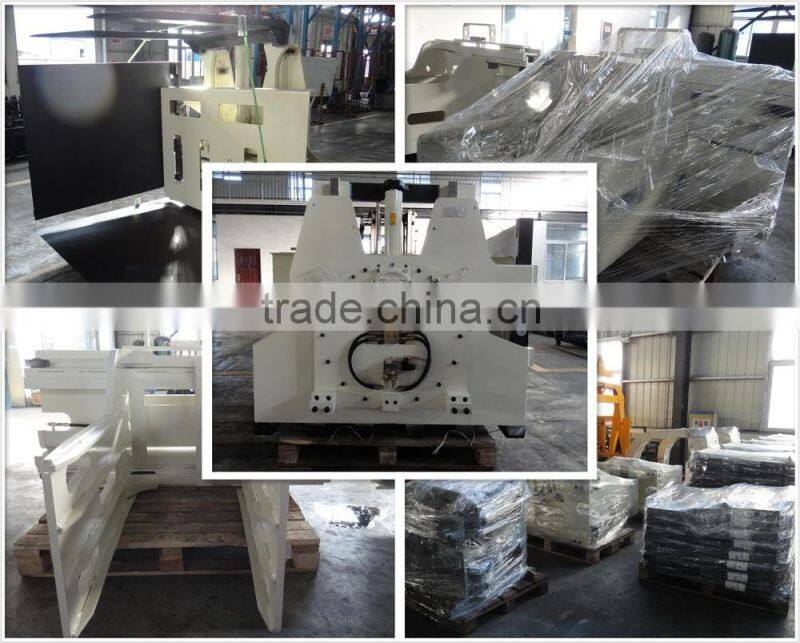

Products & Packing
