Brief description of woodworking lathes:
1.Samples is available ( We can make samples as you asked )
2.Factory price & High quality, warranty for 1.5 years
3.Perfect after-sale service, with Talented and passionate work team, 24h online
4.CE,ISO Standard
High quality wood acylic carving cutting woodworking lathes, woodworking cnc
Technical Prameters of woodworking lathes:
NO |
Items |
Parameters |
|
1 |
Working Area ( XYZ ) |
1300*2500*200mm |
|
2 |
Table Type |
T-Slot Vacuum table |
|
3 |
Working Accuracy |
±0.03/300mm |
|
4 |
Re-positioning Accuracy |
±0.02/300mm |
|
5 |
Drive system |
X,Y with Rack and Pinion; Z with lead screw |
|
6 |
Speed |
MAX Traveling Speed |
35000mm/min |
|
|
MAX Working Speed |
15000mm/min |
7 |
Spindle |
Spindle Speed |
0-18000rpm/min |
|
|
Spindle Power |
3.0kw air cooling spindle |
8 |
Drive and Motor |
Stepper |
|
9 |
Working Voltage |
AC380V/50Hz, 3PH |
|
10 |
Operating System |
DSP |
|
woodworking lathes Application:
1. Furniture industries: cabinet doors, wooden doors, solid woods, antique furniture.
2. Decoration industries: screens, wave boards, advertising boards and sign making.
3. Arts & Crafts industries: Engrave on artificial stones, woods, bamboos, marbles.
4. Processing material: engraving, milling and cutting processing for acrylic, PVC,
artificial stonesplastics and soft metal sheets suv.

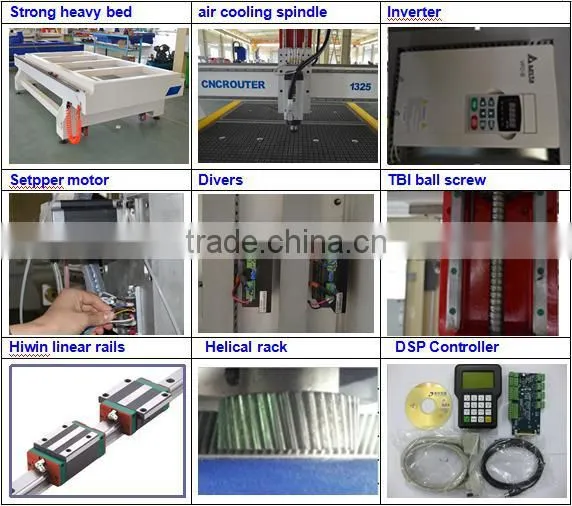

Standard features for woodworking lathes:
1. Working area: 1300mm*2500mm*200mm (X,Y,Z axis)
2. Solid steel frame construction thicken to 12mm, strong stability
3. 3.0 KW Air cooling spindle, long life and good cooling effect
4. Stepping drives, strong anti-interference ability large power and high accuracy
5. T-Slot Vacuum table, stronger adsorption and can adsorb different size materials
6. Taiwain HIWIN Linear Guide rails, ensure the high precision
7. DSP controller, simple operation and good independence
8. Automatic Tool Calibration, better control of the distance between the knife and the
material,improve the work efficiency
9. X and Y axis: are with Rack and Pinion, Z axis is with ball Screw
10. ArtCam software
11. Delta Inverter
12. 3PH 380V 50HZ
13. Plywood case package
Option parts:
1.Dust collector system
2.Oil mist cooling system(used for cooling cutters when working on hard materials)
3.NC Studio controller system
4.Delta or YASKAWA servo system
5.HSD spindle from Italy

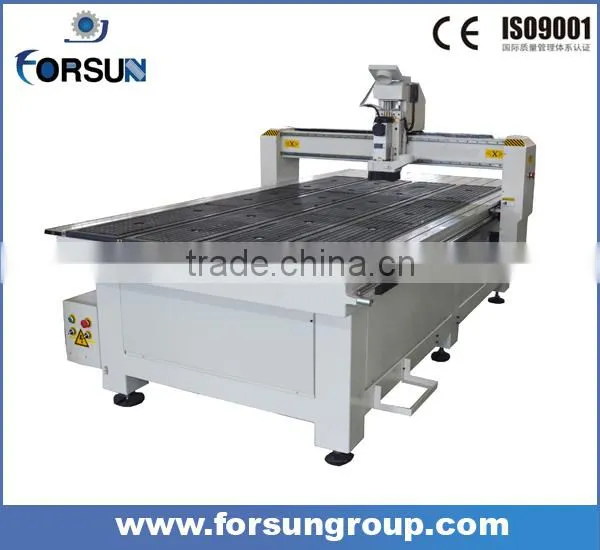

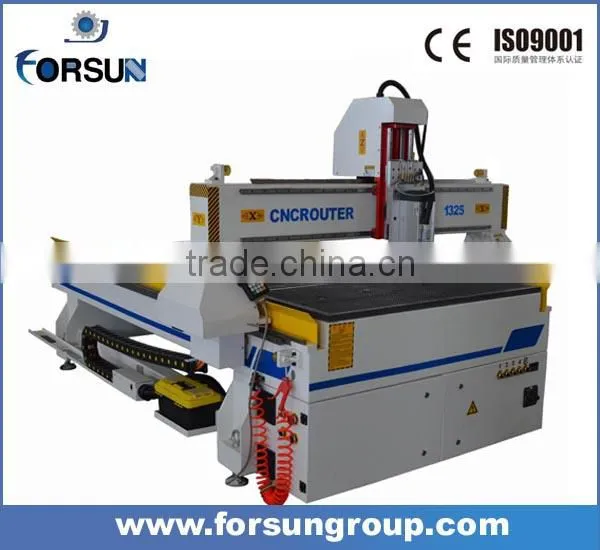

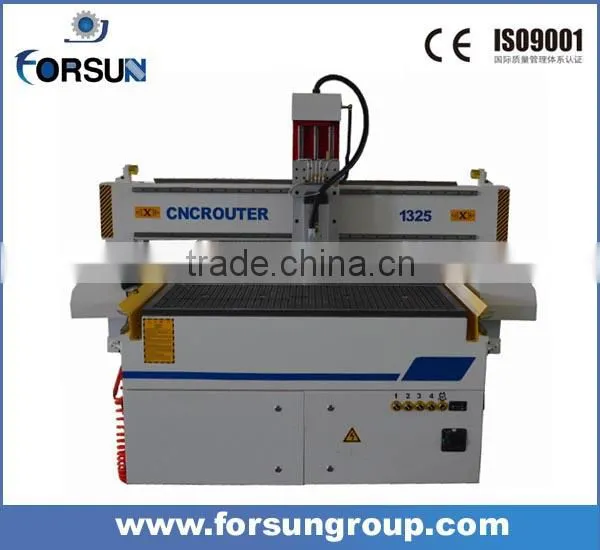

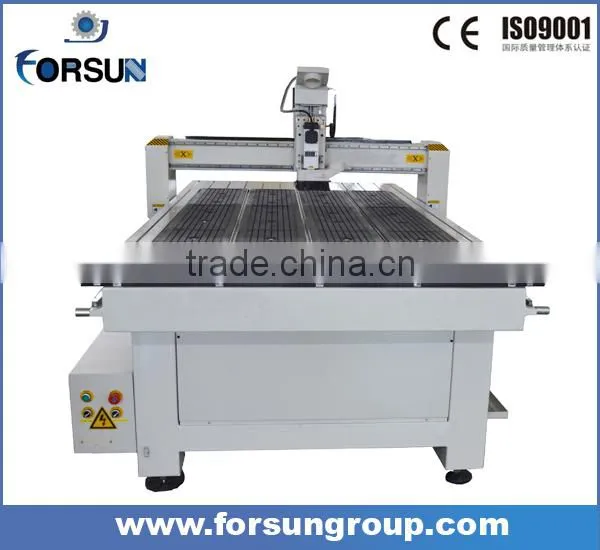

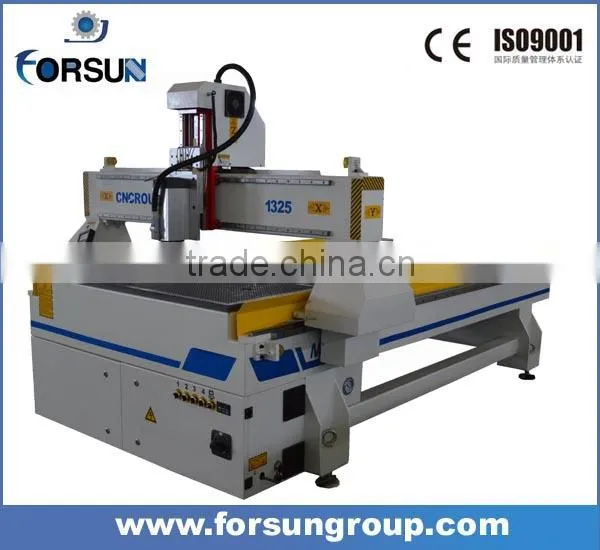

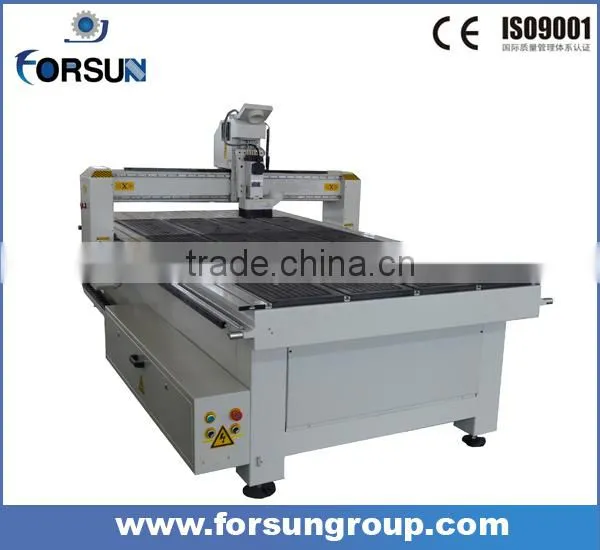

woodworking lathes pictures' show:
Working samples for our woodworking lathes:
Waterproof inside packing, plywood outside packing.
Services of our woodworking lathes:
1. 18 months guarantee for our machines except HSD spindle with 6 months.
2. 24 hours technical support by emails, fax or calling.
3. Free training in our factory. Also we can dispatch our technician to customers'
place if customer agrees to air ticket, food and hotel.
Our Factory:
Our Certificate:
Our Customers visit:
Q1:How long is the delivery time?
For standard machines, it would be 7-15 days;
For non-standard machines and customized machines according to client s specific
requirements, it would be 15 to 30 days.
Q2: What mode of payment?
T/T, 50% deposit and the balance 50% should be paid before shipment.
Q3: If some problems happened to this machine during warranty period,
what should i do?
We will supply free parts in machine warranty period if machine have some problem.
While we also supply free after-service forever,so any doubts,just let us know,we will
give you solutions in 30 minutes.
