Economical 1325 cnc wood carving router machine small for adversting furniture making
Technical Prameters of cnc wood router small:
NO |
Items |
Parameters |
|
1 |
Working Area ( XYZ ) |
1300*2500*200mm |
|
2 |
Table Type |
T-Slot Vacuum table |
|
3 |
Working Accuracy |
±0.03/300mm |
|
4 |
Re-positioning Accuracy |
±0.02/300mm |
|
5 |
Drive system |
X,Y with Rack and Pinion; Z with lead screw |
|
6 |
Speed |
MAX Traveling Speed |
35000mm/min |
|
|
MAX Working Speed |
15000mm/min |
7 |
Spindle |
Spindle Speed |
0-18000rpm/min |
|
|
Spindle Power |
3.0kw air cooling spindle |
8 |
Drive and Motor |
Stepper |
|
9 |
Working Voltage |
AC380V/50Hz, 3PH |
|
10 |
Operating System |
DSP |
|
cnc wood machine router Application:
1. Furniture industries: cabinet doors, wooden doors, solid woods, antique furniture.
2. Decoration industries: screens, wave boards, advertising boards and sign making.
3. Arts & Crafts industries: Engrave on artificial stones, woods, bamboos, marbles.
4. Processing material: engraving, milling and cutting processing for acrylic, PVC,
artificial stonesplastics and soft metal sheets suv.

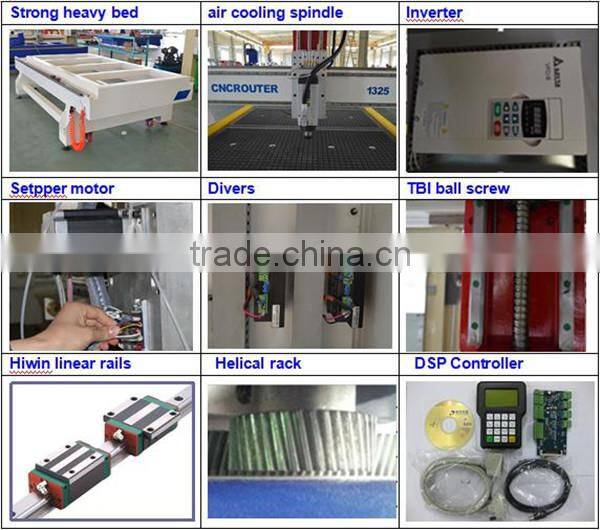

Standard features for cnc wood carving router machine:
1. Working area: 1300mm*2500mm*200mm (X,Y,Z axis)
2. Solid steel frame construction thicken to 12mm, strong stability
3. 3.0 KW Air cooling spindle, long life and good cooling effect
4. Stepping drives, strong anti-interference ability large power and high accuracy
5. T-Slot Vacuum table, stronger adsorption and can adsorb different size materials
6. Taiwain HIWIN Linear Guide rails, ensure the high precision
7. DSP controller, simple operation and good independence
8. Automatic Tool Calibration, better control of the distance between the knife and the
material,improve the work efficiency
9. X and Y axis: are with Rack and Pinion, Z axis is with ball Screw
10. ArtCam software
11. Delta Inverter
12. 3PH 380V 50HZ
13. Plywood case package
Option parts:
1.Dust collector system
2.Oil mist cooling system(used for cooling cutters when working on hard materials)
3.NC Studio controller system
4.Delta or YASKAWA servo system
5.HSD spindle from Italy

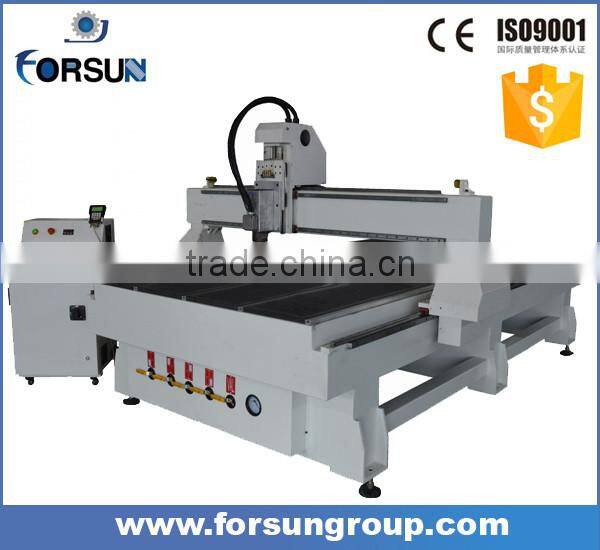

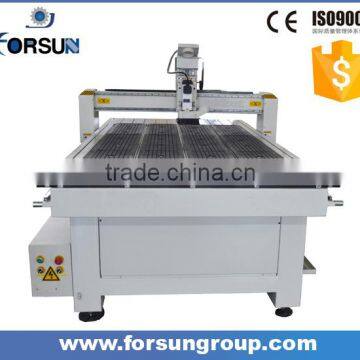

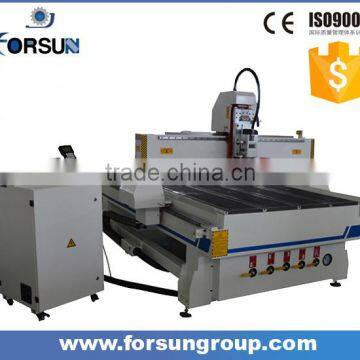

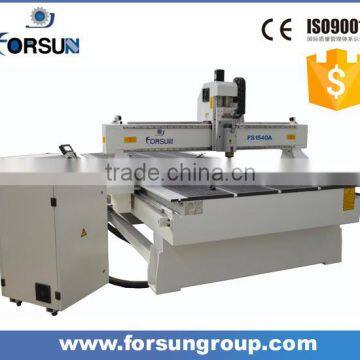

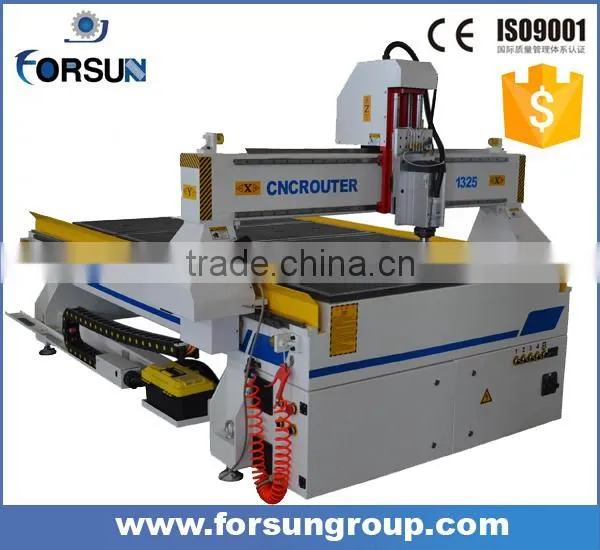

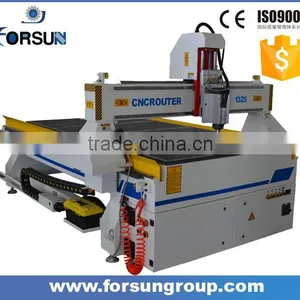

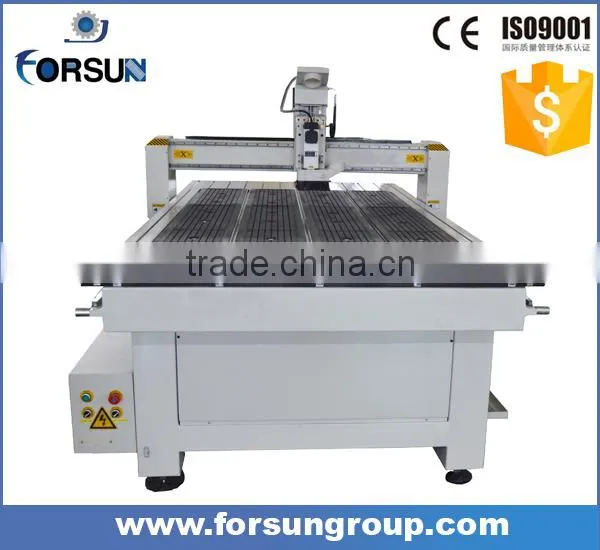

cnc wood carving router machine pictures' show:
Working samples of cnc wood machine router:
Waterproof inside packing, plywood outside packing.
Services of our cnc wood router small:
1. 18 months guarantee for our machines except HSD spindle with 6 months.
2. 24 hours technical support by emails, fax or calling.
3. Free training in our factory. Also we can dispatch our technician to customers' place if customer agrees to air ticket, food and hotel.

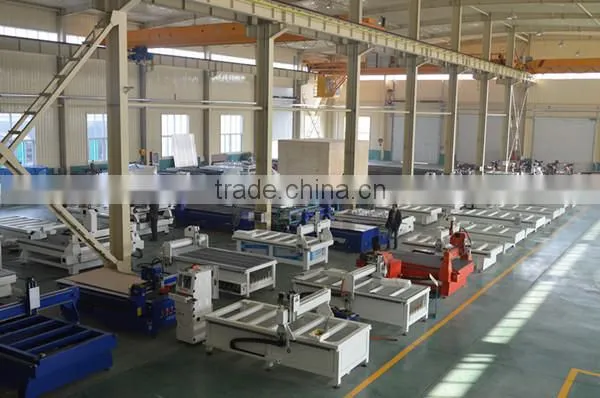

Our Factory for cnc wood router small:
Our Certificate of cnc wood router small:
Our Customers visit:
Q1:How long is the delivery time of this cnc wood router small?
For standard machines, it would be 7-15 days;
For non-standard machines and customized machines according to client s specific requirements,
it would be 15 to 30 days.
Q2: What mode of payment for this cnc wood carving router machine?
T/T, 50% deposit and the balance 50% should be paid before shipment.
Q3: If some problems happened to this cnc wood machine router during warranty period, what should i do?
We will supply free parts in machine warranty period if machine have some problem. While we
also supply free after-service forever,so any doubts,just let us know,we will give you solutions in 30 minutes.
