Help CenterControl Valve Actuator With Two Auxiliary Switches L
Related Products

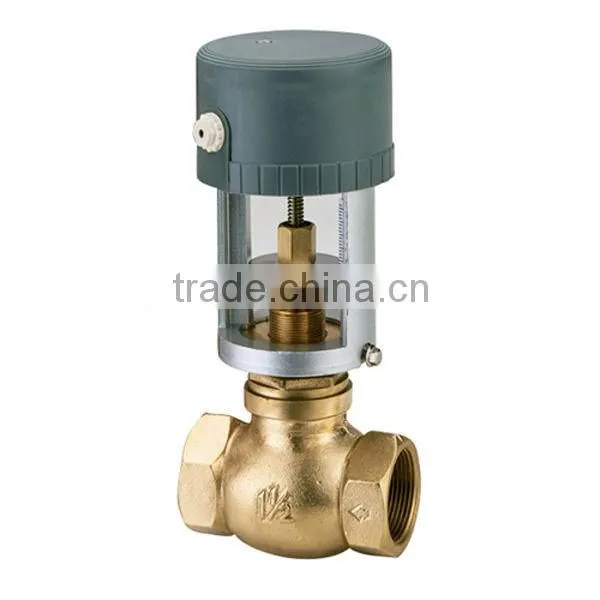

HFQ-3100 DRIVER+VALVE
*Low AC voltage synchronic reversible motor
*Force:600N Pressure
*The action is carried on by the gear to transit
Output gear rollers are supported by surface
Rolling bearing,which rotate around the central bearing
*Valve running position indicator
*Fire-proof ABS Plastic cover
*May enclose two additional switches and manual control rod
*Valve material:brass
*Easy installation
Control Valve Actuator
1.Low AC voltage Synchronic Reversible Moter with Magnetic clutch.
2.Two Auxiliary Switches
Control Valve Actuator/ Valve Actuator/Actuator
VA3100 Series Actuator, an electromechanical product can be made set with VB Series Valve body or other valves by different connectors. The power supply is 24 VAC OR 24 VDC.
Types: on/off, Floating and Modulating (Proportional and Integral).
CHARACTERISTICS
Low AC voltage Synchronic Reversible Motor with Magnetic clutch.
Valve working position indicator
Two auxiliary switches and a manual control pole.(optional)
Suitable for 15mm, 17mm and 19mm strike. Output could be 0~10 V DC or 4~20 A DC.
Operation Model (DA or RA) can be elected by jumper.
Convenient and easy mounting
VA-3100(VA3102) VA-3200(VA3202)
Operate/Control Reversible, increment control Proportional and Integral control
Output:0-10VDC,4-20m A DC
Motor Bi-directional Synchronous Motor with magnetism clutch
Power Supply of Motor 24 VAC 50/60 HZ,5.5 VA
Power Consumption -------------- 2A
Normal Torque 500 N for VA-31xx series,1000 N for VA-32xx series
Material Gear: stainless steel, Brass
Reduce Down Panel: Zinc- galvanizated steel
Bracket: die-casting aluminum alloy
Shell: fire-proof PC ABS plastic
Operating Time & Stroke VA-31xx series: 50 Hz:4.6 s/mm, 60 HZ:3.8 s/mm
VA-32xx series: 50 Hz:8.3 s/mm, 60 HZ:6.9 s/mm
Temperature Operation: -5~55 Storage: -20~ 65
Max. Relative Humidity No condensing 90% no condensing
