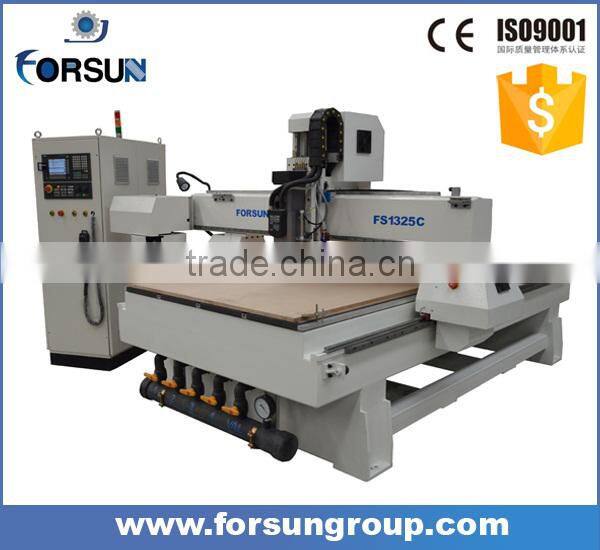

China supplier cheap price 3d atc cnc woodworking machine, cnc carving cutting router machine for furniture door
1. Introduction of our cnc router:
With AUTO TOOL CHANGE system, this machine can save much more time & energy to change tools. Very suitable for complex lines wooden doors, windows manufacture...
For this machine, we use top quality components:
1) SIEMENS control system from Germany, have 3 YEARS WARRANTY ALL OVER THE WORLD. Any problem, you can get Siemens locally technical support in timely.
2) HSD ATC Air cooling spindle from Italy, with strong cutting ability, low noise, it can ensure the machine
working for long time.
3) Original SIEMENS Servo motors & drivers from Germany, ensure the machine’s stronger strength and high accuracy.
4) Linear type ATC system, change tools within 8 seconds, very easy and convenient.
2. Technical data of our wood cnc router
Technical Data | ||
NO |
Description |
Parameter |
1 |
Working area |
1300*2500*200mm |
2 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
3 |
X,Y,Z Re-positioning Accuracy: |
±0.03mm/300mm |
4 |
Max. Rapid Travel Rate |
45000mm/min |
5 |
Max. Working Speed |
30000mm/min |
6 |
Spindle Speed |
0-24000RPM |
7 |
Command Language |
G Code |
8 |
Flash Memory |
512M |
9 |
Collet |
ER32 |
10 |
X,Y Resolution |
<0.03mm |
11 |
Running Environment Temperature |
0 - 45 Centigrade |
12 |
Relative Humidity |
30% - 75% |
13 |
Packing Size |
3700*2200*1650mm |
14 |
N.W. |
1700KG |
15 |
G.W. |
1800KG |
3. Applicable of our cnc router
1) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and
windows.
2) The wood products: voice box, game cabinets, computer tables, sewing machines table,
instruments.
3) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling
tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
4) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

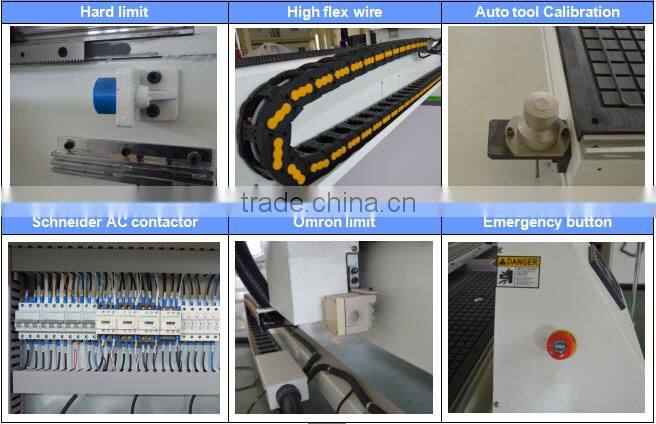

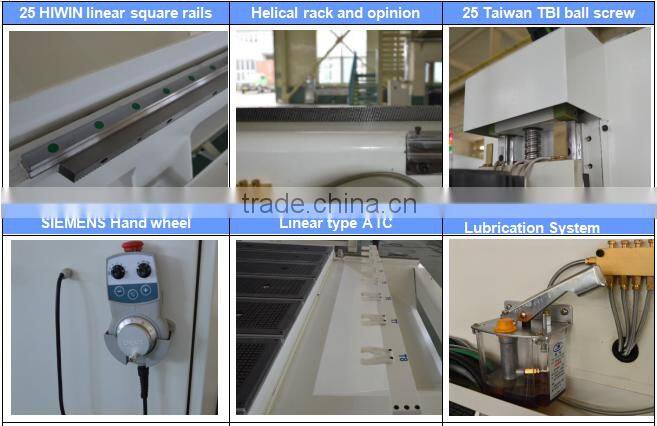

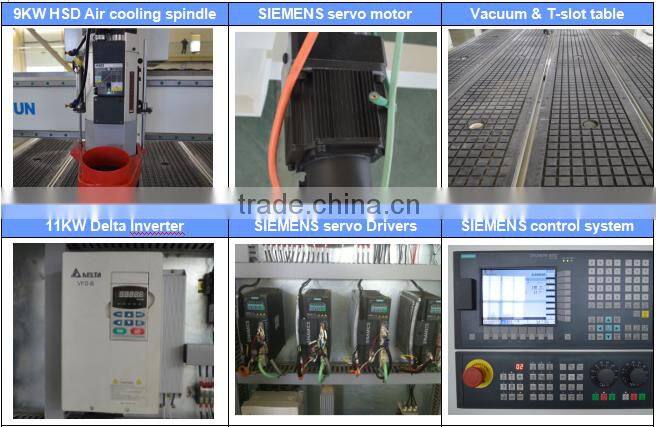

4. Machine parts of our auto tool change cnc machine
5. Machine samples of our cnc router
6. More types of our cnc router machine
|
|
|
| SIEMENS ATC MACHINE | SYNTEC ATC MACHINE | Economical cnc machine |
|
|
|
| AUTO LOADING UN-LOADING | 4 SPINDLES CNC MACHINE | DOUBLES HEADS CNC |
7. Customer visit of our wood cnc router
Pls add My skype :forsun.sales5 or whatsapp:0086-18766148259, Email: sales5(), and let's talk more details. Website:
Youtube website: /channel/UCaCI11JOcXVn1r0QHto4y4A/videos
Facebook website: /forsuncnc
♥ Send an inquiry now,you will have more discount & more detail about price,packing,shipping,ect.
