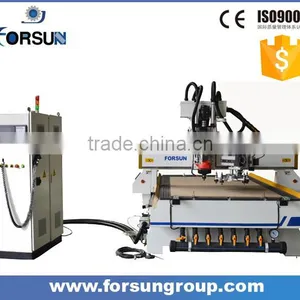

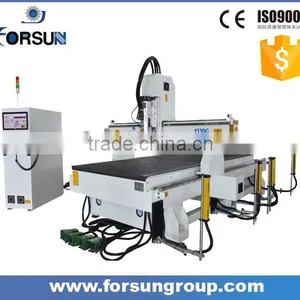

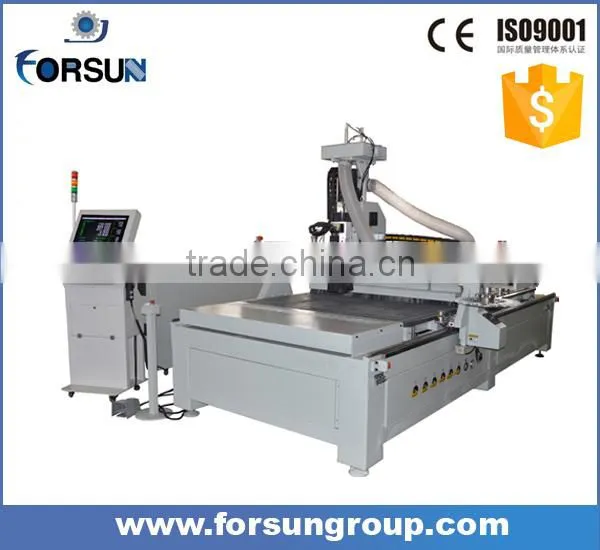

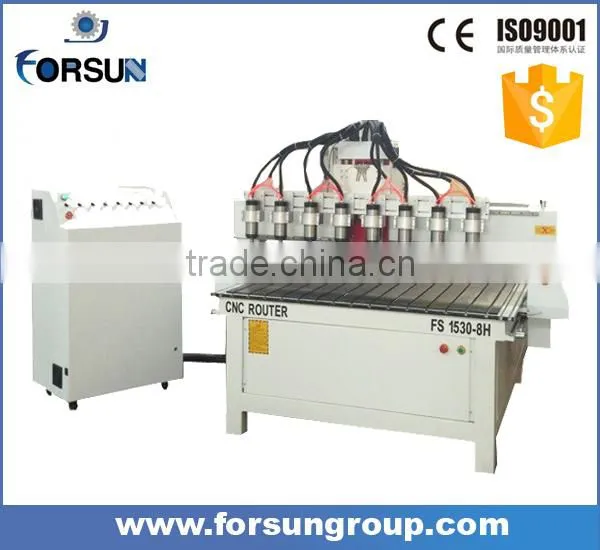

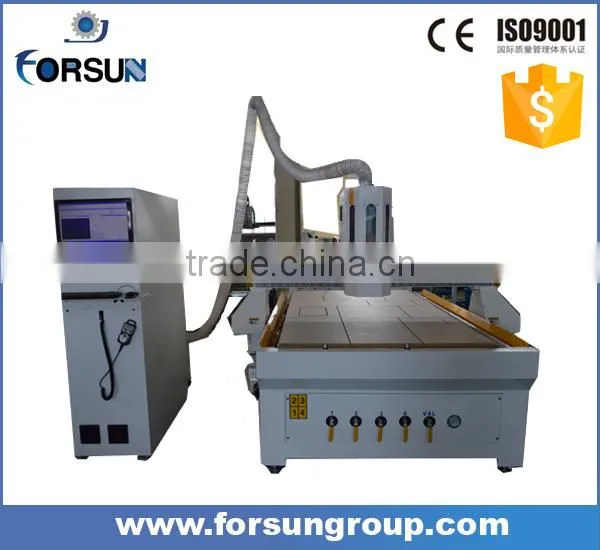

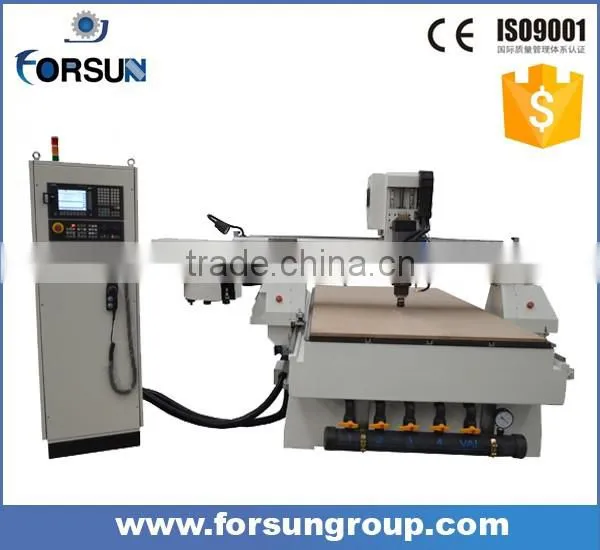

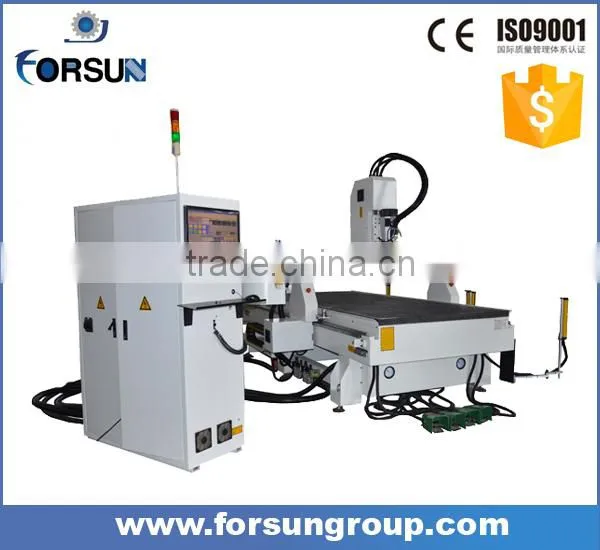

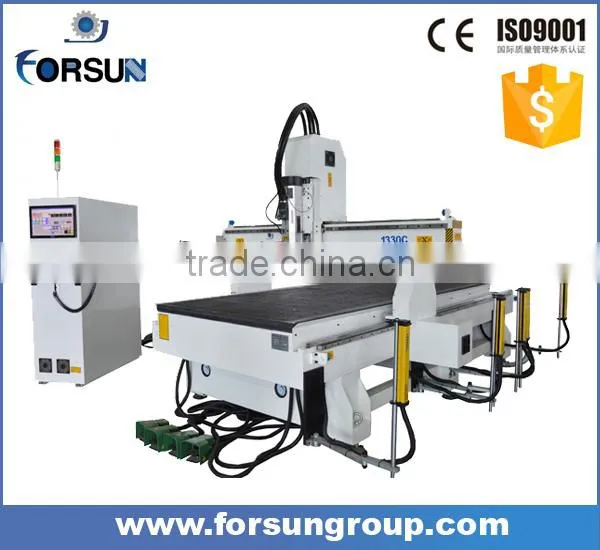

Help CenterGood Quality Forsun Brand CNC Engraving Machine Woodworking Carving Machine for Mold Marking
Related Products
-
Forsun China Factory Router Machine CNC Engraving Machine for WoodUS$ 1,000 - 200,000MOQ: 1 Set -
China Jinan Factory Direct Sale Woodworking CNC Router Cnc Mould Die Engraving Machine for WoodUS$ 1,000 - 200,000MOQ: 1 Set
-
China Factory Discounted Price CNC Router Wood Cutting Machine for WoodUS$ 1,000 - 200,000MOQ: 1 Set
-
Discounted Professional Price Wood Machine Cnc Good Cnc Mould Die Engraving Machine for WoodUS$ 1,000 - 200,000MOQ: 1 Set
-
Multi-purpose Safe Convenient Transportation CNC Engraving Machine for Mold MarkingUS$ 1,000 - 200,000MOQ: 1 Set

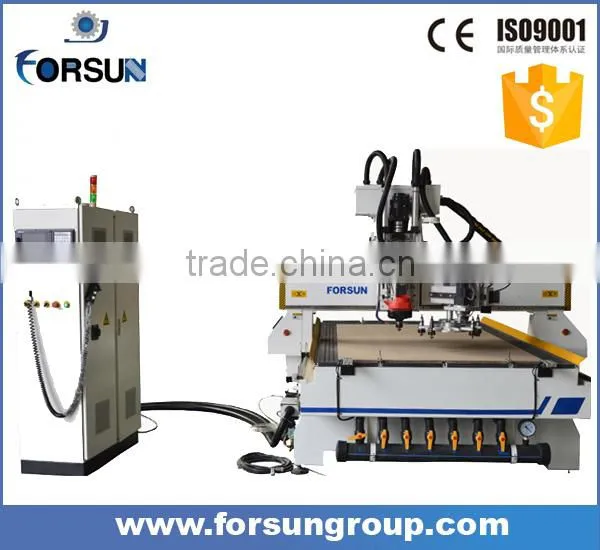

Router Machine/CNC engraving machine for mold marking Standard features:
1)Working area: 1300mm*2500mm*200mm(X,Y,Z axis)
2) Solid steel frame construction thicken to 8mm
3) 3.5 kw air cooling spindle
4) Stepping drives
5) T-Slot PVC table with Aluminum sheet
6) HIVIN Linear Guide for maximum stiffness
7) DSP controller
8) Drive System X and Y axis: Rack and Pinion, Z axis: Lead Screw
9) Automatic Tool Calibration
10) ArtCam software,
11) Delta Inverter
12) 3PH 380V 50HZ
13) Plywood case package
Option:
1. Vacuum System
2. Dust Collector system
3. AC Servo motors
4. HSD Spindle
5. Rotary Axis
Router Machine/CNC engraving machine for mold marking Technical Parameters:
NO. |
Items |
Parameters |
Option |
|||
1 |
Working Area |
XYZ |
1300*2500*200mm |
<=2000mm |
||
3 |
Table Type |
T-Slot Extrusion PVC |
Vacuum table |
|||
4 |
Accuracy |
Working Accuracy |
±0.03/300mm |
|||
Repositioning Accuracy |
±0.02/300mm |
|||||
6 |
Drive system |
X,Y with Rack and Pinion Z with lead screw |
||||
7 |
Speed |
MAX Traveling Speed |
32000mm/min |
|||
MAX Working Speed |
15000mm/min |
|||||
8 |
Spindle |
Spindle Power |
3.5 KW Air cooling spindle |
Italian HSD Spindle |
||
Spindle Speed |
0-18000r/min Stepper |
Servo |
||||
10 |
Drive and Motor |
|||||
12 |
Working Voltage |
AC380V/50Hz |
AC380V/60Hz |
|||
14 |
Operating System |
DSP |
NCSTUDIO |
|||
15 |
Net Weight/Gross Weight |
1060 KG/1180 KG |
||||
16 |
Packing size |
3170*1920*1850mm |
||||
All parameters above subject to change without prior notice |
||||||
To provide you detailed quotation, we need to confirm the following detailes :
1.what is material of your carving
2.the size of your carving material
3.What is the working voltage and frequency in your country
Detailed information will be sent to you the moment we get your confirmation
Whatsapp: 0086 15865253359
skype:forsun.sales1
