Jinan woodworking sofa chair making engraving machine/4d cnc router

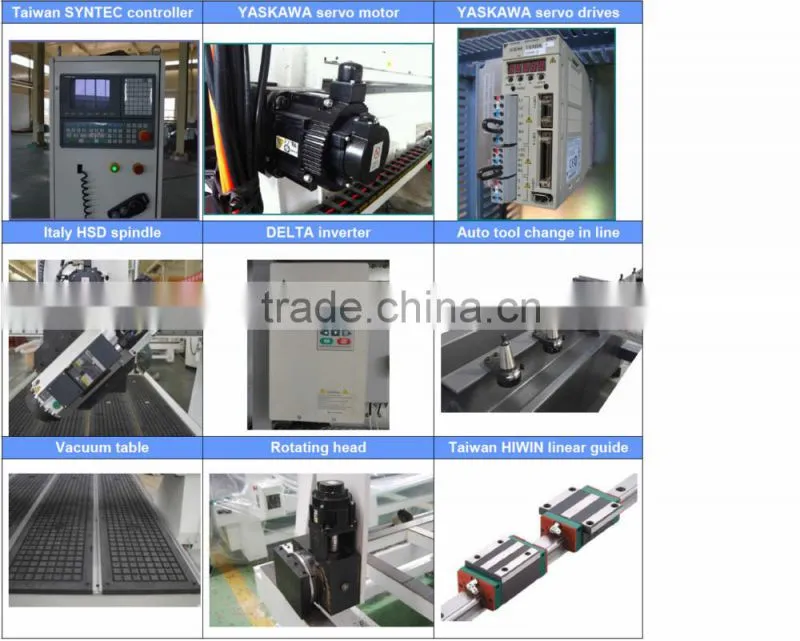

Features of 4d cnc router
1.HSD spindle ----original famoue brand from Italian,also can choose Kolumb spindle
2.SYNTEC control system------It is from Taiwan with high performance and competitive price
3.Yaskawa servo motor and drives----They are from Japan with high precision and long life
4.HIWIN linear guide ------ made from Taiwan,used for linear reciprocating stadium
5.Working area:1300*2500*400mm
C Rotary Axis:360o
6.Whole cast steel structure thicken to 8mm
7.Drive System: X,Y-Rack Z-Ball Screw,Z with high precision ball screw
8.Automatic Tool Calibration - ----To guide rail and slide block , make it run better
9.Schneider electrical components - ----original brand from France
10.Japanese Omron Switch with long life
11.APEX Reudcer from Taiwan----More powerful and higher precision
12. T-Slot table with Aluminum sheel - -----Use clamp fixed materials
Parameters of 4d cnc router
NO. |
Description |
Parameter 4 axis cnc router |
1 |
X,Y,Z,B Working Area |
1300x2500x400mm C Axis : +/- 180 |
2 |
Table Size |
1450x2940mm |
3 |
X,Y,Z Traveling Positioning Accuracy |
0.03/300mm |
4 |
X,Y,Z Repositioning Accuracy |
0.03/300mm |
5 |
Table Surface |
Vacuum and T-slot Combined |
6 |
Frame |
Heavy Steel Tube Structure |
7 |
X, Y Structure |
Rack and Pinion Drive,Hiwin Rail Linear Bearings |
8 |
Z Structure |
Hiwin Rail Linear Bearings and Ball Screw |
9 |
Max. Power Consumption |
(Without Spindle) 4.5Kw |
10 |
Max. Rapid Travel Rate |
60000mm/min |
11 |
Max. Working Speed |
45000mm/min |
12 |
Spindle Power |
9.0KW |
13 |
Spindle Speed |
0-18000RPM |
14 |
Drive Motors |
850W Yaskawa Motors |
15 |
Working Voltage |
AC380V/50/60Hz,3PH (Option: 220V)) |
16 |
Command Language |
G Code |
17 |
Operating System |
Syntec Control System |
18 |
Computer Interface |
USB / Ethernet |
19 |
Flash Memory |
512M |
20 |
Collet |
ER32 |
21 |
X,Y Resolution |
<0.03mm |
22 |
Software Compatibility |
Type3/UcancameV9 software (Option: Artcam software) |
23 |
Running Environment Temperature |
0 - 45 Centigrade |
24 |
Relative Humidity |
30% - 75% |
25 |
Packing Size |
3300X2100X2300mm |
26 |
N.W. |
2000KG |
27 |
G.W. |
2150KG |
28 |
Optional Parts |
Siemens Control system |
|
|
Colombo Spindle |
|
|
Siemens Servo system |
|
|
Dust Col ector System |
|
|
Vacuum Pump |
|
|
Rotary System |
|
|
Mist-cooling System |
Application of 4d cnc router
1) Mould: wood,wax, wood, gypsum,foams,wax
2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and
windows.
3) The wood products: voice box, game cabinets, computer tables, sewing machines table,
instruments.
4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed
compounds.
5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

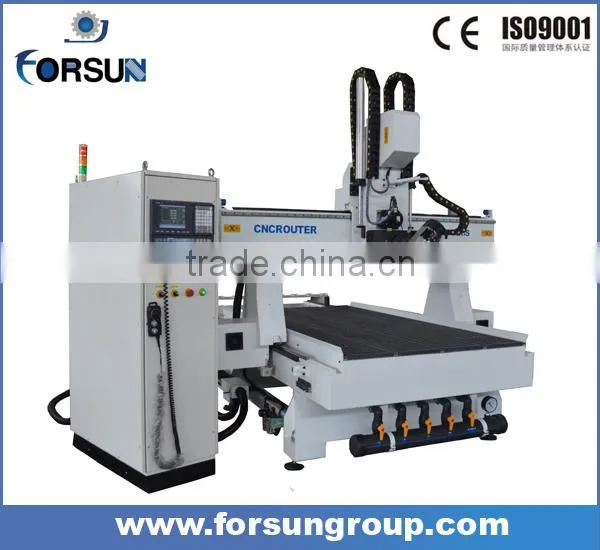

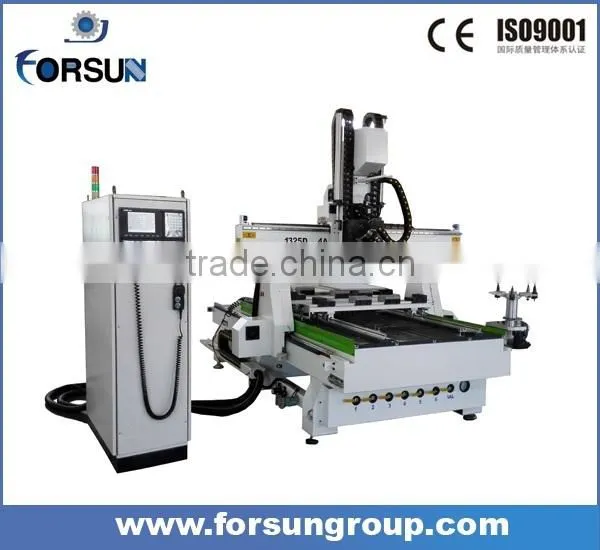

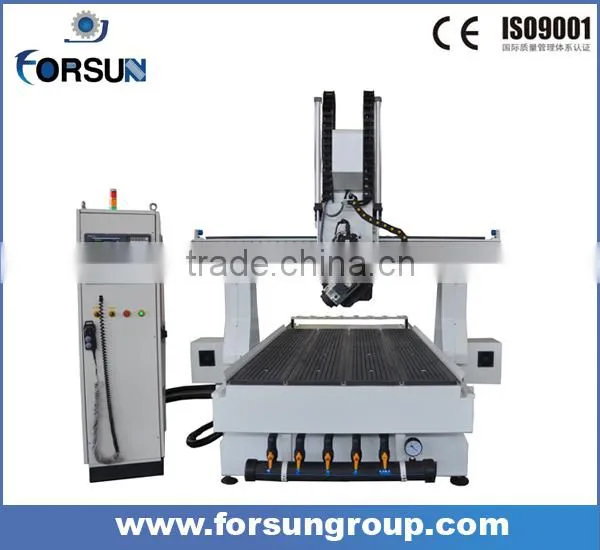

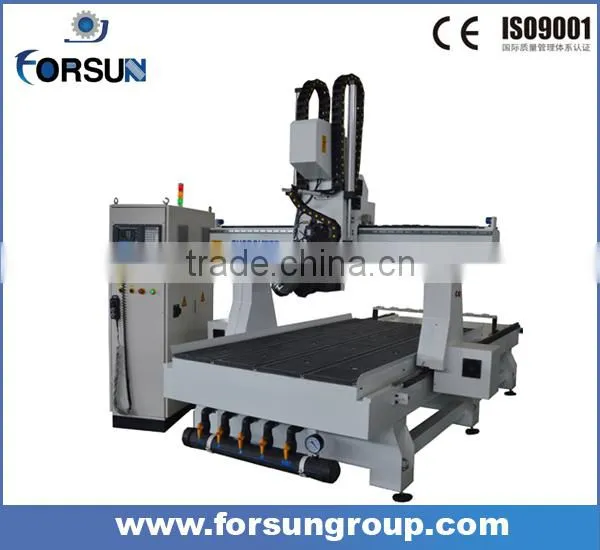

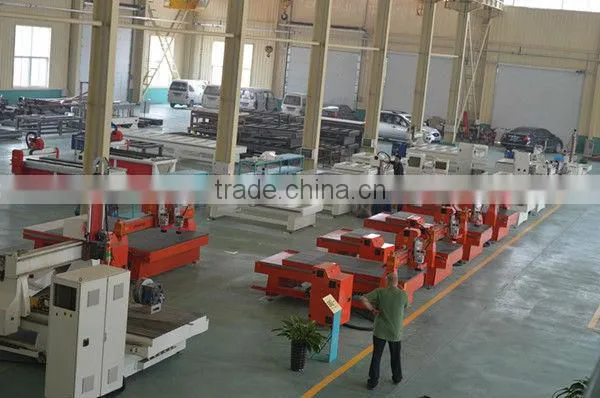

Main machine pictures of 4d cnc router

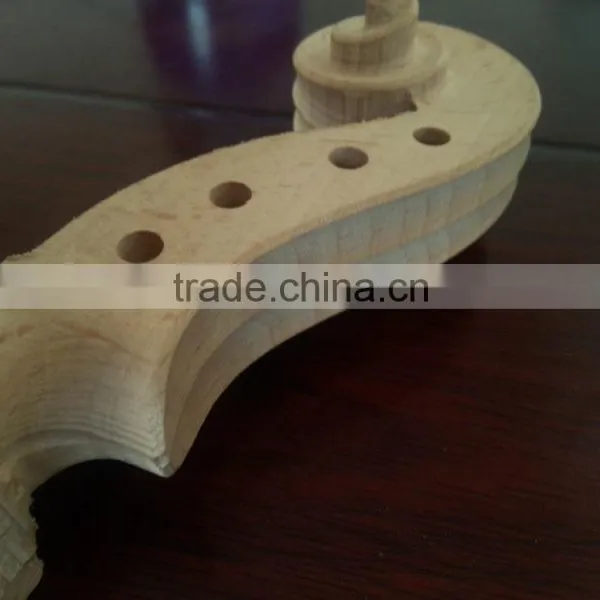

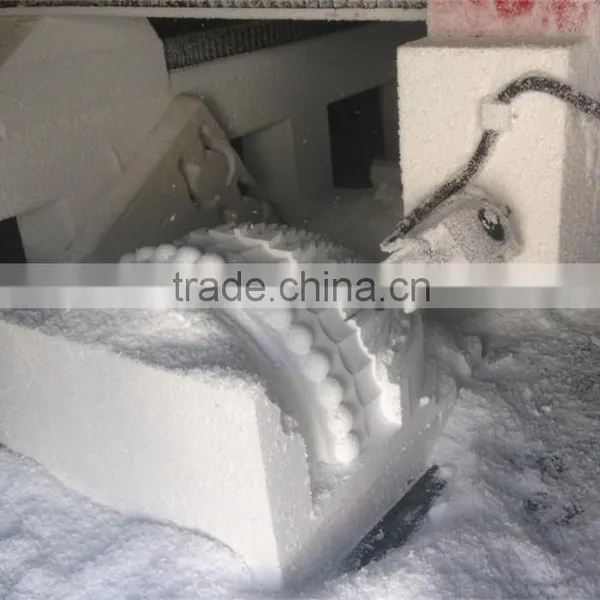

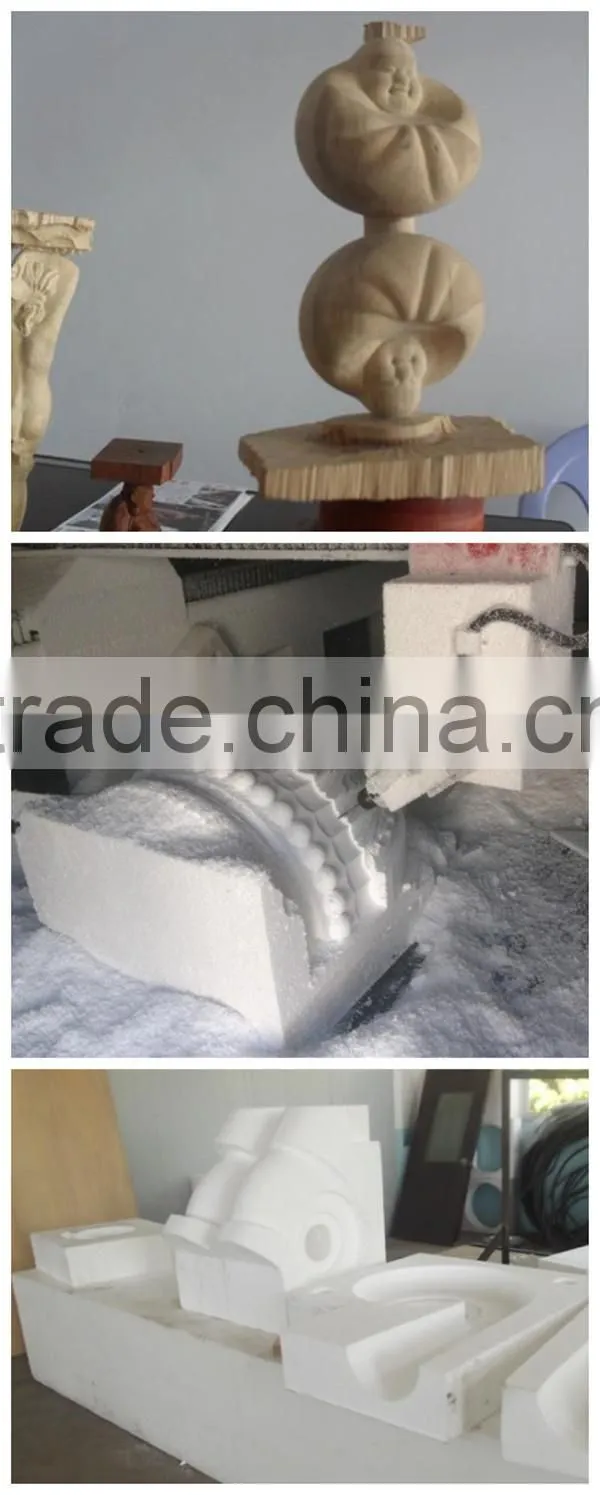

Working samples of our 4d cnc router
Costomer visit:
FAQ:
Q1.How can I get the most suitable 4 axis cnc ?
Please tell me the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2: Do you have the manual of machine?
Yes, we have. We will give you the machine English Manual when we deliver the machine to you.
Q3.If we don’t know how to use the 4 axis cnc,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.
And if you are busy ,we will send the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q4.How about your after-sales service?
We offer you 24 hours service online through phone, skype or E-mail.
Q5.How about your guarantee period?
18 moths guarantee. If the machine got into trouble during this time,no matter which part,we can change it
free for you.
