Multi Network Ethernet Cable Tester Tool LAN 10Base BNC RG45 RJ11 Coax Signal RG
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OEM
Model Number:
GL-1088Q
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
OEM
Model Number
GL-1088Q
-
Multi Network Ethernet Cable Tester Tool LAN 10Base BNC RG45 RJ11 Coax Signal RG
can test the correct pin configuration of 10Base-T,
10Base-2 Ethernet cable,RJ45/RJ11 modular cables,
258A,TIA-568A/568B and Token ring cable etc. - Easy to read cable status and verfy cable continuity open short and miswire.
- With remote kit it can remotely test cable far away either on wall plate or patch panel.
- Can test the grounding
- Features auto or menual scan
Description
Multi Network modular cable tester.
Test UTP, STP, BNC COAXIAL, RG45, RJ11 modular cables, 10Base-T, 10Base-2 Ethernet cable, 258A, TIA-568A/568B and token ring cable, etc...
The LANtest is the simplest and most affordable wire-mapping device for networking cables available on the market. Use it to read the actual wiring configuration for Cat5; coaxial and modular telephone cables by comparing one transmitting end to another receiving end. Cabling faults such as open wires, shorts, miss-wiring and crossed pairs are crystal clear with the LANtest’s unique LED display. Perform all the above tests on installed cables with the included remote terminator.
Features:
• Can test the correct pin configuration of 10Base-T 10Basc-2 Thin Ethernet cable, RJ45/RJ11 modular cables 356A, TIA-568A/568B and Token Ring cable,
etc.
• Easy to verify cable continuity, open, short and miss-wire
• With remote kit, it can remotely test cable up to 1000 ft away either on wall plate or patch panel
• Can test the grounding
• Features with auto or manual scan for pin-out indicators
• A power switch is provided for saving battery power
Specifications:
Manufacture #256551
Power Source DC 9V battery x 1pcs
Power Consumption 22mA
Operating Temp. 0°C~50°C
Storage Temp. -10°C~60°C
Humidity 0 to 95%(non-condensing)
Dimensions:
Main: 104mm x 63mm x 29mm
Remote: 104mm x 30.5mm x 29mm
Safety Approve CE
Approx. Weight 195g(Kit) / 45g(Remote)

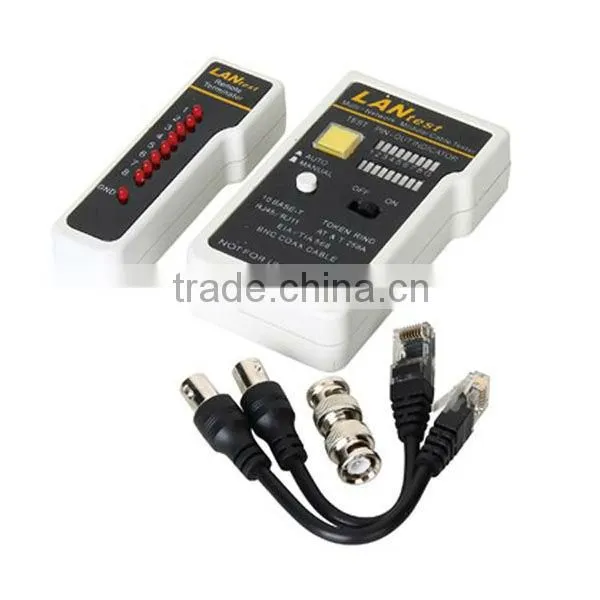

Package includes:
1 x Multi Network modular cable tester
1 x Remote for Network Cable Tester
2 x RJ45 to BNC Adapters
1 x F-BNC to F-BNC Adapter
1 x Manual user guide
Test UTP, STP, BNC COAXIAL, RG45, RJ11 modular cables, 10Base-T, 10Base-2 Ethernet cable, 258A, TIA-568A/568B and token ring cable, etc...
The LANtest is the simplest and most affordable wire-mapping device for networking cables available on the market. Use it to read the actual wiring configuration for Cat5; coaxial and modular telephone cables by comparing one transmitting end to another receiving end. Cabling faults such as open wires, shorts, miss-wiring and crossed pairs are crystal clear with the LANtest’s unique LED display. Perform all the above tests on installed cables with the included remote terminator.
Features:
• Can test the correct pin configuration of 10Base-T 10Basc-2 Thin Ethernet cable, RJ45/RJ11 modular cables 356A, TIA-568A/568B and Token Ring cable,
etc.
• Easy to verify cable continuity, open, short and miss-wire
• With remote kit, it can remotely test cable up to 1000 ft away either on wall plate or patch panel
• Can test the grounding
• Features with auto or manual scan for pin-out indicators
• A power switch is provided for saving battery power
Specifications:
Manufacture #256551
Power Source DC 9V battery x 1pcs
Power Consumption 22mA
Operating Temp. 0°C~50°C
Storage Temp. -10°C~60°C
Humidity 0 to 95%(non-condensing)
Dimensions:
Main: 104mm x 63mm x 29mm
Remote: 104mm x 30.5mm x 29mm
Safety Approve CE
Approx. Weight 195g(Kit) / 45g(Remote)
Package includes:
1 x Multi Network modular cable tester
1 x Remote for Network Cable Tester
2 x RJ45 to BNC Adapters
1 x F-BNC to F-BNC Adapter
1 x Manual user guide
