Prouduct show
1. Product Pictures of chest type freezer deep glass door chest freezer home appliances
2.Description of chest type freezer deep glass door chest freezer home appliances
chest type freezer deep glass door chest freezer home appliances
1.Powder Coated Cold Steel Roll
2.Embossed Aluminum Sheet
3.two curved slidding lids
4. CE
| curved glass door chest freezer | ||||
| Model | XS-160YX | XS-260YX | SD260 | SD320 |
| Curved Sliding Lids Chest Showcase | Curved Sliding Lids Chest Showcase | Curved Sliding Lids Chest Showcase | Curved Sliding Lids Chest Showcase | |
| Capacity | ||||
| Gross Volume | 160L | 260L | 260L | 320L |
| Net Volume | 110L | 190L | 208L | 248L |
| Dimension | ||||
| Product (W*D*H) | 665*705*875mm | 990*705*875mm | 1108*596*806mm | 1108*596*850mm |
| Packing (W*D*H) | 735*760*950mm | 1060*760*950mm | 1168*656*870mm | 1168*656*895mm |
| Function | ||||
| Thermostat | Mechnical | Mechnical | Mechnical | Mechnical |
| Indicator | Red Compressor On Indicator | Red Compressor On Indicator | Red Compressor On Indicator | Red Compressor On Indicator |
| Wheels | 4 Universal, diameter 33mm | 4 Universal, diameter 33mm | 4 Universal, diameter 33mm | 4 Universal, diameter 33mm |
| Scraper | 1 / ABS | 1 / ABS | 1 / ABS | 1 / ABS |
| Drain Pipe | Yes | Yes | Yes | Yes |
| Lock | Optional | Optional | Optional | Optional |
| Thermometer | Optional | Optional | Optional | Optional |
| Basket | 1 | 1 | 1 | 1 |
| Performance | ||||
| Test Condition | 38oC, 40-70%RH | 38oC, 40-70%RH | 38oC, 40-70%RH | 38oC, 40-70%RH |
| Test Results | <-18oC Warmest | <-18oC Warmest | <-18oC Warmest | <-18oC Warmest |
| Climate | ST | ST | ST | ST |
| Ambient Temperature Range | -18oC~38oC | -18oC~38oC | -18oC~38oC | -18oC~38oC |
| Insulation Resistance | >50 Mohm | >50 Mohm | >50 Mohm | >50 Mohm |
| Grounding Rsistance | <0.1 Ohm | <0.1 Ohm | <0.1 Ohm | <0.1 Ohm |
| Cabinet | ||||
| Isolation layer / Blow Agent | Polyurethane / R141B | Polyurethane /R141B | Polyurethane / R141B | Polyurethane / R141B |
| Isolation Thicknes | 60mm | 60mm | 60mm | 60mm |
| Cabinet Shell | Powder Coated Cold Steel Roll | Powder Coated Cold Steel Roll | Powder Coated Cold Steel Roll | Powder Coated Cold Steel Roll |
| Cabinet Liner | Embossed Aluminum Sheet | Embossed Aluminum Sheet | Embossed Aluminum Sheet | Embossed Aluminum Sheet |
| Lid | ||||
| Type | Two Curved Sliding Lids | Two Curved Sliding Lids | Two Curved Sliding Lids | Two Curved Sliding Lids |
| Lid Frame | ABS+PVC, grey color | ABS+PVC, grey color | ABS+PVC, grey color | ABS+PVC, grey color |
| Lid Handle | Strip | Strip | Strip | Strip |
| Lid Glass | Single Layer Toughened Heat Reflecting Glass | Single Layer Toughened Heat Reflecting Glass | Single Layer Toughened Heat Reflecting Glass | Single Layer Toughened Heat Reflecting Glass |
| System | ||||
| Compressor | ||||
| Supplier | Baixue/Huayi | Baixue/Huayi | Baixue/Huayi | Baixue/Huayi |
| Refrigerant | R12/R134a | R12/R134a | R12/R134a | R12/R134a |
| Fan Motor | ||||
| Input Power | 25W | 25W | 25W | 25W |
| Supplier | Local | Local | Local | Local |
| Evaporator | Steel Tube Coil | Steel Tube Coil | Steel Tube Coil | Steel Tube Coil |
| Material | Steel Tube | Steel Tube | Steel Tube | Steel Tube |
| Condenser | Pre Fan Cooling + Hot Wall | Pre Fan Cooling + Hot Wall | Pre Fan Cooling + Hot Wall | Pre Fan Cooling + Hot Wall |
| Material | Steel Tube | Steel Tube | Steel Tube | Steel Tube |
| Power Cord | Per Destination | Per Destination | Per Destination | Per Destination |
| Stuffing Quantity(40'HQ) | 198 | 231 | 108 | 108 |
3.More similar models for your choose

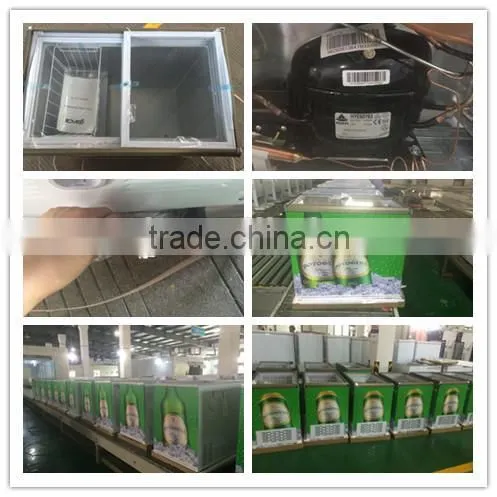

4.The detail pics of mass production & packaging of chest type freezer deep glass door chest freezer home appliances
5. More Products for You to Choose
Company Show
1. About us
Qingdao Smad Electric Appliances Co., Ltd. (SMAD) was set up in 1999 and rebuilt in 2003. After many years of hard work, we have become a normalized and professional enterprise. Now SMAD has a staff of 600 persons and an annual output of 350 million Yuan. The development of SMAD is among the fastest in the field. The production capacity has grown over 100% for 3 years since we were founded. The sales of SMAD have increased doubly year by year.
SMAD is always ready to supply customers with excellent products and satisfying services, and warmly welcome you to cooperate with us for a brighter future.
2. Why Choose Smad?
- Huge Selection. We offer a wide range of household appliances.You can find all kinds of electric appliance you need
- Availability in stock. We used to work not only qualitatively but also fast, so most positions catalog are constantly available. And you do not have to wait long for your order
- Individual approach and flexible system of discounts. Every client is very important for us, so we are ready to discuss with you any comments and suggestions, as well as provide you with the most favorable purchase terms and conditions
- Product quality. All products of our company are certified and continuous quality control.
- Environmental friendliness. Our power supplies are made from environmentally friendly materials and absolutely safe for your health
3. Certifications
4. Our Markets
√ North America √ South America
√ Western Europe √ Eastern Europe
√ Eastern Asia √ Southeast Asia
√ Middle East √ Africa
√ Oceania
5. Contact
Accept OEM/ODM order, Logo print service, contact us for promotion surprise!
