Advantages of Glass Sliding Door Chest Deep Freezer For Ice Cream And Supermarket
1. 100-600L Various capacity chest freezer for your choice
2. 220v50hz and 110v60hz
3. OEM logo, body sticker is available
4. CE CB ETL SAA full certificate
5. We offer 1 years for the whole unit and 3 years for main part.
**************************************************************************
The Specification of Glass Sliding Door Chest Deep Freezer For Ice Cream And Supermarket
| Model | SC/SD268Y | SC/SD328Y | SC/SD388Y | SC/SD518Y |
| Refrigerant | R134a | R134a | R134A | R134a |
| Capacity | ||||
| Gross Capacity | 268L | 328L | 388L | 518L |
| Dimension | ||||
| Product Dimension(L*W*H) | 1100X598X845mm | 1294X598X845mm | 1260X700X780mm | 1500X700X780mm |
| Inner Dimension(L*W*H) | 970X468X660mm | 1164X468X660mm | 1110X510X630mm | 1340X500X630mm |
| Packing Dimension(L*W*H) | 1175X665X915mm | 1365X665X915mm | 1315X765X875mm | 1555X765X875mm |
| Weight | ||||
| N.W./G.W.(kg) | 48/53 | 54/60 | 60/68 | 84/98 |
| Feature | ||||
| Cabinet Top Frame | Integrated Injection Plastic | Integrated Injection Plastic | Integrated Injection Plastic | Integrated Injection Plastic |
| Lock | Yes | Yes | Yes | Yes |
| Thermometer | Optional | Optional | Optional | Optional |
| Power-off Alarm | Optional | Optional | Optional | Optional |
| Indicating Lamp | Green Power On & Red Compressor Run | Green Power On & Red Compressor Run | Green Power On & Red Compressor Run | Green Power On & Red Compressor Run |
| Wheel | 60mm Diameter, High Reliability | 60mm Diameter, High Reliability | 60mm Diameter, High Reliability | 60mm Diameter, High Reliability |
| Basket | 1 Special Design | 1 Special Design | 1Special Design, With Divider | 1 Special Design, With Divider |
| Accessory | ||||
| Defrost Scraper | 1 / ABS | 1 / ABS | 1 / ABS | 1 / ABS |
| Drainage Tray | 1 / Plastic | 1 / Plastic | 1 / Plastic | 1 / Plastic |
| Performance | ||||
| Test Condition | 38oC, 70%RH | 38oC, 70%RH | 38oC, 70%RH | 38oC, 70%RH |
| Test Result | <-18oC Warmest | <-18oC Warmest | <-18oC Warmest | <-18oC Warmest |
| Ambient Temperature (Class) | N/ST/T | N/ST/T | N/ST/T | N/ST/T |
| Insulation Resistance | >50 Mohm | >50 Mohm | >50 Mohm | >50 Mohm |
| Earth Resistance | <0.1 Ohm | <0.1 Ohm | <0.1 Ohm | <0.1 Ohm |
| Structure | ||||
| Isolation Layer | PU Foam | PU Foam | PU Foam | PU Foam |
| Blow Agent | Cyclo / Isopentane | Cyclo / Isopentane | Cyclo / Isopentane | Cyclo / Isopentane |
| Isolation Thickness | 65mm | 65mm | 70mm | 75mm |
| Cabinet | ||||
| Cabinet Shell | Cold Steel | Cold Steel | Cold Steel | Cold Steel |
| Cabinet Liner | Embossed Aluminum | Embossed Aluminum | Embossed Aluminum | Embossed Aluminum |
| Lid | ||||
| Type | Single Layer Heat Reflecting Tempered Glass | Single Layer Heat Reflecting Tempered Glass | Single Layer Heat Reflecting Tempered Glass | Single Layer Heat Reflecting Tempered Glass |
| Quantity | 2 Pcs | 2 Pcs | 2 Pcs | 2 Pcs |
| Lid Frame | ABS, Grey , Bule , Red | ABS, Grey | ABS, Grey | ABS, Grey |
| Glass Thickness | 4mm | 4mm | 4mm | 4mm |
| System | ||||
| Compressor | Qianjiang | Qianjiang | Qianjiang | Qianjiang |
| Input Power / Cooling Capacity | 220W/270W | 222W/300W | 222W/300W | 241/330W |
| Supplier | zhejiang wansheng | zhejiang wansheng | zhejiang wansheng | zhejiang wansheng |
| Refrigerant | R134a | R134a | R134A | R134a |
| Evaporator | Tube Coil | Tube Coil | Tube Coil | Tube Coil |
| Material | Zinc plated Steel | Zinc Plated Steel | Zinc Plated Steel | Zinc Plated Steel |
| Condenser | Tube Coil | Tube Coil | Tube Coil | Pre + Tube Coil |
| Tube Coil | Steel | Steel | Steel | Steel |
| Supplier | Jjiangshu Jingjiang | Jjiangshu Jingjiang | Jjiangshu Jingjiang | Jjiangshu Jingjiang |
| Anti-condensation Loop | Yes/COPPER | Yes/COPPER | Yes/COPPER | Yes/COPPER |
| Loading Quantity(40'HQ) | 98pcs/105pcs without wheels fixed | 73pcs/78pcs without wheel fixed | 80pcs(without wheels) | 66pcs(without wheels) |

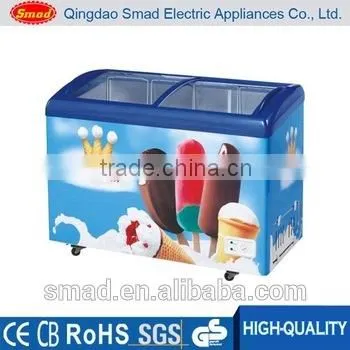

The Pictures show of Glass Sliding Door Chest Deep Freezer For Ice Cream And Supermarket
Detailed pictures of Glass Sliding Door Chest Deep Freezer For Ice Cream And Supermarket
Qingdao Smad Electric Appliances Co., Ltd. (SMAD) was set up in 2004. After many years of hard work, we have become a normalized and professional enterprise.
Now SMAD has a staff of 600 persons and an annual output of 350 million Yuan. The development of SMAD is among the fastest in the field. The production capacity has grown over 100% for 3 years since we were founded. The sales of SMAD have increased doubly year by year.
We welcome you to visit our factory!
Our Markets:
√ North America √ South America √ Western Europe
√ Eastern Europe √ Eastern Asia √ Southeast Asia
√ Middle East √ Africa √ Oceania
If you are interested in our product ,pls feel free to contact me !
