smart narrow weaving machine with reliable quality air jet loom SY9000
| Air Jet Loom-SY9000 | |||
| Item | Specifications | spare parts | |
| Reed width | Nominal | 150,170,190,210,230,250,280,340,360,390 | |
| Useful | Nominal:0~-60cm(150-250) | ||
| 0~-80cm(>280) | |||
| Working range | short yarn:ne100-ne2.5 | ||
| filament:22dtex-1350dtex | |||
| Welf selection | 1,2,4 or 6 color | ||
| Motor | Start mode | Star motor at high speed | |
| Push-button start,stop,f/r show move | |||
| Push-button switch handed | |||
| Power | 3.7Kw | ||

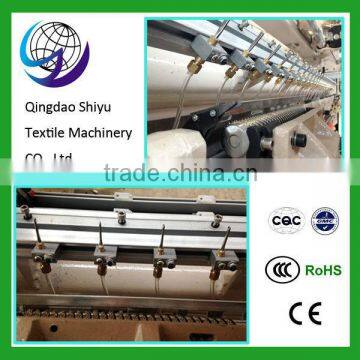

| Weft insertion | Method | main nozzle+swing nozzle+abnormity lock | weft brake |
| Control | import high-frequency solenoid value,computer program control | ||
| Supporting spray solenoid valve | Supporting spray solenoid value integrated with flow cavity | ||
| Measuring welf storage | Electric control loop separate waft storage | Ballooning prevention device | |
| Beating | Beating-up motion | Double side tank oil-bath type six-bar beating-up motion | |
| Shedding | Down positive cam shedding | ||
| Let-off | Electric servo continuous let-off | Double-warp beam | |
| Twin back beam | |||
| Positive or negative let-off | |||
| Flang dia | 800Mm | ||
| Take-up | Take-up method | Electric servo continuous take-up | |
| Batching method | Entrails batching(max dia:600mm) | ||
| Out-engine batching(max dia:1000mm) | |||
| Temple | Upper | ||
| Selvedge | Leno yarn by plancetary gear | ||
| Lubrication | For main friving parts:oil-bath type,centralized filling oil (grease) | ||
| shutdown device | Weft breakage | Reflecting double feeler device | |
| Warp breakage | Electric warp stop device | ||
| Others | Selvedge,yarn end treatment ,end-broken stop motion | ||
| Swhutdown display | Screen display,multi-functional shutdown display lights | ||
| Weft cutter | Mechanical cutter | ||
| Electric control system | High-deficiency,large screen , vga color image display touch human-computer interface | ||
Advantages:
1) Six-bar beating-up mechanism with abundant weft time during wide width weaving to ensure stable weaving.
2) Saving more energy and gas, reducing cost of weaving and ensuring stable weft.
3) As an advanced take-up device in our country, it expands the variety of fabrics(5.9-118.1/cm), easy operation and more precise.
4) Warp tension is determined by tension sensor and amount of let-off is controlled by computer to ensure the precision for amount of let-off and keep warp tension constant.
Details:
1.Reply your inquiry in 24 working hours.
2. We can design and make the product according to your requirements.
3. We now realizes a one-stop service system including processing, production, installation, storage, sales and after-sale service.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. In future , we will not only cooperators, but also we will be good ftiends.
6. We will be successful together.
About Our Factory:
1:We are manufacture in China.we have own factory.have various of air jet looms .
2:we can offer you good quality and competetive price.
3:we can design the product for you.we also can produce them by your design paper.
4:our product will lead your market,also can get much profit for you.
1) Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer holding our own International Trade Department, for that can better understand customer's needs and offer a reasonable price. We are in this line more than 20 years. By the way, we also product outr machines' part by oursleves and supply to our companys.
(2) Q: Are you available for on-the-spot invitation?
A: We do welcome our new and old friends come here to have a visitation.
(3) Q: Is the price offered changeable?
A: We offer reasonable price for every client, and the price is changeable according to purchasing amount.
(4) Q: How about the quality?
A:The main subassembly and raw materials are all supplied by large co
mpanies. Key parts are research and developed by our own staff. Profe
ssional assembly line work and strict quality test system can ensure your high quality requirement.
(5) Q: How's the after-sale service?
A: We offer engineers available to service overseas under merchandiser's supervision and translation.
New model Air jet loom SY8000-1
New model Air jet loom SY8000
New model Air jet loom SY7000
New model Air jet loom SY9000
