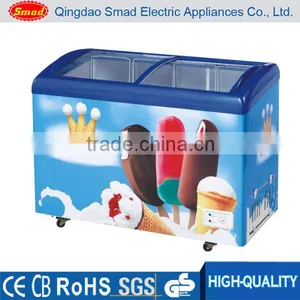

Help CenterGlass Door Freezer Ice Cream, Ice Cream Display Freezer, Ice Cream Chest Freezer
Related Products
-
Big Capacity Glass Door Chest Freezer Display Freezer Horizon FreezerUS$ 100 - 400MOQ: 1 Unit -
Chest Type Sliding Door R134a Deep Chest Freezer Double Glass Door Ice Cream FreezerUS$ 124 - 204MOQ: 1 Unit
-
Hot Selling Products Double Sliding Door Chest Freezer Energy Saving Household Chest Freezer Quality ChoiceUS$ 100 - 400MOQ: 1 Unit
-
Curved Sliding Glass Door Commercial Display Ice Cream Chest Freezer Glass Door FreezerUS$ 124 - 204MOQ: 1 Unit
-
Ice Cream Chest Freezer With Grey , Bule , Red Lid FrameUS$ 140 - 220MOQ: 98 Units
ice cream display freezer
ice cream display freezer
ice cream display freezer
ice cream display freezer
| Model | SC/SD268Y | SC/SD328Y | SC/SD388Y | SC/SD518Y |
| Refrigerant | R134a | R134a | R134A | R134a |
| Capacity | ||||
| Gross Capacity | 268L | 328L | 388L | 518L |
| Dimension | ||||
| Product Dimension(L*W*H) | 1100X598X845mm | 1294X598X845mm | 1260X700X780mm | 1500X700X780mm |
| Inner Dimension(L*W*H) | 970X468X660mm | 1164X468X660mm | 1110X510X630mm | 1340X500X630mm |
| Packing Dimension(L*W*H) | 1175X665X915mm | 1365X665X915mm | 1315X765X875mm | 1555X765X875mm |
| Weight | ||||
| N.W./G.W.(kg) | 48/53 | 54/60 | 60/68 | 84/98 |
| Feature | ||||
| Cabinet Top Frame |
Integrated Injection Plastic |
Integrated Injection Plastic |
Integrated Injection Plastic |
Integrated Injection Plastic |
| Lock | Yes | Yes | Yes | Yes |
| Thermometer | Optional | Optional | Optional | Optional |
| Power-off Alarm | Optional | Optional | Optional | Optional |
| Indicating Lamp |
Green Power On & Red Compressor Run |
Green Power On & Red Compressor Run |
Green Power On & Red Compressor Run |
Green Power On & Red Compressor Run |
| Wheel |
60mm Diameter, High Reliability |
60mm Diameter, High Reliability |
60mm Diameter, High Reliability |
60mm Diameter, High Reliability |
| Basket | 1 Special Design | 1 Special Design |
1Special Design, With Divider |
1 Special Design, With Divider |
| Accessory | ||||
| Defrost Scraper | 1 / ABS | 1 / ABS | 1 / ABS | 1 / ABS |
| Drainage Tray | 1 / Plastic | 1 / Plastic | 1 / Plastic | 1 / Plastic |
| Performance | ||||
| Test Condition | 38oC, 70%RH | 38oC, 70%RH | 38oC, 70%RH | 38oC, 70%RH |
| Test Result | <-18oC Warmest | <-18oC Warmest | <-18oC Warmest | <-18oC Warmest |
| Ambient Temperature (Class) | N/ST/T | N/ST/T | N/ST/T | N/ST/T |
| Insulation Resistance | >50 Mohm | >50 Mohm | >50 Mohm | >50 Mohm |
| Earth Resistance | <0.1 Ohm | <0.1 Ohm | <0.1 Ohm | <0.1 Ohm |
| Structure | ||||
| Isolation Layer | PU Foam | PU Foam | PU Foam | PU Foam |
| Blow Agent | Cyclo / Isopentane | Cyclo / Isopentane | Cyclo / Isopentane | Cyclo / Isopentane |
| Isolation Thickness | 65mm | 65mm | 70mm | 75mm |
| Cabinet | ||||
| Cabinet Shell | Cold Steel | Cold Steel | Cold Steel | Cold Steel |
| Cabinet Liner | Embossed Aluminum | Embossed Aluminum | Embossed Aluminum | Embossed Aluminum |
| Lid | ||||
| Type |
Single Layer Heat Reflecting Tempered Glass |
Single Layer Heat Reflecting Tempered Glass |
Single Layer Heat Reflecting Tempered Glass |
Single Layer Heat Reflecting Tempered Glass |
| Quantity | 2 Pcs | 2 Pcs | 2 Pcs | 2 Pcs |
| Lid Frame | ABS, Grey , Bule , Red | ABS, Grey | ABS, Grey | ABS, Grey |
| Glass Thickness | 4mm | 4mm | 4mm | 4mm |
| System | ||||
| Compressor | Qianjiang | Qianjiang | Qianjiang | Qianjiang |
| Input Power / Cooling Capacity | 220W/270W | 222W/300W | 222W/300W | 241/330W |
| Supplier | zhejiang wansheng | zhejiang wansheng | zhejiang wansheng | zhejiang wansheng |
| Refrigerant | R134a | R134a | R134A | R134a |
| Evaporator | Tube Coil | Tube Coil | Tube Coil | Tube Coil |
| Material | Zinc plated Steel | Zinc Plated Steel | Zinc Plated Steel | Zinc Plated Steel |
| Condenser | Tube Coil | Tube Coil | Tube Coil | Pre + Tube Coil |
| Tube Coil | Steel | Steel | Steel | Steel |
| Fan Motor | 40W | 40W | 40W | 40W |
| Supplier | Jjiangshu Jingjiang | Jjiangshu Jingjiang | Jjiangshu Jingjiang | Jjiangshu Jingjiang |
| Anti-condensation Loop | Yes/COPPER | Yes/COPPER | Yes/COPPER | Yes/COPPER |
| Loading Quantity(40'HQ) |
98pcs/105pcs without wheels fixed |
73pcs/78pcs without wheel fixed |
80pcs(without wheels) | 66pcs(without wheels) |
1.Do the brand, logo, plug and the printing artwork as your requirements.
We offer 1 years for the whole unit and 3 years for main part.
2. For the exporting products, we will provide 1% of the total price of parts for your repairing uses.
3. Any demands or questions, please contact our sales for more information,
