Help CenterYPKK Variable Frequency Motor High Voltage Motor(6kv 10kv)
Related Products
-
Hot-sale Low Price YPT Variable Speed Blower MotorUS$ 350 - 8,450MOQ: 1 Set -
Top Grade Fashionable YPT Compressor Inverter MotorUS$ 350 - 8,450MOQ: 1 Set
-
Hot Sell Economic YPT Efficient Vfd MotorUS$ 350 - 8,450MOQ: 1 Set
-
Top Grade Design YPT Oil Pump MotorUS$ 350 - 8,450MOQ: 1 Set
-
High Quality Branded YPT Change Speed Squirrel Cage MotorUS$ 350 - 8,450MOQ: 1 Set
Specifications
variable frequency motor160kw-7500kw
high efficiency,low noise
good quality ,good performance
ISO9001-2008
YKK three phase compressor IEC design variable frequency motor

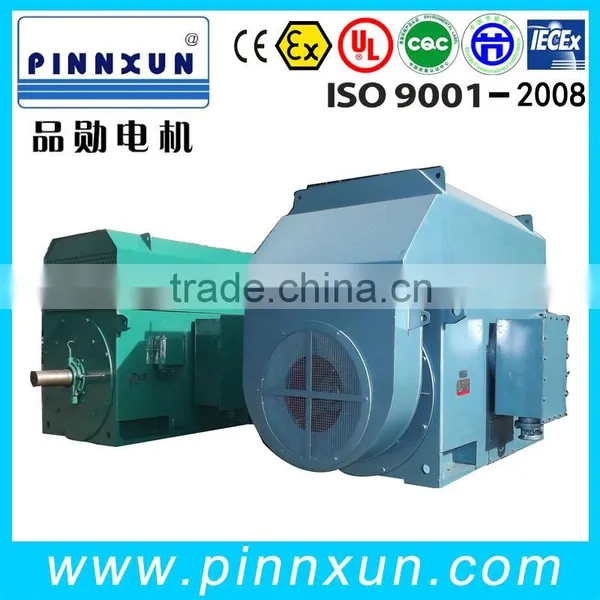

YKK high voltage electrical 3 phase motor 710KW 6KV electric blower high voltage motor
| YKK high voltage squirrel cage motor(6KV 10KV) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
YKK series motor is our company new products instand of the old series JS JSQ.They are Lighter weight, higher efficiency, more energy-saving, lower noise, smaller vibration, higher reliability, longer service life, and easier mounting and maintenance.
Suitable for ventilators, compressors, water pumps, crushers, cutting machine tools and transportation machineries, as well as other machineries, and act as a motive power machine industrial and mining establishments such as mining, machinery, petroleum, and chemical industries as well as the power plant, etc. the motors are of box-section construction, the frame is welded into box-section using steel plate, and hence the weight of motors is light and rigidity i good. Two sides and top of the frame are all provided with the windows, which ,on the one hand ,is convenient to maintain and take are of motors,and,on the other hand, can mount different coolers on the top of frame, thus being capable of deriving the motors with different methods of cooling and different degrees of protection. the motors has a laminated core which is first compressed and secured before it is fitted into the frame and then pressed into the machined frame, the motors have good insulating performance, higher mechanical strength, higher moisture-resistance and longer service life. the squirrel-cage rotors are of both cast aluminum construction and copper bar construction. The rotors are manufactured using advanced&relible cast-aluminum and welding process, and are well balanced.therefore,the motors operate smoothly and reliably. rolling bearing or sleeve bearings are used for the motors, depending on the power and speed of motors. Degree of protection is IP44 or IP54. the rolling bearing are provided with grease-filling and -diaining devices without shutdown. The main terminal box is located at the right side of the motor, and can also be located at the left side on user request. Interior and exterior of the terminal box all are provided with separate earthing terminals
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Model Explanation |
|
| |
Motor Performance |
|
|
Power range:160kw-10000kw Frame Size:355-1000mm Rated Voltage: 3KV 6KV 10KV Speed;3000rpm 1500rpm 1000rpm 750rpm 600rpm Protection Class: IP44 IP54 IP55 Cooling type;IC611 IC616 Ambient Temperature: -15°C~40°C Altitude: not exceed 1000 Meter Rated Frequency: 50Hz/60Hz Insulation Class: F Temprature rise: B Working Duty: S1(Continuous)
| |
|

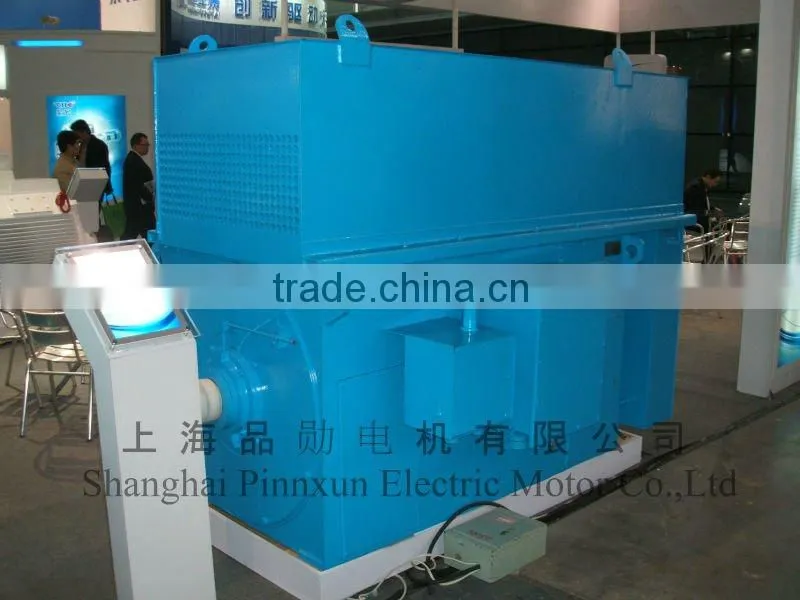

1.We Join Shanghai PTC(Power Transmission and Control) ASIA 2011.11
|
|
|
|
2.Certification To Guarantee We are Good In Quality
3.Our Mainly Products(LV and HV Motor for General equipments)
5.Mainly Produce Process(Punching,Winding,VPI Process,Balance,Assembly,Test)
|
4.Strong Package Ensure Motor safe enough for Ship or Truck Transportation.
5.Cargo,cantainer,shipment specification to ensure we are more professional.
Ordering Informations |
|
|
1.Please indicate the motor type,rated output,rated voltage,rated frequency,synchronous speed,Explosion proof Mark,mounting type,rotation direction(view from the shaft extension side)Use of the environment(indoor or outside)If the user havn't point out the rotation and environment,normailly we think is CW roration and used indoor. 2.when user have special requirments,For example:Dispose the stator,bearing explosion proof and bearing temperature sensors,space heater,Plateau use,specical frequency,mounting size change,special output,the user must ,order can be confirm after signing the technical agreement with engneering department . 3.The catalogue is only fpr reference,and there may be variations. 4.This range of motor can also be made into Variable-Frequency motors,the range of frequency of which is 0-100HZ,the output and overall dimensions should be confirm separately. | |
