Home > Electrical & Electronics > Electric Motor > AC Motor > IEC Standard Y Series 3 Phase 40KW Electric Motor

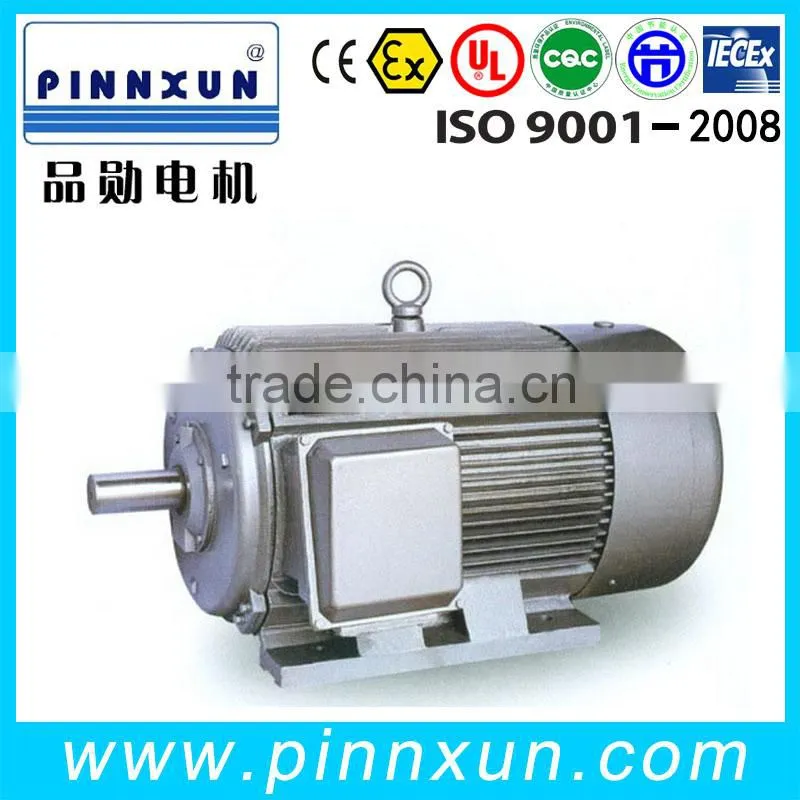

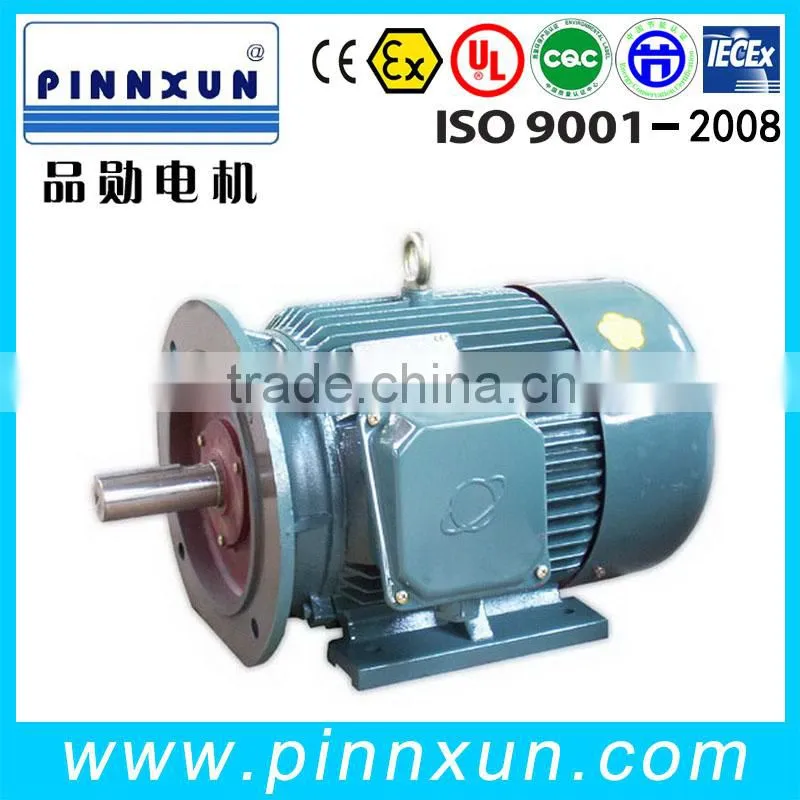

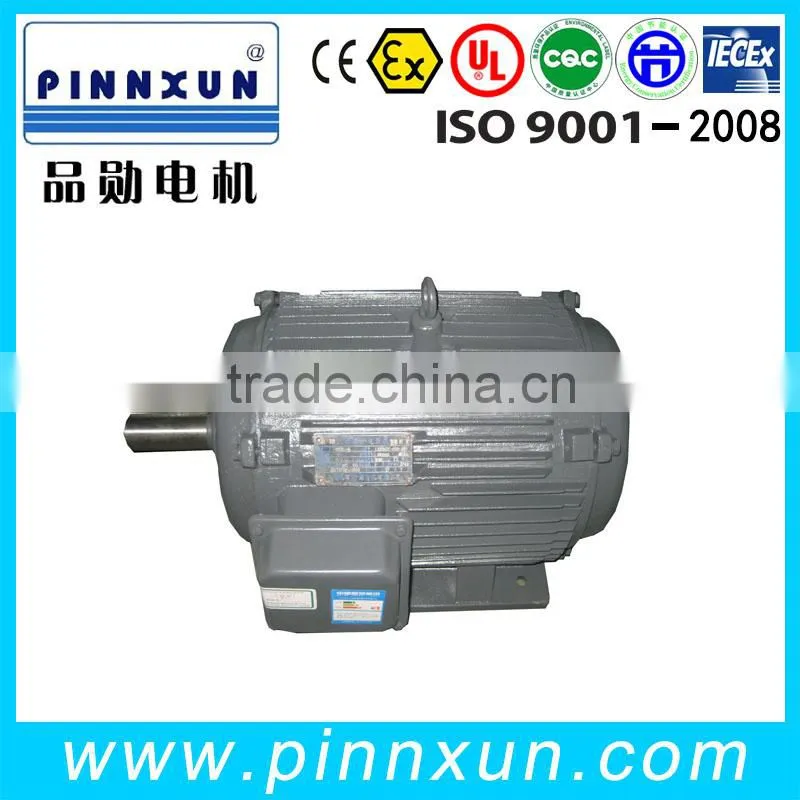

IEC Standard Y Series 3 Phase 40KW Electric Motor

Name: IEC Standard Y Series 3 Phase 40KW Electric Motor
Brand: pinnxun
SKU: 101256371

IEC Standard Y Series 3 Phase 40KW Electric Motor thumbnail-1

IEC Standard Y Series 3 Phase 40KW Electric Motor photo-1

US$ 388 - 17,000 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

pinnxun

Model Number:

Y 3 Phase 40KW Electric Motor

Type:

Asynchronous Motor

Contact Supplier Request Quote Chat Now

Shanghai Pinnxun Electric Motor Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name pinnxun

Model Number Y 3 Phase 40KW Electric Motor

Type Asynchronous Motor

Frequency 50HZ 3 Phase 40KW Electric Motor

Output Power 0.12kw-355kw

Protect Feature Totally Enclosed

Phase Three-phase

Certification CCC, CE, ROHS, UL, VDE

AC Voltage Other, 380 415 440

Place of Origin Shanghai, China

Efficiency IE 1

Specifications

3 Phase 40KW Electric Motor
certificate:IS09001-2008
power:0.12kw-355kw
pole:2 4 6 8 10
speed:3600-600

[NAME] 3 Phase 40KW Electric Motor

Product: YS fan electric motor

YS fan electric motor Feature and usage:

Y series three phase electric motor is designed in conformity with the relevant requirements of IEC and DIN42673 standards. It's totally enclosed and fan-cooling three-phase squirrel cage induction motors, having outstanding performance, such as high efficiency, energy-saving, high starting torque, low noise, little vibration, reliable operation and easy maintenance, etc.
Y series motors are widely used in many places, where there doesn't exist combustible, explosive or corrosive gas, and without any special requirements, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery and food machines, etc.

YS fan electric motor Model Explanation

YS fan electric motor Motor Performance

Frame sizes: 63-315 2) Rated power: 0.12-200kw
Rated voltage: 220/380v,380/660v
Frequency: 50Hz, 60Hz
Protection class: IP44 ,IP54
Insulation class: B,F
Materials: Cast iron, aluminum (FRAME 63-160)
EFF: EFF3, EFF2, EFF1
Poles: 2, 4, 6, 8
Cooling method: IC411 (total-enclosed fan-cooled type)
Mounting types: IMB3 ,IMB5,IMB35,IMB34,IMB14
Operating mode: S1
Connection: "Y" type for 3kW and downwards, "D"type for 4kW and upwards
Ambient temperature: -15C < θ < 40C

The altitude should be lower than 1, 000m
Relative humidity: Not higher than 90%
Special motors can be designed according to

Inner packing:
Frame 63-112: Foam boxes
Frame 132-315: Wooden boxes

1.We Join Shanghai PTC(Power Transmission and Control) ASIA 2011.11

2.Our Professional Team(Management,R&D Dep,Eengineer Dep,Sales,Produce,Office)

YS fan electric motor Structure Description

Y series ac induction motor mounting details:

Schematic diagram
mounting type	B3	B35	B5	V1
mounting Discribtion	frame with feet,end-shield without flange	frame with feet,end-shield with flange	frame without feet,end-shield with flange	frame without feet,end-shield with flange
Suitable frame	H63-315	H63-315	H63-280	H63-315

Y series motors are totally enclosed fan cold(TEFC).

5.bearing type-table 2
table 2


	Horizontal		vertical
motor frame	DE side	N-DE side	DE side	N-DE side
63	6201-2RZ/Z2	6201-2RZ/Z2	6201-2RZ/Z2	6201-2RZ/Z2
71	6202-2RZ/Z2	6202-2RZ/Z2	6202-2RZ/Z2	6202-2RZ/Z2
80	6204-2RZ/Z2	6204-2RZ/Z2	6204-2RZ/Z2	6204-2RZ/Z2
90	6205-2RZ/Z2	6205-2RZ/Z2	6205-2RZ/Z2	6205-2RZ/Z2
100	6206-2RZ/Z2	6206-2RZ/Z2	6206-2RZ/Z2	6206-2RZ/Z2
112	6206-2RZ/Z2	6206-2RZ/Z2	6206-2RZ/Z2	6206-2RZ/Z2
132	6208-2RZ/Z2	6208-2RZ/Z2	6208-2RZ/Z2	6208-2RZ/Z2
160	6209-2RZ/Z2	6209-2RZ/Z2	6209-2RZ/Z2	6209-2RZ/Z2
180	6211/Z2	6211/Z2	6211/Z2	6211/Z2
200	6312/Z2	6312/Z2	6312/Z2	6312/Z2
225(2P)	6312/Z2	6312/Z2	6312/Z2	6312/Z2
225(4-8P)	6313/Z2	6212/Z2	6313/Z2	6312/Z2
250(2P)	6313/Z2/Z2	6313/Z1	6313/Z2	6313/Z1
250(4-8P)	6314/Z1	6213/Z1	6314/Z1	6313/Z1
280(2P)	6314/Z1	6313/Z1	6314/Z1	6313/Z1
280(4P)	6317/Z1	6313/Z1	6317/Z1	6313/Z1
315(2P)	6317/Z1	6317/Z1	6317/Z1	6317/Z1
315(4-8P)	NU319	6319/Z1	NU319	6319/Z1

3.Certification To Guarantee We are Good In Quality

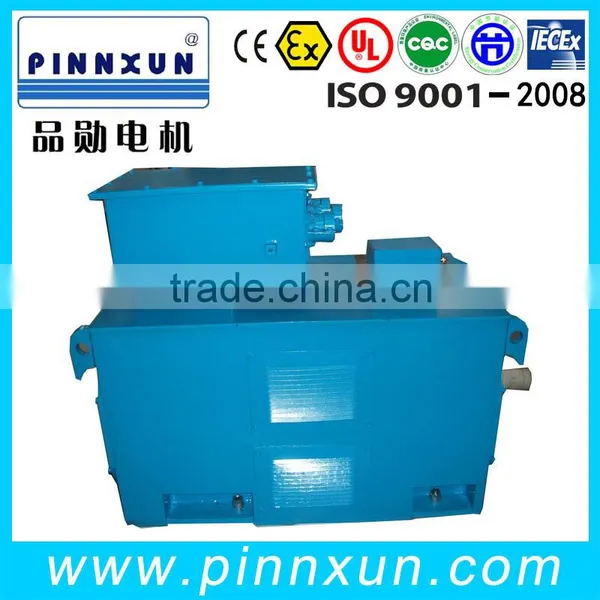

4.Our Mainly Products(LV and HV Motor for General equipments)

5.Mainly Produce Process(Punching,Winding,VPI Process,Balance,Assembly,Test)

YS fan electric motor Pictures

Ordering Informations

1.Please indicate the motor type,rated output,rated voltage,rated frequency,synchronous speed,Explosion proof Mark,mounting type,rotation direction(view from the shaft extension side)Use of the environment(indoor or outside)If the user havn't point out the rotation and environment,normailly we think is CW roration and used indoor.

2.when user have special requirments,For example:Dispose the stator,bearing explosion proof and bearing temperature sensors,space heater,Plateau use,specical frequency,mounting size change,special output,the user must ,order can be confirm after signing the technical agreement with engneering department .

3.This range of motor can also be made into Variable-Frequency motors,the range of frequency of which is 0-100HZ,the output and overall dimensions should be confirm separately.

6.Strong Package Ensure Motor safe enough for Ship or Truck Transportation.

7.Cargo,cantainer,shipment specification to ensure we are more professional.

YS fan electric motor
