Specifications
Y2 Three Phase AC Motor MADE IN CHINAcapacity:0.12-315kw
pole;2-10,Good design
Cooling method: IC411
match:pump,blower,fan
IEC Standard Y2 ( IE2,IE3) Y2 Three Phase AC Motor MADE IN CHINA
Y2 Three Phase AC Motor MADE IN CHINA
Y2 three phase induction electric asynchronous motor 220kw
Y2 Series Cast of Iron Three Phase Induction Motor is specially designed for European market, whose terminal box is located on the top of motor.They are totally enclosed and fan-cooling designed. They are newly designed in conformity with the relevant requirements / rules of IEC&DIN42673 standards.
they advantage of high efficiency, long working life, energy saving, high starting torque, low noise, small vibration, big breakaway torque, reliable operation performance, easy & convenient maintenance. Fixing measurement and power grade completely conform to IEC standards.
--Y2 series three phase asynchronous electric motors are widely used in many fields, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery, food machines, agitator, air compressor etc. We also can supply aluminum housing type for frame size under the standard of IEC132.
For the Connection Model of Y2 motor, please refer to the Name Plate on the motor (The Y Connection is adopted by motors' Output equal or below 3kW; The Delta-Connection is adopted by motors' Output above 4kW).
Y2 Motor can be equipped with PTC.
--For motor of frame size 160MM and above can be equipped with re-greasing system.
1.We Join Shanghai PTC(Power Transmission and Control) ASIA 2011.11
Y2 three phase asynchronous ac motor Model Explanation |
|
| |
Y2 three phase asynchronous ac motor Motor Performance |
|
|
Ambient Temperature: -15°C~40°C Altitude: not exceed 1000 Meter Rated Voltage: 380V or any voltage between 220-1140V Rated Frequency: 50Hz/60Hz Protection Class: IP44, IP54, IP55 Insulation Class: B/F Cooling Method: IC0141 Working Duty: S1(Continuous) Humidity: Lower than 90% Connection: Star-connection for up to 3kW; Delta-connection for 4kW and above
| |
Y2 three phase asynchronous ac motor Structure Description |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Y2 series ac induction motor mounting details:
Y2 series motors are totally enclosed fan cold(TEFC).
2.Our Professional Team(Management,R&D Dep,Eengineer Dep,Sales,Produce,Office)
3.Certification To Guarantee We are Good In Quality

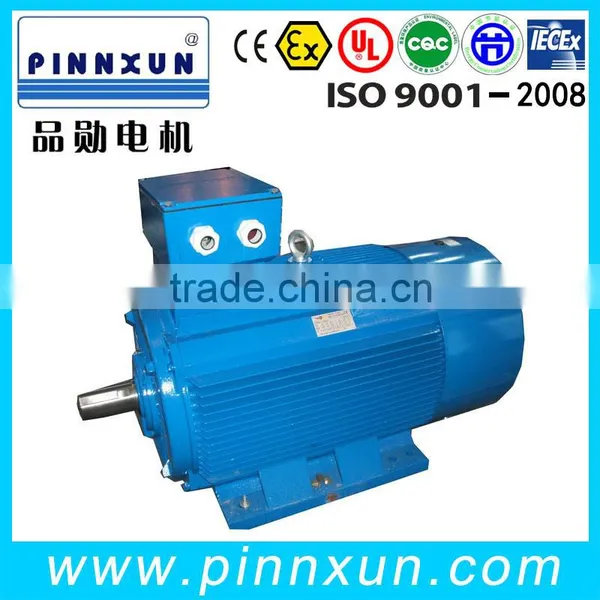

Y2 three phase asynchronous ac motor Pictures
4.Our Mainly Products(LV and HV Motor for General equipments)
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ordering Informations |
|
|
1.Please indicate the motor type,rated output,rated voltage,rated frequency,synchronous speed,Explosion proof Mark,mounting type,rotation direction(view from the shaft extension side)Use of the environment(indoor or outside)If the user havn't point out the rotation and environment,normailly we think is CW roration and used indoor. 2.when user have special requirments,For example:Dispose the stator,bearing explosion proof and bearing temperature sensors,space heater,Plateau use,specical frequency,mounting size change,special output,the user must ,order can be confirm after signing the technical agreement with engneering department . 3.This range of motor can also be made into Variable-Frequency motors,the range of frequency of which is 0-100HZ,the output and overall dimensions should be confirm separately.
| |
5.Mainly Produce Process(Punching,Winding,VPI Process,Balance,Assembly,Test)
6.Strong Package Ensure Motor safe enough for Ship or Truck Transportation.
7.Cargo,cantainer,shipment specification to ensure we are more professional.
Y2 three phase asynchronous ac motor
