Home > Electrical & Electronics > Electric Motor > AC Motor > Super Quality Fashionable TFW Synchronous Brushless dc Motor

Super Quality Fashionable TFW Synchronous Brushless dc Motor

Name: Super Quality Fashionable TFW Synchronous Brushless dc Motor
Brand: pinnxun
SKU: 101251789

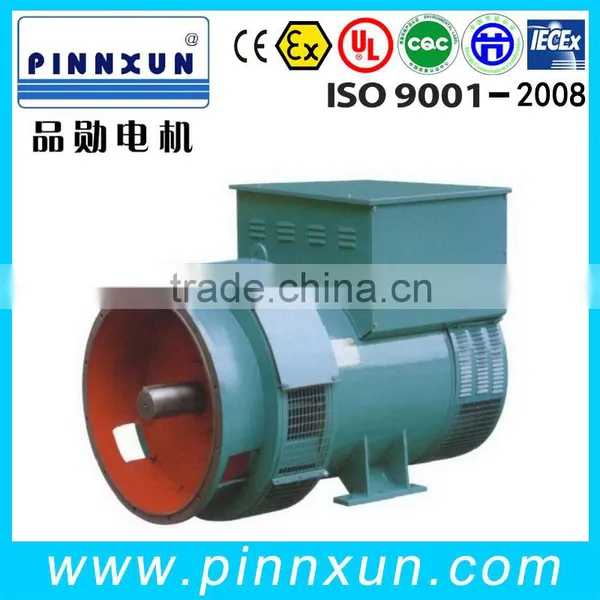

Super Quality Fashionable TFW Synchronous Brushless dc Motor thumbnail-1

Super Quality Fashionable TFW Synchronous Brushless dc Motor photo-1

US$ 5,200 - 46,500 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

pinnxun

Model Number:

TFW synchronous brushless dc motor

Type:

Other, Synchronous Motor, electric motor

Contact Supplier Request Quote Chat Now

Shanghai Pinnxun Electric Motor Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name pinnxun

Model Number TFW synchronous brushless dc motor

Type Other, Synchronous Motor, electric motor

Frequency 50HZ TFW synchronous brushless dc motor

Output Power 320KW-5000KW TFW synchronous brushless dc motor

Protect Feature Drip-proof

Phase Three-phase

Certification CCC, CE

AC Voltage Other, 6KV,3KV,10KV TFW synchronous brushless dc motor

Place of Origin Shanghai, China

Efficiency IE 1

Specifications

TFW synchronous brushless dc motor
certificate:IS09001-2008
power:250KW--3000KW
pole:4-80 pole
speed:3600-75

Super quality fashionable TFW synchronous brushless dc motor

Products:TFW synchronous alternator

TFW synchronous brushless dc motor Feature and usage

T series of synchronous motors can be made into TF TK TDMK TZ TL series.TF:TF TFW are synchronous excitation alternator,TK;This series synchronous motor mainly design for compressors.TDMK;This series motor specialize design for large size ball mill.TZ:specialize for mill machine. and TL are vertical mounting synchronous motor.These series of motors have high operating efficiency, good material, perfect manufacture, stable performance and revolution does not change with load variation.

1.We Join Shanghai PTC(Power Transmission and Control) ASIA 2011.11

As for technical requirement of this series of motors, in addition to the specification of special technical specification of the product, other requirements comply with China National Standard GB755<Basic technical requirement of rotating motor>and IEC standard.

The mechanical dimension and tolerance for each part of this series of motors comply with China National standard GB1889-1804 and ISO standard.The protection grade for case of this series of motors is IP00,IP20,IP21,IP23 and IP44 in accordance with GB/T4942.1 and IEC 34-5<Classification of protection grade of motor case>.The way of cooling for this series of motors is IC01 IC401,IC27,IC37,IC81W and IC91 in accordance with standard of GB/T1993 and IEC60034-6<Cooling method of motor>.

The basic installation mode for this series of motors complies with the specification of GB997 and IEC60034-7<Structure and installation mode >.In case o needing other protection grade and way of cooling, negotiation can be made separately.

We Join Shanghai PTC(Power Transmission and Control) ASIA 2011.11

TFW synchronous alternator Model Explanation

Our Professional Team(Management,R&D Dep,Eengineer Dep,Sales,Produce,Office)

TFW synchronous alternator Performance

Power range:250KW--3000KW

Rated Voltage: 380V 400V 440V 690V 3KV 6KV 10KV

No.of pole;6-40

Protection Class: IP00,IP20,IP21,IP23 and IP44

Ambient Temperature: -15°C~40°C

Altitude: not exceed 1000 Meter

Rated Frequency: 50Hz/60Hz

Insulation Class: F

Temprature rise: B

Working Duty: S1(Continuous)

Certification To Guarantee We are Good In Quality

TFW synchronous alternator Structure Description

Frame: Integral construction welded by steel plate. The frame and plain bearing housing are fixed on the base plate welded by steel plate respectively.
Stator coil: Laminated by 0.5mm silicon steel fan-shaped lamination. The two sides of fan-shaped lamination is painted with insulating varnish. The stator iron core is fixed on the frame by tighting screw or dovetail rib.
Stator coil: The coil is two layer lap winding. It has B class insulation and can prevent the corona. The end of the coil is wrapped tightly and be integral varnished.
Magnetic pole: Laminated by thin steel plate lamination. The iron core is covered with coil. The whole magnetic pole is fitted on the magnetic yoke.
Magnetic coil: Wound by flat copper wire and has B class insulation after be insulating treated.
Bearing: Composed of cast iron plain bearing housing and plain bearing half-liner casted with alloy. The lubricating method is oilring self-lubricating or compound lubricating with outer oil system.
Brush and collector ring: The collector ring's construction is assembling. The brush is fixed in the constant voltage brush box and connected by the conducting plate. The whole brush support if fixed on the side of bearing.
Exciting mode: T series synchronous electrical machinery are excited by thyristor exciting unit. The exciting unit can be provided by the manufactory.

Our Mainly Products(LV and HV Motor for General equipments)

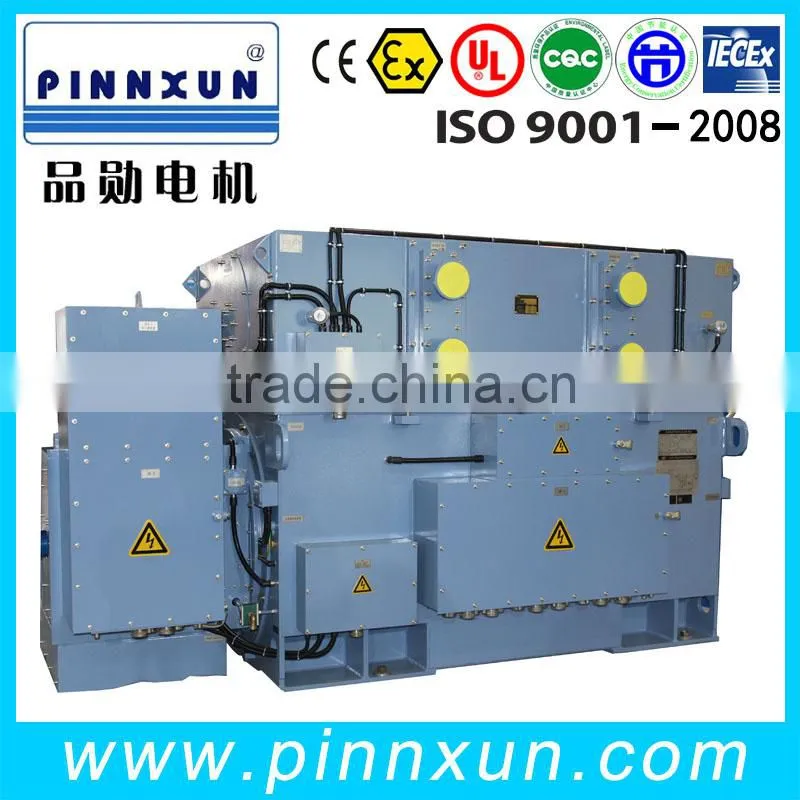

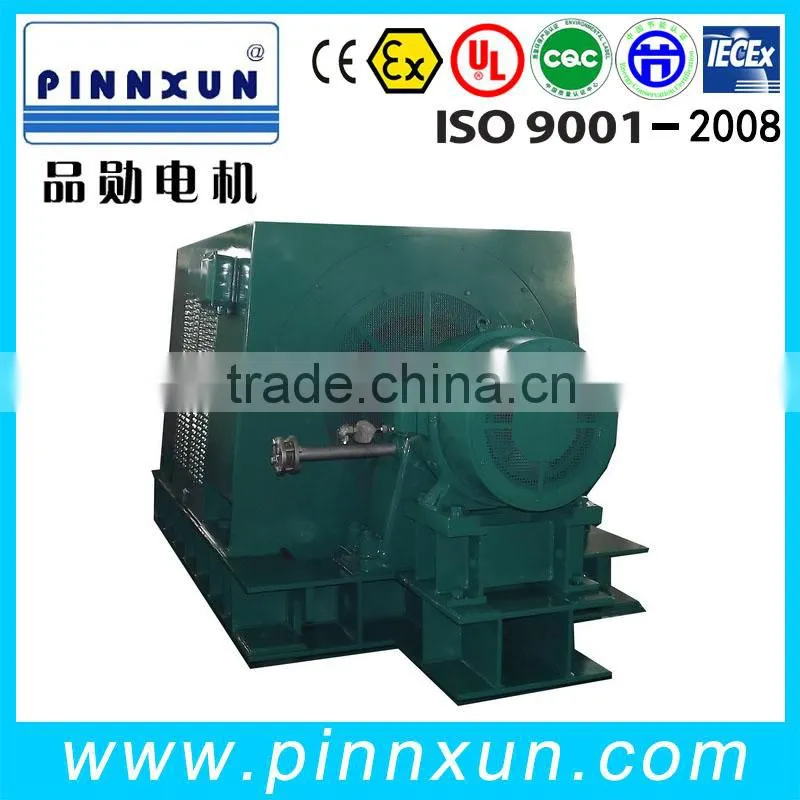

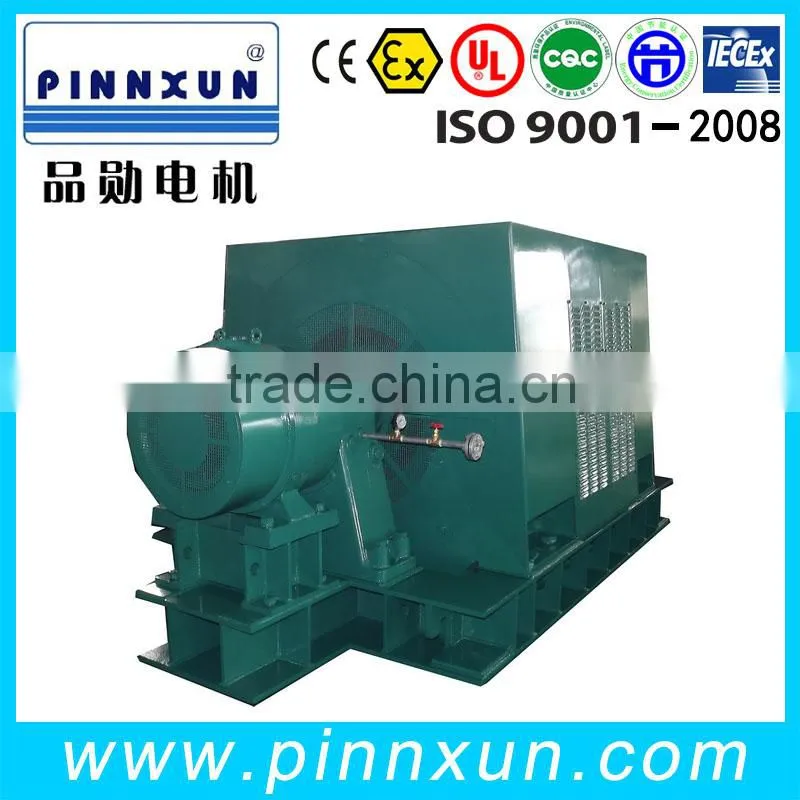

TFW synchronous alternator Pictures

Ordering Informations

1.Please indicate the motor type,rated output,rated voltage,rated frequency,synchronous speed,Explosion proof Mark,mounting type,rotation direction(view from the shaft extension side)Use of the environment(indoor or outside)If the user havn't point out the rotation and environment,normailly we think is CW roration and used indoor.

2.when user have special requirments,For example:Dispose the stator,bearing explosion proof and bearing temperature sensors,space heater,Plateau use,specical frequency,mounting size change,special output,the user must ,order can be confirm after signing the technical agreement with engneering department .

3.The catalogue is only fpr reference,and there may be variations.

Mainly Produce Process(Punching,Winding,VPI Process,Balance,Assembly,Test)

Strong Package Ensure Motor safe enough for Ship or Truck Transportation.

Cargo,cantainer,shipment specification to ensure we are more professional.

TFW synchronous alternator
