Z710 1500kw 710v DC Motor

Z710 1500kw 710v DC Motor thumbnail-1
Z710 1500kw 710v DC Motor photo-1
US$ 15,000 - 22,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
pinnxun
Model Number:
DC Motor Z710-400
Contact Supplier Request Quote Chat Now
Shanghai Pinnxun Electric Motor Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name pinnxun
Model Number DC Motor Z710-400
Usage Other, Crane and Metallurgy
Certification CCC, CE, ROHS, UL, VDE
Type Gear Motor
Torque 20600N.M
Construction Series Wound
Commutation Brush
Protect Feature Drip-proof
Speed(RPM) 680rpm DC Motor
Continuous Current(A) 2125A
Output Power 1500kw DC Motor
Voltage(V) 680v DC Motor
Efficiency IE 1

Specifications

Z710 1500kw 710v DC Motor
capacity:800KW-1500KW
voltage:440V 660v 750v
cooling:IC17 IC37 ICW37A86
high efficiency

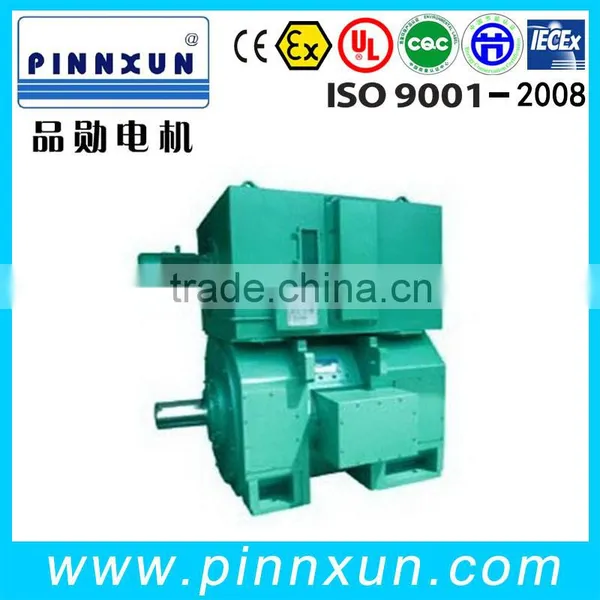

Z710 DC Motor 1500KW 750v photo

Z710 1500kw 710v DC Motor

  • Features and application
Z series DC motor used polygon structure so that the using rate of the stators inner space is very high. The magnet yoke is laminated style, suitable for silicon controlled commutate power supply and it can endure pulsating current and rapid change of current (load change).Magnetic poles are fixed by precise orientation. All the motors of system are with compensate winding, so the reverse performance is very well.
The insulation class of the motor is F, using of reliable insulation structure and nonmenstruum vacuum pressure impregnated, guaranteeing the stable performance of insulation and good heat dissipation.

1.We Join Shanghai PTC(Power Transmission and Control) ASIA 2011.11





2.Our Professional Team(Management,R&D Dep,Eengineer Dep,Sales,Produce,Office)



  • Performance
1.Data listed in the technical data sheet should be employed under the following conditions: a) Altitude above sea level maximal1,000m; b) Cooling air temperature maximal 40oC; Cooling water temperature maximal 32oC; c) The motor can be installed under foul situation, but the right cooling method of cooling method of cooling and defend class must be chosen. If the situation is special, need humid tropic, please negotiate. d) The motor is suitable for 3-phase bridge style smoothing reactor, also can adopt power supply of DC generator. e) The motor accord with GB755 The ration and performance of the rotating electrical machinery, IEC60034-1 The ration and performance of the rotating electrical machinery and JB/T9577 Technical requirements of Z series middle motor electromotor; 2. The standard rated voltage of the electromotor are 440V, 550V, 660V, 750V etc. Voltage of other classes can also be derived according specific situation, but must be negotiated when ordering. 3. The basic excitation style is separately excited, the excited voltage is 220V, Voltage of other classes can also be derived according specific situation, but must be negotiated when ordering. 4. Short time overload capacity of motor. Motor can be divided into two kinds according to the use First kind (A): ordinary industrial DC motor; Second kind (B): metal rolling mill DC motor. a) First kind (A) motor can endure the overload (1min) according to table 3 table 3
percentage of basic speed
percentage of basic speed
seldom using
constantly using
100
200
175
200
160
150
>300
140
125



b) First kind (B) motor can endure the overload (1min) according to table 4 table 4
percentage of basic speed
percentage of basic speed
seldom using
constantly using
100
200180*
175160*
200
160180*
160
>300
175160*
140
*When the basic speed of the motor≥650r/min,using the number in the bracket.



c)The short time overload capacity seldom used means happens infrequency or only at the urgency, the motor working exceed the continuous rated overload capacity, we suggest you adjust the instantaneous open/close device of the switch according to the short time overload capacity seldom using. The short time overload capacity seldom constantly used means its an part of the normal working period, the motor endure the continuous rated overload capacity again and again. After working at short time overload, it must working light load to make the overload periods overload root-mean-square less than its continuous ration. d)Second kind DC motor(B)can endure the following continuous load; Working continuous within the rated voltage and rotate speed with 115% rated power overload, the temperature is higher when at this overload, other features maybe different from working at the rated condition. Within the rated voltage and rotate speed, after running at the rated overload, working at the 125% rated power for two hours, the temperature rise cant overrun the regulated numerical value other features maybe different from working at the rated condition. e)Second kind DC motor(B),at the rated rotate speed, the overload can reach 2.5 times no longer than 15s only used once in a while. 5. The change rate of current Under all rotate speed and load, the change rate of current (di/dt) that the motor can endure is 250 times rated current. 6. Libration and noise a) the libration of the motor accords with GB10068Measurement evaluation and limits of the vibration severity of rotating electrical machines which the shaft center height is 56mm and above center standards regulation. b) The noise of the motor accords with GB10069.3 Measurement of airborne noise emitted by rotating electrical machinery and noise limits. 7. The efficiencies listed in the data sheet are for rated output, voltage and speed, and include excitation loss.
The choice of the motors capacity 1.First kind (A): Ordinary industrial DC motor. The technical data of this kind of motor please see the technical data table. The buyer can decide the capacity, voltage, running speed and the method of cooling of the motor at the buyers option. 2. Second kind (B): Metal rolling mill DC motor. The output power of this kind of motor is about 20% lower than kind (A), the detail numerical value can be negotiated by the user and the manufacture. 3. Exclude the specification of technical data in the table. Manufacturer can derive other specification at the requirement of the user.


3.Certification To Guarantee We are Good In Quality





4.Our Mainly Products(LV and HV Motor for General equipments)





5.Mainly Produce Process(Punching,Winding,VPI Process,Balance,Assembly,Test)





Ordering Informations



1.Please indicate the motor type,rated output,rated voltage,rated frequency,synchronous speed,Explosion proof Mark,mounting type,rotation direction(view from the shaft extension side)Use of the environment(indoor or outside)If the user havn't point out the rotation and environment,normailly we think is CW roration and used indoor.

2.when user have special requirments,For example:Dispose the stator,bearing explosion proof and bearing temperature sensors,space heater,Plateau use,specical frequency,mounting size change,special output,the user must ,order can be confirm after signing the technical agreement with engneering department .

3.The catalogue is only fpr reference,and there may be variations.

4.This range of motor can also be made into Variable-Frequency motors,the range of frequency of which is 0-100HZ,the output and overall dimensions should be confirm separately.



6.Strong Package Ensure Motor safe enough for Ship or Truck Transportation.





7.Cargo,cantainer,shipment specification to ensure we are more professional.
