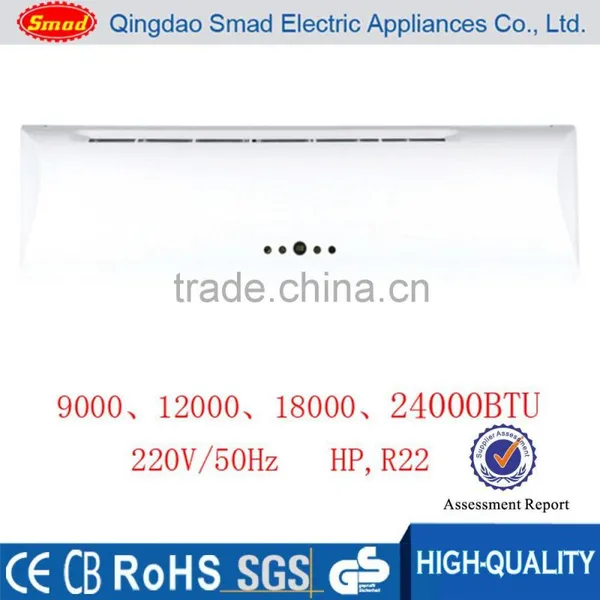

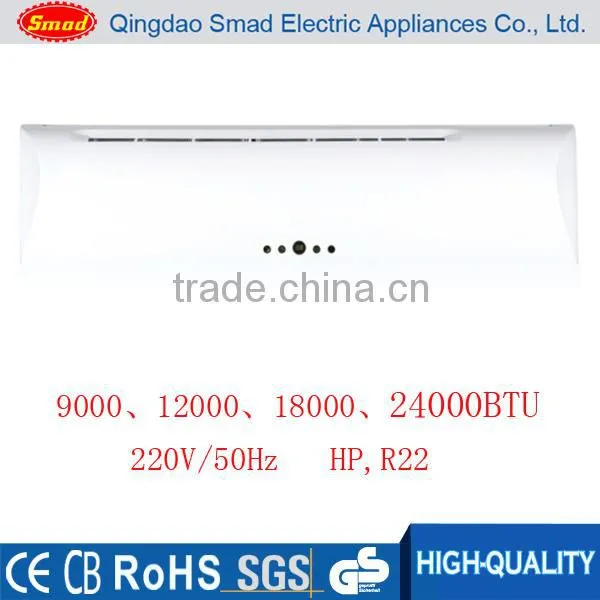

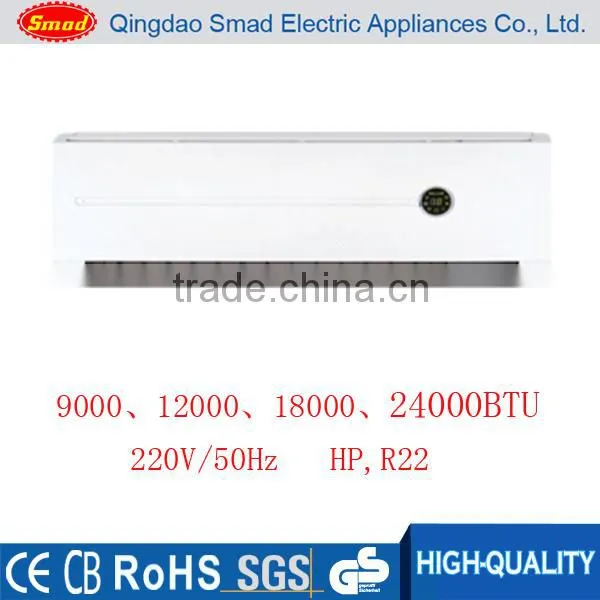

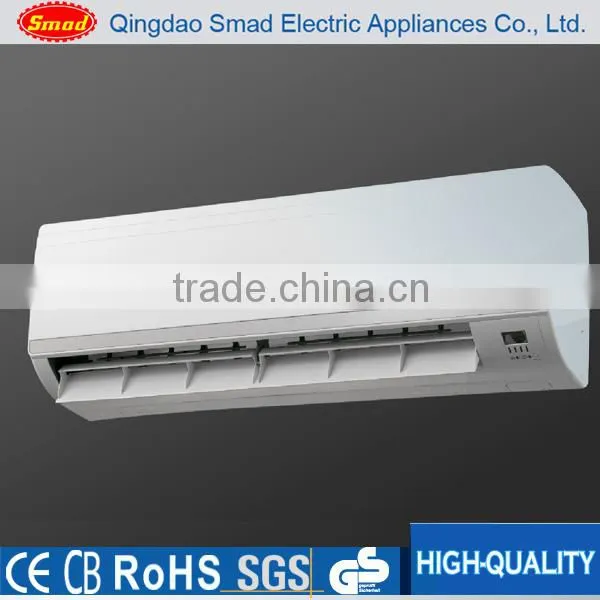

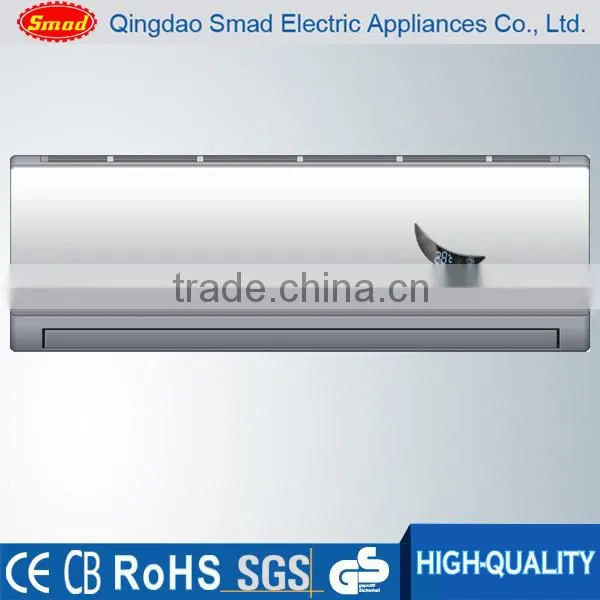

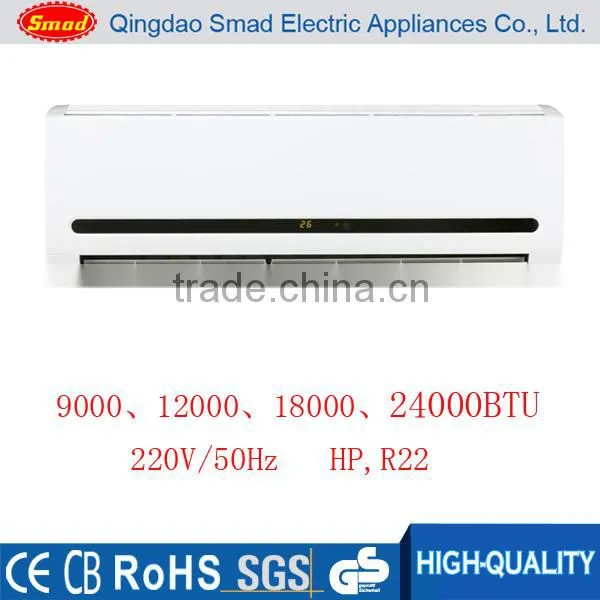

hotel/home Wall mounted split air conditioner
Brief description :
9000/12000/18000/24000 BTU
220V/50Hz
HP,R22
Famous Brand Compressor
Intelligent control
Basic Information:
| Model | AUS-09H | AUS-12H | |||
| Power supply | Ph-V-Hz | 1Ph / 220-240V/50HZ | 1Ph / 220-240V/50HZ | ||
| Cooling | Capacity | W | 2500 | 3300 | |
| Input | W | 950 | 1300 | ||
| Rated current | A | 4.5 | 5.9 | ||
| EER | 2.63 | 2.54 | |||
| Heating | Capacity | W | 2600 | 3400 | |
| Input | W | 920 | 1250 | ||
| Rated current | A | 4.2 | 5.7 | ||
| COP | 2.82 | 2.72 | |||
| Max. input consumption | W | 1020 | 1650 | ||
| Max. current | A | 5.2 | 8.5 | ||
| Starting current | A | 12.5 | 23 | ||
| Compressor | Brand | GALANZ | GALANZ | ||
| Indoor unit | Indoor fan motor | Model | GAL4P19A-KND/ YFNPG19-4A | GAL4P19A-KND/ YFNPG19-4A | |
| Brand | GALANZ/ BAOLI | GALANZ/ BAOLI | |||
| Indoor air flow (Hi/Mi/Lo) | m3/h | 320/280/240 | 500/450/380 | ||
| Noise level(Hi/Mi/Lo) | dB(A) | 32/30/28 | 40/37/34 | ||
| Unit dimension (W*H*D) | mm | 800X290X196 | 800*290*196 | ||
| Packing (W*H*D) | mm | 870X365X280 | 870*365*280 | ||
| Net weight | Kg | 10 | 10 | ||
| Gross weight | Kg | 11.5 | 11.5 | ||
| Outdoor unit | Outdoor fan motor | Model | GAL6P23A-KWD | GAL030H60920-K01 | |
| Brand | GALANZ | GALANZ | |||
| Noise level | dB(A) | 49 | 50 | ||
| Unit dimension (W*H*D) | mm | 600x480x250 | 700x540x255 | ||
| Packing (W*H*D) | mm | 705x535x330 | 800x620x375 | ||
| Net weight | Kg | 26 | 30 | ||
| Gross weight | Kg | 29 | 33.5 | ||
| Refrigerant type | R22 | R22 | |||
| Refrigerant charge | g | 480 | 750 | ||
| Design pressure | MPa | 2.65 | 2.7 | ||
| Refrigerant pipe | Liquid side | mm | 6.35 | 6.35 | |
| Gas side | mm | 9.52 | 12.7 | ||
| Max. refrigerant pipe length | m | 10 | 10 | ||
| Max. difference in height | m | 5 | 5 | ||
| Operation temperature range | ℃ | -7-43 | -7-43 | ||
| Ambient temperature range | ℃ | =A41 | -8-48 | ||
| Application area | m2 | 6-12 | 14~21 | ||
| Qty’per 20’& 40’&40HQ | Set | 146/305/348 | 111/238/275 | ||
Do the brand, logo, plug and the printing artwork as your requirements.
We offer 2 years for the whole unit and 3 years for main part.
Accept OEM/ODM order, Logo print service, contact us for promotion surprise!
Company Show
1. About us
Qingdao Smad Electric Appliances Co., Ltd. (SMAD) was set up in 1999 and rebuilt in 2003. After many years of hard work, we have become a normalized and professional enterprise. Now SMAD has a staff of 600 persons and an annual output of 350 million Yuan. The development of SMAD is among the fastest in the field. The production capacity has grown over 100% for 3 years since we were founded. The sales of SMAD have increased doubly year by year.
SMAD is always ready to supply customers with excellent products and satisfying services, and warmly welcome you to cooperate with us for a brighter future.
2. Why Choose Smad?
- Huge Selection. We offer a wide range of household appliances.You can find all kinds of electric appliance you need.
- Availability in stock. We used to work not only qualitatively but also fast, so most positions catalog are constantly available. And you do not have to wait long for your order.
- Individual approach and flexible system of discounts. Every client is very important for us, so we are ready to discuss with you any comments and suggestions, as well as provide you with the most favorable purchase terms and conditions.
- Product quality. All products of our company are certified and continuous quality control.
- Environmental friendliness. Our power supplies are made from environmentally friendly materials and absolutely safe for your health.
3. Certifications
4. Our Markets
√ North America √ South America
√ Western Europe √ Eastern Europe
√ Eastern Asia √ Southeast Asia
√ Middle East √ Africa
√ Oceania
5. Contact
Accept OEM/ODM order, Logo print service, contact us for promotion surprise!
FAQ:
| Questions | Answers | |
| 1 | what is the MOQ? | 1*40HQ usually |
| 2 | what is the delivery time | within 45days for first order, 35 days for repeat orders. |
| 3 | what is the payment terms? | 1.T/T: 30% as deposit, balance before shipment |
| 2.L/C:100% L/C irrevercable at sight | ||
| 3.Negotiable | ||
| 4 | What is the gurantee of your products? | We offer 2 years for the whole unit and 3 years for main parts. We can send the parts free on condition that there is any breakdown with convincing evidence |
| 5 | what is the packing of the products? | Strong export carton |
| 6 | Can you do our brand? | Yes, we can. |
| 7 | what is the material of the logo | As customer's requirement |
| 8 | Which kind of voltage and frequeency is available | 220V/50HZ& 110V/60Hz 220V/60HZare available, OR others as customer's requirement. |
| 9 | Can you do our country's plug? | Yes,we can |
| 10 | Can you make the printing artworks(such as user manual/packing/rating label) in our language? | Yes we can. |
| 11 | Can you offer CKD/SKD for your products? | Yes, we can do CKD/SKD. |
| 12 | Can we order samples? | Yes, Sample is available |
| 13 | how about your after-sales service? | In general,we will provide 1% spare parts for free together with your bulk products and according to our experience ,they are enough for you. |
Feel free to contact me if you have interest in us!
Welcome to visit our factory!
