Mobile Payment Terminal top up kiosk

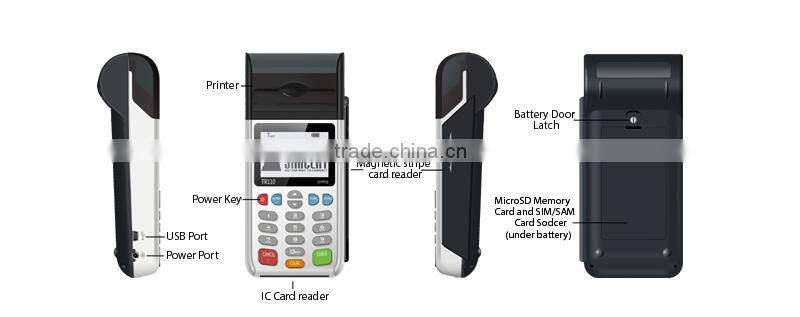

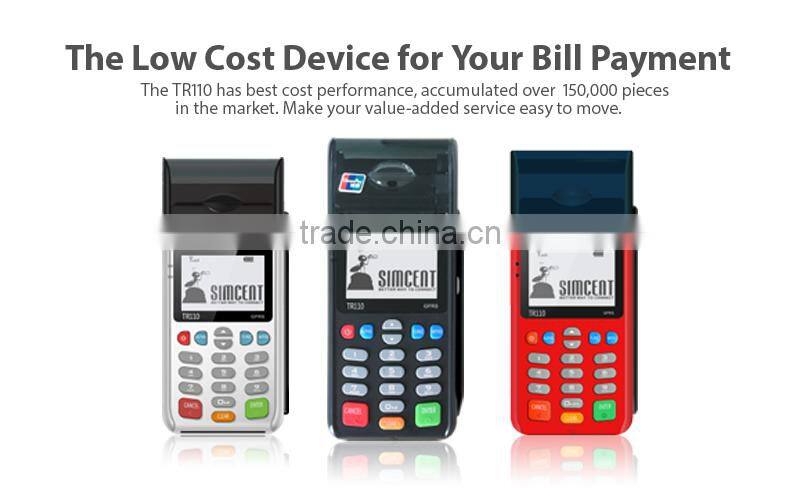

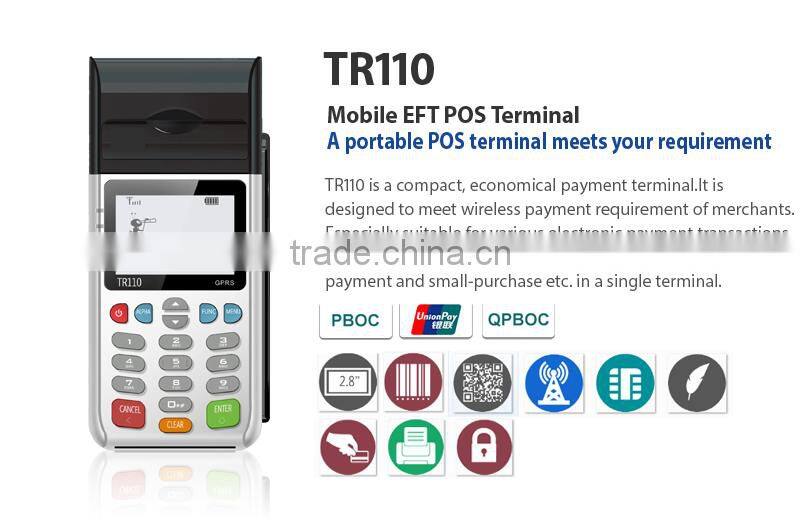

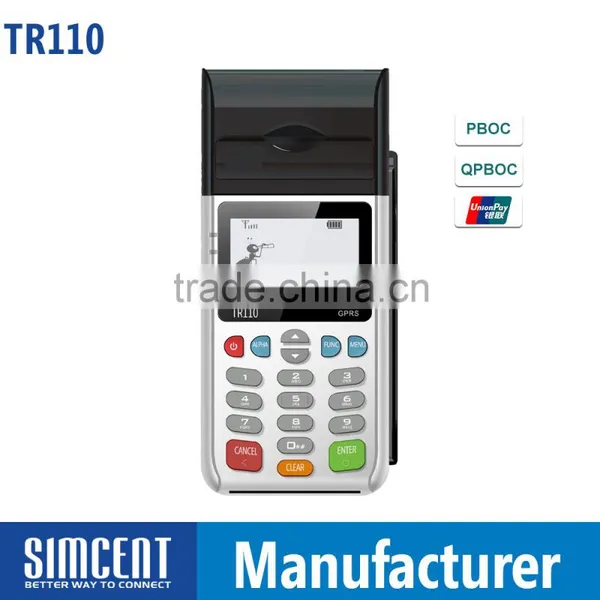

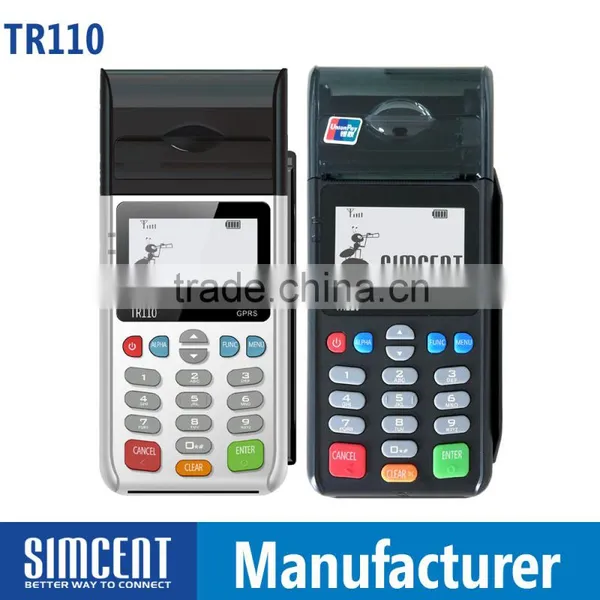

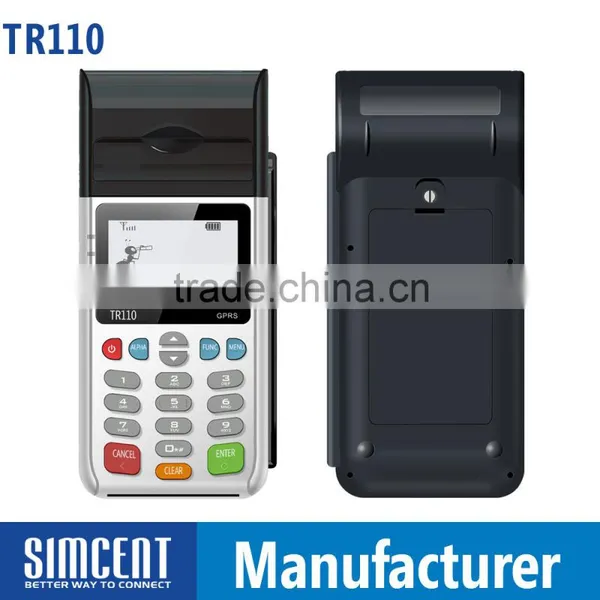

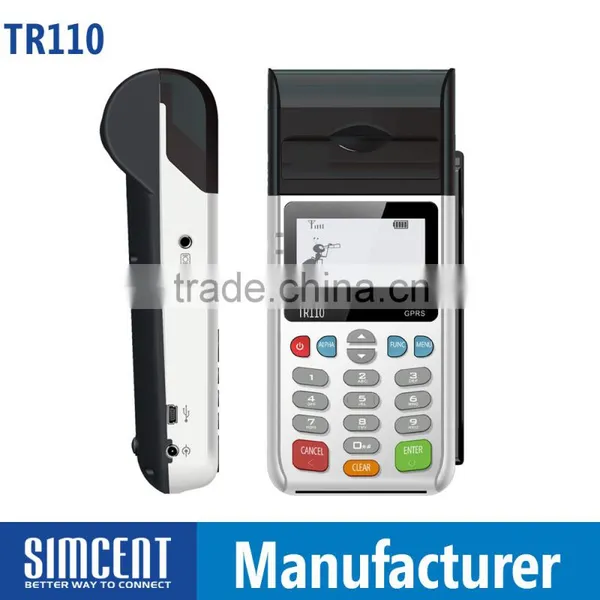

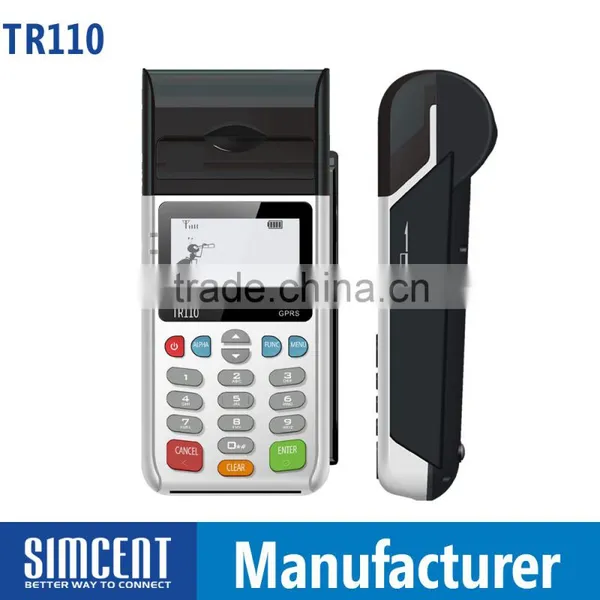

| Mobile Payment Terminal TR110 | |||
| Main CPU | Processor | 32-bit ARM | |
| RAM | 96KB SRAM | ||
| ROM | 4MB Flash | ||
|
Security Module |
Processor | MAXQ 1850 32-bit ARM | |
| RAM | 8KB SRAM | ||
| ROM | 256KB Flash | ||
| Display | LCD | 2.8'' 128*64 pixels.White Backlit | |
| Payment |
Magnetic Card Reader |
Track 2 / 3, bi-directional | |
| Smart Card Reader | ISO 7816 | ||

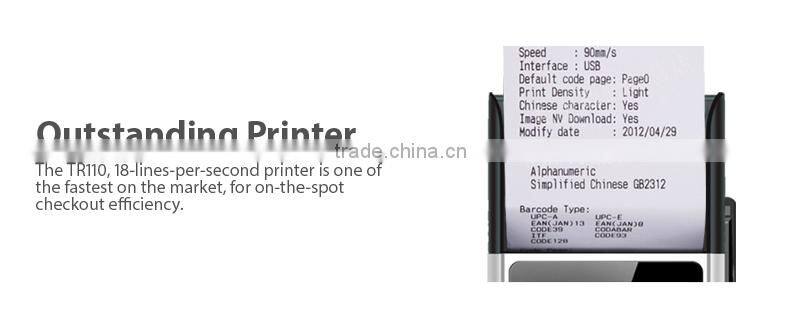

| Printer | Printing Speed | 18 lines per second | |
| Paper Width | 58mm | ||
| Roll Diameter | 30mm | ||
|
Physical Characteristics |
Dimensions (LxWxD) |
199*80*62mm | |
| Weight | 380g | ||
| Keyboard |
10 numeric / letter keys, 8 function keys 1 Power ON / OFF key |
||
| Communication | Wireless | Frequency: GSM/GPRS 900/1800MHz or 850/900/1800/1900MHz(Optional) | |
| SIM Lot | 1*SIM | ||
| Security | PBOC | UnionPay PBOC approved | |
| PIN Security |
UnionPay PIN input Security approved DUKPT, Master / Session, DES, 3DES ANSI / ISO9564 format 0, 1, 3 PIN ciphered key algorithm ANSI X9.9 / X9.19 MAC algorithm |
||
|
Peripheral Ports |
Serial Port | RS232 | |
| USB Interface | USB 2.0 | ||

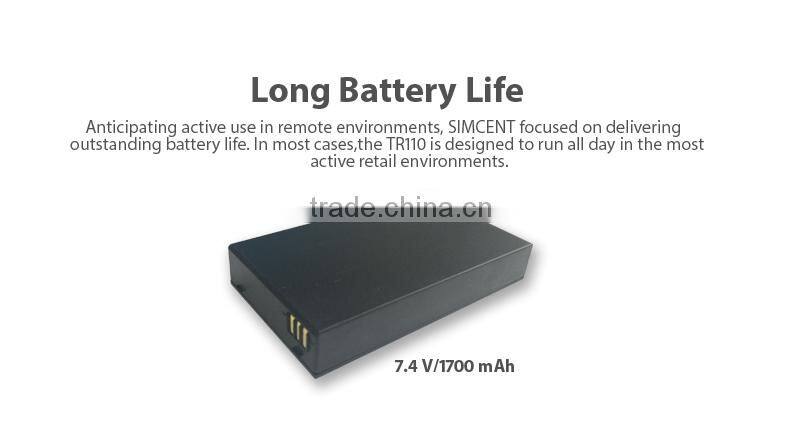

| Power | Battery | Rechargeable li-ion polymer battery (7.4 V/1700 mAh) | |
| Voltage |
Input: 100~240VAC, 50Hz / 60Hz, 1.0A Output: 9VDC, 3A |
||
| User Environment | Operating Temp | 0°C to 50°C (32°F to 122°F) | |
| Storage Temp | -20°C to 70° C (-4°F to 158°F) | ||
| Humidity | 10% to 93% relative humidity, non-condensing | ||
|
Peripherals and Accessories |
Expansion | SIM x 1, PSAMx 2 slots | |
| Interfaces | Serial port RS-232 (TTL),USB Client | ||
| Regulatory | Certification | CCC, China UnionPay approved | |
| Warranty | 1 year factory warranty for main device; 6 months for accessories | ||
FEATURES:

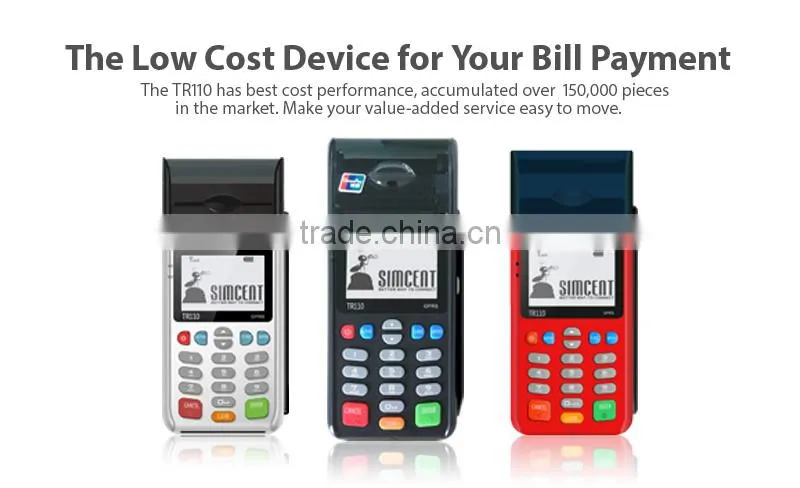

Cost effective
Dual Processor
Smart Card Reader and Magnetic Card Reader

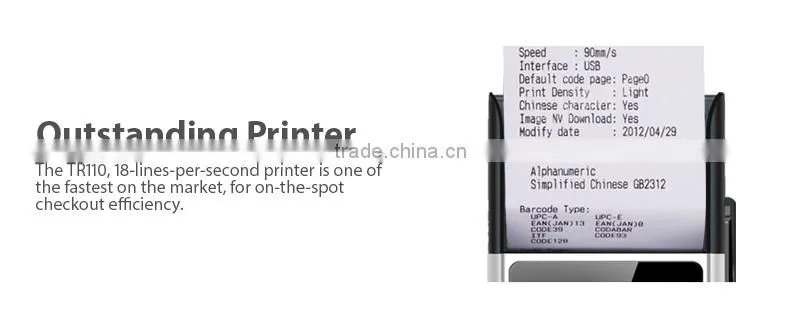

Fast 58mm thermal printer with 30mm Paper Roll
Numeric Hard Keyboard

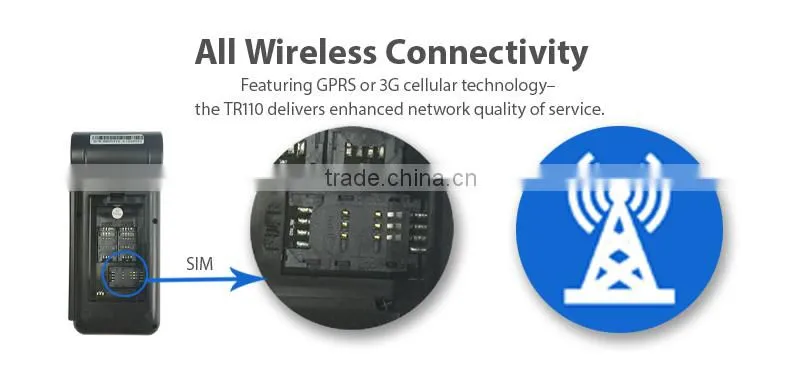

GPRS/GSM Communication
Optional ID/2D barcode scanner
PIN Enter Security certified
PBOC L1 and L2 certified
Q: How about your product quality?
A: Our cumulative shipments is more than 600,000 pieces. Trust the choice of many well-known companies.
And we suggest you buy sample for testing and comparison.
Q: How can I become your agent?
A: Welcome to become our agent. Please contact with our sales for application form for our evaluation.
Q: How to buy?
A: Contact with us, we or our agents in some regions will provide the products.
Q: What is the Minimum Order Quantity(MOQ)?
A: 1 pcs. twice sample orders are available.
Q: Can you provide SDK?
A: Yes. We will provide free SDK for all devices.
Q: How can you provide technical support?
A: 7*24 Online support. If necessary, on site support will be offered.
Q: What’s the lead time? (How long do you need to prepare my goods?
A: 4-7days for sample orders. 20-40days for mass production orders (based on different quantities).
Q: How will you deliver?
A: Decided by you. By air or by sea. In the mean time, we cooperate with international expresses
such as DHL, UPS, FedEx, TNT to enable our customers get their goods rapidly.
Q: How long do I need to wait before my goods arrive?
A: 7-9 days for air transportation, 4-6 days for international express. 20-40 days for sea transportation.
Q: How long can I use before I need to recharge the battery?
A: Working time: up to 9 hours for continual scanning;
Standby time: Up to 120 hours (5 days);
Times will vary based on user settings, feature use and network configuration.
Q: What is the cost for your OEM service?
A: No need to pay extra for our OEM service if order qty over 1000pcs. Further discussion of other quantity.
Q: Can you offer ODM service?
A: Yes.We have more than 100 R&D staffs. And we have offered ODM services to top brands in the world.
Q: What payment methods do you accept?
A: T/T, Western Union, Paypal, etc.
Q: What is your warranty?
A: 12 months for main device, 6 months for accessories.
