Low power consumption wall mounted mini split air conditioner
Description of Low power consumption wall mounted mini split air conditioner
Model AUS-09H
Technical parameter of Low power consumption wall mounted mini split air conditioner
| Model | AUS-09H | |||
| Power supply | Ph-V-Hz | 1Ph / 220-240V/50HZ | ||
| Cooling | Capacity | W | 2500 | |
| Input | W | 950 | ||
| Rated current | A | 4.5 | ||
| EER | 2.63 | |||
| Heating | Capacity | W | 2600 | |
| Input | W | 920 | ||
| Rated current | A | 4.2 | ||
| COP | 2.82 | |||
| Max. input consumption | W | 1020 | ||
| Max. current | A | 5.2 | ||
| Starting current | A | 12.5 | ||
| Indoor unit | Indoor fan motor | Model | GAL4P19A-KND/ YFNPG19-4A | |
| Indoor air flow (Hi/Mi/Lo) | m3/h | 320/280/240 | ||
| Noise level(Hi/Mi/Lo) | dB(A) | 32/30/28 | ||
| Unit dimension (W*H*D) | mm | 800X290X196 | ||
| Packing (W*H*D) | mm | 870X365X280 | ||
| Net weight | Kg | 10 | ||
| Gross weight | Kg | 11.5 | ||
| Outdoor unit | Outdoor fan motor | Model | GAL6P23A-KWD | |
| Brand | GALANZ | |||
| Noise level | dB(A) | 49 | ||
| Unit dimension (W*H*D) | mm | 600x480x250 | ||
| Packing (W*H*D) | mm | 705x535x330 | ||
| Net weight | Kg | 26 | ||
| Gross weight | Kg | 29 | ||
| Refrigerant type | R22 | |||
| Refrigerant charge | g | 480 | ||
| Design pressure | MPa | 2.65 | ||
| Refrigerant pipe | Liquid side | mm | 6.35 | |
| Gas side | mm | 9.52 | ||
| Max. refrigerant pipe length | m | 10 | ||
| Max. difference in height | m | 5 | ||
| Operation temperature range | ℃ | -7-43 | ||
| Ambient temperature range | ℃ | -743 | ||
| Application area | m2 | 6-12 | ||
| Qty’per 20’& 40’&40HQ | Set | 146/305/348 | ||
Other product form SMAD for you to choose

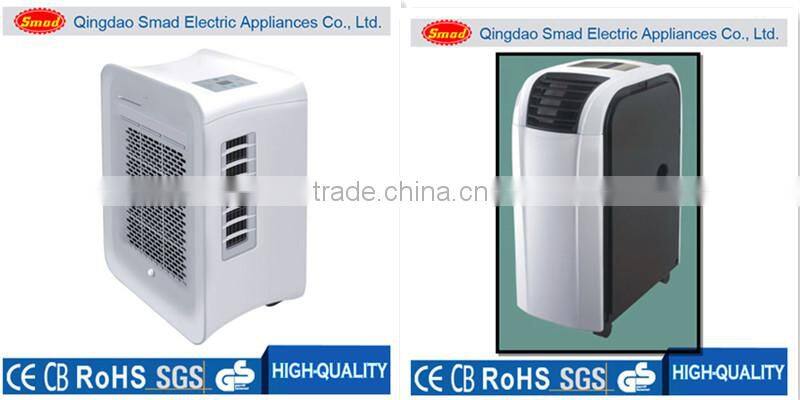

Portable mini air conditioner(PC20-BMB and Model PC15-ACE)

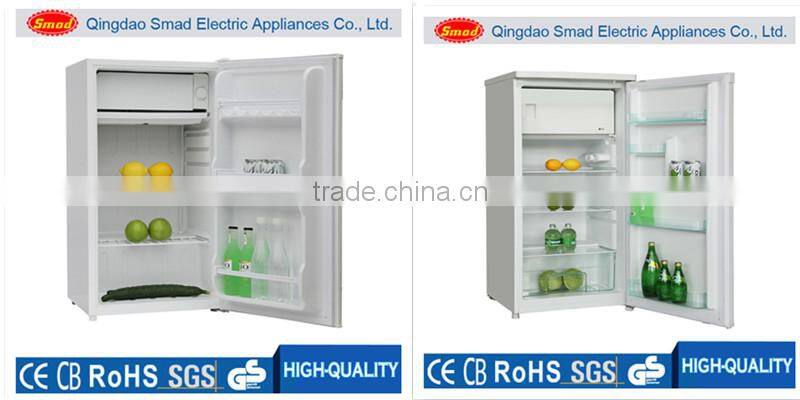

Single door mini refrigerator
Side by side refrigerator

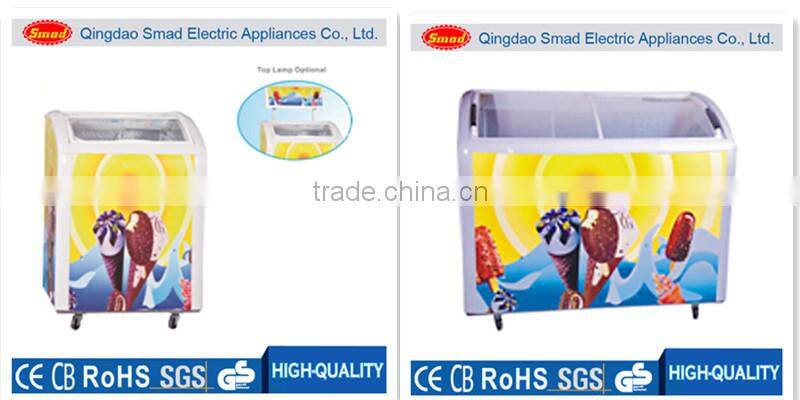

Glass door chest freezer

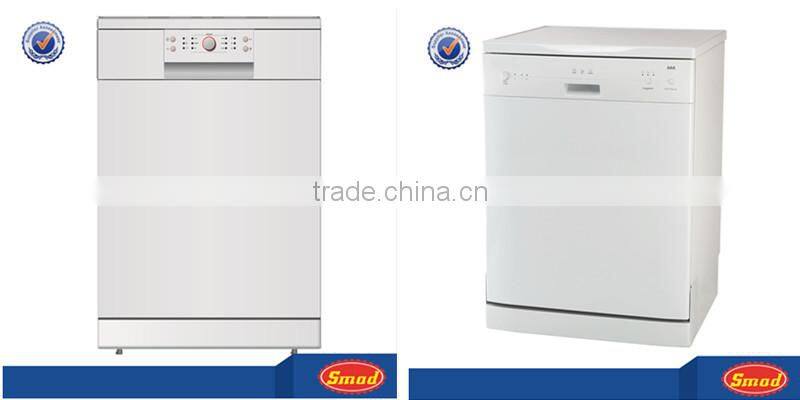

Floor standing dishwasher
Packing and shipping of Low power consumption wall mounted mini split air conditioner
Company information
Qingdao Smad Electric Appliances Co., Ltd. (SMAD)
was set up in 1999 and rebuilt in 2003. After many years of hard work, we have become a normalized and professional enterprise. Now SMAD has a staff of 600 persons and an annual output of 350 million Yuan. The development of SMAD is among the fastest in the field. The production capacity has grown over 100% for 3 years since we were founded. The sales of SMAD have increased doubly year by year.
SMAD is always ready to supply customers with excellent products and satisfying services, and warmly welcome you to cooperate with us for a brighter future.
Workshop
Exhibition
Certification
Our service
Do the brand, logo, plug and the printing artwork as your requirements.
We offer 2 years for the whole unit and 3 years for main part.
- Huge Selection. We offer a wide range of household appliances.You can find all kinds of electric appliance you need.
- Availability in stock. We used to work not only qualitatively but also fast, so most positions catalog are constantly available. And you do not have to wait long for your order.
- Individual approach and flexible system of discounts. Every client is very important for us, so we are ready to discuss with you any comments and suggestions, as well as provide you with the most favorable purchase terms and conditions.
- Product quality. All products of our company are certified and continuous quality control.
- Environmental friendliness. Our power supplies are made from environmentally friendly materials and absolutely safe for your health.
