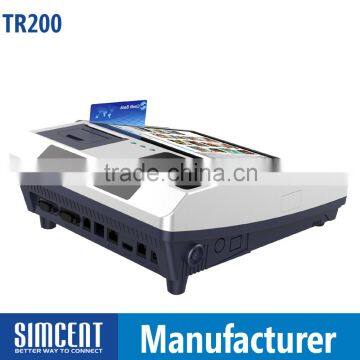

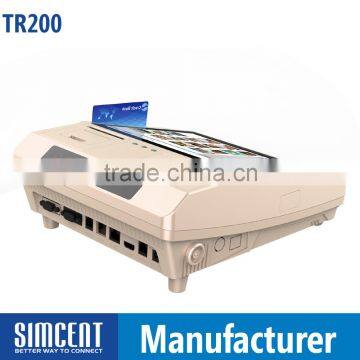

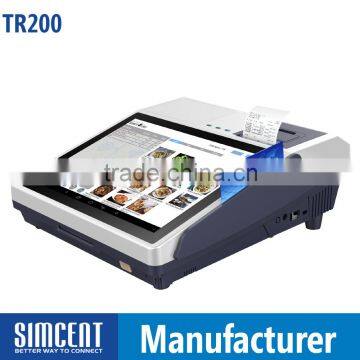

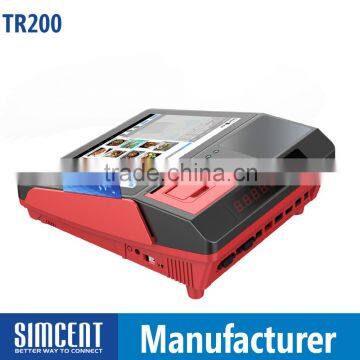

Help Center9.7"Android Countertop Terminal TR200
Related Products
| 9.7" Android Countertop Terminal TR200 | ||
|
Performance Characteristics |
Operating System | Android 4.2, supports multi-language |
| CPU | Quad-core 1.2GHz | |

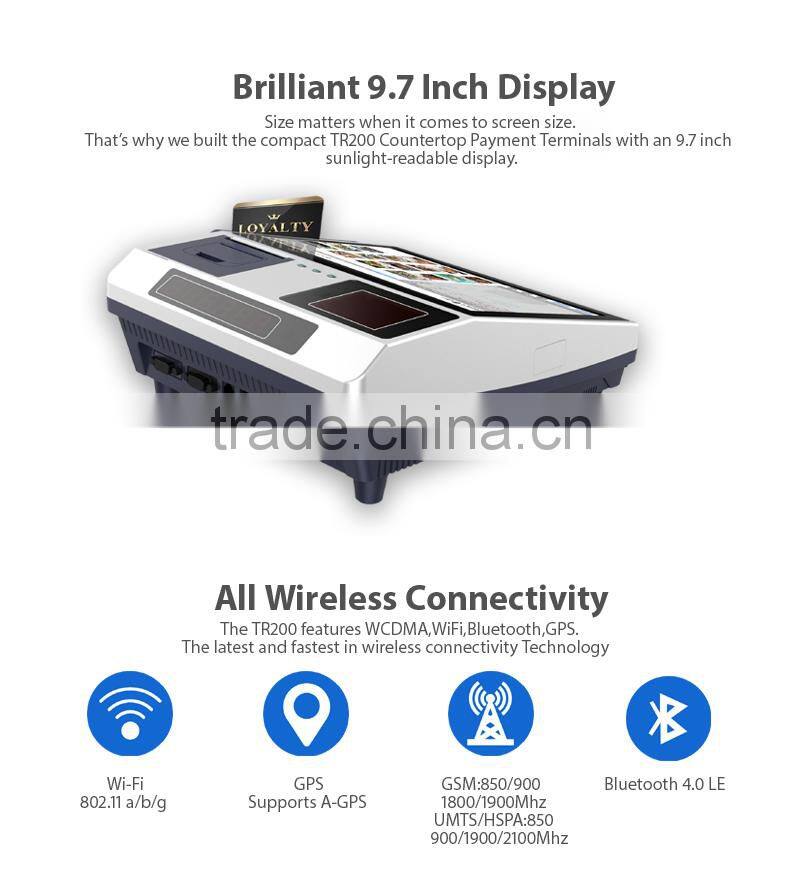

| Display | 9.7-inch 1024*768 IPS-LCD | |
| Panel | Sensitive capacitive muti-touch screen | |
| RAM | 1GB | |
| ROM | 4GB | |
|
Physical Characteristics |
Dimensions (LxWxD) |
325mm x 420mm x 165 mm |
| Weight | 500 g ( battery included) | |
| Promting Mode | LED ,loud speaker | |
|
Radio Communication |
WiFi | Wi-Fi 802.11 b/g/n |
| Payment | Magcard | Conforms to the ISO7811 |
| Smart Card Reader | ISO 7816 | |
| Contactless | Supports 13.56Mhz, ISO14443A/B and ISO15693 standard, Mifare, Felica, | |

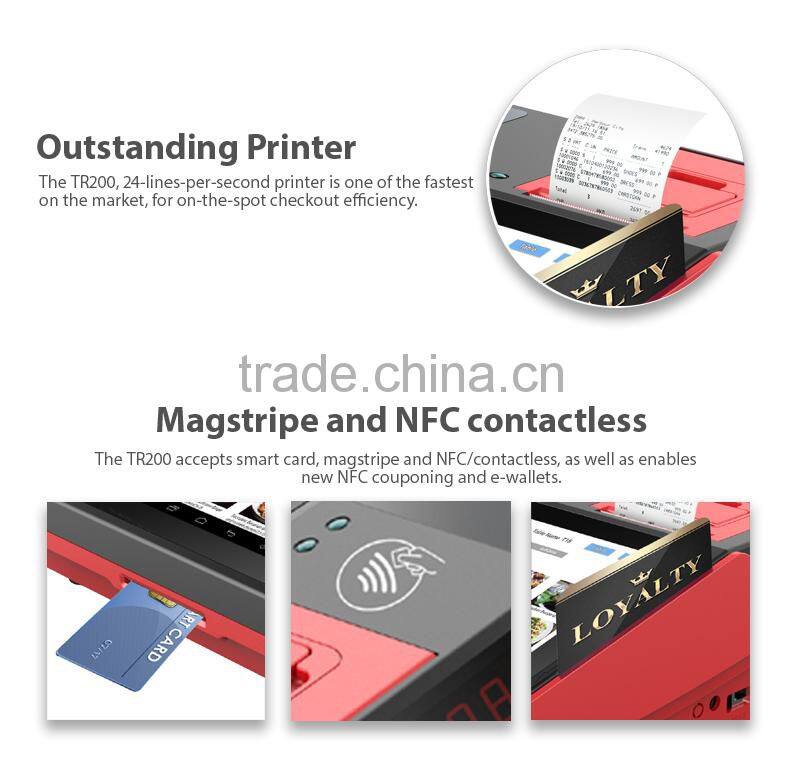

| Printer | Printing speed | 24 lines per second |
| Paper width | 58mm | |
| Roll Diameter | 50mm | |
| Power | Main Battery | Rechargeable 7.4V 4400 mAh lithium battery pack(Operation time ≥8 hours) |
| RTC Battery | Supports to keep clock at real time | |
| Adapter | 12V/5A | |
| Options | Camera | 5.0 mega pixels with flash and automatic focus; Supports video recording |

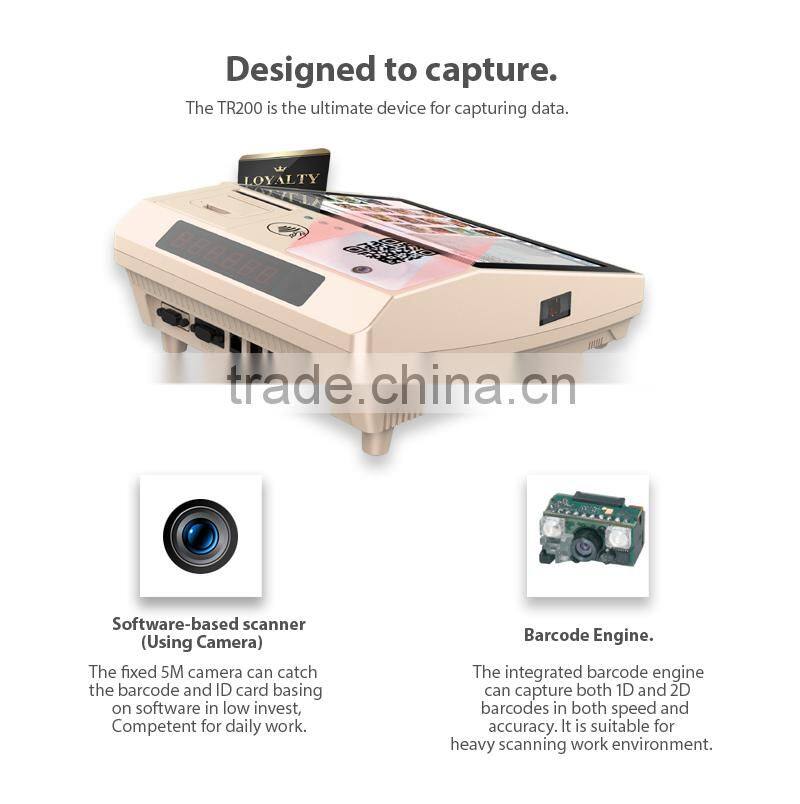

| Barcode Scanner | 1D Linear Scanner ;2D Imager Scanner | |
| Fingerprint | Capacitive ,optional ISO19794,ANSI378 compliant SDK. | |
| Bluetooth | Bluetooth 4.0 LE | |
| WCDMA |
GSM:850/900/1800/1900Mhz UMTS/HSPA:850/900/1900/2100Mhz |
|
|
HSDPA Cat.8 / HSUPA Cat.6 : DL 7.2 Mbps, UL 5.7 Mbps EDGE Class 12 : DL 237 kbps, UL: 237 kbps GPRS Class 12 : DL 85.6 kbps, UL: 85.6 kbps | ||
| GPS | GPS,Supports A-GPS | |
| Contactless | Supports 13.56Mhz, ISO14443A/B and ISO15693 standard, Mifare, Felica, | |
| PSAM | Support | |
| Card Reader | Chip card | |
| Magnetic Stripe | ||
|
User Environment |
Operating Temp | -15℃ ~ 45℃ |
| Storage Temp | -20℃ ~ 65℃ | |
| Humidity | 5 ~ 95% (non condensing) | |
|
Peripherals and Accessories |
Expansion | Micro SD/TF X 1(up to 32 GB), SIM * 1, |
| Interfaces | USB*3, RS232*1,RJ11*1, | |
| Regulatory | Certification | CE, CCC |
| Warranty | 1 year factory warranty for main device; 6 months for accessories | |
FEATURES:
- Android4.2
- 9.7” Capacitive Touch Screen
- Smart Card Reader and Magnetic Card Reader
- Fast 58mmThermal Printer with 50mm Paper Roll
- Optional 1D/2D barcode reader
- 5MP Auto Focus Camera
- GPRS, HSPA+,Wifi, Bluetooth,Ethernet,
- NFC Ready
Q: How about your product quality?
A: Our cumulative shipments is more than 600,000 pieces. Trust the choice of many well-known companies.
And we suggest you buy sample for testing and comparison.
Q: How can I become your agent?
A: Welcome to become our agent. Please contact with our sales for application form for our evaluation.
Q: How to buy?
A: Contact with us, we or our agents in some regions will provide the products.
Q: What is the Minimum Order Quantity(MOQ)?
A: 1 pcs. twice sample orders are available.
Q: Can you provide SDK?
A: Yes. We will provide free SDK for all devices.
Q: How can you provide technical support?
A: 7*24 Online support. If necessary, on site support will be offered.
Q: What’s the lead time? (How long do you need to prepare my goods?
A: 4-7days for sample orders. 20-40days for mass production orders (based on different quantities).
Q: How will you deliver?
A: Decided by you. By air or by sea. In the mean time, we cooperate with international expresses
such as DHL, UPS, FedEx, TNT to enable our customers get their goods rapidly.
Q: How long do I need to wait before my goods arrive?
A: 7-9 days for air transportation, 4-6 days for international express. 20-40 days for sea transportation.
Q: How long can I use before I need to recharge the battery?
A: Working time: up to 9 hours for continual scanning;
Standby time: Up to 120 hours (5 days);
Times will vary based on user settings, feature use and network configuration.
Q: What is the cost for your OEM service?
A: No need to pay extra for our OEM service if order qty over 1000pcs. Further discussion of other quantity.
Q: Can you offer ODM service?
A: Yes.We have more than 100 R&D staffs. And we have offered ODM services to top brands in the world.
Q: What payment methods do you accept?
A: T/T, Western Union, Paypal, etc.
Q: What is your warranty?
A: 12 months for main device, 6 months for accessories.
