hot sale mobile diesel concrete mixer with pump for sale

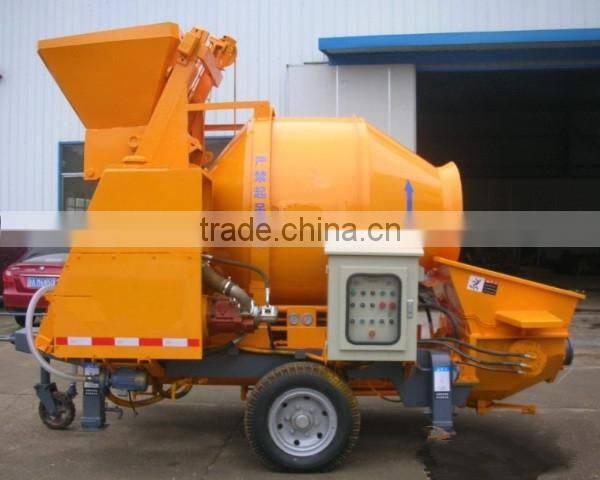

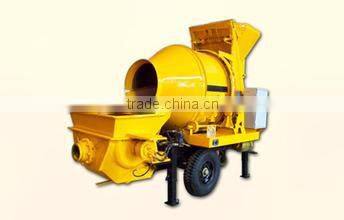

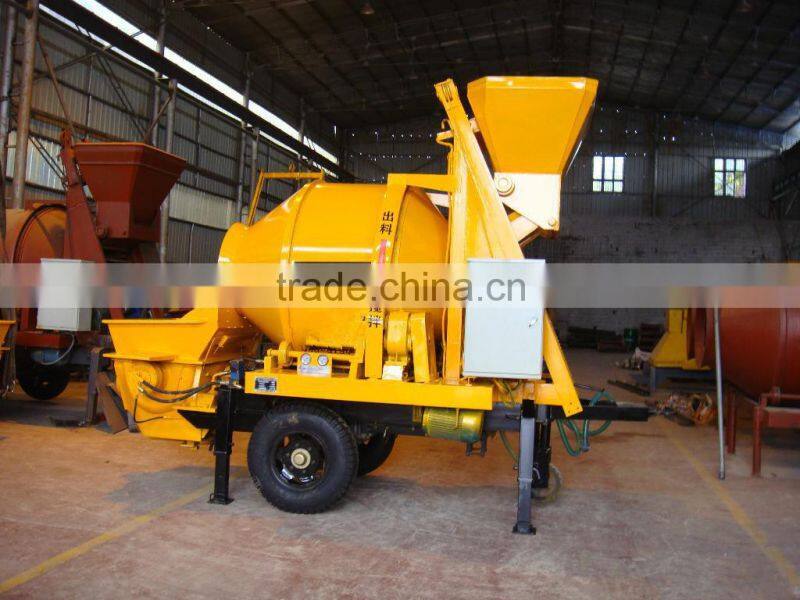

Brief Introduction of Portable Concrete Mixer Pump :
Stirring conveying Concrete mixer pump apply to small or medium construction project, especially suitable for small-scale rural & civil construction, mined, road and rail tunnels, water resources and hydropower engineering etc.
Mixing, screening and pumping triple, to simplify the process, improve the efficiency of construction can be continuous construction jobs.
Concrete Mixer Pump can be through a trailer loader traction, flexible and easy to move mobile. mixing, screening and pumping process is done by an operation completed save labor. unique mixing and pumping unit pull rail connection mode, easy to replace piston;
the first diesel engine rack rotary coupling, so that transport compressed, expand use that reduce the lateral dimensions of the transport process, and more convenient to use. at the nozzle opening connecting a 2 "high-pressure hose and the air compressor auxiliary connector.
Features of Portable Concrete Mixer Pump :
1. Perfect Match Of Concrete Mixer And Concrete Pump
2. Easy To Operate, Flexible
3. Economical And Practical
Patamater of Portable Concrete Mixer Pump :
Items |
Units |
Parameters |
|
Transfer Pump |
Maximum Theoretical Output |
m³/h |
30 |
|
Theoretical Maximum Pumping Pressure |
Mpa |
9 |
|
Theoretical Maximum Conveyor Height |
m |
140 |
|
Theoretical Maximum Transmission Distance |
m |
350 |
|
Distribution valve |
|
The S tube placed valve |
|
Conveyer Cylinder |
mm |
Φ180×1000 |
|
Master Cylinder |
mm |
Φ100/Φ70×1000 |
|
Bucket Capacity |
L |
450 |
|
Discharging Diameter |
mm |
Φ150 |
|
Duct Diameter |
mm |
Φ125 |
|
Motor Power |
Kw |
37 |
|
Voltage |
V |
380 |
|
Full Oil Pressure Of Pumping System |
MPa |
30 |
|
Full Oil Pressure Of Mixing System |
MPa |
14 |
|
Maximum Mixing Speed |
r/min |
24 |
|
The Concrete Slump Degrees Range |
mm |
80~200 |
|
Aggregate Maximum Diameter |
mm |
Grait 40,Macadam 30 |
Concrete Mixer |
Mixing volume |
m³ |
0.5 |
|
Mixing Motor Power |
Kw |
5.5 Kw×2 |
|
Lifting Motor Power |
Kw |
5.5 Kw |
|
Voltage |
V |
380 |
|
Dimensions |
mm |
4270×2350×2980 |
|
Weight |
Kg |
3300 |
