Drink Mixer
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
beierde
Model Number:
QHS
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
beierde
Model Number
QHS
Processing Types
Juice

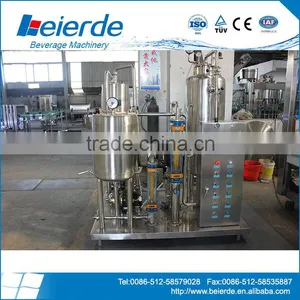

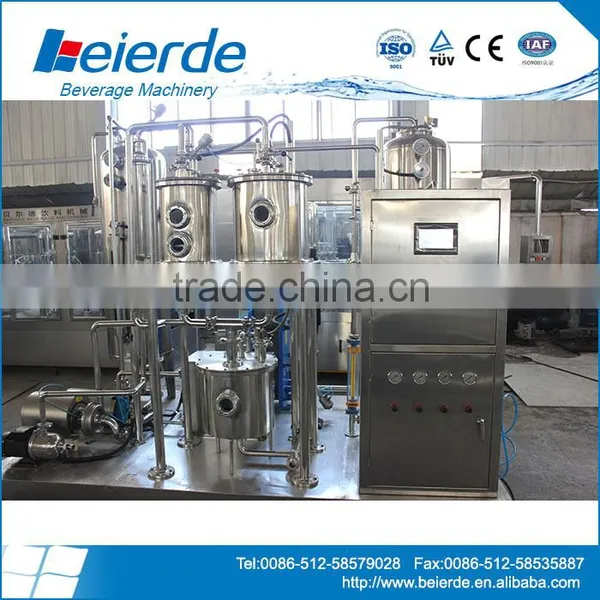

QHS series drink mixer is designed and made for improving the proportion of water,syrup and carbon dioxide.
It adopts foreign advanced technology static mixer to lighten water layer,increase carbonizing time,assure mixing result and deoxying.It adopts highquality water pump and SIEMENS electrical equipment and other parts to form complete automatic control system.
It has coordinating action,beaufiful appearance,convenient washing,high automatic level and other advantages.
It is suitable for mixing all kinds of drink,such as soda water,fruit juice,cola and hard drinks.
| Model(QHS) | 3000B | 5000B | 7000B | 10000B | 15000B |
| Production Capacity (kg/h) | 3000kg/h | 5000kg/h | 7000kg/h | 10000kg/h | 15000kg/h |
| Water-sugar mixing rate | 3--6 times | ||||
| CO2 content | 3.8times | ||||
| Mixing precision | ≤1.5% | ||||
| Pressure of compressed air (Mpa) | 0.6-1 | ||||
| Consumption of compressed air | 5m3/h | ||||
| Pressure of CO2 (Mpa) | 0.8--1 | ||||
| CO2 consumption (m3/h ) | 2 | 2.5 | 3 | 5 | 5 |
| Pressure of purified water(Mpa) | 0.4-0.8Mpa | 0.4-0.8Mpa | 0.4-0.8Mpa | 0.4-0.8Mpa | 0.4-0.8Mpa |
| Mixing temperature (°C) | < 4°C | < 4°C | < 4°C | < 4°C | < 4°C |
| Heat exchange area (m2) | 8 | 8 | 10 | 12 | 12 |
| Power consumption (kw) | 4.45kw | 5.9kw | 7.2kw | 10.2kw | 13.6kw |
| Overall Dimension (mm) | 2900×1500×2610 | 3000×2000×3000 | 3000×2000×3000 | 3500×2300×3200 | 3800×2600×3200 |
