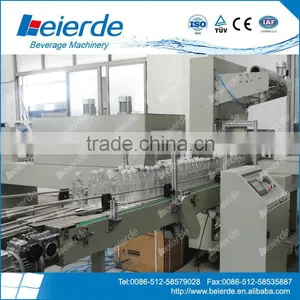

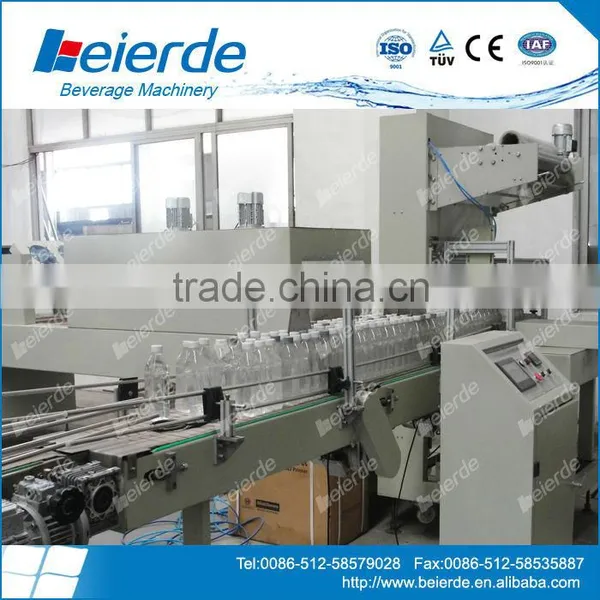

beverage packing machinery
- 10 Set / Sets per Month
- Shanghai
- T/T
- Cheapest Automatic Bottle Blowing Machine Prices/factory price automatic bottle shrink wrapping machine
- PET bottle making machine/nice plastic bottle making machine price/high quality plastic bottle blowing machine
- Top quality china automatic machines to make plastic bottles/bottle blowing machinery/Pet Bottles Blowing Machine 750ml
- Chinese PET water bottle blowing machine/equipment / automatic bottle Blowing machinery
- Low price Beverage drinking PET bottle blowing machinery/fully automatic pet bottle blowing machine
- high quality bottle blowing machine/automatic shrink wrapping machine/water bottle blowing machine
Product Details
Condition: | New | Application: | Beverage | Packaging Type: | Bottles |
Packaging Material: | Plastic | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 380V | Power: | 20KW | Place of Origin: | Jiangsu, China |
Brand Name: | Beierde | Model Number: | YX | Dimension(L*W*H): | 5100*3200*2100 |
Weight: | 1200kg | Certification: | ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
full automaticpacking spped:10-16pcs/m
Technical data BMD-800A | ||
Sealing type | sleeve sealing | |
Power supply | 380V/50-60Hz/3phase | |
Max product size | 420(L)*300(W)*320(H)mm | |
Max Packing capacity | 20 packs per minute | |
Film type | polyethylene (PE) film | |
Max film size | 630 (width) *280mm(outer diameter) | |
Power consumption | 20.5kW | |
Tunnel oven size | 1800mm(L), entrance 600(W)*400(H)mm | |
Tunnel conveyor speed | variable,controlled by frequency converter,15m/min | |
Tunnel conveyor | chains with rotating silicon coated rods | |
Working height | 800-850mm | |
Air pressure | ≤0.5MPa(5 bar) | |
P L C | SIEMENS S7 | |
Sealing system | permanently heated seal bar coated with Teflon | |
Operating interface | Eview displayer | |
Machine material | carbon steel | |
Weight | 1050kg |
