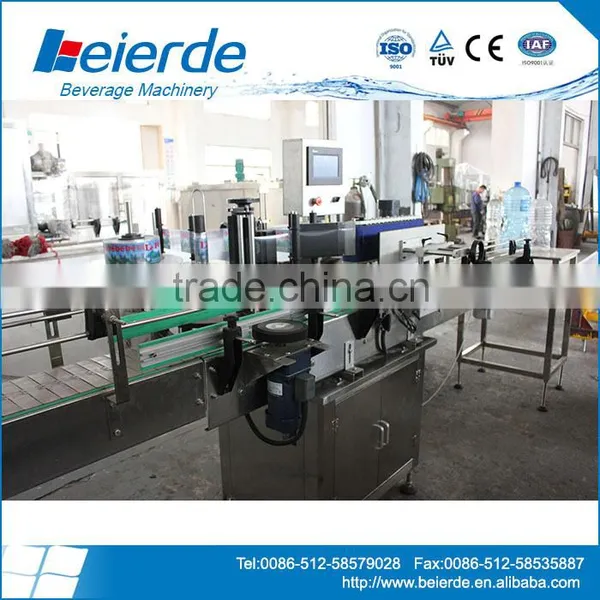

Top labeling machine
Product description:
The WT-610G is available to label on top,especially on multi-surfaces. The machine with perfect design,advanced controlling and guarantee system labels steadily and precisely.
The kind and advanced human interface ,converting Chinese interface into English,interface freely and the on-line helping system make it easy to operate.
Product characteristic:
Ø The famous high precise serve motor drives labeling head and controls to convey the labels;
Ø The separated clutch makes the strain more balanced. It ensures accurate labeling;
Ø The controlling system adopts SIMEMS or Panasonic PLC and famous panel. The human interface can be operated in Chinese and English;
Ø It is convenient to adjust the labeling head. Labeling speed is automatically synchronized with conveyor speed to ensure precisely labeling;
Ø The speed of conveyor, press belt and conveying labels can be set and changed by the human interface.
Technical parameters:
Type |
WT-610G |
Production speed |
35m/min |
Labeling accuracy |
±1mm |
Label max width |
200mm |
Weight |
180kg |
Label inner diameter |
Φ 76.2mm |
Label outer diameter |
Φ 350mm |
Outline size |
2000×700×1400mm |
Power |
380/220V,50Hz 2300W |
