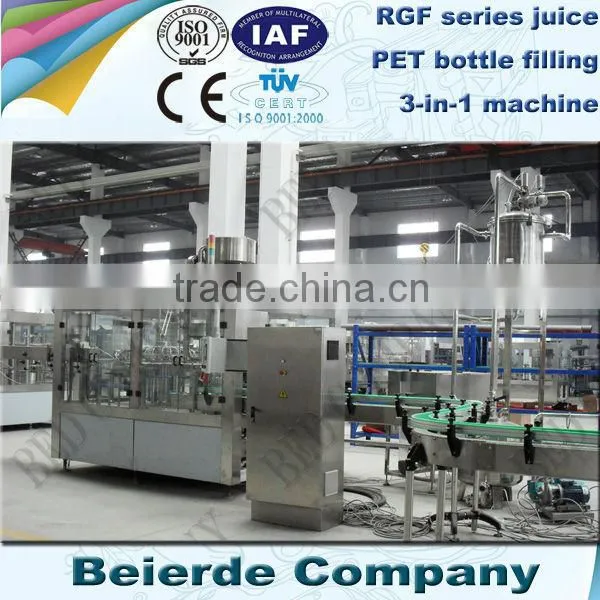

RGF 14-12-5 series washing filling and capping three in one juice processing plant is used for filling and capping different kinds of fruit juices, tea and other hot filling liquid. With a few parts changed, the machine can suitable for different shape and volume plastic bottle filling.
Characters of equipment
1, With advanced micro-negative pressure filling technology, the filling liquid can be filled into the bottle quickly, steady and accurately.
2, Machine has the beverage feedback system. In the filling process, the air can be fed back separately. Without air contacting, the beverage can be kept away of pollution.
3, In the filling processing, the filling temperature will be controlled under 95 centigrade.
4, The suspending bottle neck clamping design makes the bottle stable during the high speed running. By changing some parts, the whole unit can suitable for different size and shape bottle.
5, The new designing bottle neck locking parts can reduce the pollution of the bottle. The water spray nozzlescan guarantee the complete washing of the interior of the bottle.
| Machine model | RGF14-12-5 |
| Capacity | 3000-5000 BPH (500ml) |
| Suitable bottle type | PET bottle |
| Suitable cap type |
plastic screw cap |
| Filling liquid | Juice, tea and other hot filling beverage |
| Filling Precision | 1% (Liquid Level) |
| Bottle conveying type | air conveying belt, bottle neck locking conveying |
| Bottle washing type | bottle neck locking, rotary type inside sterilized water washing |
| Bottle filling type | normal pressure filling type, without leaking. |
| Bottle sealing type | magnetism type cap sealing |
A: RGF 14-12-5 series washing, filling and capping 3-in-1 PET bottle juice hot filling machine
B: Water treatment system
C: Juice pre-treatment system
D: Juice sterilizing machine
E: Automatic bottle body dryer
F: Automatic labeling machine
G: Automatic date printer
H: Automatic PE film packing machine
I: Filled bottle conveying system
Model |
RGF18-18-6 |
RGF24-24-8 |
RGF32-32-8 |
Capacity (500ml) |
5000-6000 |
6000-8000 |
8000-10000 |
Washing position (OPTIONAL) |
18 |
24 |
32 |
Filling position |
18 |
24 |
32 |
Capping position |
6 |
8 |
8 |
Suitable cap (mm) |
50-90 |
||
Suitable bottle(mm) |
150-310 |
||
Filling pressure |
0.3-0.7 |
||
Bottle/standard |
Circle or square |
||
Overall dimensions(mm) |
2760×2060×2700 |
2800×2230×2700 |
3550×2650×2700 |
Weigh(kg) |
3000 |
4000 |
5000 |
Power(kw) |
2.2 |
3 |
4 |
Zhangjiagang Beierde beverage machinery manufacturer Co., Ltd. is a professional beverage machinery manufacturer.
Main products are:
1. 2,000-20,000 BPH Drinkable Water Bottling Line
2. 2,000-20,000 BPH Hot Bottling Line
3. 2,000-15,000 BPH Carbonated Beverage Bottling Line
4. 100-2,000 Barrels/Hour 3-Gallon & 5-Gallon Water Filling Line
5. PET Preform Injector and Bottle Blow Moulding Machine
6. 1-30 Ton per hour Water Treatment
7. 1-20 ton per hour juice and carbonated drink preparing system
