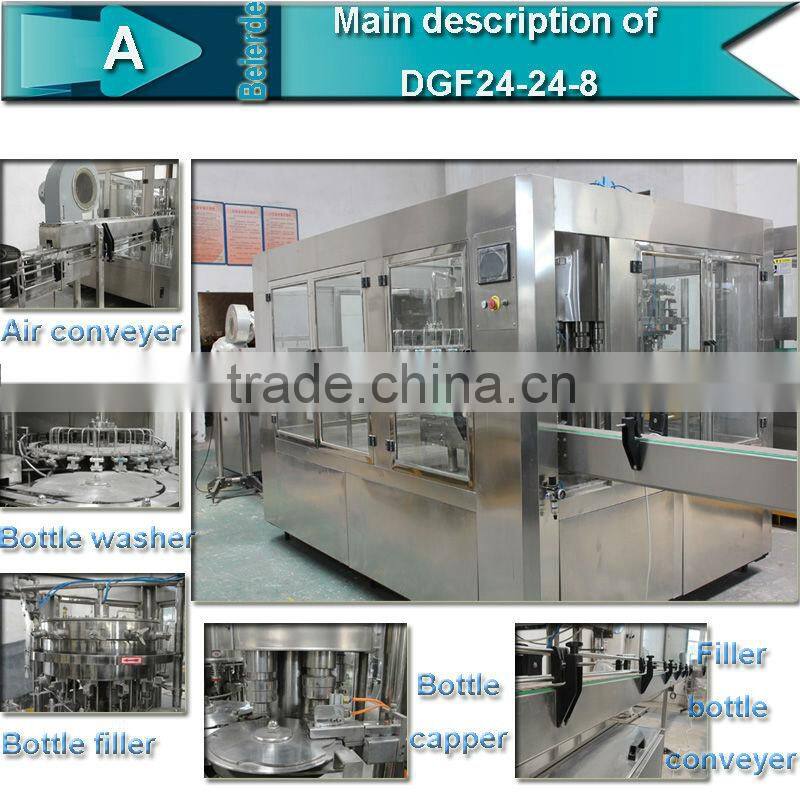

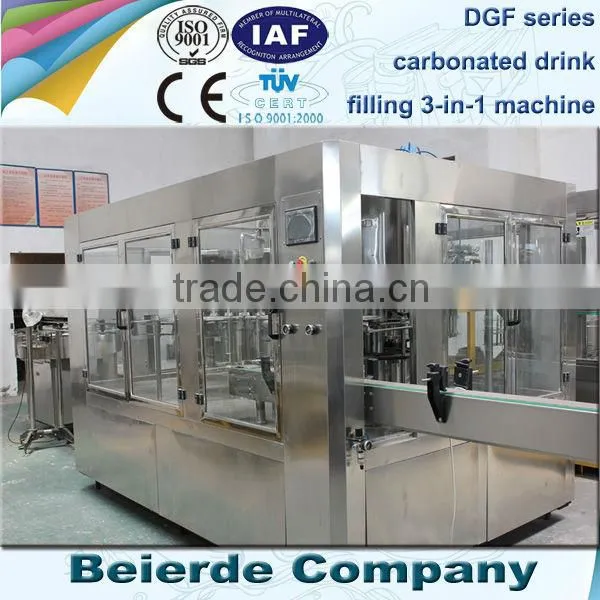

DGF 24-24-8 series washing, filling and capping three in one 7000 bottles per hour automatic carbonated drink filling machine is used for different kinds of carbonated drink processing. With a few parts changing, machine can suitable for filling and capping different shape and size bottles.
The capacity of the machine has included from 3,000 BPH to 24,000 BPH. Machine adopts frequency variable motor, world famous brand PLC and other electronic components, such as Mitsubishi, Siemens, Airtac etc.
| Machine model | DGF24-24-8 |
| Capacity | 7000 BPH (500ml) |
| Suitable bottle type | PET bottle |
| Suitable cap type |
plastic screw cap |
| Filling liquid | carbonated drink and other sparkling beverage |
| Filling Precision | 1% (Liquid Level) |
| Bottle conveying type | air conveying, bottle neck locking conveying |
| Bottle washing type | bottle neck locking, rotary type inside sterilized water washing |
| Bottle filling type | isobar pressure filling type, without leaking. |
| Bottle sealing type | magnetism type cap sealing |
Model |
DGF14-12-5 |
DGF16-16-5 |
DGF18-18-6 |
Capacity (500ml) |
2000-3000 |
4000-5000 |
6000-7000 |
Washing position |
14 |
16 |
18 |
Filling position |
12 |
16 |
18 |
Capping position |
5 |
5 |
6 |
Suitable cap (mm) |
50-90 |
||
Suitable bottle(mm) |
150-310 |
||
Filling pressure |
0.3-0.7 |
||
Bottle/standard |
Circle or square |
||
Overall dimensions(mm) |
2360×1770×2700 |
2760×2060×2700 |
2430×1800×2100 |
Weigh(kg)t: |
2000 |
3000 |
4000 |
Power(kw) |
1.5 |
2.2 |
3 |
