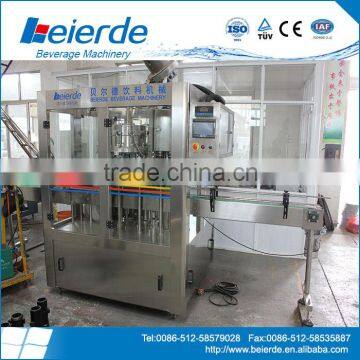

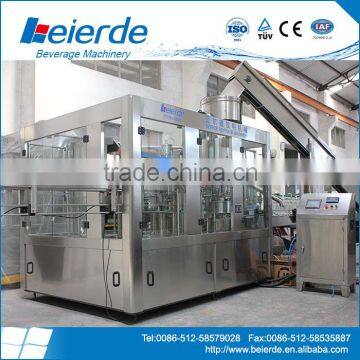

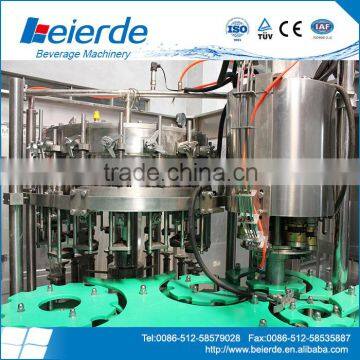

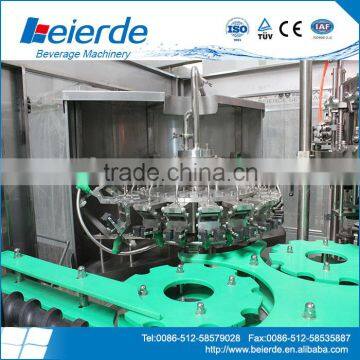

DGF 14-12-5 series washing, filling and capping three in one carbonated drink filling machine can suitable for filling and capping different shape and size bottles.
The capacity of the machine has included from 3,000 BPH to 24,000 BPH. Machine adoptsfrequency variable motor, world famous brand PLC and other electronic components, such as Mitsubishi, Siemens, Airtac etc.
| Machine model | DGF14-12-5 |
| Capacity | 3000-3500 BPH (500ml) |
| Suitable bottle type | PET bottle |
| Suitable cap type |
plastic screw cap |
| Filling liquid | carbonated drink, gas water, sparkling beverage |
| Filling Precision | 1% (Liquid Level) |
| Bottle conveying type | air conveying, bottle neck locking conveying |
| Bottle washing type | bottle neck locking, rotary type inside sterilized water washing |
| Bottle filling type | isobar pressure filling type, without leaking. |
| Bottle sealing type | magnetism type cap sealing |
A: DGF 14-12-5 series washing, filling and capping 3-in-1 carbonated drink filling machine
B: Water treatment system
C: Carbonated drink pre-treatment system
D: Carbonated drink mixing machine
E: Automatic bottle body dryer
F: Automatic labeling machine
G: Automatic date printer
H: Automatic PE film packing machine
I: Filled bottle conveying system
Model |
DGF16-16-5 |
CGF18-18-6 |
CGF24-24-8 |
Capacity (500ml) |
4000-5000 |
6000-7000 |
7000-8000 |
Washing position |
16 |
18 |
24 |
Filling position |
16 |
18 |
24 |
Capping position |
5 |
6 |
8 |
Suitable cap (mm) |
50-90 |
||
Suitable bottle(mm) |
150-310 |
||
Filling pressure |
0.3-0.7 |
||
Bottle/standard |
Circle or square |
||
Overall dimensions(mm) |
2760×2060×2700 |
2430×2060×2700 |
2800×2300×2700 |
Weigh(kg) |
3000 |
4000 |
5000 |
Power(kw) |
2.5 |
4 |
5 |
